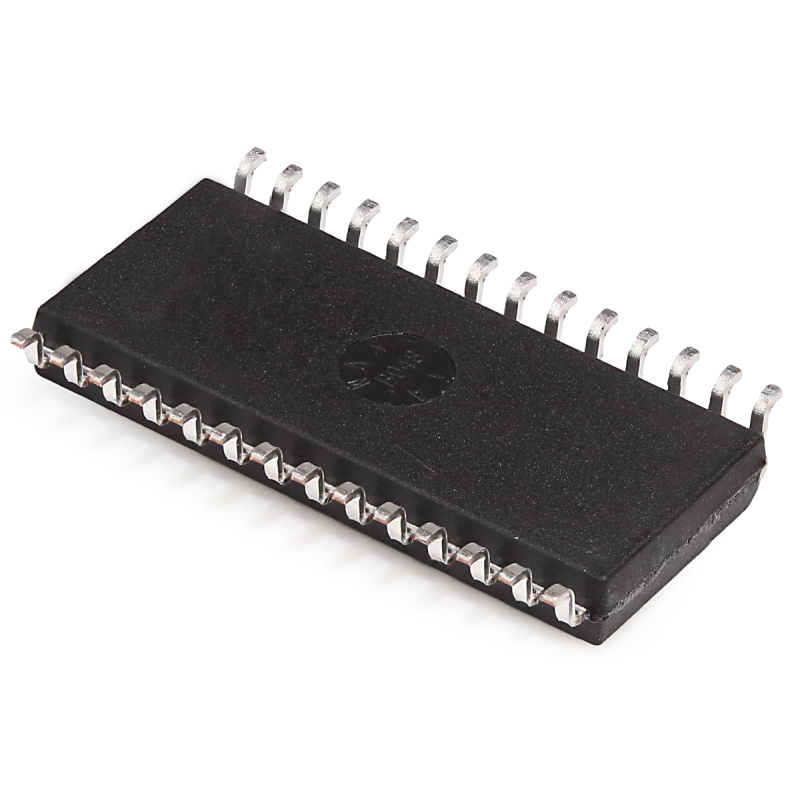

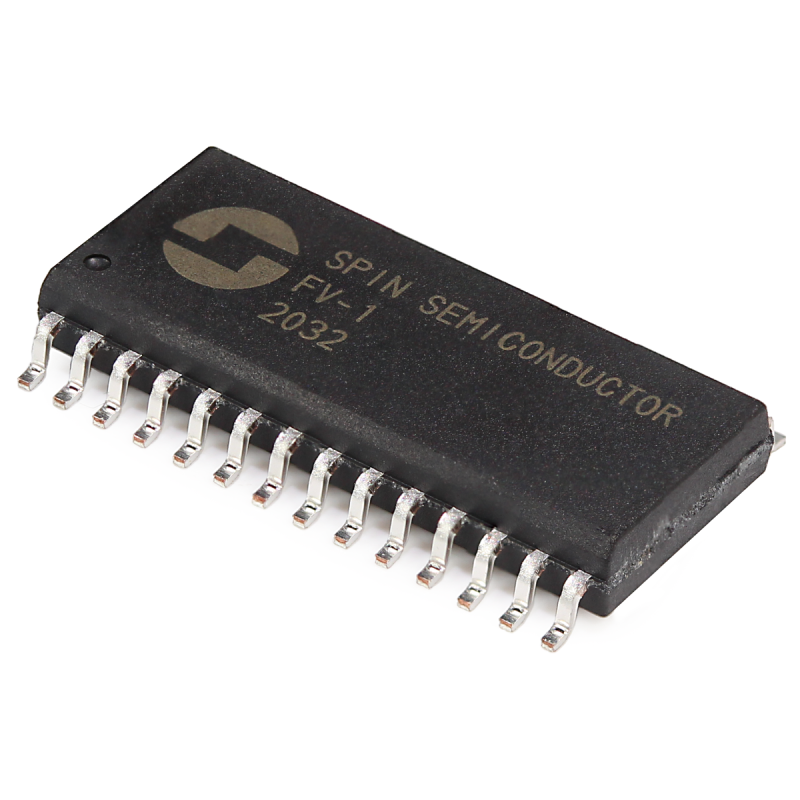

Check the listing for details. Integrated Circuit, Spin FV-1, DSP, Multi-Effect / Reverb. Condition: New. Listed at 17.50 USD. Product Details Integrated Circuit, Spin FV-1, DSP, Multi-Effect / ReverbP-QFV-1Sold individually The Spin Semiconductor FV-1 is a complete reverb solution in a single IC. With integrated stereo ADC and DACs, the FV-1 can be treated like any other analog component in your products signal path. The FV-1 can access a total of 16 programs, 8 are built into the internal ROM and the designer may elect to connect a serial EEPROM with 8 additional programs. By using an external EEPROM, the designer can distinguish his product from others by creating a custom program set without the need for a microprocessor in the system. With 3 potentiometer inputs, programs may have real time variable parameters such as decay time in a reverb, rate and depth in a chorus or frequency in a filter. These inputs are available as coefficients to your program and may be used independently of each other. The rich instruction set allows users to program effects of all kinds. With instructions like LOG and EXP, users can easily program audio expansion and compression routines. Integrated digital LFOs and ramp generators allow for programming chorus, flange and pitch shift. Features Integrated stereo ADC and DAC 8 internal demonstration programs + 8 external programs Easy customization with external EEPROM 3 potentiometer inputs for real-time parameter adjustment 3.3V operation 6 MIPS operation at Fs=48KHz 128 instructions/sample clock 32K words of delay RAM Internal PLL for Fs input clock Integrated Power-On-Reset circuit LOG and EXP instructions for dynamics Green assembly/RoHS compliant Applications Guitar Amps Mixers Effects Equipment Karaoke Consumer electronics Car audio Active loudspeaker crossover and flattening Industrial processes Programs Chorus-reverb Flange-reverb Tremolo-reverb Pitch shift Pitch-echo Reverb 1 Reverb 2 The DSP core of the FV-1 provides many advanced features and instructions that allow you to create advanced programs to make your product stand out. The DSP core consists of the MAC/ALU where all math and logic instructions take place, the LOG and EXP blocks that perform the log and exponential functions, a 32-register bank separate from the delay RAM and LFO and ramp generators that can offset memory addressing. Not what you're looking for? Check out our other products in this category:Pedal Parts / DIYSynth & Eurorack Parts / DIY -> MiscellaneousSynth & Eurorack Parts / DIY -> MiscellaneousIntegrated CircuitsIntegrated CircuitsClick here to visit our ebay store's homepage.MeasurementsProduct Measurements:Max. ADC-DAC HF response (-3dB)15.5 KHzMax. ADC equivalent input noise (A weighted)-93 dBMax. Analog input impedance120 KΩMax. Analog input voltage rangeAVDD+0.5Max. Analog output impedance200 ΩMax. Analog supply voltage3.5 VMax. Channel gain mismatch0.2 dBMax. Continuous current through VDD or GND±100 mAMax. Continuous output current±20 mAMax. DAC output noise (A weighted)-93 dBMax. Digital input voltage rangeDVDD+0.5Max. Digital supply voltage3.5 VMax. Input signal current±20 mAMax. Maximum input signal level3.0 VP-PMax. Maximum output signal level3.0 VP-PMax. Output clamp current±20 mAMax. Passband flatness±0.5 dBMax. Potentiometer control input impedance20 MΩMax. REFP supply current50 μAMax. Supply current (AVDD + DVDD)70 mAMax. THD (1KHz, -1db from clipping)0.03 %Max. Total internal memory delay (@32.768KHz sample rate)1.0 secondsMax. X1, X2 internal bias resistance14 MΩMax. X1, X2 internal capacitance15 pFMaximum power dissipation300 mWMin. ADC-DAC HF response (-3dB)14.5 KHzMin. Allowable load resistance10 KΩMin. Analog input impedance80 KΩMin. Analog input voltage range-0.5Min. Analog output impedance50 ΩMin. Analog supply voltage-0.5 VMin. Digital input voltage range-0.5Min. Digital supply voltage-0.5 VMin. Maximum input signal level2.6 VP-PMin. Maximum output signal level2.6 VP-PMin. Potentiometer control input impedance10 MΩMin. REFP supply current30 μAMin. SDA and SCK internal pull up - Typical3.75 KΩMin. Supply current (AVDD + DVDD)40 mAMin. X1, X2 internal bias resistance7 MΩMin. X1, X2 internal capacitance8 pFPackage28 SOIC 300 MILStorage temperature range-50 °C through 150 °CTyp. ADC equivalent input noise (A weighted)-97 dBTyp. Analog supply voltage3.3 VTyp. DAC output noise (A weighted)-97 dBTyp. Digital supply voltage3.3 VTyp. Negative reference0 VTyp. Operating temperature0 °C through 70 °CTyp. Positive reference3.3 VTyp. Supply current (AVDD + DVDD)55 mATyp. THD (1KHz, -1db from clipping)0.015 %Packaging Information:Packaging Dimensions0.708 in. x 0.407 in. x 0.089 in.Weight (Packaging)0.0032 lbs.About UsAbout Amplified Parts:Backed by over 30 years of experience serving the electronic hobbyist market, Amplified Parts® provides the parts you need to modify, repair, or build your own audio and musical instrument equipment, from transistor radios to vacuum tube amplifiers, guitar pedals, and modular synthesizers. Our mission is to provide our customers with high quality products from an inventory of over 12,000 unique items, and to share our expertise via our large library of tech articles and equipment build guides.Whether you are building cutting-edge equipment or restoring classic gear with historical accuracy, Amplified Parts® has what you need.We typically ship the same day if your order is placed before 12:00pm Arizona Time Monday through Friday excluding holidays.All packages are insured and we assume responsibility for the shipment until the carrier shows delivery.Click here to visit our ebay storefront.
