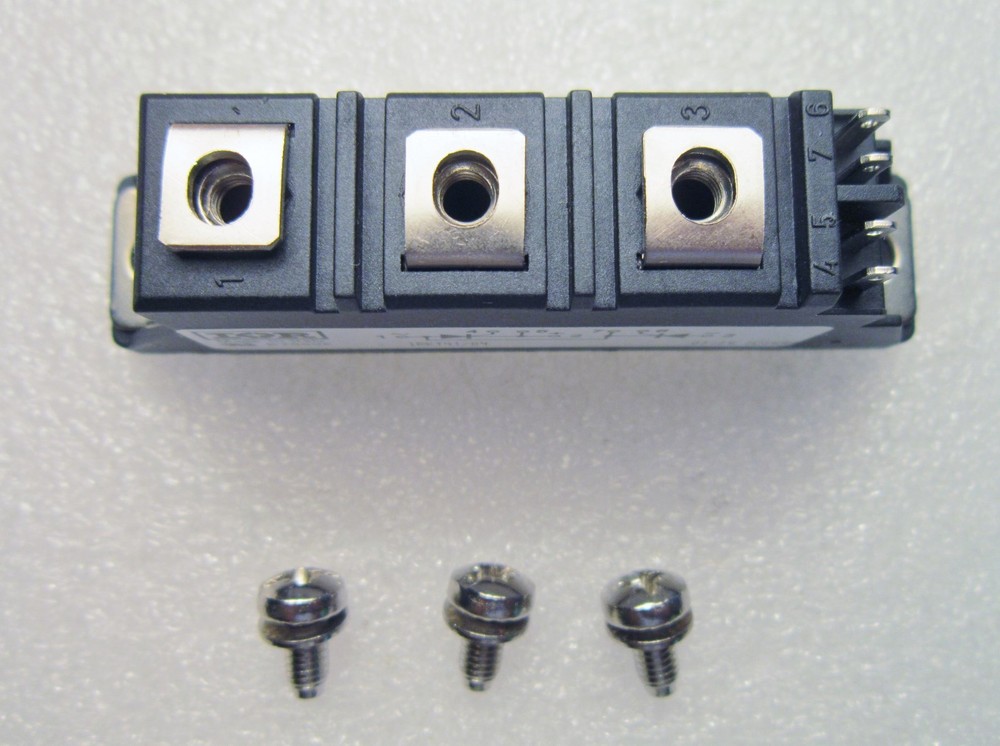

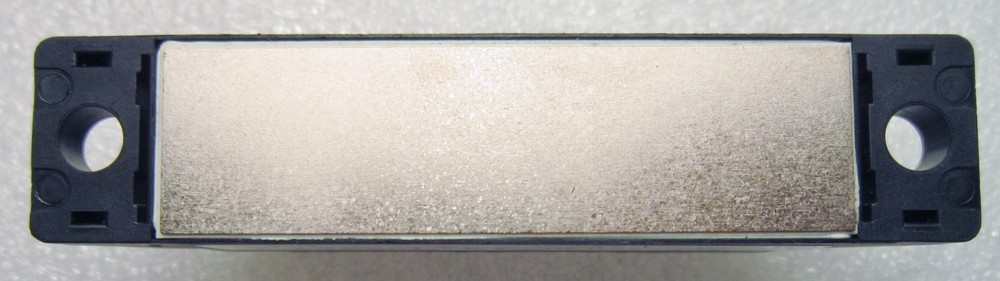

Check the listing for details. IRK41/04 INTERNATIONAL RECTIFIER MODULE THYRISTOR. Condition: New – Open box. Listed at 29.99 USD. INTERNATIONAL RECTIFIER IRKT41/04 Silicon Controlled Rectifier, 100A I(T)RMS, 40000mA I(T), 400V V(DRM), 400V V(RRM), 2 Element, TO-240AA SPECIFICATIONS: Trigger Device Type SCR Case Connection ISOLATED Configuration SERIES CONNECTED, 2 ELEMENTS Critical Rate of Rise of Off-state Voltage-Min 500.0 V/us DC Gate Trigger Current-Max 150.0 mA DC Gate Trigger Voltage-Max 2.5 V Desc. of Quick-Connects 2G-2GR Desc. of Screw Terminals A-K-AK Holding Current-Max 200.0 mA JEDEC-95 Code TO-240AA JESD-30 Code R-PUFM-X3 Leakage Current-Max 15.0mA Non-Repetitive Pk On-state Cur 890.0 A Number of Elements 2.0 Number of Terminals 3 Operating Temperature-Min -40.0 Cel Operating Temperature-Max 125.0 Cel Package Body Material PLASTIC/EPOXY Package Shape RECTANGULAR Package Style FLANGE MOUNT Repetitive Peak Off-state Leakage Current-Max 15000.0 µA Repetitive Peak Off-state Voltage 400.0 V Repetitive Peak Reverse Voltage 400.0 V RMS On-state Current-Max 100.0 A Sub Category Silicon Controlled Rectifiers Surface Mount NO Terminal Form UNSPECIFIED Terminal Position UPPER Additional Feature UL APPROVED Top of Form
