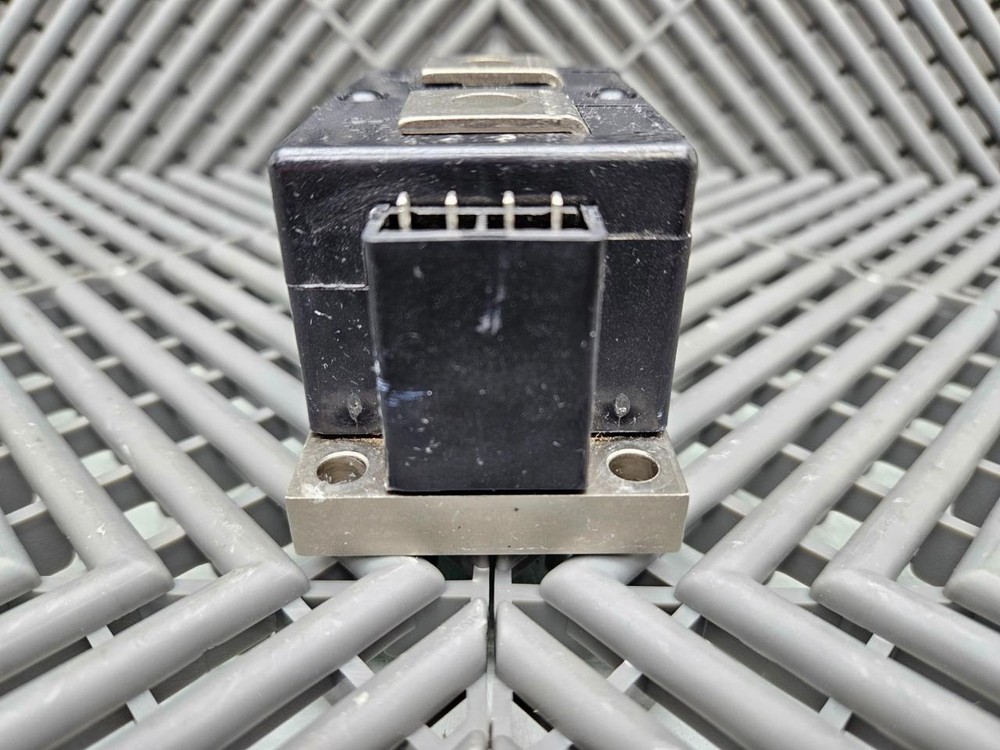

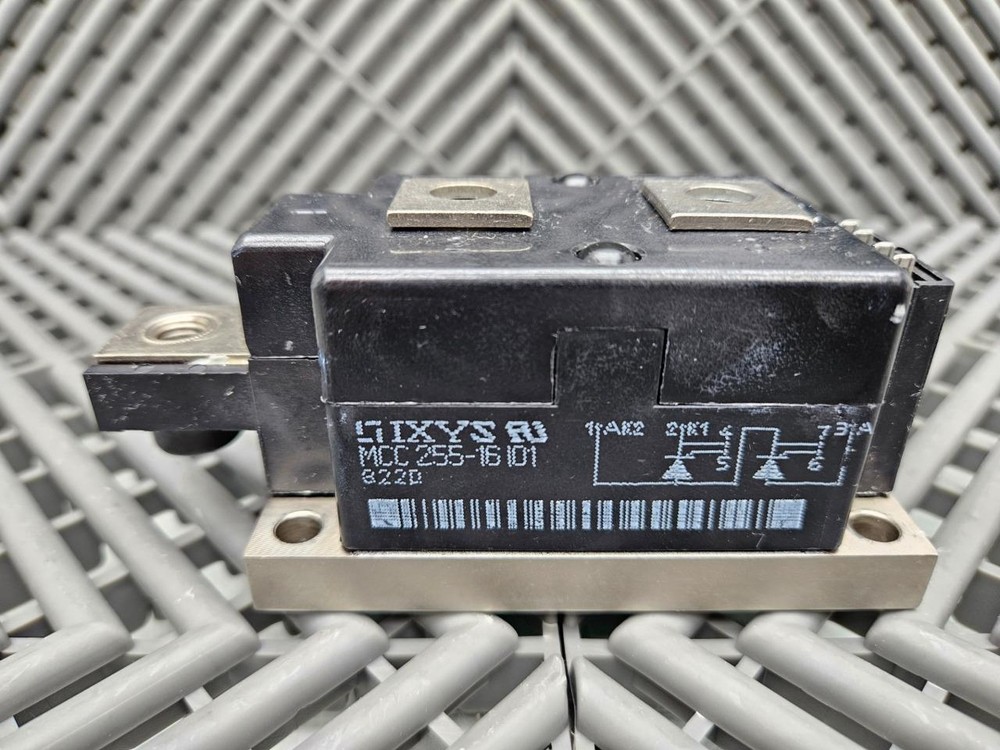

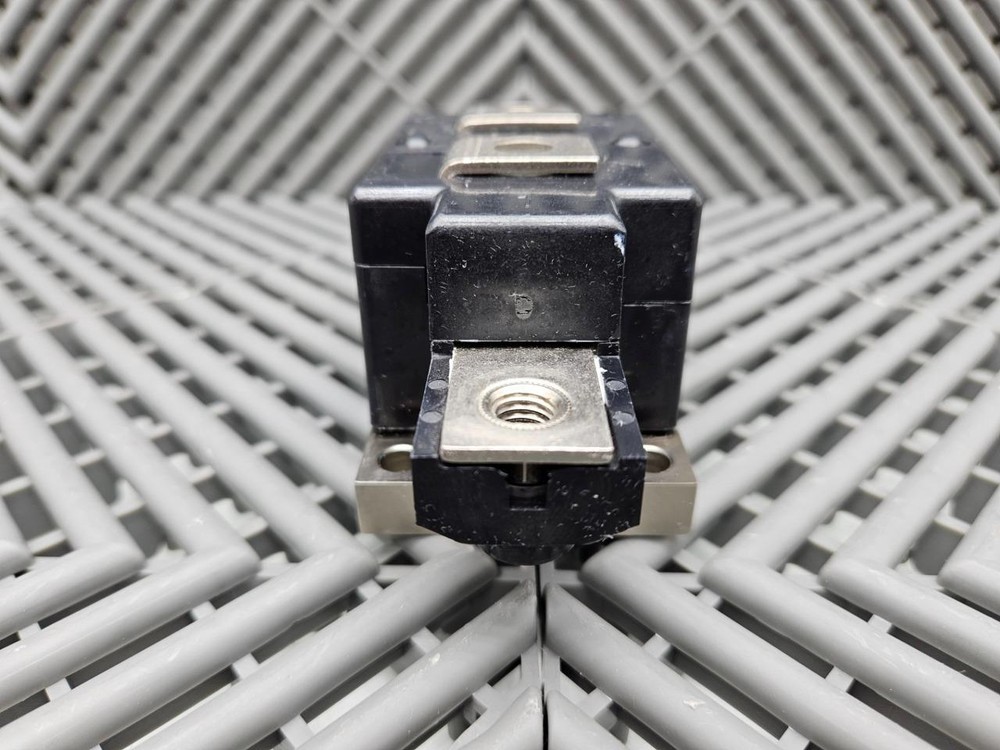

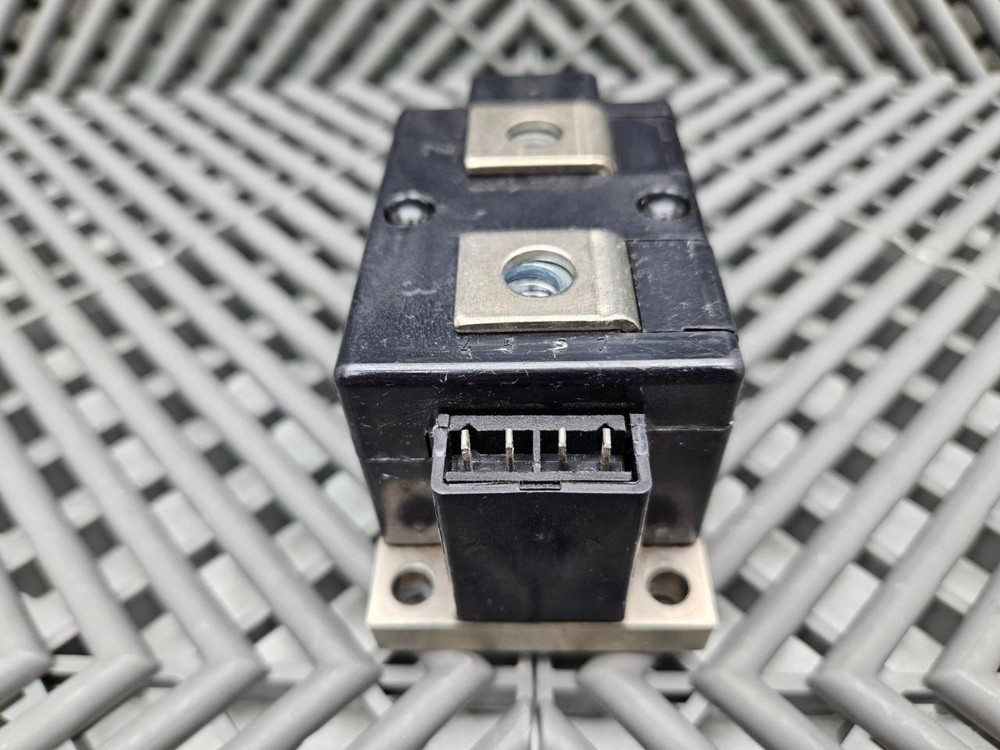

IXYS MCC 255-16 IO1 Thyristor Power Module

Name: IXYS MCC 255-16 IO1 Thyristor Power Module
SKU: 178051717898
Price: 29.89 USD
Availability: InStock

$20.92

$29.89 -30%

Brand IXYS

Condition Used

Item ID 178051717898

Brand	IXYS
Country of Origin	China
Mounting Style	Chassis Mount / Base Mount
MPN	MCC255-16IO1
Type	Thyristor Module
Configuration	Single Phase AC Controller (Anti-Parallel)
Cooling Method	Heatsink Required
Number of Phases	1
Product Series	MCC
Terminal Type	Screw
Package / Case	Module
Repetitive Peak Reverse Voltage (VRRM)	1600 V
Average On-State Current (IT(AV))	255 A
Number of Thyristors	2
Operating Temperature (Tj)	-40ÃÂ°C to +125ÃÂ°C
On-State Voltage Drop (VT)	1.87 V
Gate Trigger Current (IGT)	150 mA
Holding Current (IH)	250 mA
Non-Repetitive Peak On-State Current (ITSM)	3700 A
Isolation Voltage	3600 V
RMS On-State Current (IT(RMS))	400 A
Repetitive Peak Off-State Voltage (VDRM)	1600 V
Peak Gate Power (PGM)	20 W
Average Gate Power (PG(AV))	0.5 W
Peak Gate Voltage (VGM)	20 V
Latching Current (IL)	500 mA
Thermal Resistance Junction to Case (Rth(j-c))	0.08 °C/W
Thermal Resistance Case to Heatsink (Rth(c-s))	0.04 °C/W
Storage Temperature (Tstg)	-40°C to +125°C
Weight	400 g
Module Height	42 mm
Module Length	130 mm
Module Width	61 mm
Mounting Hole Diameter	6 mm
Contact Finish	Tin (Sn)
Operating Frequency	50/60 Hz
dI/dt	200 A/µs
dV/dt	1000 V/µs
Gate Trigger Voltage (VGT)	3 V
Part Status	Active

Check the listing for details. IXYS MCC 255-16 IO1 Thyristor Power Module. Condition: Used, Made in China. Listed at 29.89 USD. Here is an IXYS MCC 255-16 IO1 Thyristor Power Module. This item is in good overall condition with minimal if any cosmetic blemishes.
