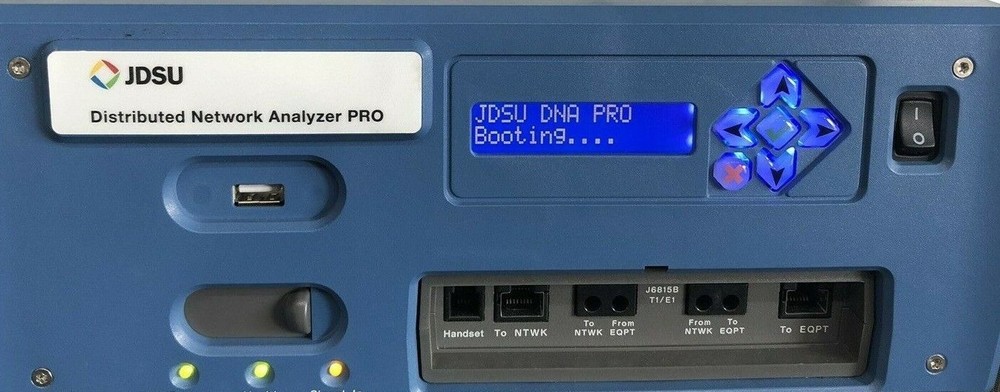

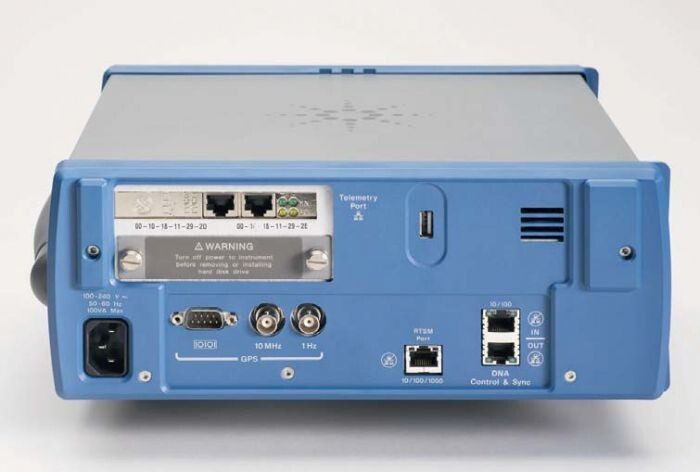

Check the listing for details. J6803B DNA PRO Distributed Network Analyzer (Used, Working Pull). Condition: Used. Listed at 1500.00 USD. The DNA PRO is a portable analyzer with a built-in acquisition system that supports any available LAN or WAN LIM. It includes an embedded processor with removable hard disk drive storage and a built-in power supply. Should testing with additional interfaces be necessary, the DNA PRO also supports multiple, directly attached DNAs with full-time synchronization between the test interfaces. Network Analyzer software running on the embedded processor is used to control the internal acquisition system and attached DNAs. The DNA PRO is accessed and controlled from an external PC via a Windows-based Web browser, Instrument Manager, or Network Troubleshooting Center software. • Built-in controller: - 1.6 GHz Intel Pentium M CPU - 1 GB DDR 333MHz memory • Removable 120 GB hard disk drive • Telemetry ports: - Single-port 10/100/1000 Ethernet (default) - Combo 10/100 Ethernet/ 56kbps modem - Dual-port 10/100/1000 Ethernet - Optional 802.11a/b/g wireless LAN (region-specific) • Two USB 2.0 ports • Time Synchronization: - GPS: via 10 MHz (75 Ohm), 1 pps (75 Ohm) & RS-232C from external GPS receiver - NTP: Network Time Protocol via 10/100 Ethernet telemetry port - From external NTP server • Network Analyzer software pre-loaded on built-in controller • Network Analyzer Instrument Manager (for downloading to controlling PC) • System Recovery CD • Run-Time Store to Media • LIMs can be hot swapped • Capture buffer 512MB • Time stamp resolution 100 sec • 100% line rate filtering – supports up to 32 filters Additional Features: Built-in controller with 1.6 GHz Intel Pentium M CPU1 GB DDR 333 MHz memoryRemovable 120 GB hard disk driveTelemetry/Auxiliary ports: Single-port 10/100/1000 Ethernet (default)Dual-port 10/100/1000 EthernetCombo 10/100 Ethernet/56kbps modemTwo USB 2.0 portsTime Synchronization:GPS: via 10 MHz (75 Ohm), 1 pps (75 ohm) & RS-232C from external GPS receiverNTP: Network Time Protocol via 10/100 Ethernet telemetry portFrom external NTP serverNetwork Analyzer software pre-loaded on built-in controllerNetwork Analyzer Instrument Manager (for downloading to controlling PC)System Recovery diskRun-Time Store to MediaLIMs can be hot swappedCapture buffer 256MBTime stamp resolution 100 nsec100% line rate filtering-supports up to 32 filtersThe JDSU J6803B DNA PRO is a portable analyzer with a built-in acquisition system that supports any available LAN or WAN LIM. It includes an embedded processor with removable hard disk drive and a built-in power supply. Should testing with additional interfaces be necessary, the DNA PRO also supports multiple, directly attached DNAs with full time synchronization between the test interfaces.Network Analyzer software running on the embedded processor is used to control the internal acquisition system and attached DNAs. The DNA PRO is accessed and controlled from an external PC via a Windows-based Web browser, Instrument Manager or Network Troubleshooting Center software. Track Page Views WithAuctiva's Counter
