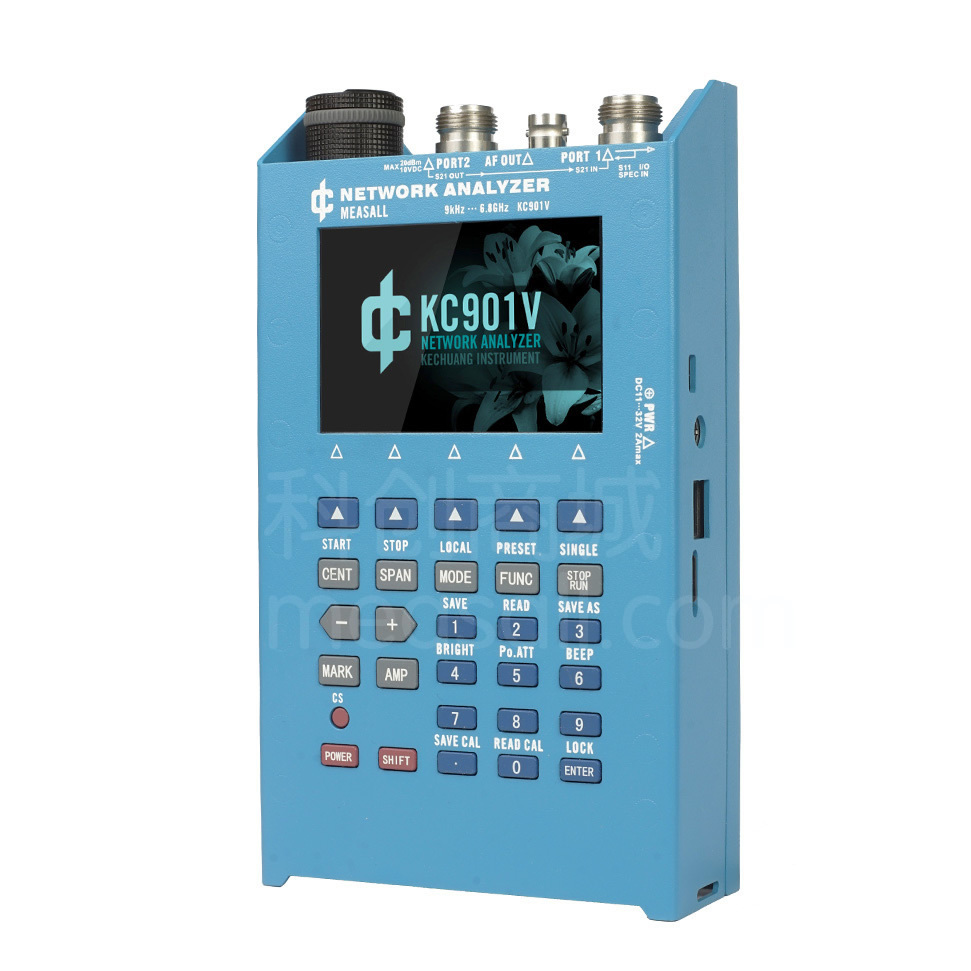

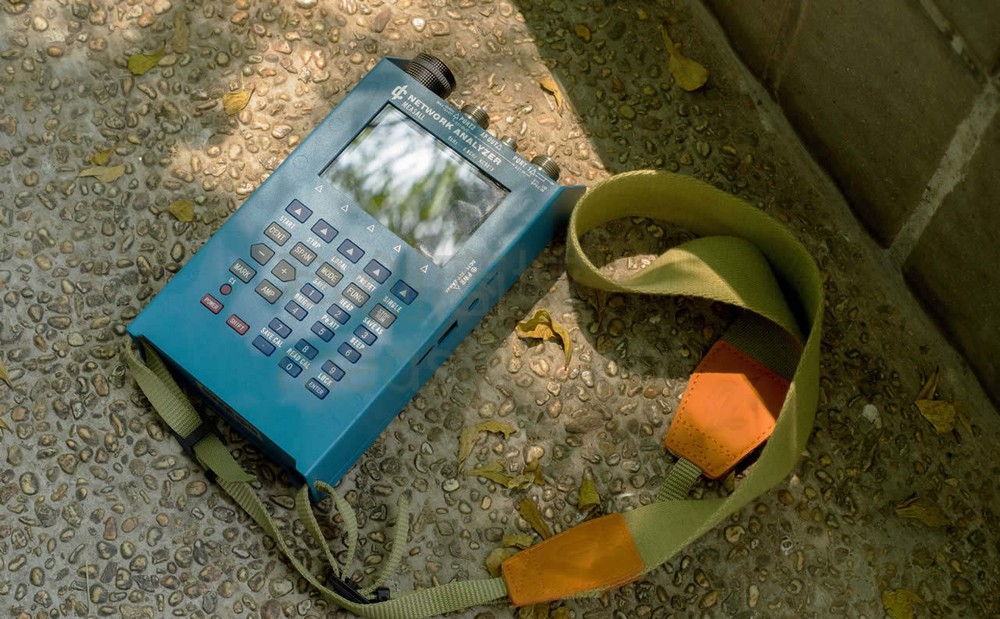

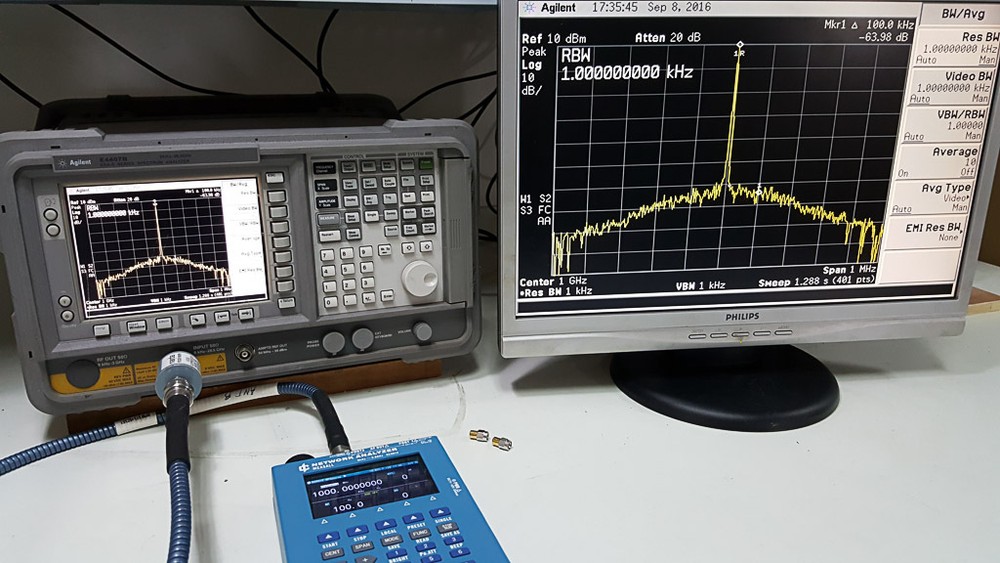

Check the listing for details. KC901V 6.8GHz Scalar Network Analyzer Field Strength Meter Sweep Frequency. Condition: New. Listed at 1945.00 USD. KC901V 6.8 GHz scalar network analyzer Field Strength meter Sweep Frequency Generator KC901V 6.8GHz Handheld Network Analyzer The KC901V is a versatile RF multimeter whose main function is the single port vector network analyzer (VNA, S11). It supports vector transmission test (S21 scalar and simple vector), simple spectrum analyzer, field strength meter, RF signal source, Audio signal source and other functions. KC901V has a professional practicality, and includes support for 4 hours of continuous work, including the battery, the volume of only 1 cbm, weighs only 1 kg, to bring users a new free experience. ◆ Main functions Transmission test (scalar: debug filter, amplifier, check antenna directivity, vector: basic phase change trend) Reflectance Test (Vector: Debug impedance matching, check the quality of the antenna feed system) Spectrum display and field strength observation *** (test station radio performance, find the source of interference) The signal of a certain frequency point is output separately ◆ Recommended Applications KC901V is mainly used for detecting and debugging RF circuit and antenna feeder system. In most frequency bands, can also be field strength measurement, interference search and so on. This instrument is lightweight and powerful, able to previously through a large laboratory equipment to complete the measurement work easily transferred to the scene. 901V is an electronic engineer worthy of the test tools, but also as a professional communications engineering, radio and television launch pad technical staff standing equipment. ◆ Specifications (for reference only) project Test Conditions parameter Remarks lowest typical highest Frequency range is valid 9KHz 6.8 GHz SPEC mode can be set Lt; / RTI & gt; 7 GHz Scanning Range 1 kHz 6.8 GHz Number of scanning points 450pt 3150pt Local operation Frequency resolution All scanning class function 1Hz spectrum analyzer All single frequency function 0.1Hz signal source and so on Level resolution of 0.01dB Phase resolution of 0.01 ° The scanning speed RBW = 30KHz, every point 1.2ms RBW = 10 kHz, 1.5 ms per point RBW = 3 kHz, 2 ms per point RBW = 1 kHz, 3 ms per point RBW = 30K, 450pt each screen 0.5s Output level 1MHz-5GHz -10dBm 0dBm 6dBm 1 port 1MHz-5GHz 0dBm 6dBm 10dBm 2 ports 5 GHz - 6.8 GHz - 20 dBm 0 dBm 1 port 5 GHz - 6.8 GHz - 10 dBm 6 dBm 2 ports Output attenuation 0dB 25dB 55dB 2 ports 1 port Sensitivity 1MHz-5GHz -107dBm 1 port RBW = 1KHz 5 GHz to 6.8 GHz to 94 dBm Available dynamic range for transmission measurements 1MHz to 500MHz 100dB Equivalent to the transmit and receive channel isolation 500MHz-2GHz 70dB 2GHz-6.8GHz 50dB Transmission Measurement Uncertainty in Series 10dB Attenuator After Pass-Through Calibration, 0.3 + 0.05L at Insertion Loss
