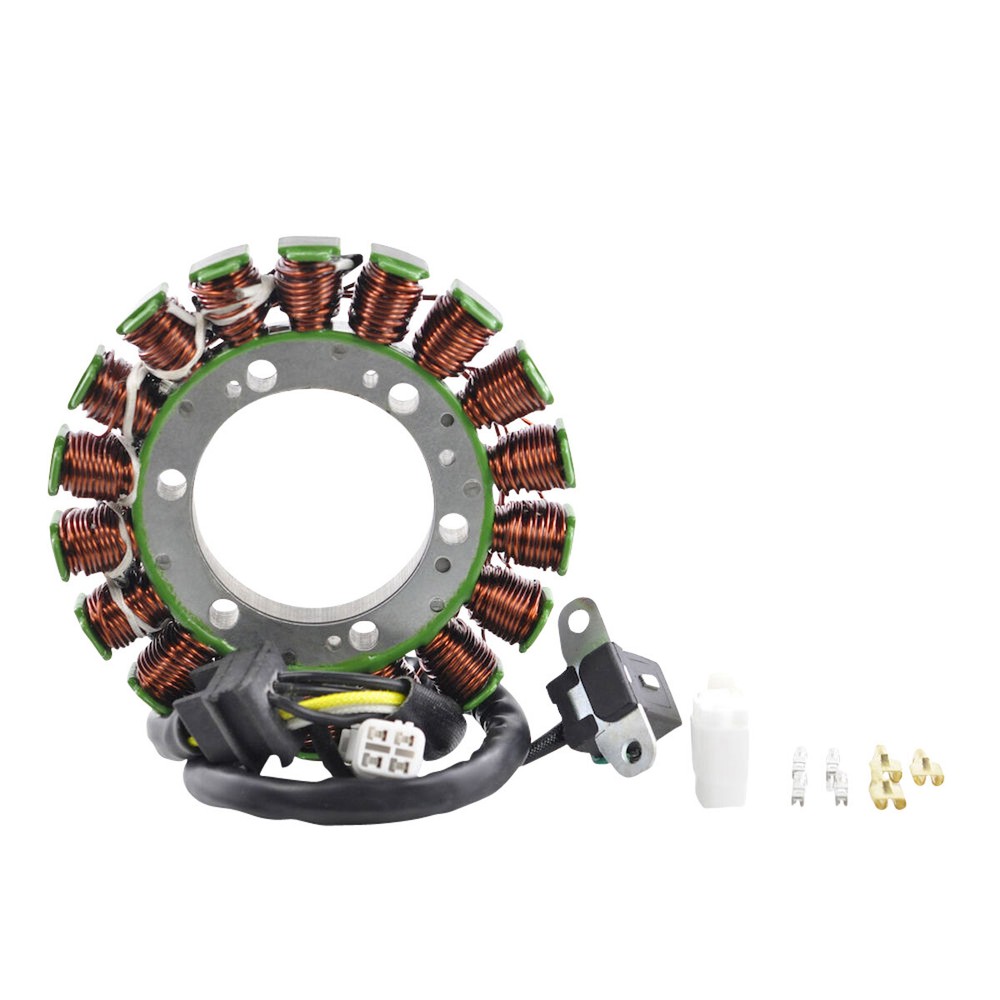

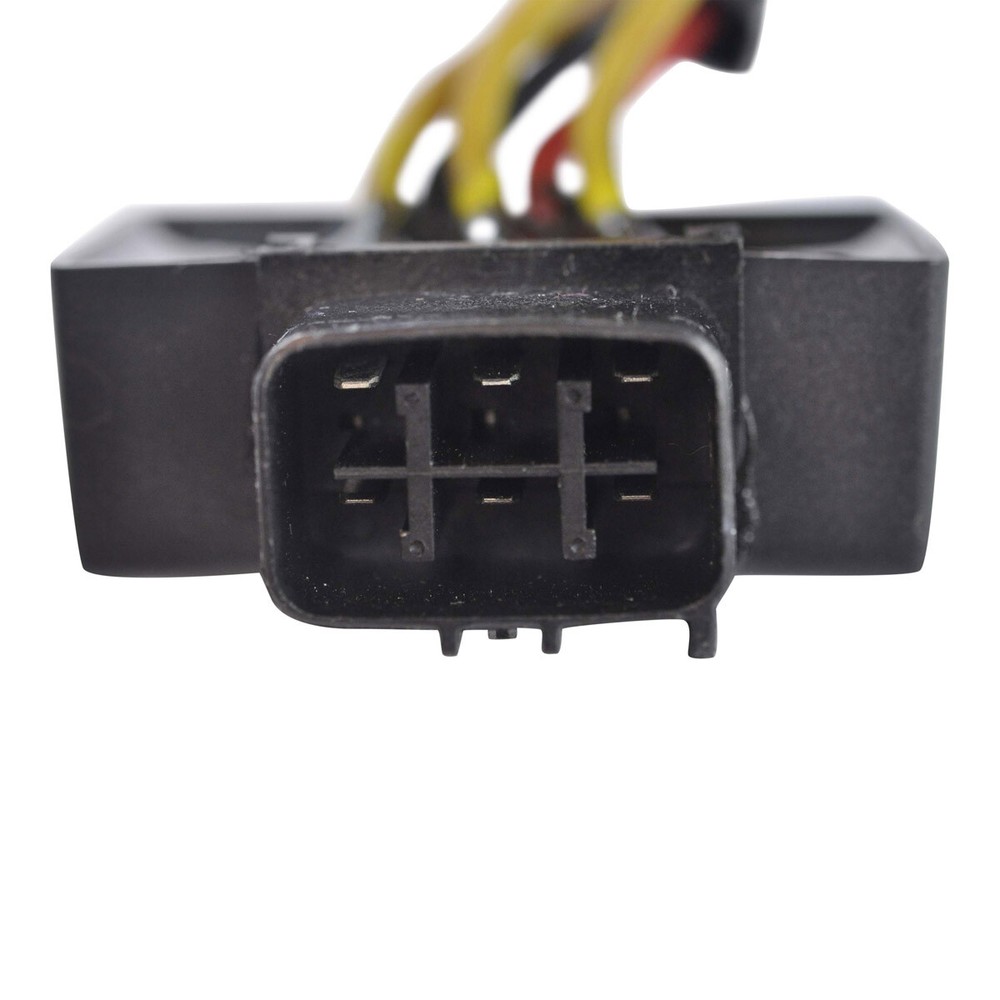

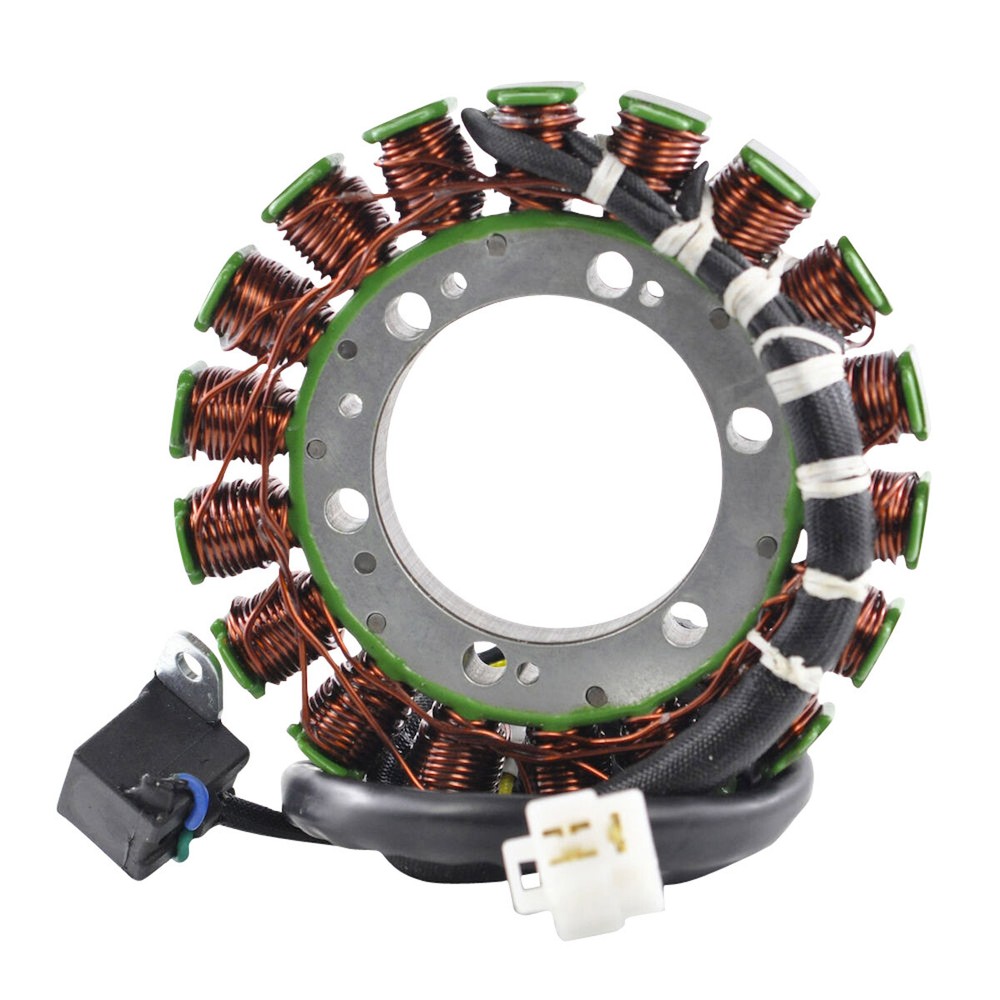

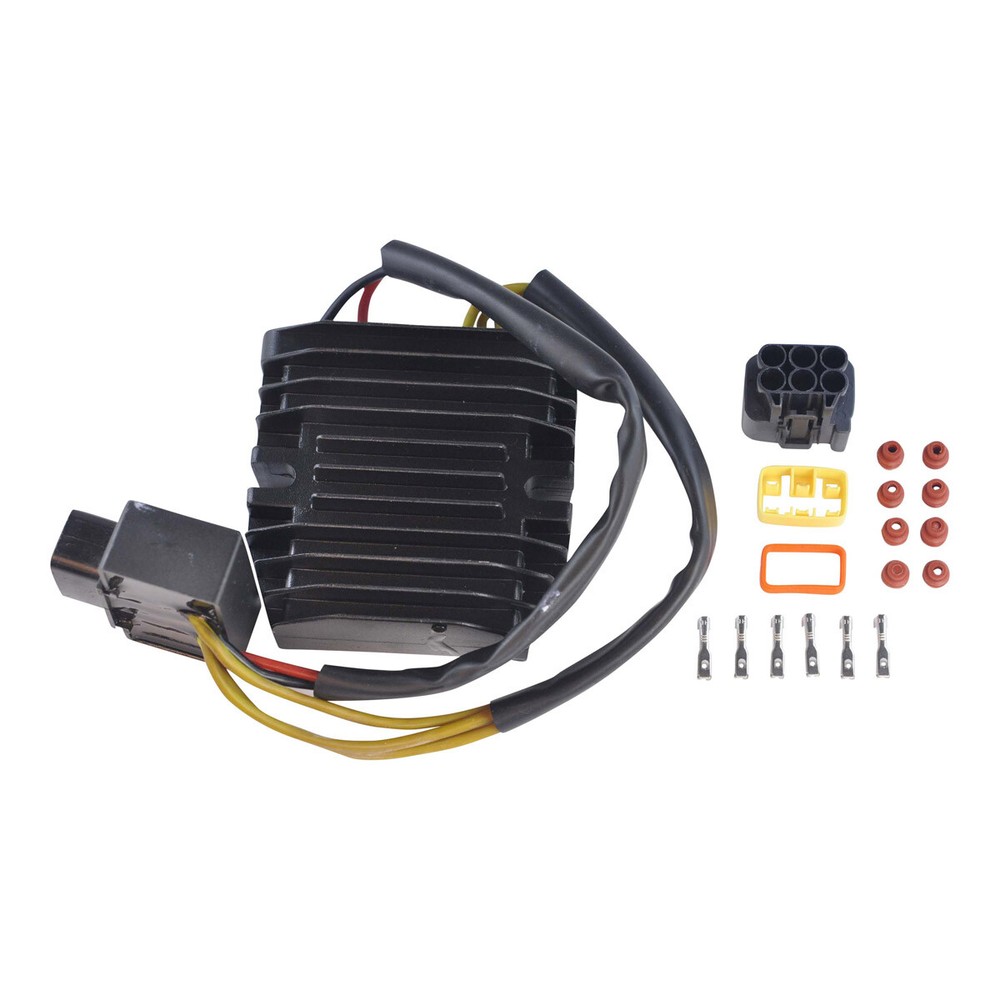

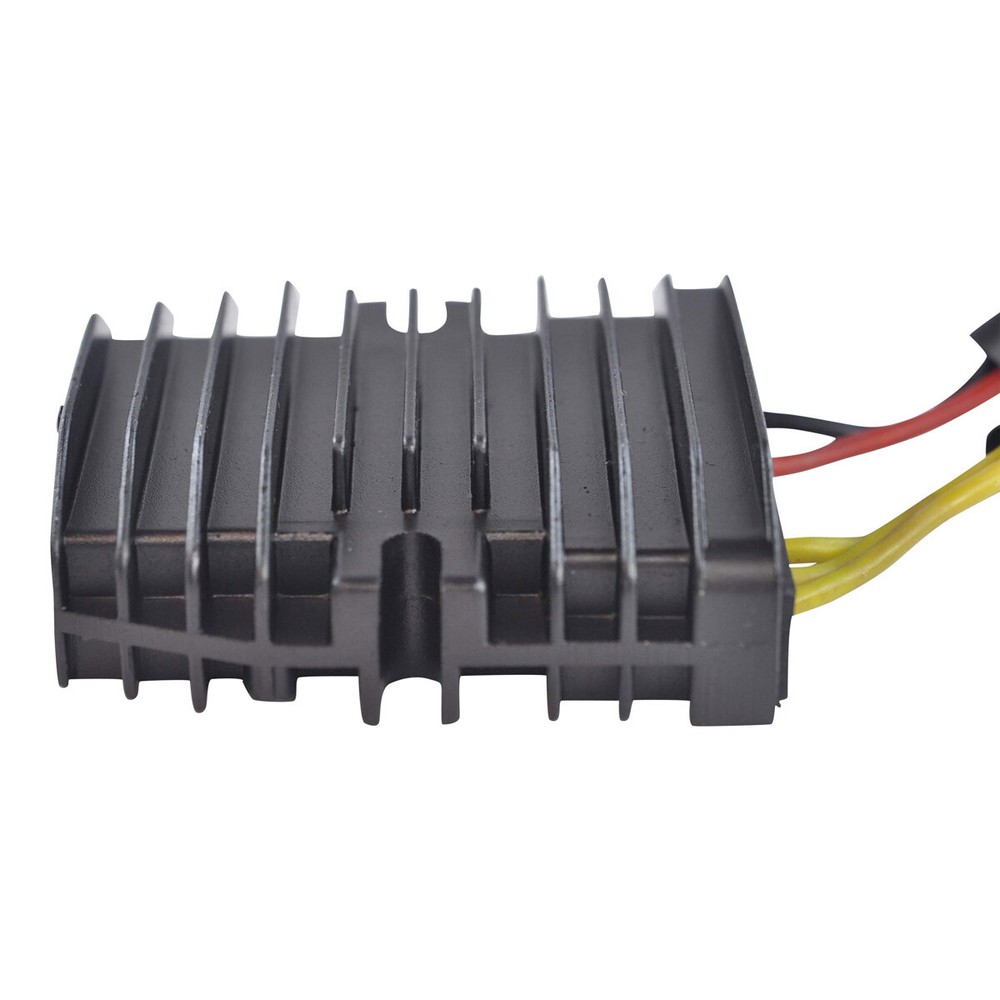

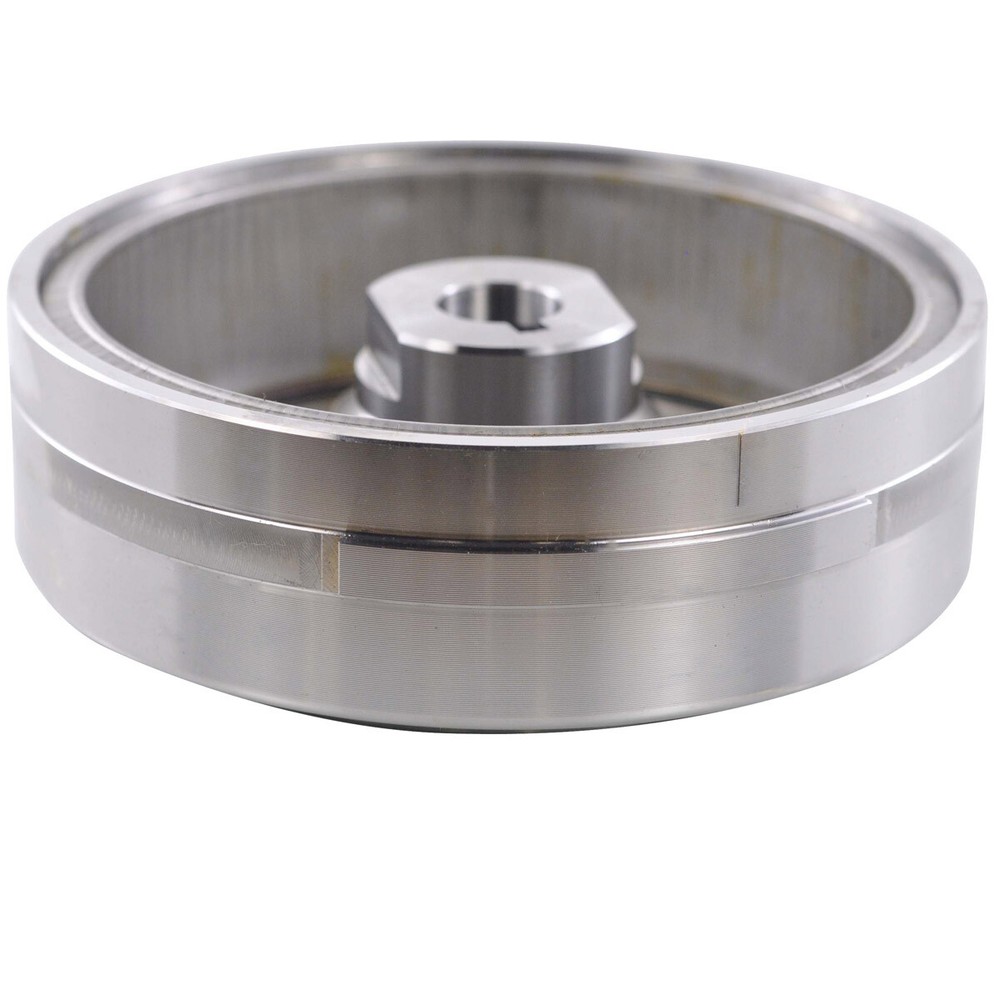

Check the listing for details. Kit Stator + Flywheel Mosfet Regulator Rectifier fits Suzuki LTA 400 Eiger 2004. Condition: New. Listed at 517.00 USD. Free shipping in USA Same day shipping visit our store > find parts for : ATV / UTV / SXS Motorcycles Snowmobiles Watercraft Other Menu Store Home find parts for ATV / UTV / SXS Motorcycles Snowmobiles Watercraft Other IMPORTANT - Important notice about the product.--> Kit Stator + Improved Magneto Flywheel + Mosfet Regulator Rectifier for Suzuki LTA 400 Eiger / LTF 400 Eiger 2002-2007&nbsp KEY FEATURES&nbsp OEM pick-up pulsar coil has a resistance of 200 ohms. Our stator has a 500 ohms pick-up pulsar coil. Having more resistance helps the vehicle to start easier in cold weather. Our stator will then work as an improved OEM direct replacement stator. Direct replacement to your original unit. Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Highest grade copper windings, resistant to 200 degrees Celsius. All product shipped are tested. . All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part. DESCRIPTION&nbsp Why use Mosfet Enhanced technology? Runs cooler Runs much cooler than the traditional Shunt voltage regulator rectifier. Saves gas Less load on the stator, less work, less fuel is used and you save. Regulated energy The power charging your battery is steadier and smooth. Extended battery life Extends the battery’s life and cold cranking capacity. More engine power Removes stator load resulting in more engine power. Optimized power Optimize power delivery by switching the stator coils on or off. How does a Mosfet regulator rectifier works ? --> Brand new Kit Magneto Flywheel + Stator + Mosfet Voltage Regulator Rectifier Direct replacement to your original unit Plug-and-play, direct fit, easy installation All shipped products are tested Brand new stator Highest grade of lamination materials Highest grade of copper winding, resistant to 200 degrees Celsius Connector, pick up pulsar coil, rubber grommet included Mosfet Voltage Regulator Rectifier With designThis product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part. STOP BURNING YOUR REGULATOR RECTIFIER ! It is time to update or replace your voltage regulator with the advanced MOSFET type. This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase. It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off. Higher grade of electronic components Improved heat sink and charging capabilities We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues. Magneto flywheel rotor RMSTATOR is offering a new replacement flywheel. This flywheel can be used as a direct replacement to the OEM. Why our RM11502 flywheel is improved 2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine. The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs. EXPOSED EPOXY DETACHED MAGNET The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently. Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs. SEAL THAT PROTECTS THE MAGNET’S EPOXY FROM OIL ADDITIVES PAcked with these technologies&nbsp --> Vehicle models fitment&nbsp Suzuki LTA 400 Eiger -- 2002-2007Suzuki LTF 400 Eiger -- 2002-2007 OEM part replacement&nbsp RM23017-R00 Specifications&nbsp Dimensions Stator: Interior diameter: 53 mm Exterior diameter: 119 mm Thickness: 15 mm Other specifications: Number of wires: 7 Number of plugs: 4 Number of pins: 7 Wire to wire resistance: Alternator : 0.4 ohms+/-20% Alternator : O.L. ON DISPLAY Pick up Coil : 200 ohms+/- 20% Position Sensor : 0.2 ohms+/- 20% Mosfet Voltage Regulator Rectifier: Dimensions : Width : 93mm Length : 102mm Height: 27mm Fixation holes center to center : 72mm Other specifications : Number of plugs : 1 Number of pins : 6 Minimum Charging Voltage: 14.5V +/- 0.5V Maximum Charging Current: 50A/500W Open Circuit Voltage: Operation Temperature: -20? to 85? instructions&nbsp Before installing your new stator Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010". Before attempting to start your vehicle adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010??. Voltage regulator rectifier Before installing your new regulator/rectifier Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors. Flywheel Dimensions: Exterior Diameter: 143 mm Interior Diameter: 120 mm Interior Diameter Center Housing: 18 mm Exterior Diameter Center Housing: 42 mm Thickness (exterior): 12 mm Thickness (interior): 13 mm SHIPPING&nbsp We deliver 99.4% of our orders within the specified time period. If your item is not available in our main Colorado facility, we still guarantee that your order will be delivered within the specified time period. If your item is not delivered within this time period, we will offer you a 5.00$ discount on your order. This guarantee applies to shipments delivered in the 48 continental USA states, excluding PO boxes. Videos&nbsp Racetech around the world --> customer service AsK seller a question duties & taxes International Buyers: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. RaceTech Electric was founded in 2011 by three motorcycle industry veterans in San Diego, CA. The group has over 20 years combined in the Motorcycle industry. Customer servicePart request About usAbout seller pageAdd seller to favorite
