Return shipping will be paid by Seller
All returns accepted Returns Accepted
Item must be returned within 30 Days
Refund will be given as Money Back
Brand Geekworm
Type Does not apply
Item model number TB-2022-51
Product Dimensions 3.62 x 2.56 x 1.65 inches
Item Dimensions LxWxH 3.62 x 2.56 x 1.65 inches
Series KVM-A3
Color Black
Item Weight 11.3 ounces
Connectivity Technology Ethernet, HDMI
Wireless Communication Standard 802.11b
Model Name KVM-A3
Manufacturer Geekworm
Wireless Type 802.11b
Country of Origin China
Included Components function(f) {var _np=(window.P._namespace("DetailPageProductOverv

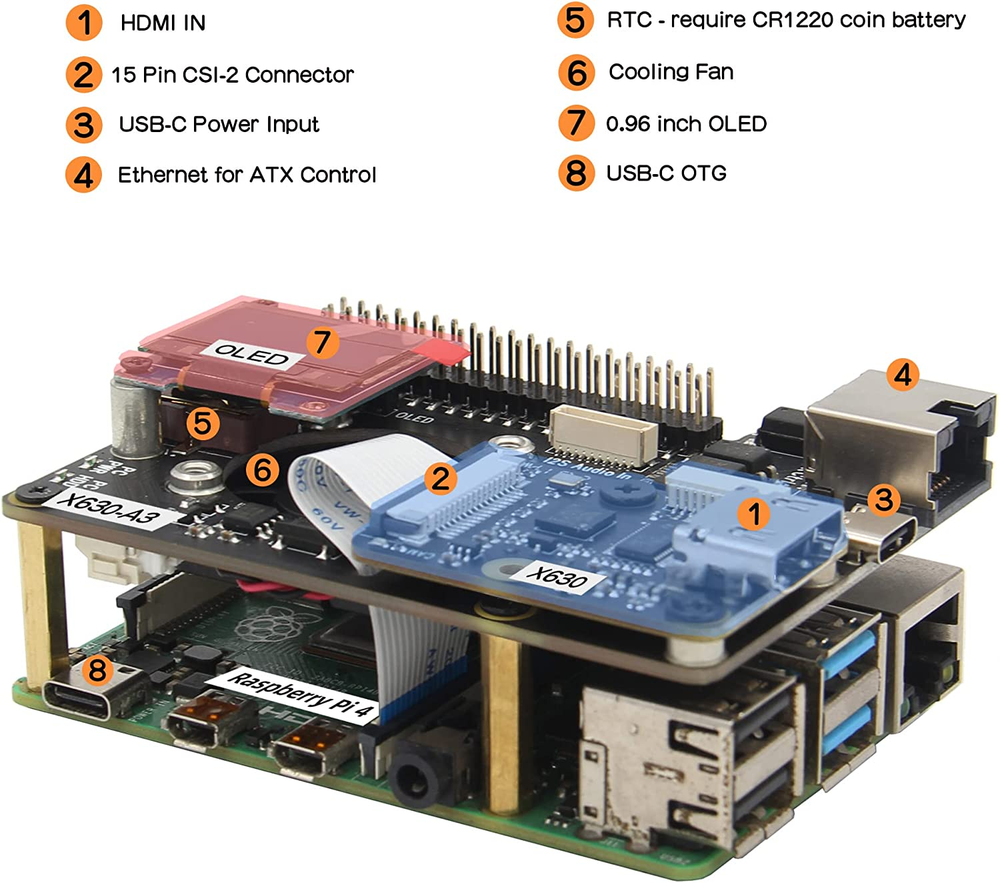

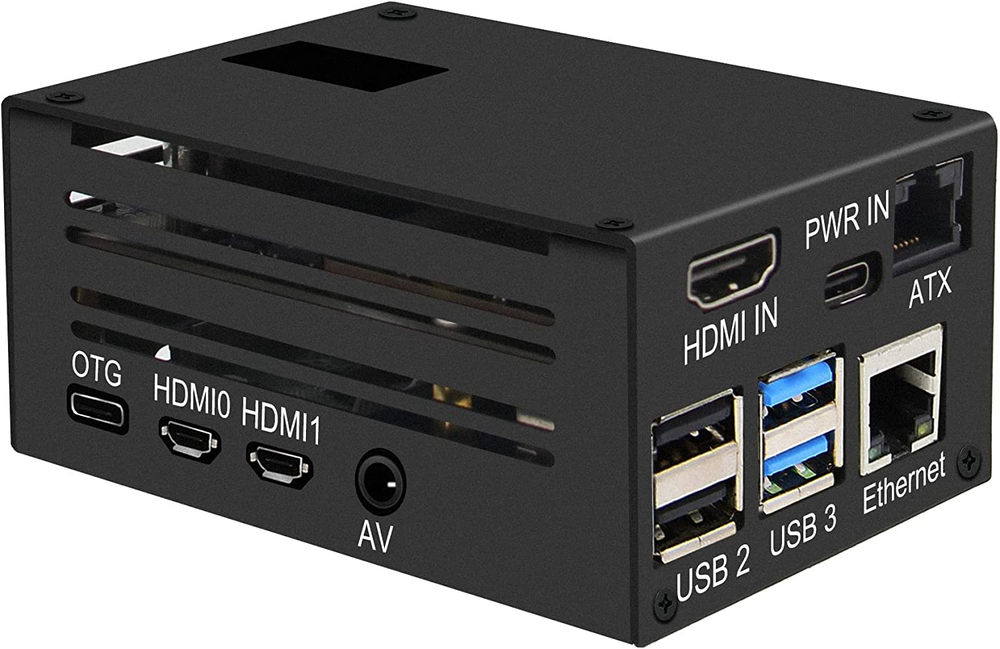

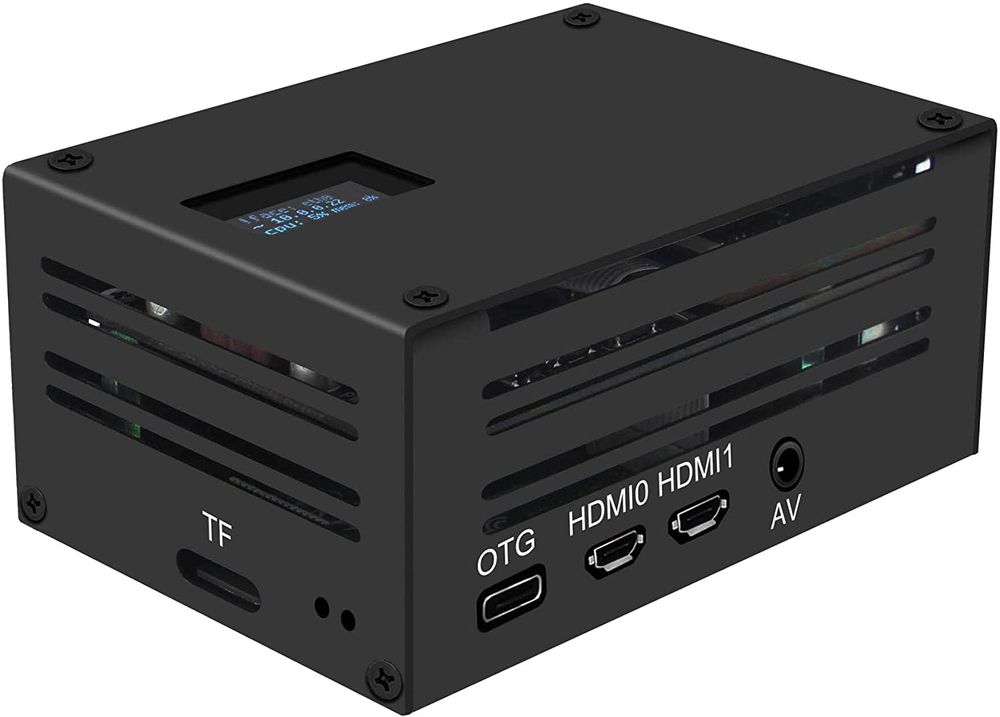

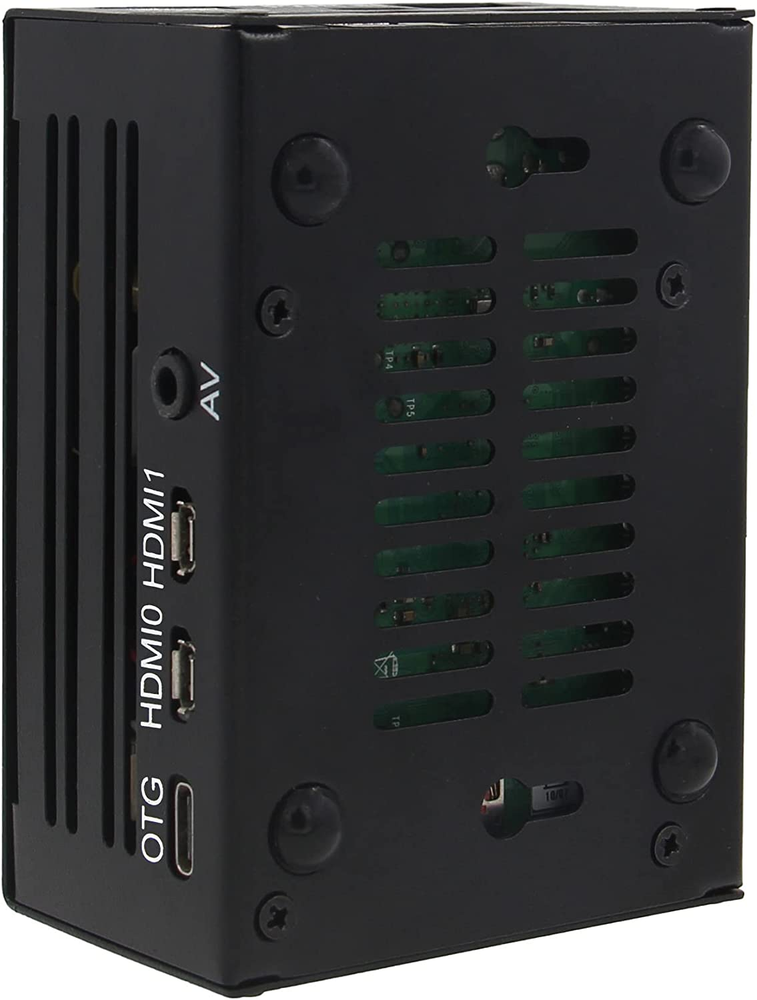

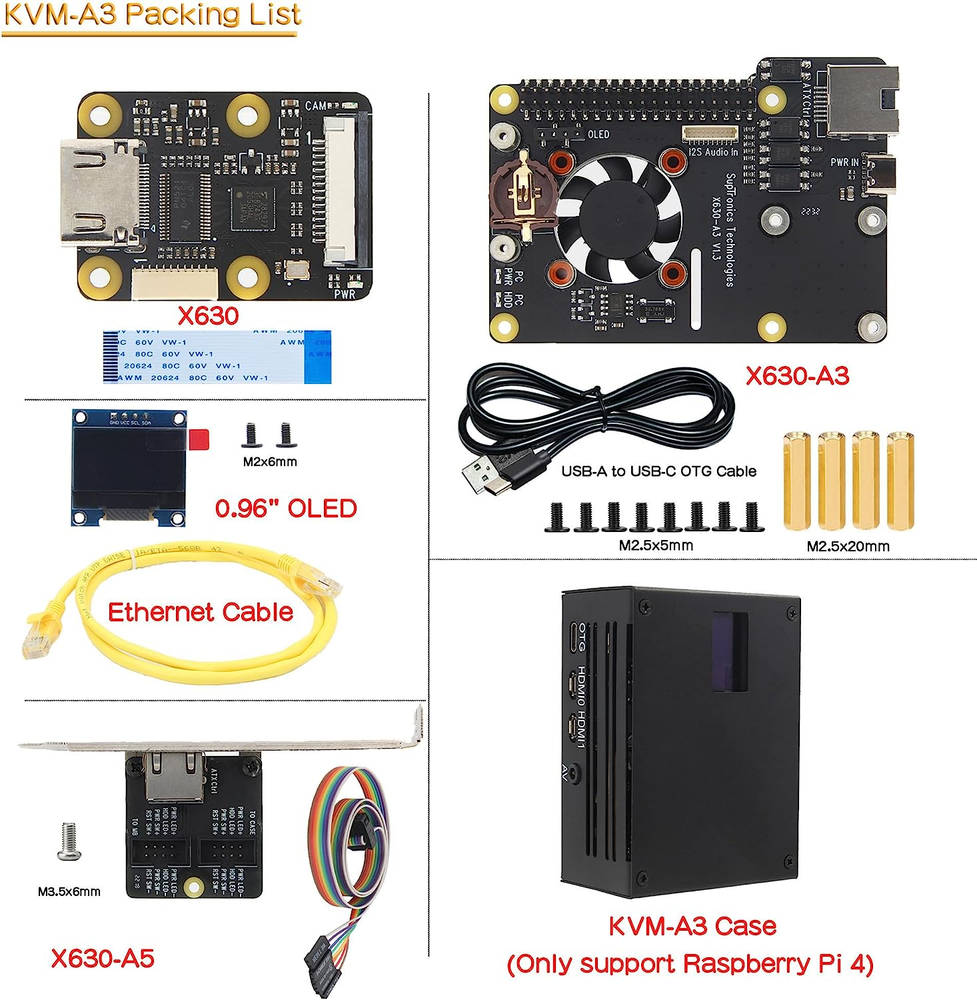

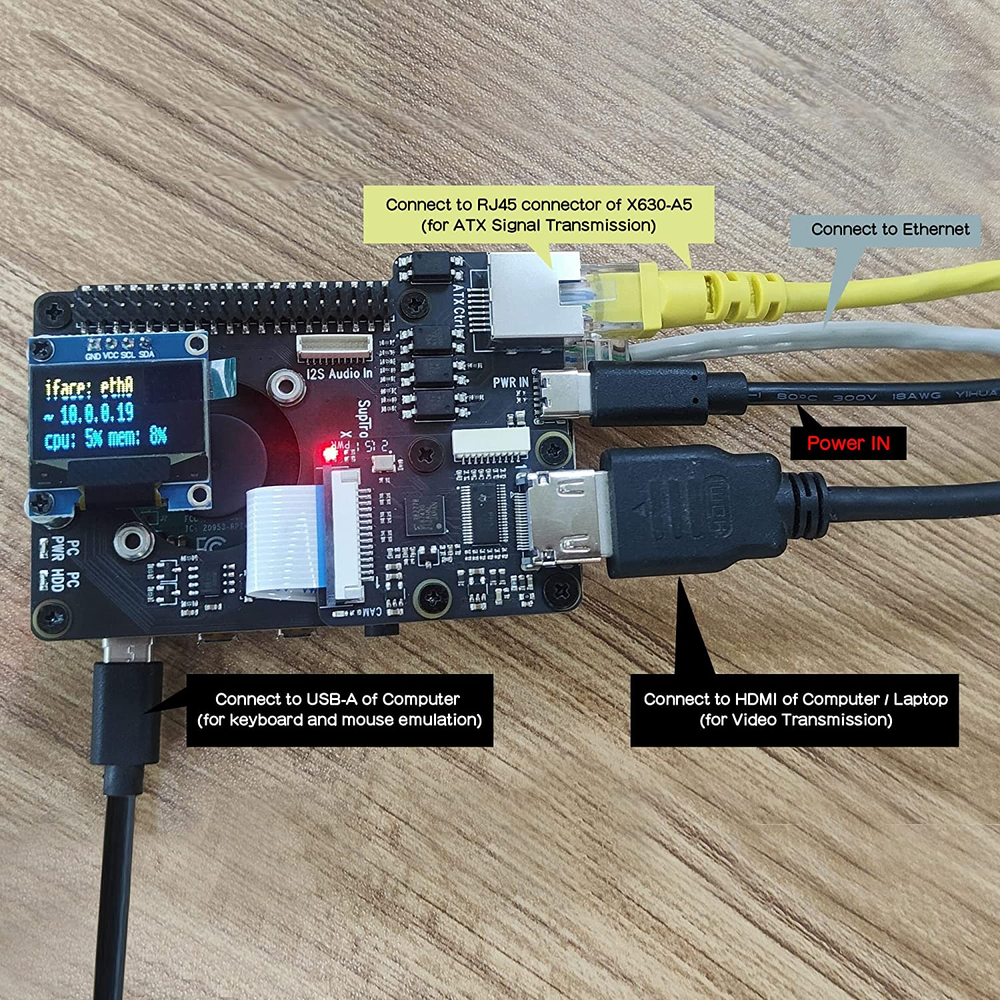

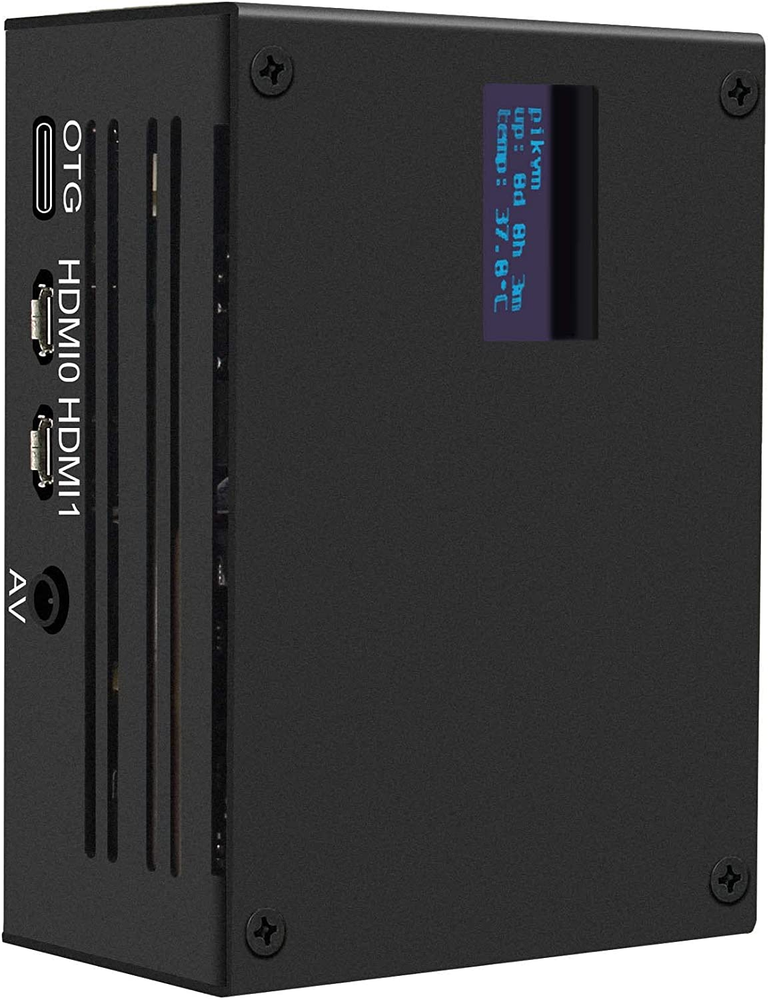

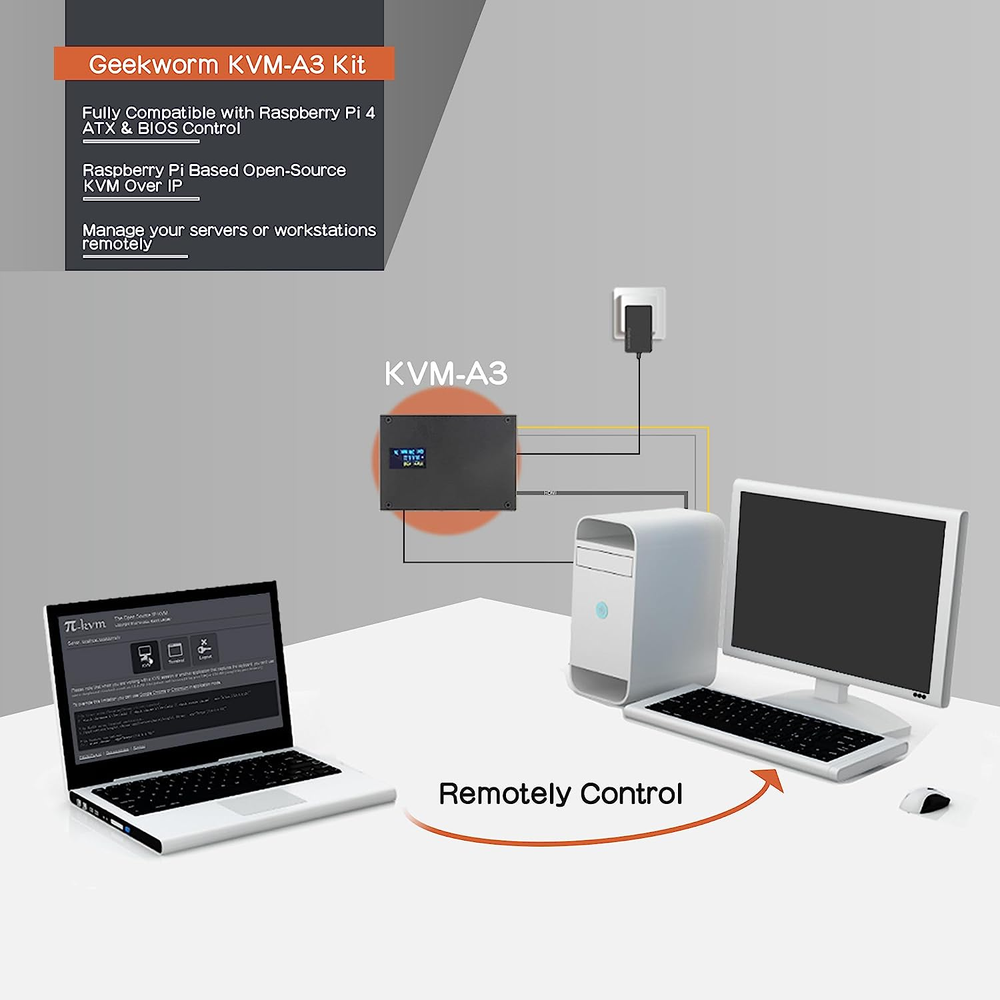

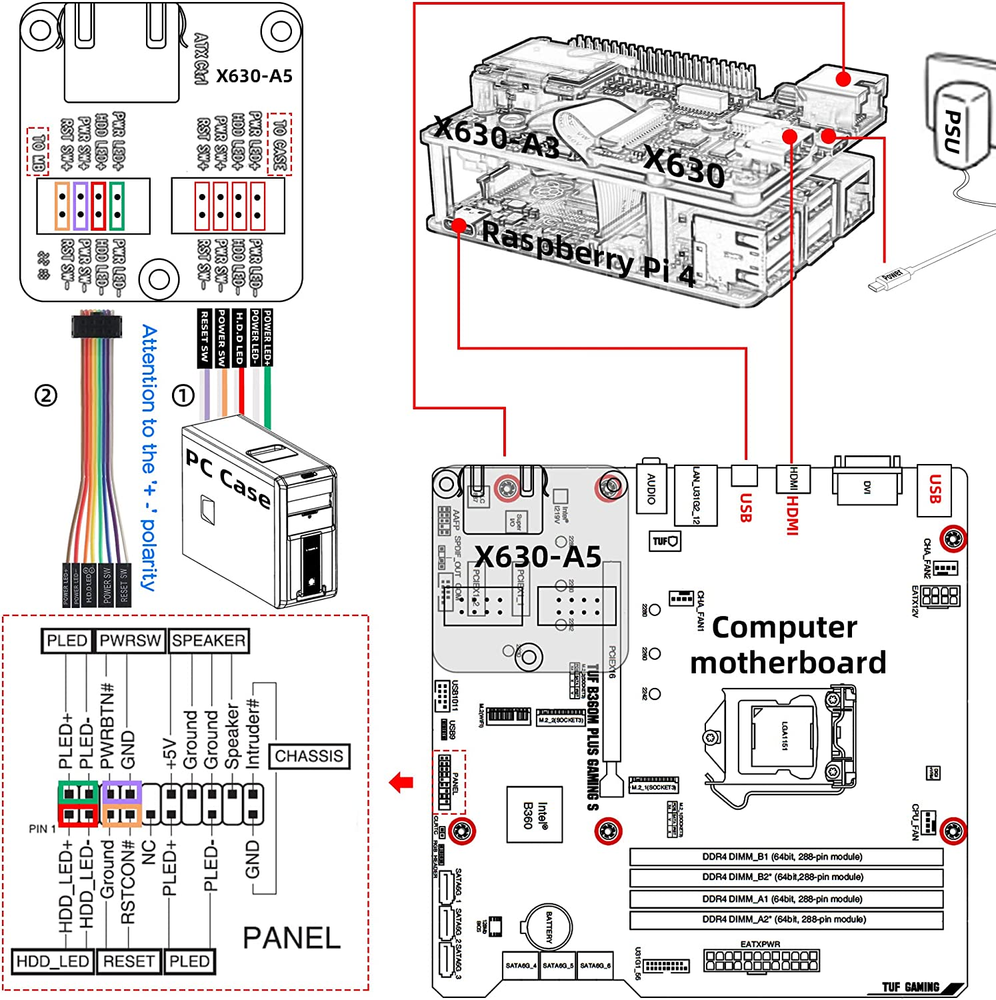

Check the listing for details. KVM-A3 Kit with Raspberry Pi 4 Case Compatible with Pikvm ATX CSI for Raspberry. Color: Black, Condition: New, Made in China. Listed at 119.37 USD. 【What is it】This kit allows user to realize a KVM project with Raspberry Pi 4 which can control a computer using a web browser!【Compatiblity】for use with Raspberry Pi 4 Model B 8GB/4GB/2GB/1GB only;【Function】Remotely turn on/ turn off / restart your computer; configure configure the UEFI/BIOS; reinstall the OS using the Virtual CD-ROM or Flash Drive; remote use your keyboard and mouse; Simulate a keyboard, mouse, and a monitor and presented in a web browser, etc.【How to Power】Power Input: 5.1Vdc +/-5% , ≥3A; Power Via USB Type-C port of X630-A3. (DON'T power via Raspberry Pi's TYPE-C port, because it is occupied as USB OTG.) Recommend to use Geekworm UL listed 20W 5V 4A USB Type-C power adapter (ASIN:B09J856PND).【What Included】1 x KVM-A3 Metal Case with Accessories, 1 x X630-A3 V1.3 Expansion Board with Accessories, 1 x X630-A5 V1.0 Adapter Board with Accessories, 1 x X630 HDMI to CSI-2 Module with Accessories, 1 x Ethernet Cable(1m length), 1 x0.96 inch OLED Module【How to Cool】X630-A3 comes with a cooling fan to cool the raspberry pi 4.【Extra Need to be Prepared】Raspberry Pi 4, TF Card, HDMI Cable, Power Adapter Product Description Update: the X630-A3 update from V1.2 to V1.3 version, remove one on-board spacer to simplify the installation steps, the X630-A3 V1.3 board is not defective, just updated!!! The KVM-A3 is composed of follow parts: X630-A3 HAT Board (for ethernet, cooling, RTC, ATX Control power in etc) (Update to V1.3 from V1.2 with small difference in installation)X630 HDMI to CSI-2 Board (for video capture)X630-A5 Adapter Board (it is installed inside the PC case, and it connect the computer motherboard and IO panel cabe of PC case))0.96 inch OLED (for display, Resolution: 128×64 pixel)Ethernet Cable (TIA/EIA-568.B connection, and it's ATX control signal cable)KVM-A3 Metal Case(Raspberry Pi 4 Case, only support Raspberry Pi 4) Note: We don't equipped with HDMI cable as some PC case may not have HDMI port, you need to use VGA/DVI to HDMI adapter to transfer HDMI port.Please use the supplied USB Type-C to USB 2.0 A-Male Cable only. USB-C to USB-A cable only with DATA lines (for keyboard and mouse emulation), using other cable might cause instability or damage to either the host PC or the Pi.The X630-A1 plate has no use for the KVM-A3 installation, don't need to use X630-A1!!! Features Raspberry Pi-based KVM-Over-IP solutions (Open and cheap DIY IP-KVM based on Raspberry Pi)Compatible with Raspberry Pi 4 Model B 1GB/2GB/4GB/8GBFully compatiblie with KVM V3 OS(Not support V4)Control a server and computer using a web browserHDMI Full HD capture based on the TC358743 chipOTG Keyboard & mouse; Mass Storage Drive emulationHardware Real Time Clock (RTC) with CR1220 coin battery socketEquipped with cooling fan that allows the heat from your Raspberry Pi 4 to dissipateEquipped with solidstate relays to protect RPi GPIO pins from computer and ESD spikesATX control via RJ45 connector Switch the machine on or off, reset it, and monitor the status of HDD LED & power LED remotelyReserves the 10pin SH1.0 connector for future I2S HDMI audio supportReserves the 4pin header & spacers for I2C OLED display How to Power Power Input: 5.1Vdc +/-5% , ≥3A (Power Via USB Type-C port of X630-A3 ONLY, DON'T power via Raspberry Pi's Type-C port, because it is occupied as USB OTG!!!) ; [Recommend to use Geekworm Type-C 5V 4A 20W PSU: ASIN:B09J856PND] [How to Cool] The X630-A3 HAT board equipped with a on-board 3007 cooling fan for heat dissaption of Raspberry Pi. Wiring Diagram User Manual & FAQ & Installation Video Please refer to Geekworm WiKi for the user manual. For Use With Raspberry Pi 4 Model B Only Raspberry Pi Zero 2W Only Raspberry Pi 4 Model B Only Raspberry Pi Compute Module 4(CM4) With Case Yes No No, put into the PC directly No, put into the PC directly Work with X630 Yes Yes Yes NO

$59.69
$119.37
