| Brand | LABLT |
|---|---|
| MPN | OM195777OC |
| Power Source | DC |
| Voltage | 36V-48 V |
| Product instruction | No |
| Type | Brushless Controller |
| Model | 350W |
| Mosfet | 6 |
| Warranty | 90 day |

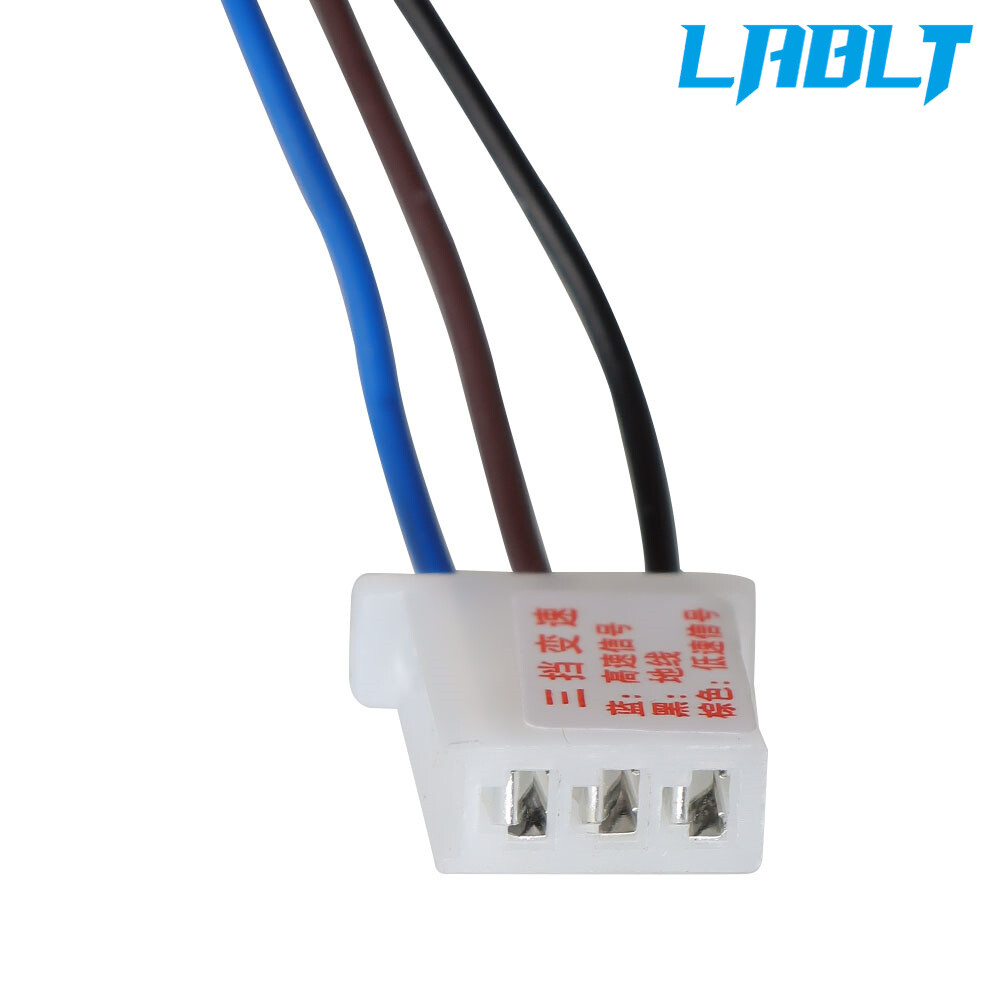

Check the listing for details. LABLT For Electric Bicycle Brushless DC Motor Speed Controller 36V/48V 350W. Condition: New. Listed at 13.49 USD. Feature: Voltage: 36V/48V Wattage: 350W Throttle : 1-4V Short voltage protect :31.5±0.5V/42±0.5V Color: silver Dimension: 105 x 70 x 35mm/4.13 x 2.76 x 1.38" Casing material: Aluminium How to use? Turn off the power before wiring. 1. Connect the learning switch. 2. Connect the motor wire(phase A, phase B, phase C). Then connect the hall plug. 3. Connect the power and the twist grip plug. 4. Twist the grip plug. If the motor rotate reversely, cut off the learning switch, then connect the learning switch again. If the motor doesn’t rotate, check the wiring. If the motor forward rotation, go to step 5. .
