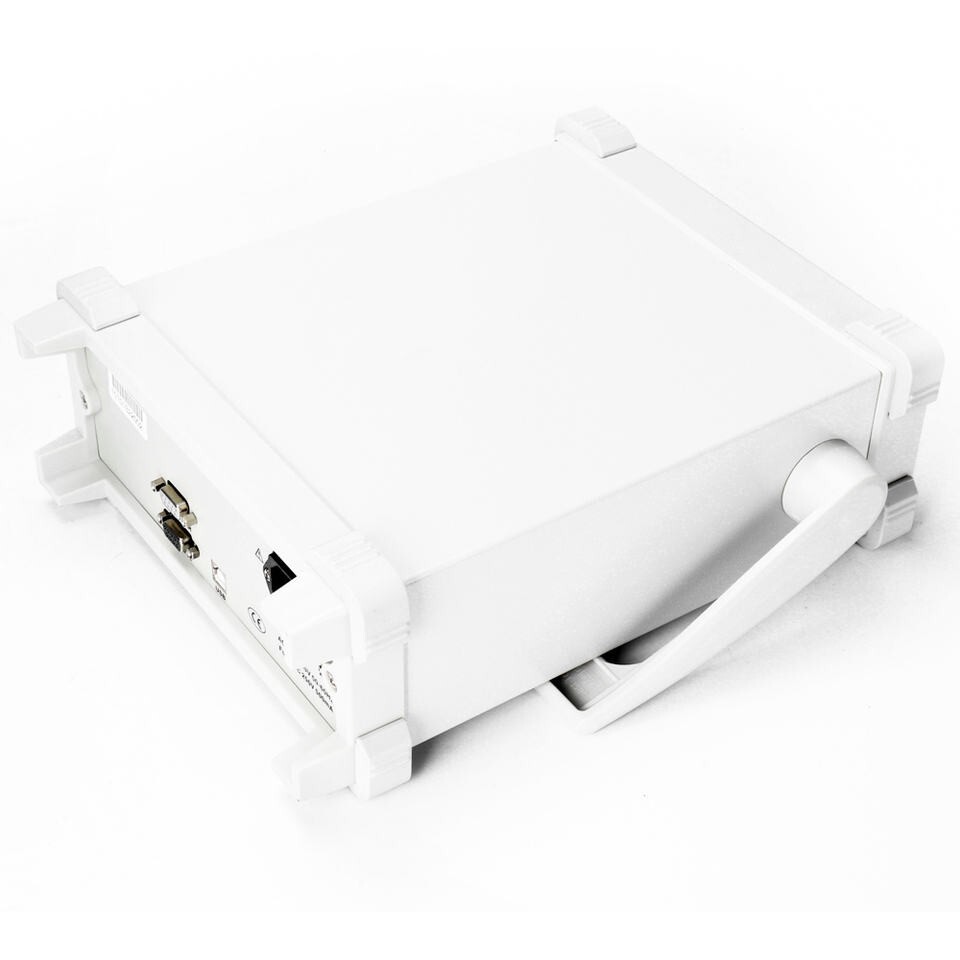

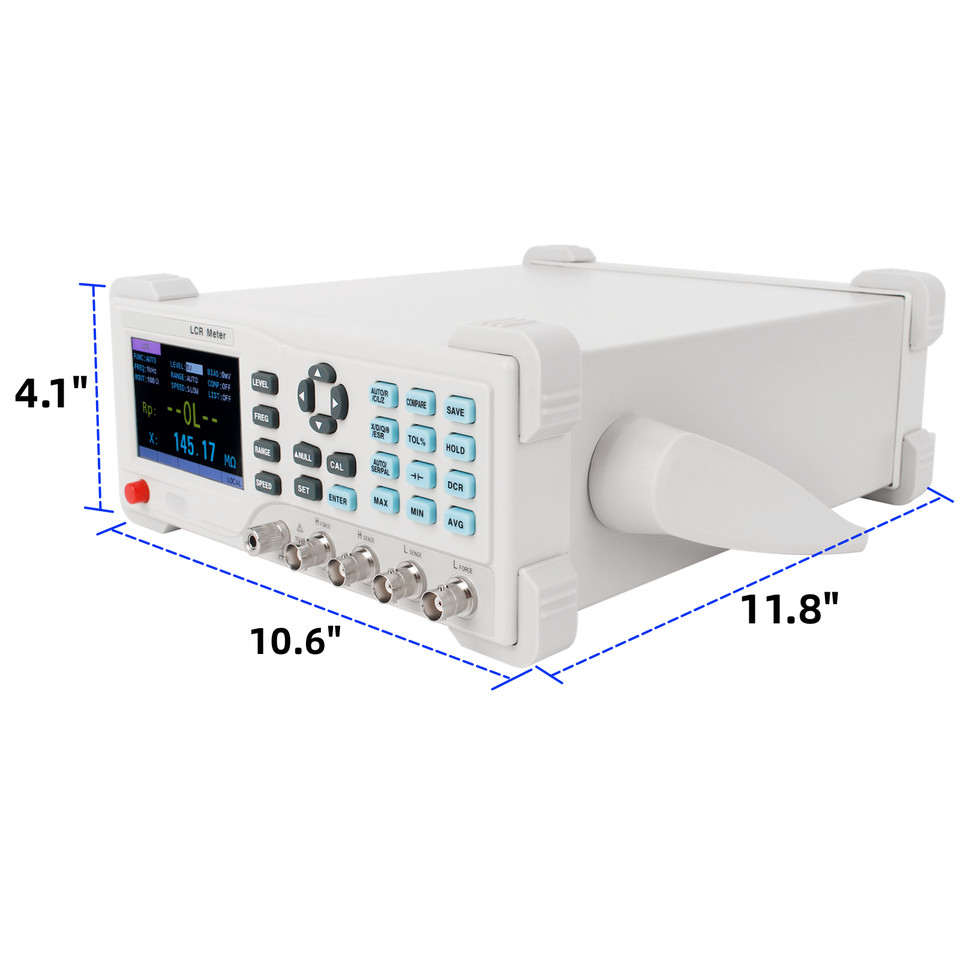

LCR Meter Benchtop Digital Bridge Data Logging Function Max Mini Average Value

Name: LCR Meter Benchtop Digital Bridge Data Logging Function Max Mini Average Value
SKU: 256723544886
Price: 320.00 USD
Availability: InStock

$160.00

$320.00 -50%

Brand CNYST

Condition New

Item ID 256723544886

Measured parameter	Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR
Basic Accuracy	0.1%
Product	LCR Meter
MPN	2024
Calibration function:	Open circuit calibration, short circuit calibration

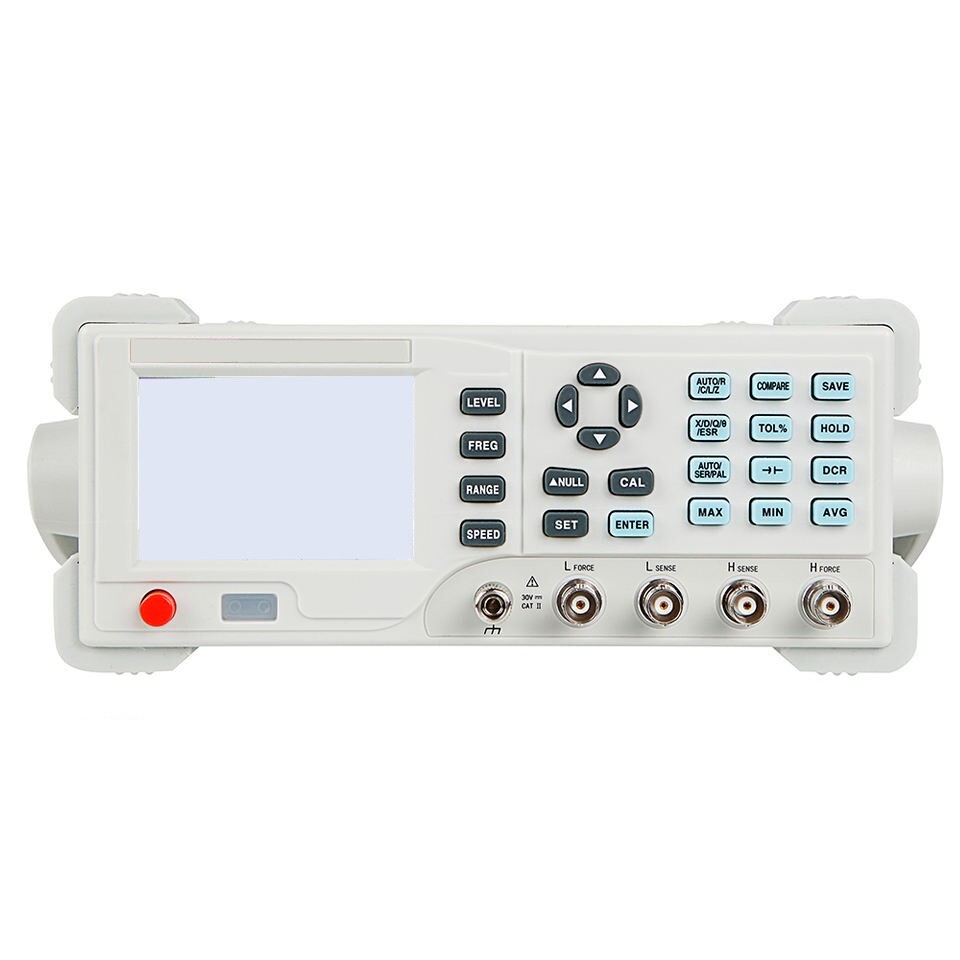

Display screen	Display screen 3.5 inch TFT LCD
Brand	CNYST

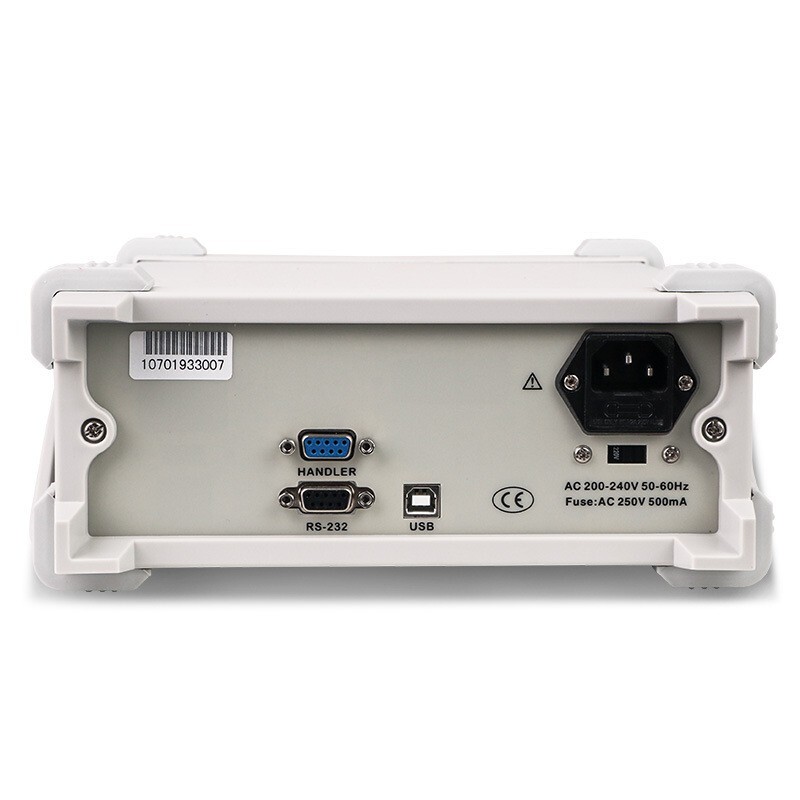

Interfaces	standard: RS232（or 485）, USB Device, Handler ;
Form Factor	Benchtop
Measuring display speed	2 time/s (slow), 4 times/s (medium), 8 time/s (fast)
Number of display digits	Principal parameter: 5 digit，Secondary parameter: 5 digit
Model	Digital LCR Meter
Signal source output impedance	30Ω、100Ω
Country/Region of Manufacture	China
Internal bias	0-1500mV adjustable, at a step of 1mV.
Testing frequency	10 points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K)
Testing level	Six fixed level(0.1V、0.3V、0.6V、1V、1.5V、2V)
Measurement Range	L：0.001μH～9999H C：0.001pF～99.999mF R：0.0001Ω～99.99MΩ
UPC	635408811882

Check the listing for details. LCR Meter Benchtop Digital Bridge Data Logging Function Max Mini Average Value. Condition: New. Listed at 320.00 USD. Testing frequency. Technical Data. 0-1500mV adjustable, at a step of 1mV. Screening function. The limit range of screening can be set to -50% ～＋ 50%, and the fixed points are 1%, 5%, 10% and 20%. Testing level.
