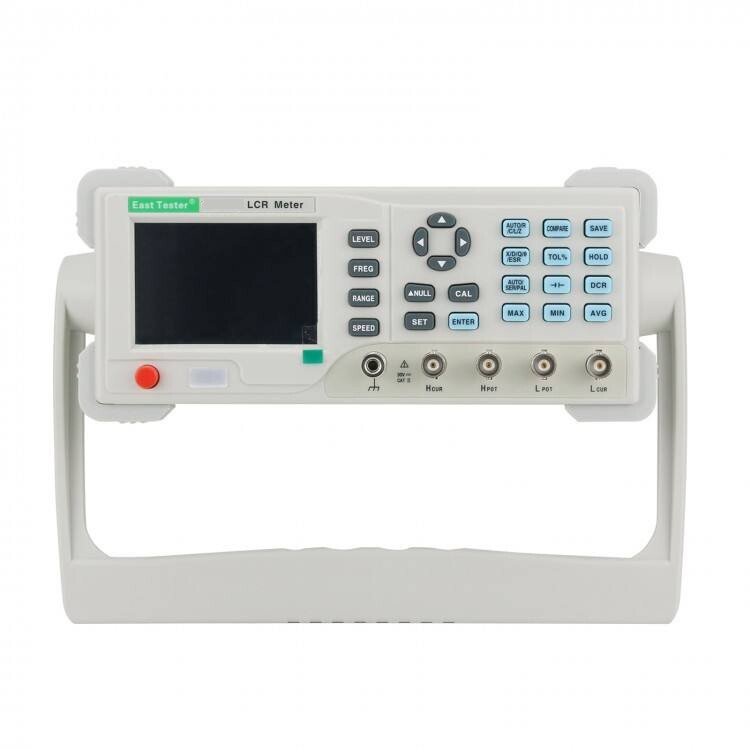

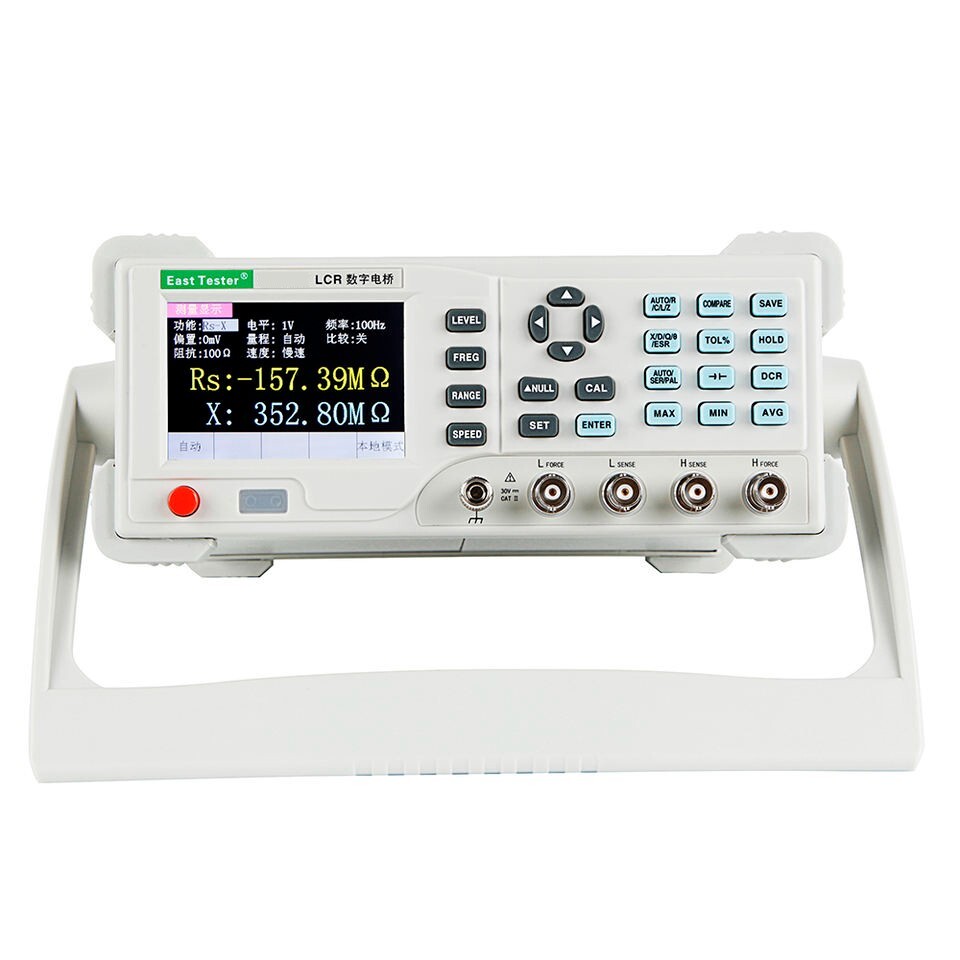

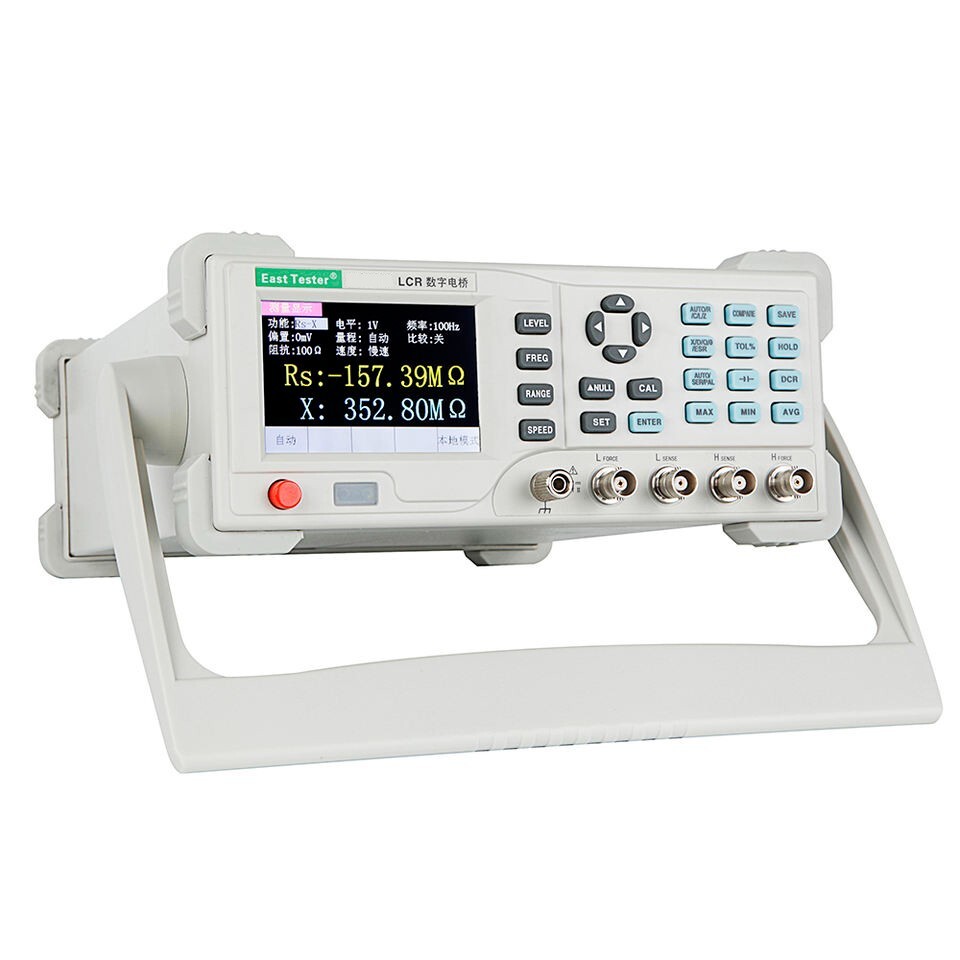

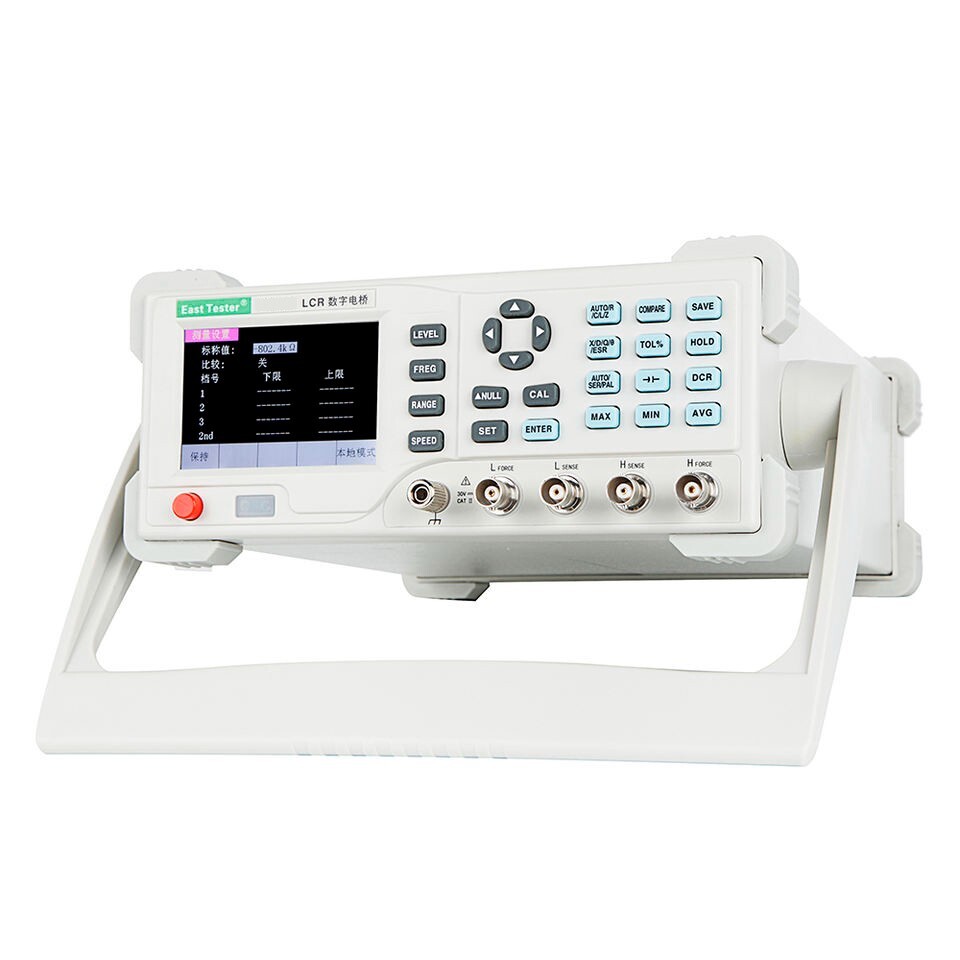

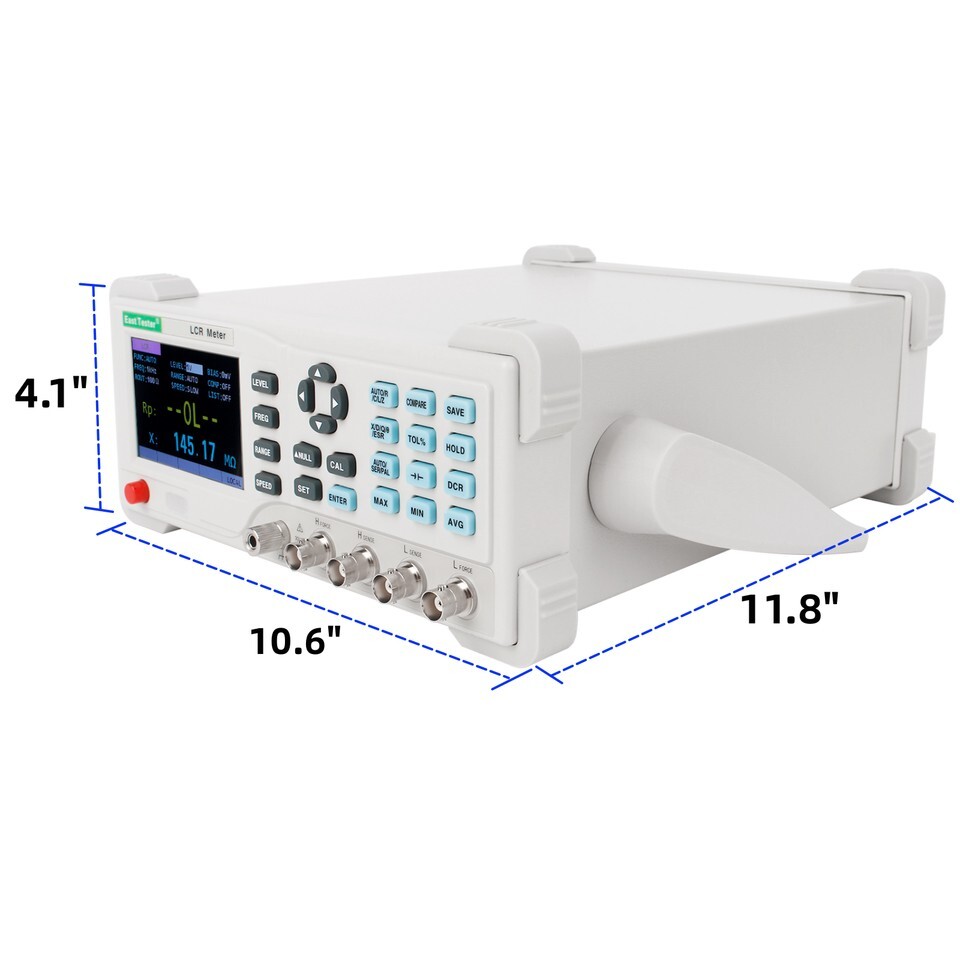

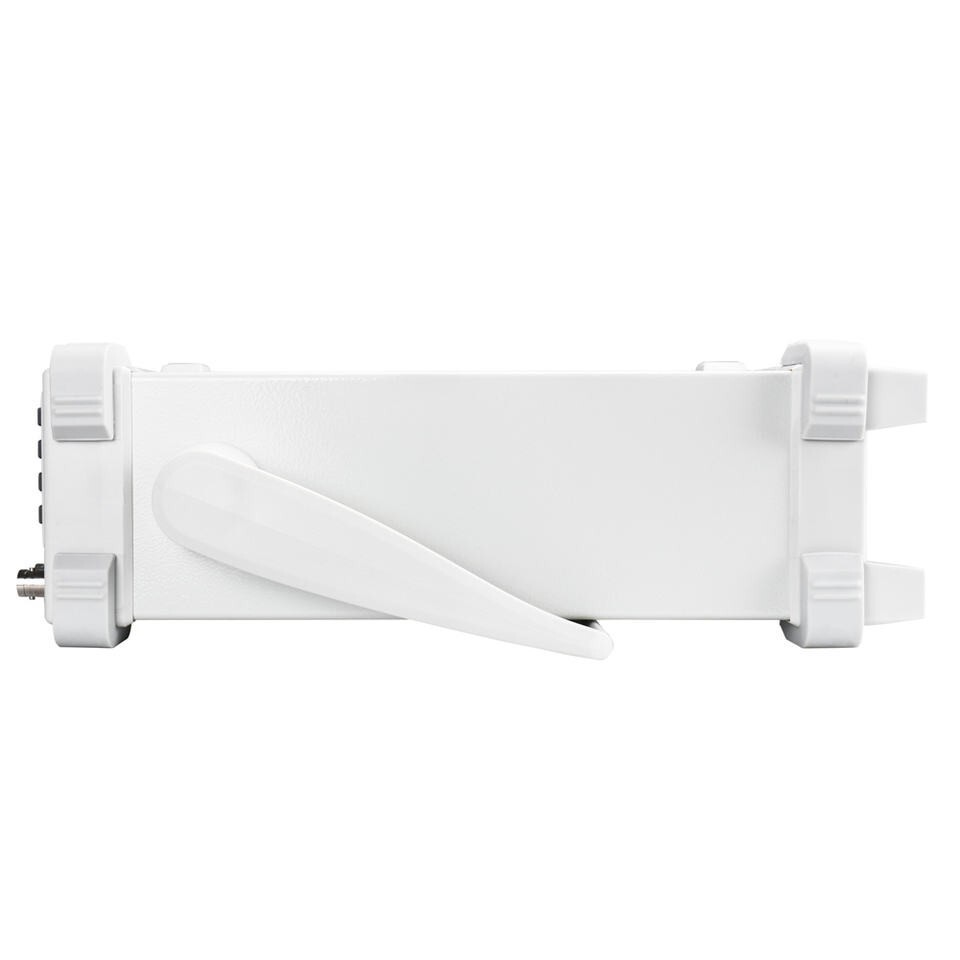

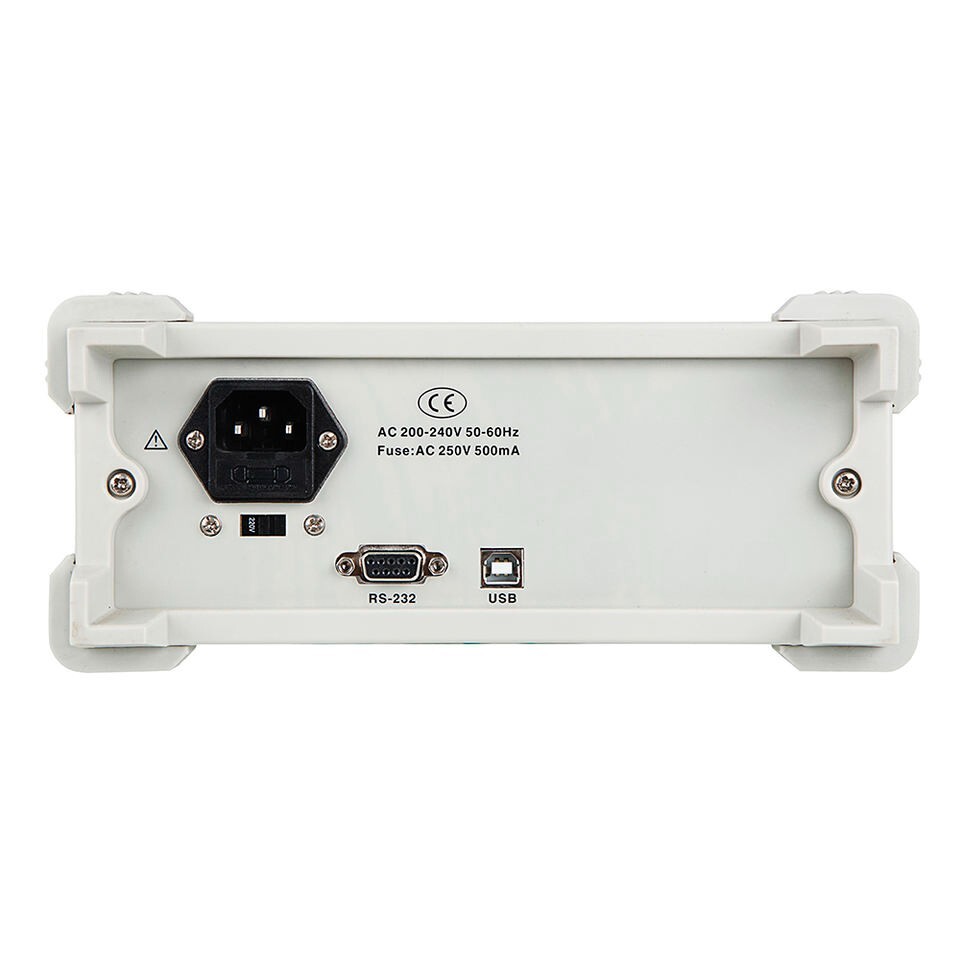

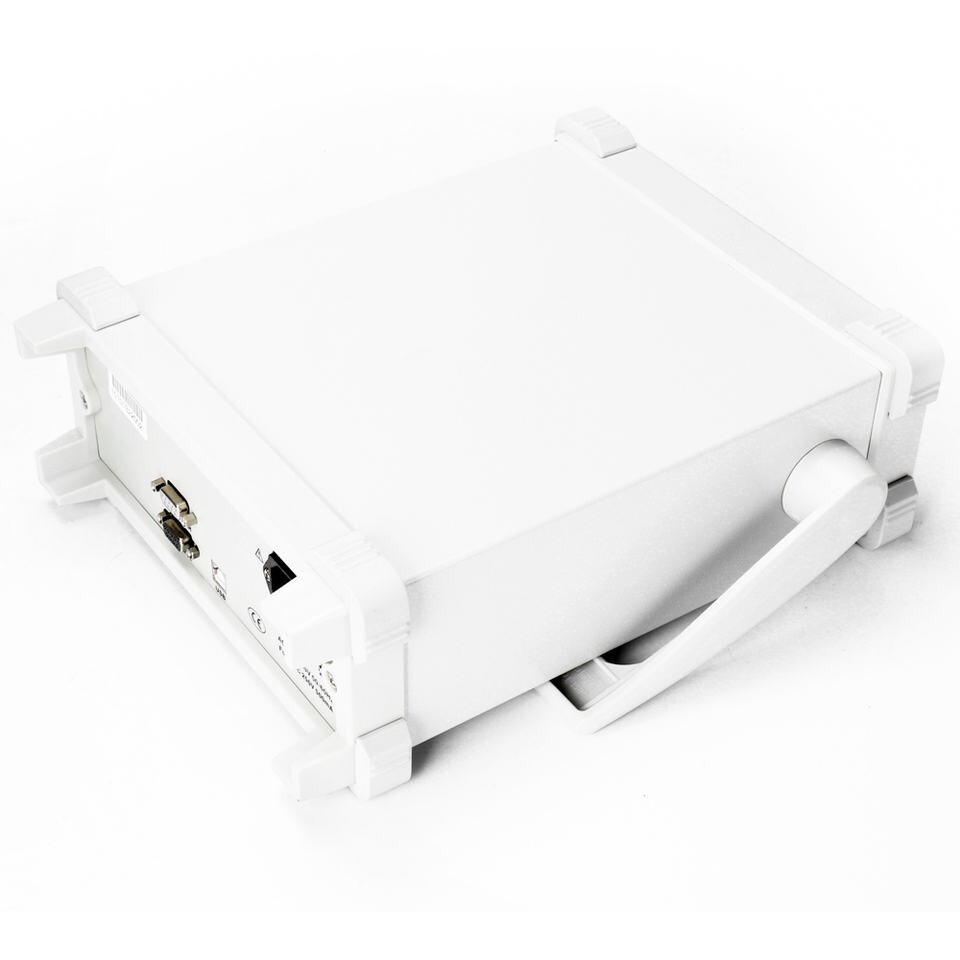

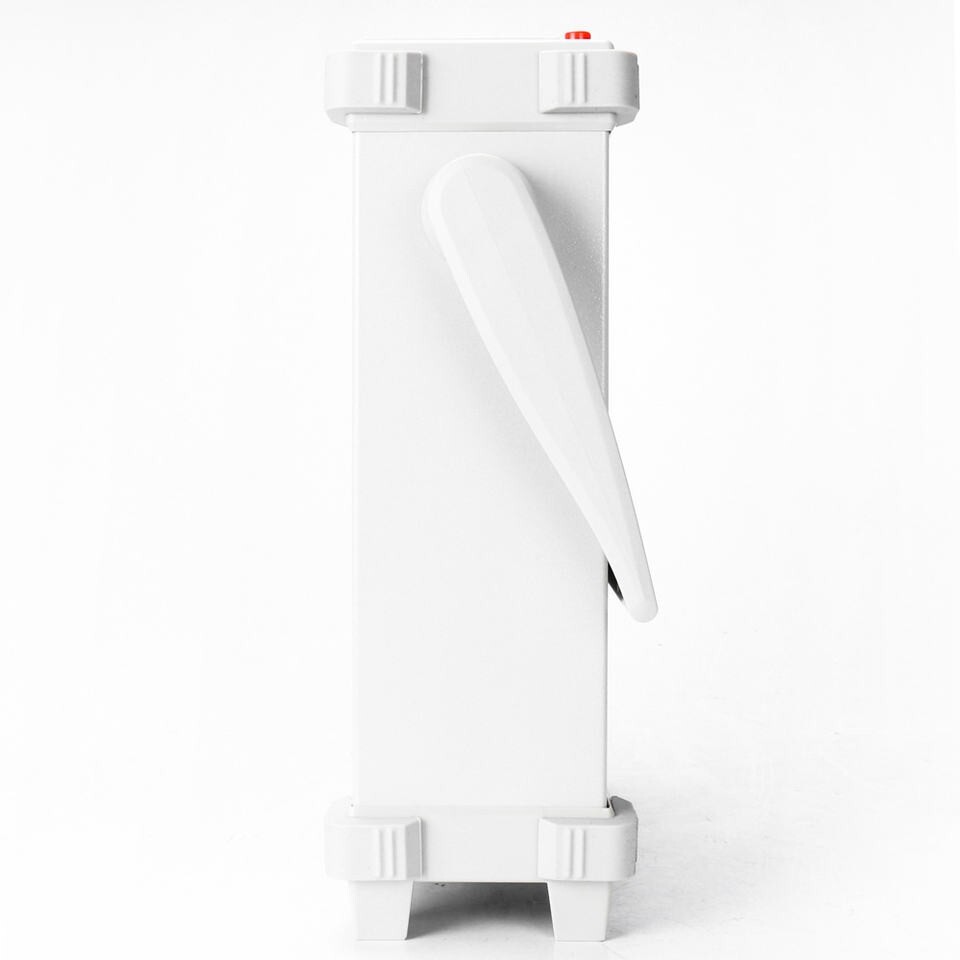

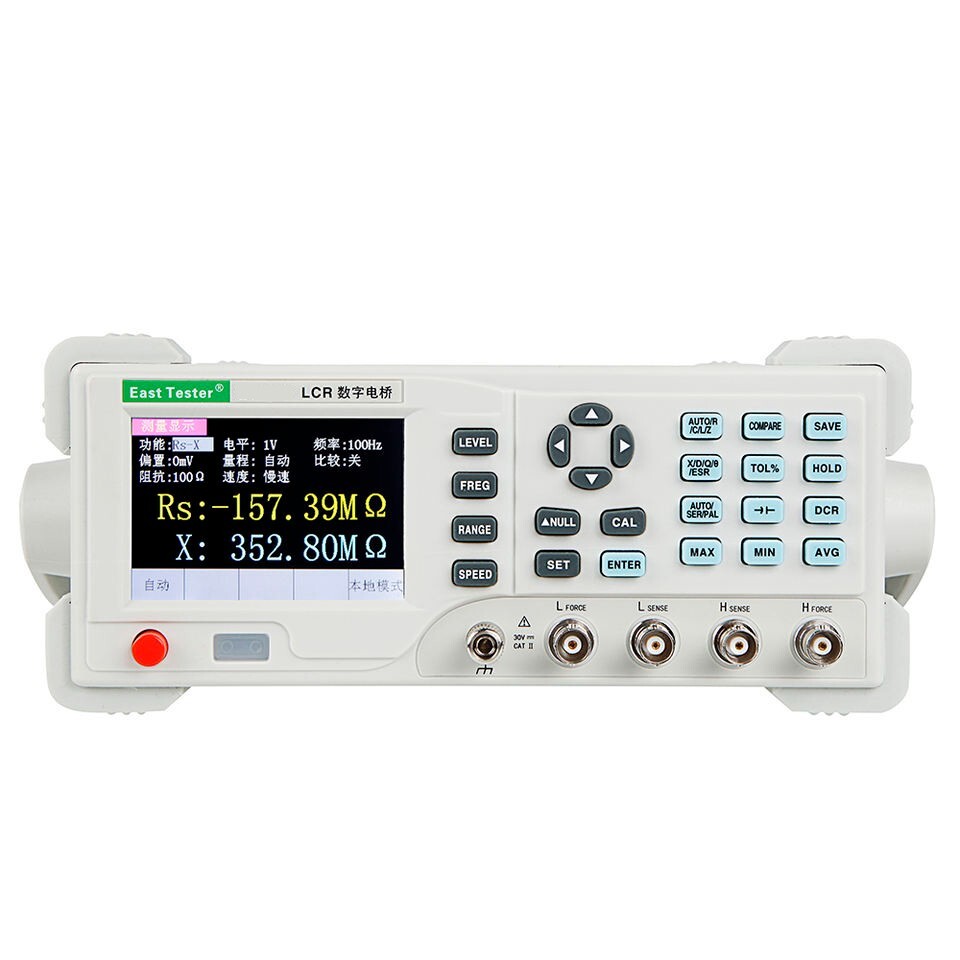

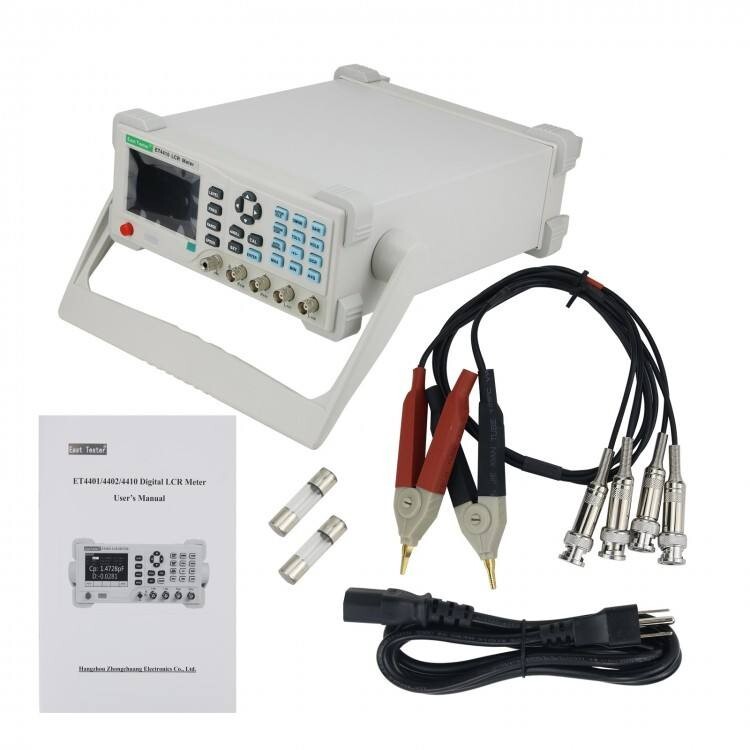

Check the listing for details. LCR Meter DCR Electrolytic Capacitance Meter 10Hz-10kHz Continuously Adjustable. Condition: New. Listed at 488.00 USD. LCR Meter DCR Electrolytic Capacitance Meter 10Hz-10kHz Continuously AdjustableShort Description:This LCR digital bridge is a component parameter analyzer based on the principle of automatic balancing bridge. Its 10Hz-100kHz test bandwidth, frequency continuous adjustable, 0.2% basic measurement accuracy and the file classification function provided by the instrument provide accurate and complete measurement and analysis for most components and materials, which are widely suitable. Used in product development, component inspection, product on-line inspection and other applications.Product Features:¤ Test level 10~2000 mV, 1 mV step continuously adjustable;¤ Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement;¤ Internal bias voltage output 0mV~1500mV;¤ 3.5-inch TFT display, 5-bit display;¤ Data recording function (maximum, minimum, average);¤ Supporting SCPI Communication Protocol;¤ Provide system settings to configure Chinese or English, buzzer, screen brightness, etc;¤ The basic measurement accuracy is 0.1%;¤ Manual and automatic range;¤ With open circuit and short circuit calibration function;¤ Comparator sorting (5 gears), alarm function.Main technical indicatorsTechnical DataTesting frequency10-10KHz continuous adjustable, 1Hz step[1]by-stepDisplay screenDisplay screen 3.5 inch TFT LCDNumber of display digitsPrincipal parameter: 5 digit，Secondary parameter: 5 digitMeasured parameterPrincipal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESRMeasurement RangeL：0.001μH～9999H C：0.001pF～99.999mF R：0.0001Ω～99.99MΩBasic accuracy0.001Measuring display speed2 time/s (slow), 4 times/s (medium), 8 time/s (fast)Internal bias0-1500mV adjustable, at a step of 1mV.Testing level0.01~2V adjustable, at a step of 1mV.Signal source output impedance30Ω、100ΩCalibration functionOpen circuit calibration, short circuit calibrationScreening functionThe limit range of screening can be set to -50%～＋50%, and the fixed points are 1%, 5%, 10% and 20%.Comparator5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary settingInterfacesstandard: RS232（or 485）, USB Device, Handler ;OthersSupport dc resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optionalStandard accessoriesThree core power cord(30A51) 4-terminals of kelvin testing cable(35A51) General technical specifications:Power supply voltage: 220V.AC±10%, or 110V.AC±10%, 45~65Hz;Power consumption:
