| Source Resistance | 100Ω |
| Speed | 4 times/second，1.5 times/second |
| Frequency Range | 100Hz,120Hz,1kHz,10kHz,100kHz |
| Warranty | 1 year |
| Parameters | L,C,R,Z |
| Measurement Functions | L |
| Product | LCR Meter |
| Signal Level | 0.6Vrms |
| MPN | AT826-968963 |
| Range | Automatic or Manual |
| Monitor Parameters | D,Q,θ(deg),θ(rad)ESR |
| Comparator | 1 sets, compare main parameters |
| Brand | VTSYIQI |
| Form Factor | Handheld |
| Type | LCR Meter ESR Tester |
| Accuracy | 0.2% |
| Model | AT826 |
| Frequency | 100Hz,120Hz,1kHz,10kHz,100kHz |
| Country/Region of Manufacture | China |

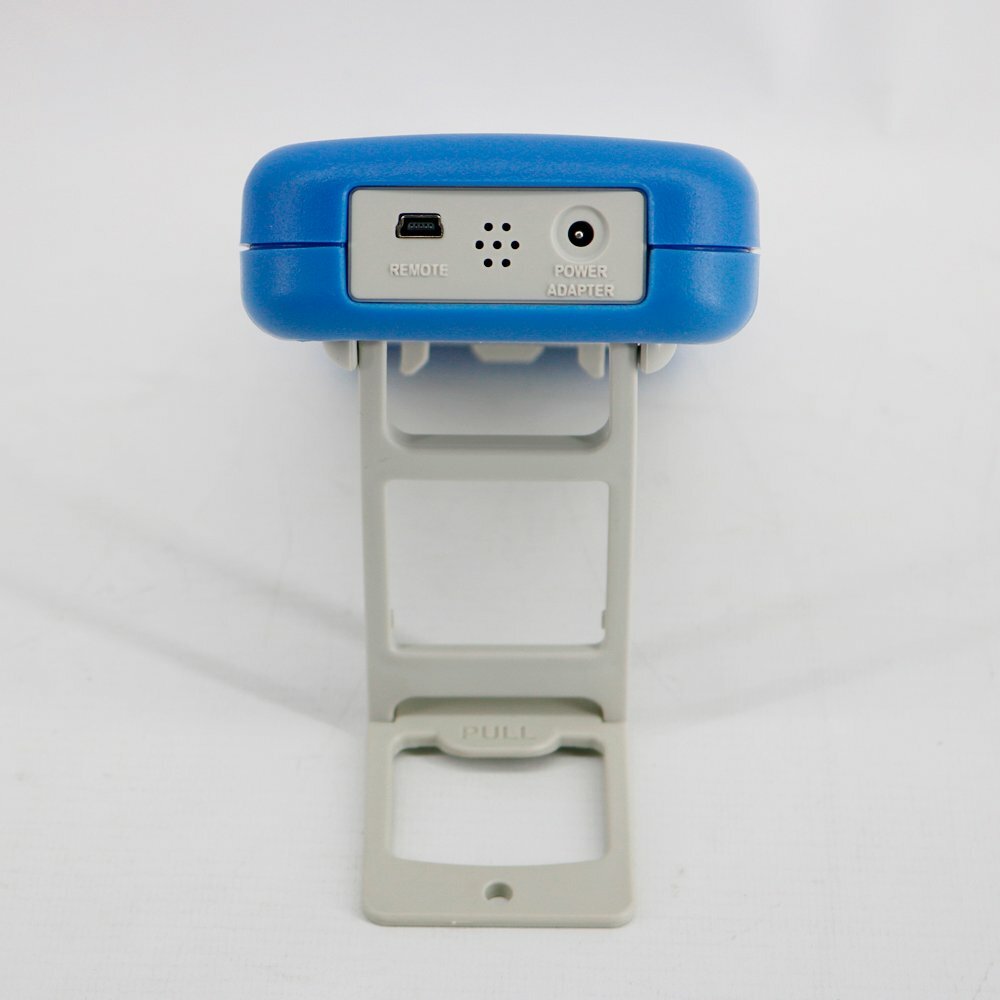

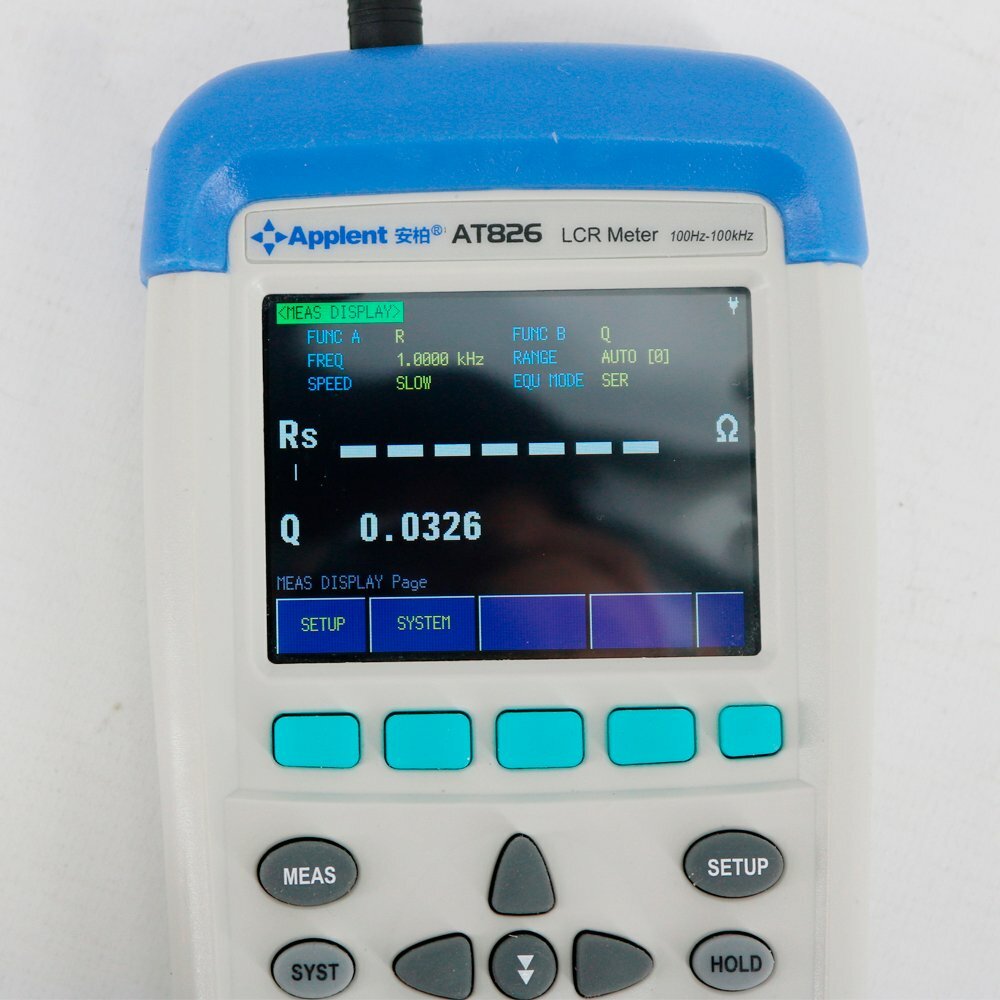

Check the listing for details. LCR Meter Digital Electric Bridge Tester Meter L C R Z Parameters Touch screen. Condition: New. Listed at 409.96 USD. Digital LCR Meter Electric Bridge Tester Meter L C R Z Parameters Touch screen Instruction:AT826 series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration.With the highest frequency of 100Khz, constant 100Ω source internal resistance, 0.6Vrms measurement voltage level, and 0.2% accuracy, make AT826, 825 have the excellent performance of both desktop instrument and portability of handheld. Feature●2.8 inch true-color 16M color TFT-LCD display；touch screen（AT825A none）,data hold function；USB communication，compatible SCPI instruction set； switch in both English and Chinese；adjustable back light; automatic power off●Open/short scan frequency reset for each range●1 sets, compare main parameters SpecificationParametersL,C,R,ZMonitor ParametersD,Q,θ(deg),θ(rad)ESRAccuracy0.2%Frequency100Hz,120Hz,1kHz,10kHz,100kHzDisplay RangeL: 0.01μH-9999H D,Q: 0.0001 – 9999 C: 0.01pF - 99.99mf θ(deg):-179.99°-179.99° R,Z:0.0001Ω - 99.99MΩ θ(rad):-3.1416 – 3.1416Source Resistance100ΩRangeAutomatic or ManualDisplay MaxPrinciple Parameter: 49999 Sub Parameter：49999Signal Level0.6VrmsSpeed4 times/second，1.5 times/secondComparator1 sets, compare main parametersAdjustmentOpen/short scan frequency reset for each rangeInterfaceBuild-in Mini-USB interface（virtual interface） Charging interfaceDisplay2.8 inch true-color 16M color TFT-LCD display；touch screen,data hold function；USB communication，compatible SCPI instruction set； switch in both English and Chinese；adjustable back light; automatic power offpowerInput：100-240V~50/60Hz 0.35A Output：9V 1A DCsizeOutside（mm）：90(Width)x190(Height)x31(Depth) 400gaccessoriesATL501C four-terminal Kelvin test clip ATL909 DC adapter ATL805 Li-battery ATL105 Mini-USB Communication cable ﹡ATS826 Data acquisition software
