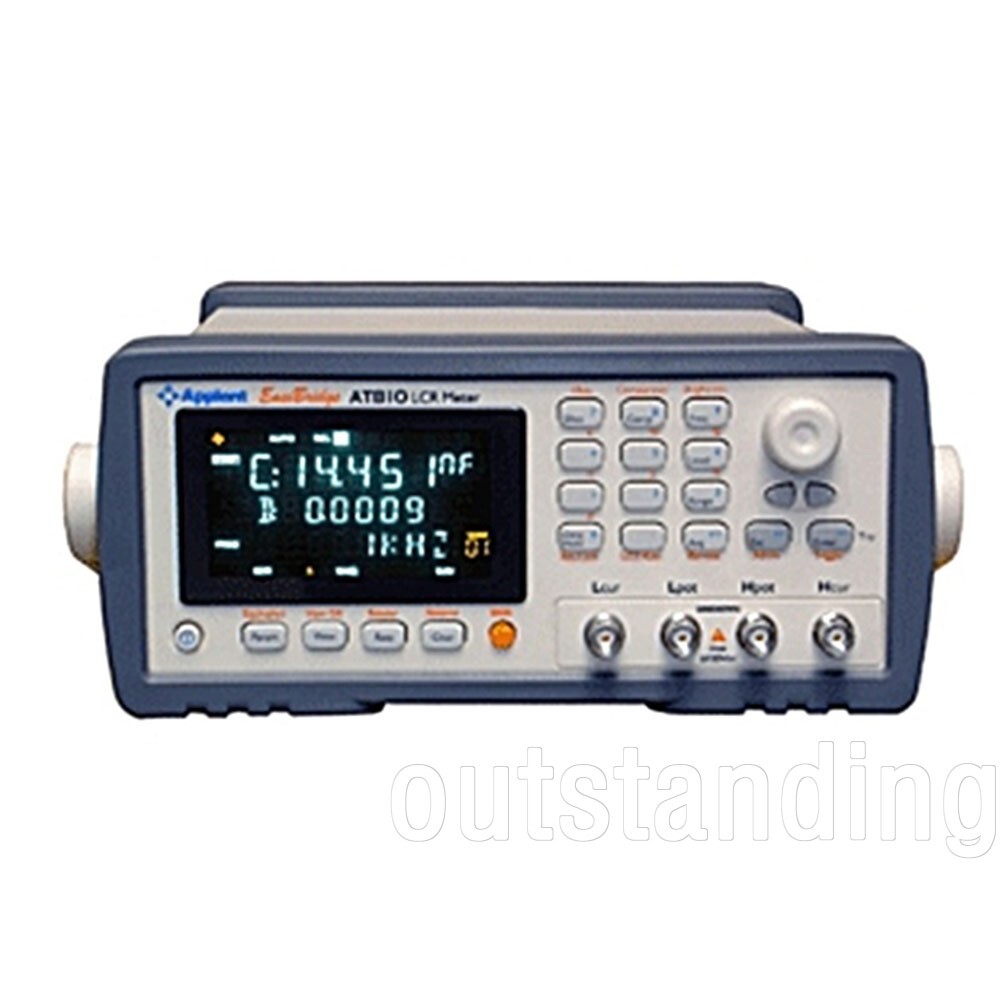

Check the listing for details. LCR Meter Voltage Insulation Resistance Capacitance Tester Accuracy 0.25%. Condition: New. Listed at 411.07 USD. LCR Meter Voltage Insulation Resistance Capacitance Tester Accuracy 0.25%It is a general purpose digital LCR meter, it is a desktop type LCR meter that adopts high-performance ARM micro processor. Four frequency points are available: 100Hz,120Hz,1kHz,10kHz, signal level 0.1V、0.3V and 1V is selectable and source resistance 30Ω、100Ω is selectable.It can AUTO measure L,C,R,Z,Q and D.Brand new designed has the higher cost performance, it is easy to operate, can meet the precision measurement and volume production's requirements for component manufactures, universities.I has built-in comparator function, 5 bins sorting display and sorting beep setup.Feature:Principle parameter 0.8 inches LED display, sub parameter 0.5 inches LED display.Display main parameter and sub parameter simultaneously, 5 digits display.Display A: L, C, R, ZDisplay B: Q, DShort and open zero clearingComparator (sorting) function: 5-bin sortingBeep Feature: OFF/P1/P2/P3/AUX.Specification:Test FunctionsL,C,R,Z,D,QAccuracy0.25%Measurement Frequency100Hz,120Hz,1kHz,10kHzMeasurement RangeAuto/Hold, 6 rangesMeasurement SpeedSLOW: 3 times/s, FAST: 10 times/sDisplay RangeL: 0.01μH-9999HC: 0.01pF-9999μFR,Z: 0.0001Ω - 99.99MΩD, 0.0001–9.999Q: 0.0001–999.9Source Resistance30Ω,100ΩDisplay Reader29999Equivalent CircuitSerial and ParallelSignal Level0.1Vrms, 0.3Vrms and 1VrmsComparator5 Bins: P1/P2/P3/AUX/NGAdjustmentOPEN/SHORT ZeroingBeep FeatureP1, P2, P3, AUX, NG, OFFPower SupplyAC 198V-240V, 50Hz-60Hz10W MAXDimension & Weight220mm(W) x 85mm(H) x 259mm(L)2kg Application:Components and materials measurement
