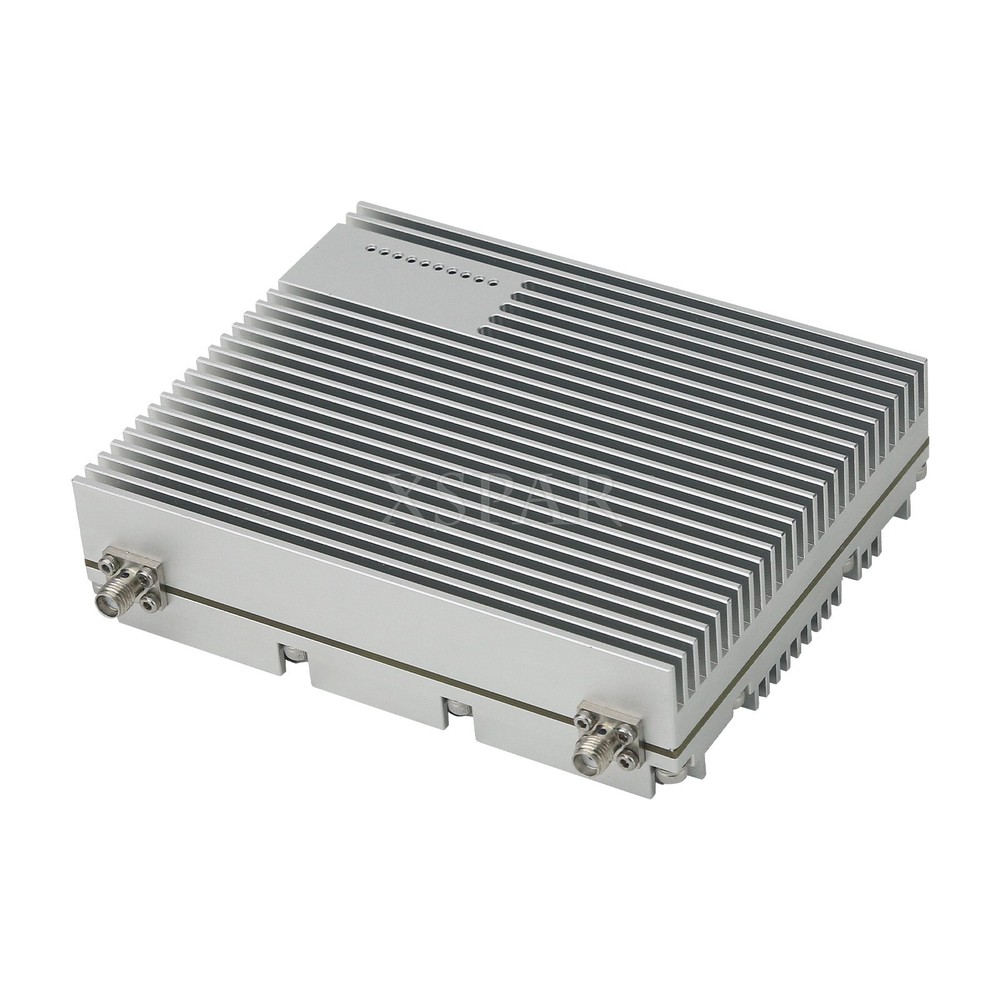

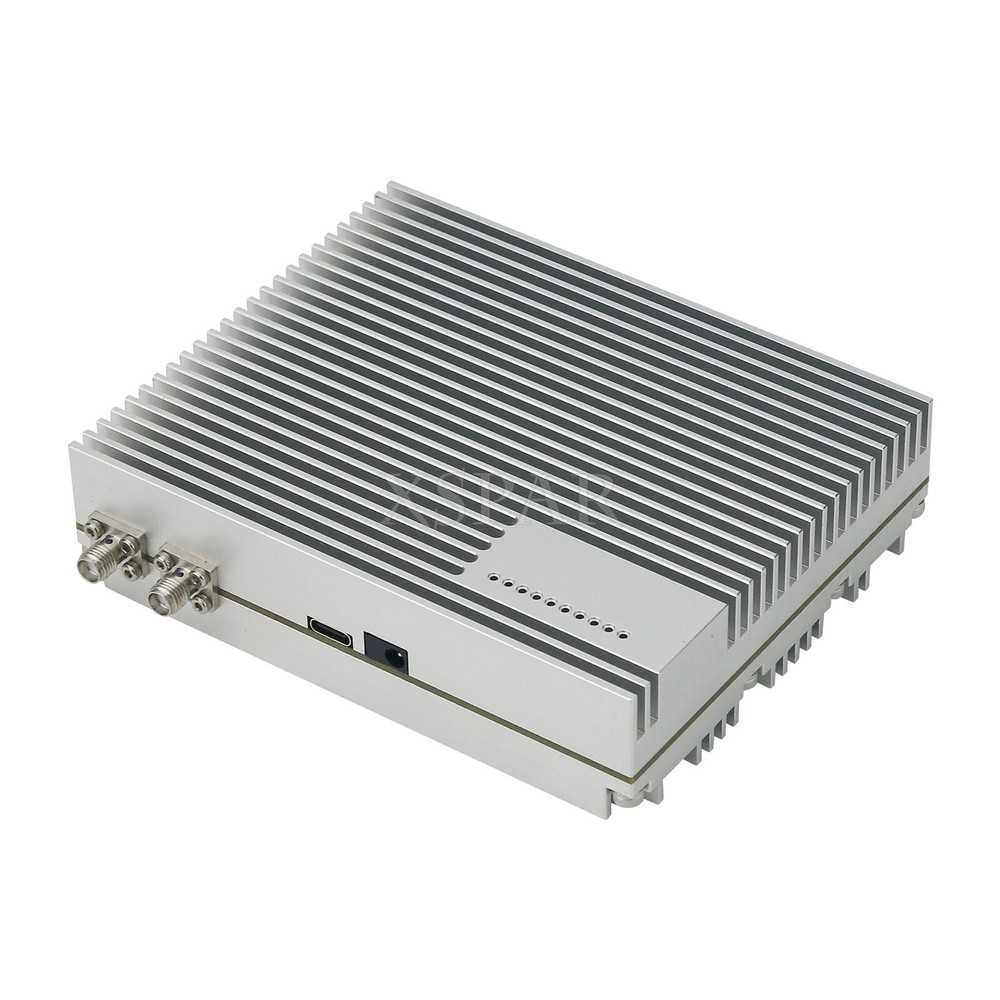

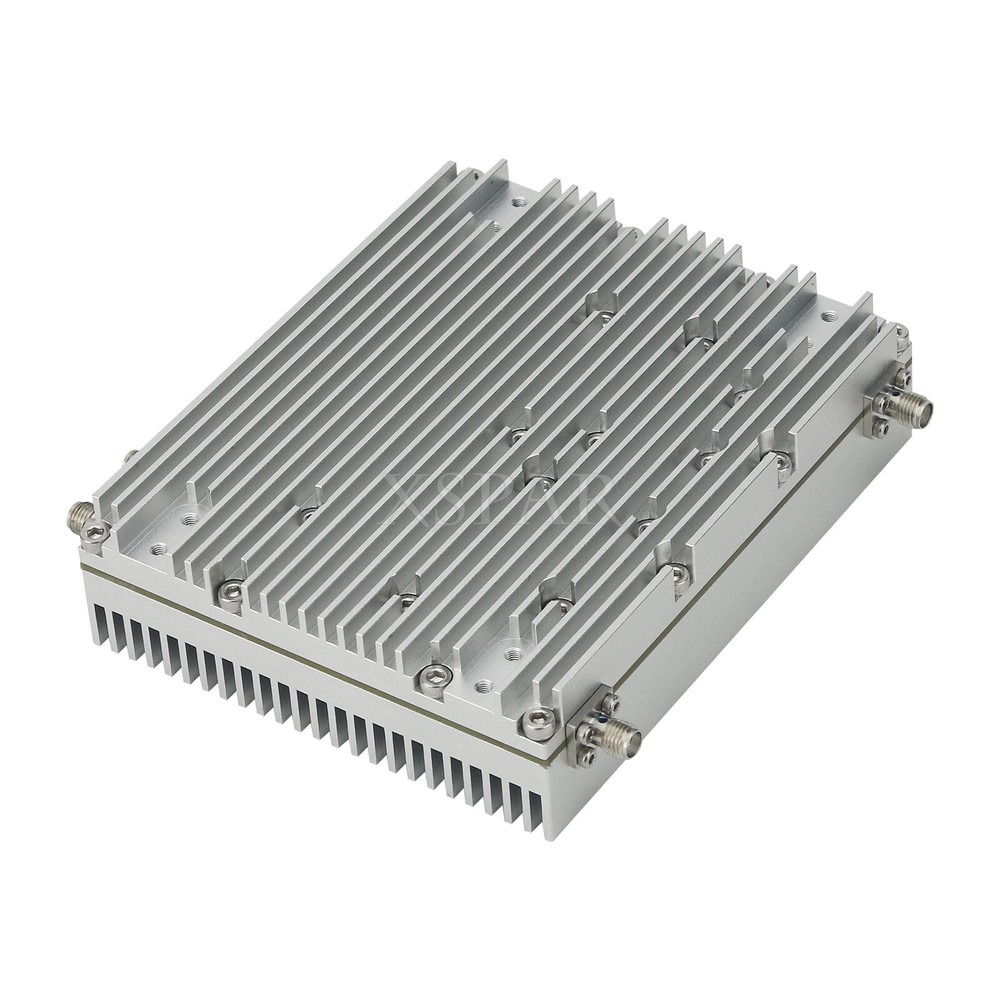

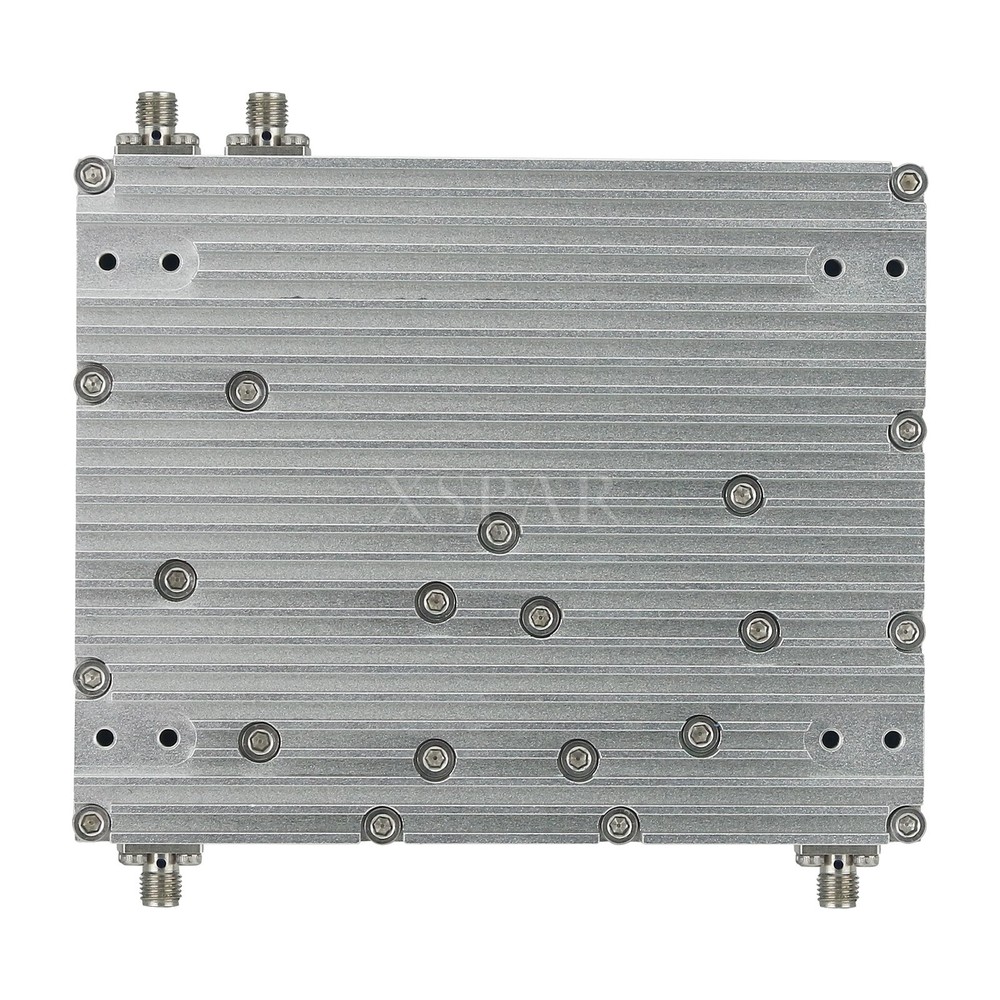

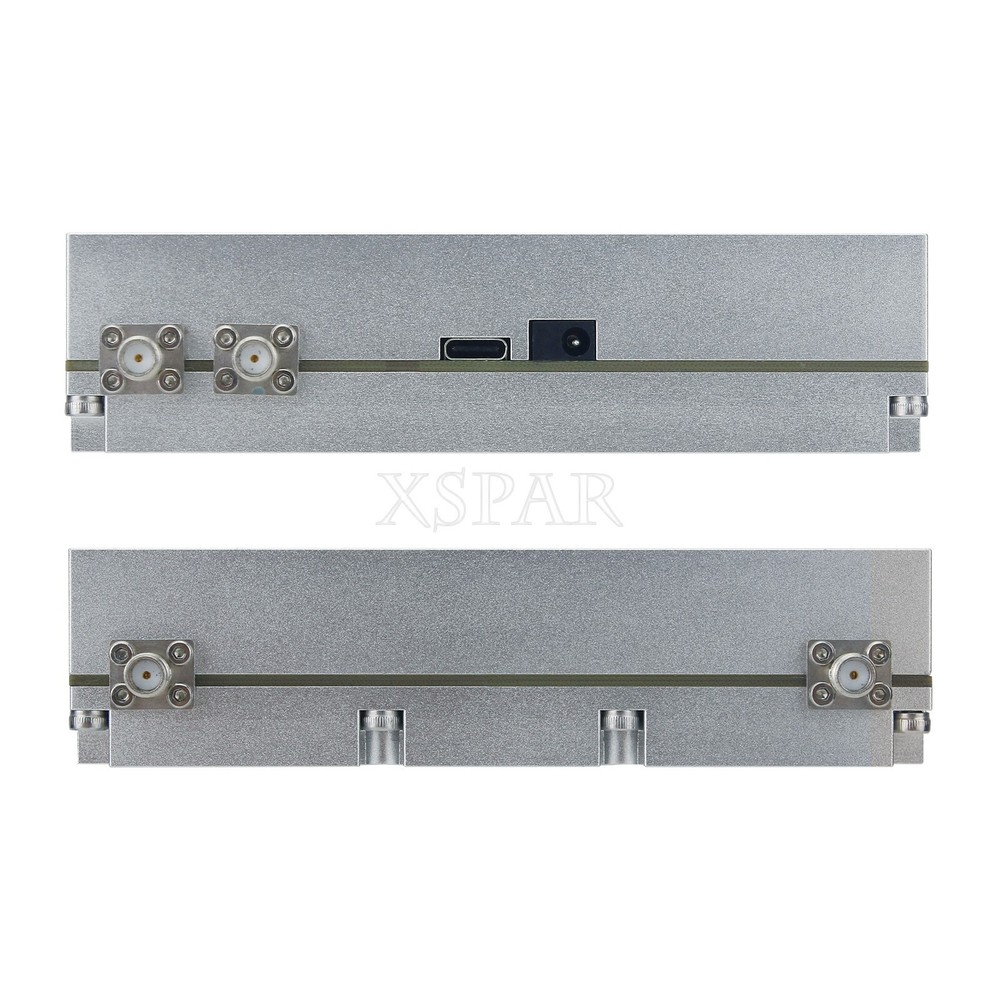

Check the listing for details. LibreVNA 2.0 Upgraded 100kHz-6GHz Vector Network Analyzer USB Based 2-Port VNA. Condition: New. Listed at 783.00 USD. Description LibreVNA 2.0 Upgraded Version 100kHz-6GHz Portable Vector Network Analyzer USB Based Full 2-Port VNA Description: - LibreVNA (TM) is a USB based full 2-port vector network analyzer designed by Jankae. Using 3 ADCs to sample data simultaneously and using FPGAs for signal processing, it is capable of scanning over 10,000 points of full dual-port measurements in less than 1 second. The ultra-low noise power supply design and the use of 16bit ADC, together with the precision CNCs aluminum shielded housing, achieve up to 100dB of effective dynamics. Many aspects are already comparable to lab-grade VNAs, but this is still a work-in-progress project. Some design features may not be perfect, especially the performance will drop when the frequency is higher than 3GHz, please fully understand the possible limitations before buying this machine. If you have any suggestions for future releases, please feel free to contact us as well. Specification: - Impedance: 50Ω - Test port connector: SMA, female - Number of test port: 2 - Frequency range: 100kHz to 6GHz - Frequency Accuracy: < 2ppm - Number of Measurement Points: 2 to 4501 - Speed 2-port - 4000pts: 95dB to 3GHz; > 50dB to 6 GHz (Note 1) - Measurement parameters: S11, S21, S12, S22 - Reflection directivity: > 40dB (after calibration) (Note 2) - Output power: -40dBm to 0dBm (Note 3) - Power Supply: DC 5V, 1.5A (USB powered, or 3.5mm connector) - Power consumption: approx. 7W - Interface: USB type-C - Supported operating system: for Windows, Linux, MacOS (only 64-bit software is available for now) - External reference input: SMA female; 10 MHz - External reference output: SMA female; 10 MHz or 100MHz - Further measurement options: simple spectrum analyzer (lack of mirror suppression and slower speed); Signal generator (not precisely calibrated) Features: - 2021 New Upgraded Vector Network Analyzer: LibreVNA is a USB based full 2-port vector network analyzer designed by Jankae. Using 3 ADCs to sample data simultaneously and using FPGAs for signal processing, it is capable of scanning over 10,000 points of full dual-port measurements in less than 1 second. - Widely Frequency Range: The LibreVNA Antenna Analyzer provides a 100kHz to 6GHz ultra-wide frequency range(previous VNA analyzers are about 10KHz-1.5/3GHz),the Frequency Accuracy is
