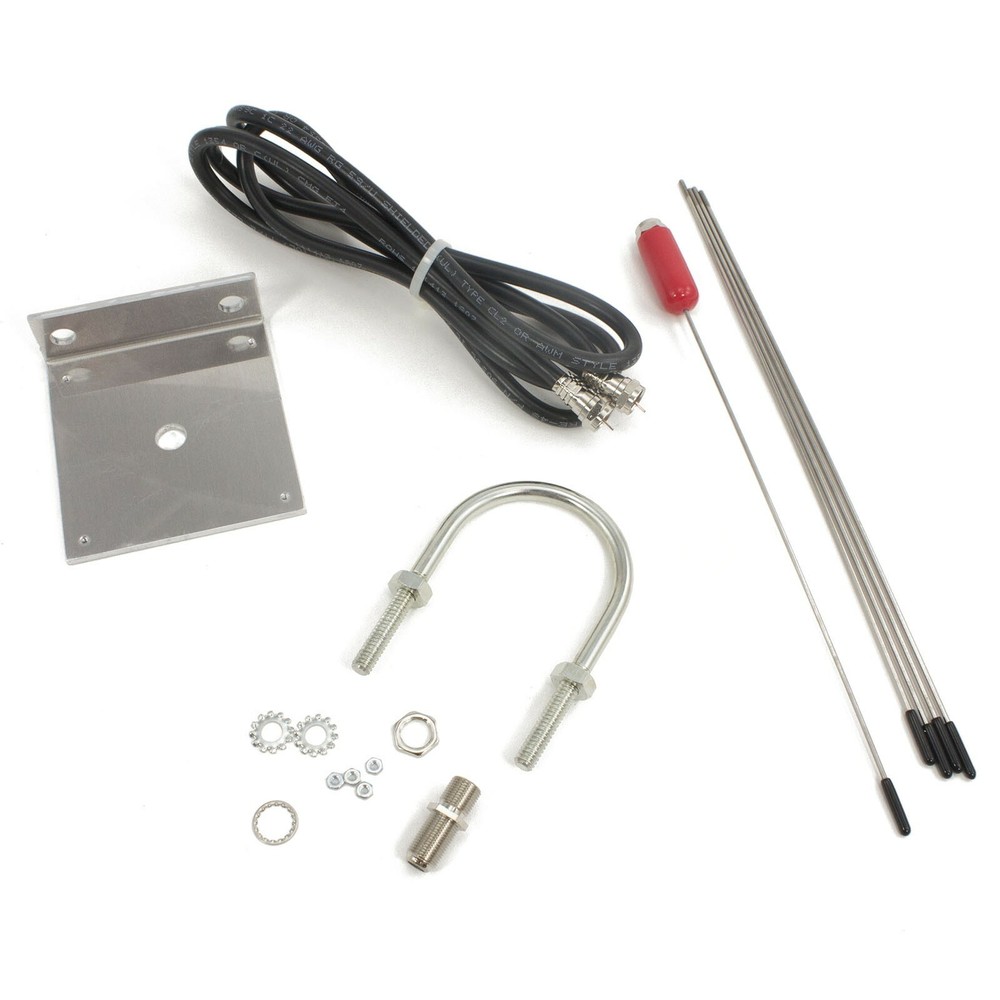

Check the listing for details. Linear EXA-1000 AAE00198 Omni Directional Extending Range Antenna Kit. Condition: New. Listed at 60.43 USD. Linear EXA-1000 AAE00198 Omni Directional Extending Range Antenna Kit Linear EXA-1000 AAE00198 Omni Directional Extending Range Antenna Kit The Model EXA-1000 from Linear is a Omni-directional Remote Antenna is designed to enhance the radio range of Linear’s receivers. This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually an increase of 20-30% range can be expected. The versatile EXA-1000 can be mounted in a variety of ways. A 2-inch U-bolt is supplied for post or pipe mounting, or the U-bolt holes in the Base Plate can be used to screw the antenna to a wall or vertical wood brace or beam.The EXA-1000 is a 1/2 wave, center fed, vertical antenna composed of three parts: an Antenna assembly with an F connector attachment; a Base Plate assembly with radial mounting provisions; and a five-foot, 75-ohm coaxial cable. The cable connects to the antenna base on one end and the receivers F connector on the other. If the antenna must be mounted further than five feet from the receiver, an extension cable of up to a maximum of 25 feet may be used instead of the five foot cable supplied. Because of the cable resistance, the performance of the EXA-1000 may be degraded by using longer than a 25 foot cable.FeaturesCompatible with all Linear receivers with Type F antenna connectorReceives signals in 288 to 320 MHz rangeOmni-directional remote antennaIncludes 5 feet of coaxU-bolt for post mountingDimensions: 3″ W x 19.5″ H x 6″ DPayments & Returns Policy
