| Model | 3Axis Digital Readout Only |
|---|---|
| Grating Pitch | 0.02mm (50LP/min) |
| Accuracy | ±0.005 mm or 0.0002" (at 20 deg C) |
| Response Speed | 60m/min or 40ins/sec |
| IP Class | 53 |
| Sealing | Double seal |
| Working Temperature | 0-45° |
| Power | 10W |
| Type | Linear Scale / Digital Readout |
| Frequency Doubling | 4x |
| Allowable Input Signal | TTL square wave |
| Length resolution | Optical 100~1000mm ~5μm (0.005mm) 0.0002") |
| Resolutions 1 | 0.5μm, 1μm, 2μm,5μm,10μm |
| Supply Voltage range | AC 80V~250V; 50~60Hz |
| Resolutions 2 | 0.5μm, 1μm, 2μm,5μm,10μm |
| Power consumption | 25VA |
| Axis | 2Axis / 3Axis |
| Display | 8 words display |
| Brand | iMeshbean |

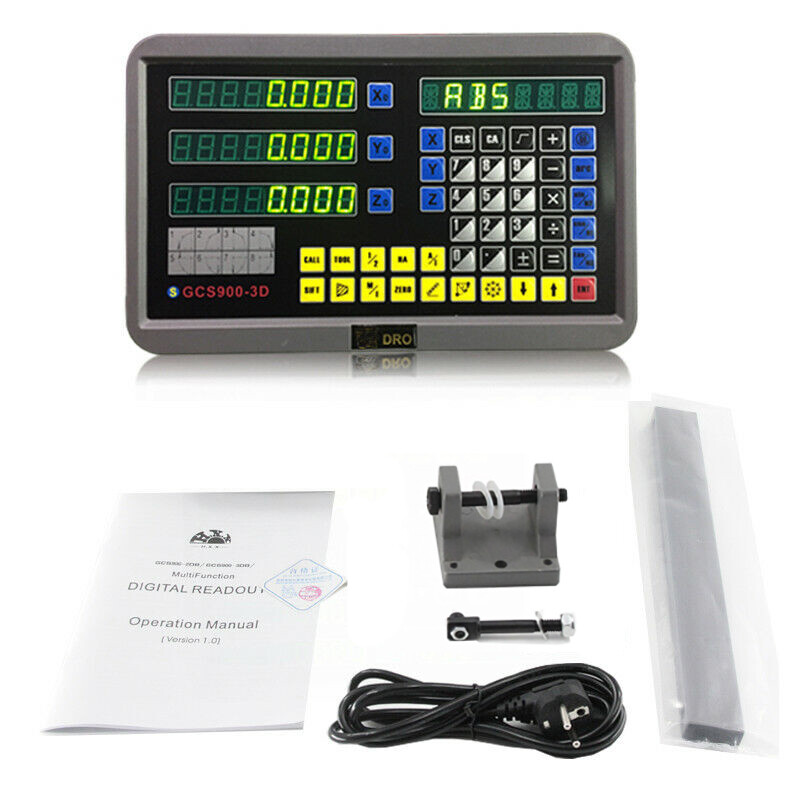

Check the listing for details. Linear Sensor Scale 2Axis/3Axis Digital Readout DRO Display for Mill Lathe EDM. Condition: New. Listed at 99.99 USD. 17:lathe function(match). Z+Y sum (lathe machine). 1 x 2/3 Axis Digital readout or TTL Linear Scale(Upon your option). Note: Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel.
