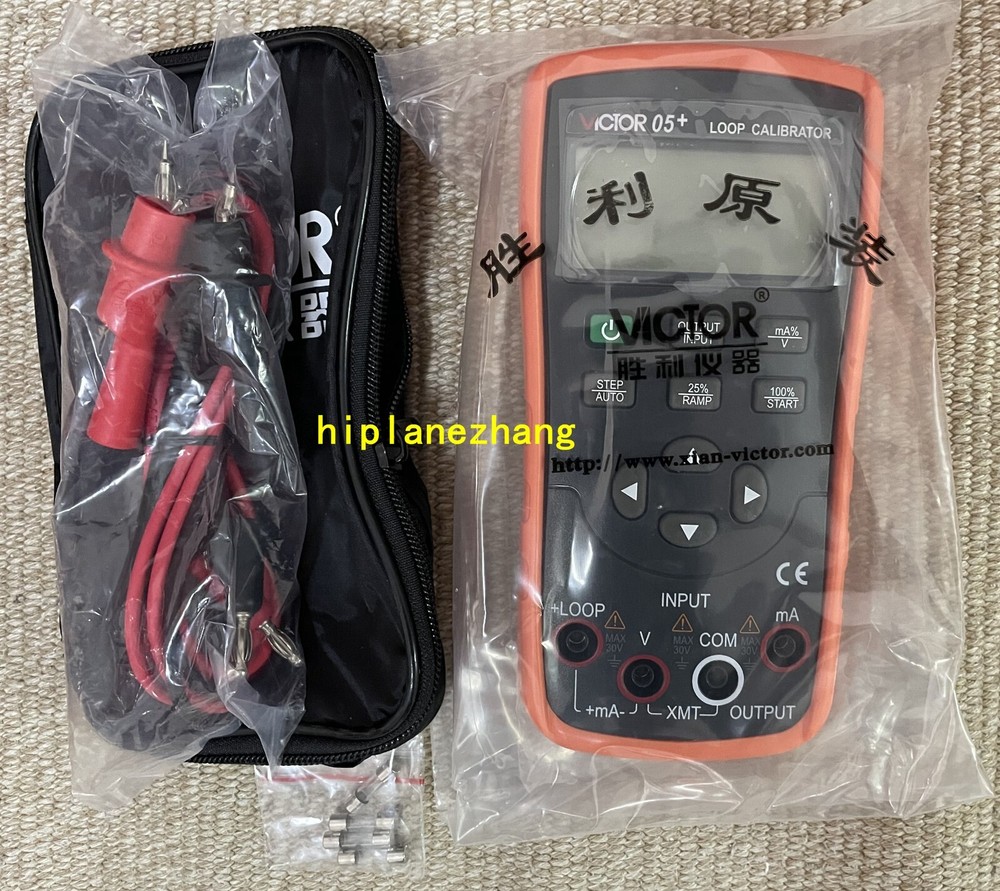

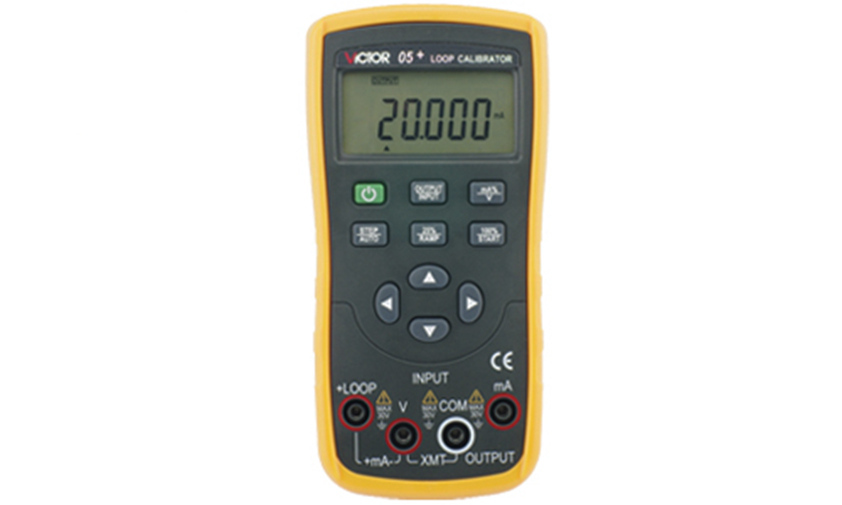

Check the listing for details. Process Loop Calibrator Output 0-20mA Analog Transducer XMT -22mA Loop Power 24V. Condition: New. Listed at 320.00 USD. VC05+ Features: 1. Basic accuracy 0.05%, display 5 digits.2. Measures DCV and DCA, and 24V loop power supply and current measurement.3. Output DCA and analogue transducer.4. Loop power 24V.5, Can display mA and %.6. Fast and slow 4-20mA auto slope wave output. Specifications:Output [ In one year, 23C±5C, 35-70%RH, accuracy= +-(seting%+words)] Output Range Detailed Range Resolution Accuracy Remarks DCI 20mA 0.000-22.000mA 0.001mA 0.05%+0.004mA 20mA max. load 1KΩ XMT -20mA 0.000 to -22.000mA 0.001mA External power 5~28V, max. load 1KΩ Other characters: * Max.voltage for output: about 32Vpk; Max. current for output: about 5mA * Output protection: 63mA/250V fuse *Temperature coefficient: 0.1 x basic accuracy/C Measurement [ In one year, 23C±5C, 35-70%RH, accuracy= +-(seting%+words)] Measurement Range Detailed range Resolution Accuracy Remark DCI 20mA -1.000-2.000mA 0.001mA 0.02%+0.004mA Input resisance 10Ω LOOP 20mA -1.000-2.000mA 0.001mA 1. Input resisance 10Ω 2. 24V loop power DCV 28V -0.200～28.000V 0.001V 0.02%+0.002V Input resisance 1MΩ Other characters: *Refresh rate: 2 times/second. * Max. voltage for input: 30Vpk; Max. current for input: 60mA *Current input protection: 63mA/250V *Input Common Mode Rejection: 50Hz /60 Hz > 120dB; Input series mode rejection 50Hz /60 Hz > 60dB * Temperature coefficient: 0.1 x basic accuracy/C Work temperature and RH 0 to 50ºC, ≤80%RH; 40 to 50ºC, ≤70%RH Storage temperature and RH 25 to 60ºC, ≤90%RH Conform to EN61010-1：2001; IEC 60068-2-64：2008；IEC 60068-2-32：2008 Power supply: 2 x 1.5V AA battery (Not included) Size and weight: 180 x90 x47 mm; about 500g Accessories: a pair test leads, 63mA/250V fuse, PDF manual Note: we'll ship this item via express mail service or SpeedPAK to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you bid.
