| Mounting Holes | For #6 machine screws, spaced 1.000" / 25.40 MM OC (on centers) |
|---|---|
| Pre-Travel | .046" / 1.17 MM |
| Over-Travel | .115" / 2.92 MM |
| HP Rating | 3/4 HP 125VAC, 1-1/2 HP 250 VAC |
| MPN | E-13 |
| Operation | Normally Open, Snap Action |
| Item Length | 2.529" / 64.24 MM |
| Switch Style | Plunger / Pushbutton |
| SELLER LOCATION | USA |
| Suitable For | Interior, Wall |
| Port Type | 1/4" Quick Connect / Spade Terminals |
| Switch Action | Momentary, SPDT |
| Current Type | AC/DC |
| Termination Type | 1/4" / 6.35 MM Quick Connect |
| Operating Force | 0.60 LB / 272 g |
| Item Height | .823" / 20.90 MM |
| Number in Pack | 2 |
| Contact Material | Silver Alloy |
| Number of Outlets | 1 |
| Features | Normally Open (NO) Operation |
| Finish | Black |
| Room | Basement, Garage, Dungeon |
| Item Width | .647" / 15.94 MM |
| Button Color | White |
| Mounting Style | Bolt-On, Fixed, Screw, Surface |
| Operating Temperature | 105°C (Max) |
| Maximum Amperage | 15A |
| Number of Positions | 2 |
| USA SHIPPING DEAL | Pay Shipping For One, Then ALL SHIP FREE |
| Color | Black |
| Current Rating | 15 A |
| Number of Phases | 1 |
| Material | Phenolic |
| Brand | Cherry Electrical |
| Maximum DC Amperage | 2 A |
| Operation Method | Momentary/On |
| Type | Pushbutton MicroSwitch |
| Contact Configuration | Single Pole, Double Throw (SPDT) |
| Bulb Compatibility | Any |
| Model | E13 |
| Number of Circuits | 1 |
| Application | Automotive, Commercial, Control Equipment Panels, Conveyance Lines, Electrical Wiring, Electronics, Appliances |
| Standards/Compliance | UL CSA |
| Power | 3/4 HP @125VAC / 1.5 HP @250VAC |

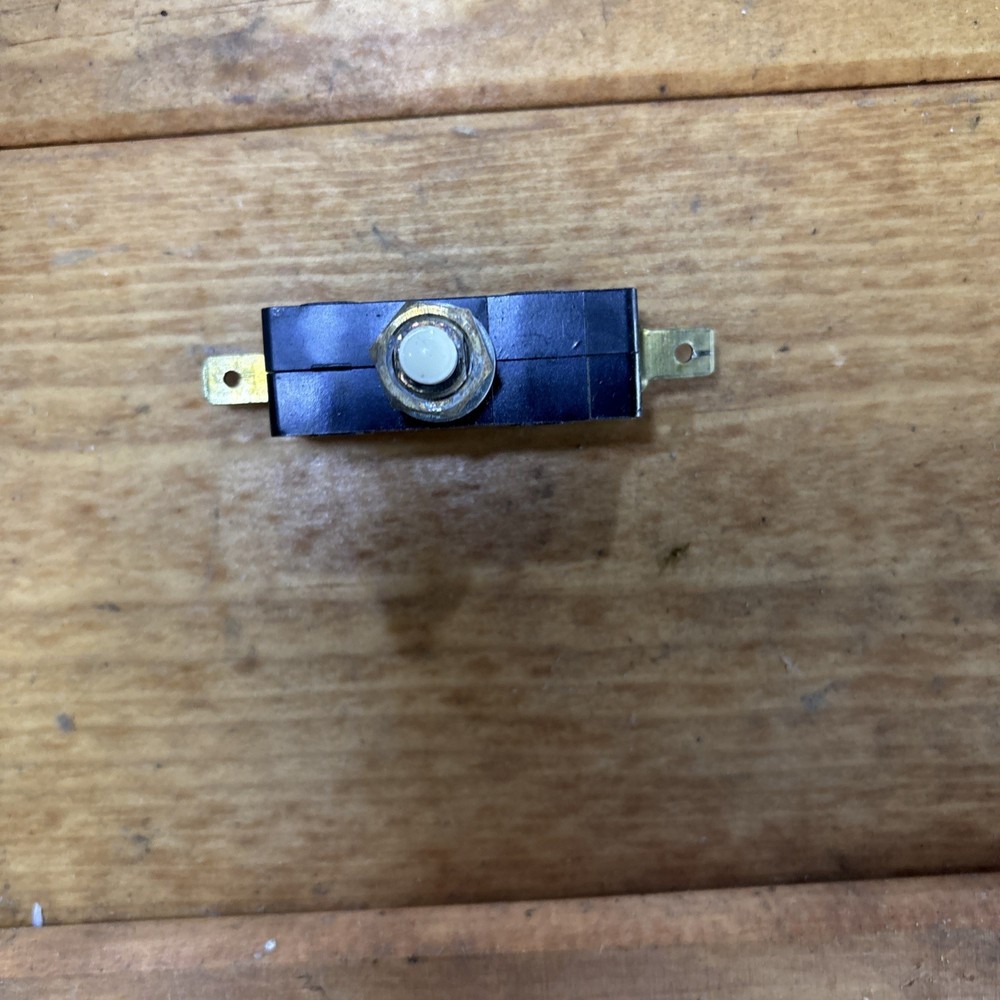

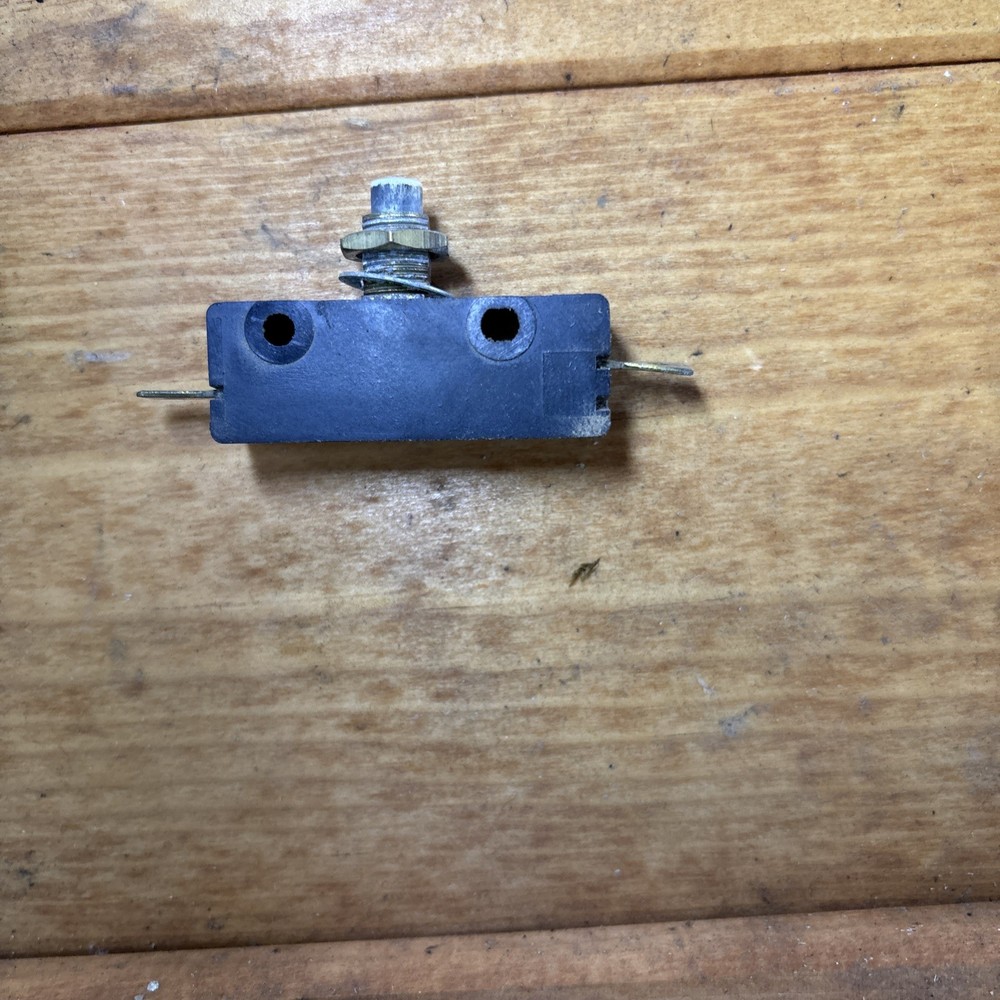

Check the listing for details. Lot 6 Cherry E13 15A Normally Open Snap Action Pushbutton MicroSwitch 125VAC/250. Color: Black, Condition: Used. Listed at 24.00 USD. These microswitches have a plunger/pushbutton switch style with a black finish and white button color. They are suitable for wall mounting with #6 machine screws spaced 1.000" apart.
