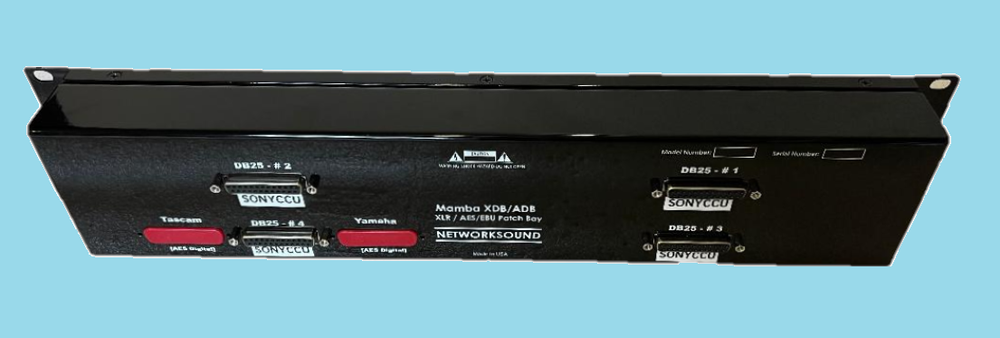

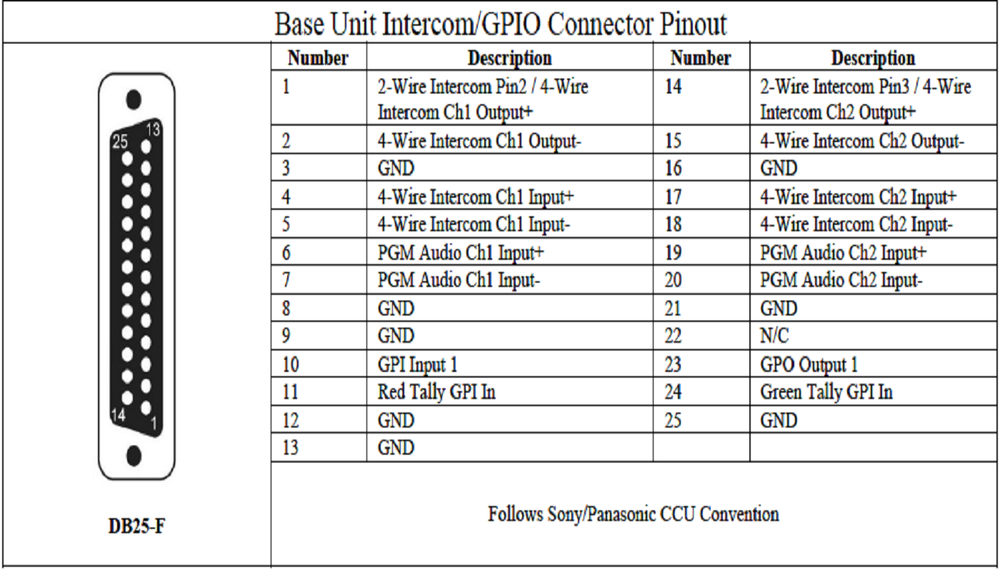

Check the listing for details. Mamba 32 XLR SONY / Panasonic CCU x 4 DB25 Breakout Patch Panel 2RU. Condition: New. Listed at 389.00 USD. NetworkSound is pleased to announce the new addition to the Mamba Patch Panel family. A custom XLR to SONY-Panasonic Camera Control Unit (CCU) or Base Intercom Unit patch panel to break out the SONY/PAN DB25 in to XLRs. This is a custom unit specifically designed for SONY/PAN CCU DB25 (below DB25 pin out). You can use DB25 Male to DB25 Male 1 to 1 pin out cables available on the market to connect Mamba DB25 to your SONY DB25 device. All I/Os are available to you on rack front for easy patch with supreme quality. THIS IS A 32 XLR to 4 x SONY / PAN CCU DB25 Break Out 2RU model. We do have a 16 Ch model 1RU. Below is the wiring diagram... Channel 1 output (XLR M) i. DB25 Pin 1 (Ch1 output +) – XLR Pin 2 ii. DB25 Pin 2 (Ch1 output -) – XLR Pin 3 iii. DB25 Pin 3 (Ground) – XLR Pin 1 Channel 1 Input (XLR F) i. DB25 Pin 4 (Ch1 Input +) – XLR Pin 2 ii. DB25 Pin 5 (CH1 Input -) – XLR Pin 3 iii. DB25 Pin 8 (Ground) – XLR Pin 1 Channel 2 output (XLR M) i. DB25 Pin 14 (Ch2 Output +) – XLR Pin 2 ii. DB25 Pin 15 (Ch2 Output -) – XLR Pin 3 iii. DB25 Pin 13 (Ground) – XLR Pin 1 Channel 2 Input (XLR F) i. DB25 Pin 17 (Ch2 Input +) – XLR Pin 2 ii. DB25 Pin 18 (Ch2 Input -) – XLR Pin 3 iii. DB25 Pin 16 (Ground) – XLR Pin 1 Program Audio Channel 1 input (XLR F) i. DB25 Pin 6 (PGM Ch1 Input +) – XLR Pin 2 ii. DB25 Pin 7 (PGM Ch1 Input -) – XLR Pin 3 iii. DB25 Pin 9 (Ground) – XLR Pin 1 Program Audio Channel 2 input (XLR F) i. DB25 Pin 19 (PGM Ch2 Input +) – XLR Pin 2 ii. DB25 Pin 20 (PGM Ch2 Input -) – XLR Pin 3 iii. DB25 Pin 21 (Ground) – XLR Pin 1 Red Tally Input (XLR F) i. DB25 Pin 11 (Red Tally GPI IN) – XLR Pin 2 ii. DB25 Pin 12 (Ground) – XLR Pin 1 Green Tally (XLR F) i. DB25 Pin 24 (Green Tally GPI IN) – XLR Pin 2 ii. DB25 Pin 25 (Ground) – XLR Pin 1 Pins 10, 22 and 23 are NC. Rack Mountable 2RUNuetrik Genuine gold plated connectorsPCB mounted and clean signal pass thruSolid steel and sleek shiny piano black finish Use DB25 Male to DB25 Male 1 to 1 cables4 x SONY DB25 break out5 year warrantyWe can make custom - 1 side SONY CCU DB25 and other side Analog, AES or Split DB25. We also have custom 2 wire to 4 wire switch on the fly (2 switches on Front), pls contact us. Pls contact us for any questions or comments. We have many more XLR to XLR, XLR to DB25, AES and Splitter, XLR Switch etc patch bays @ NetworkSound
