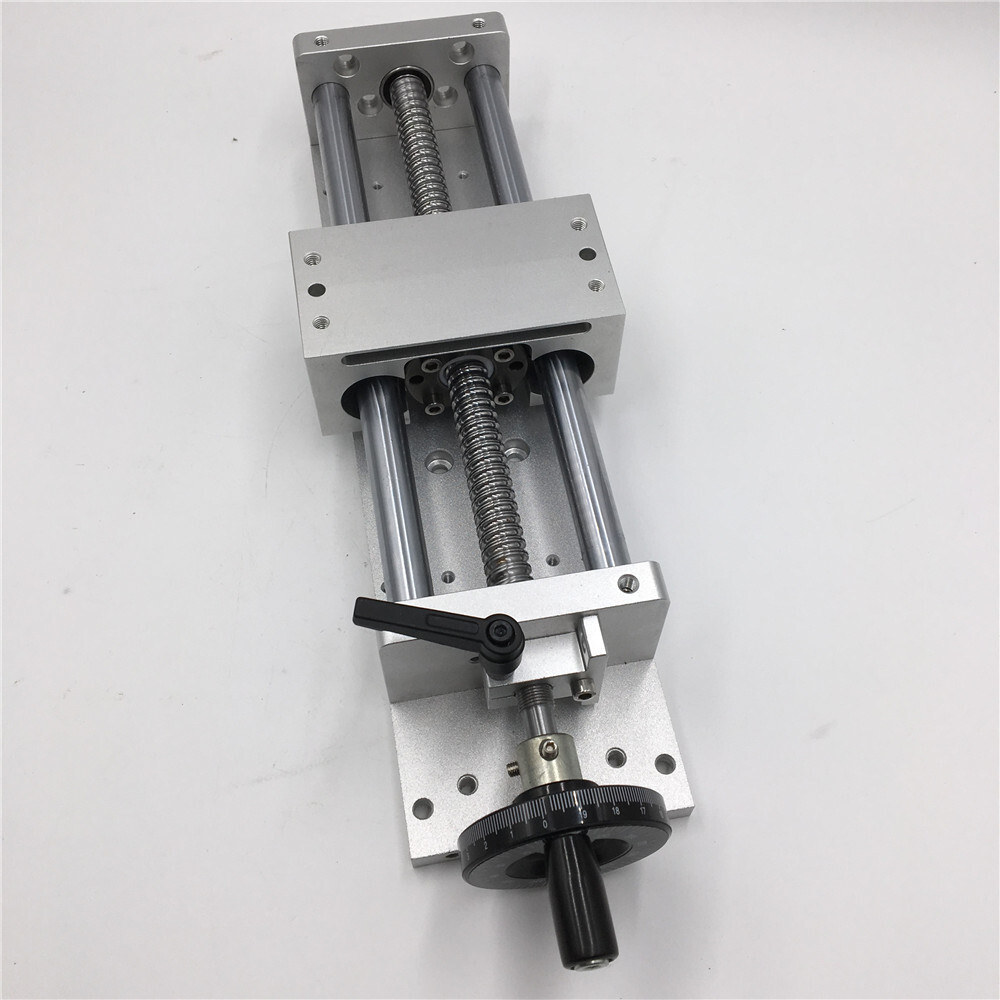

Check the listing for details. Manual Cross Sliding Table 600mm Linear Rail Module Slide Actuator & Handwheel. Condition: New. Listed at 230.30 USD. 500mm Linear Stage SFU1605 Ballscrew Manual Cross Slide Rail Module Actuator Milling Worktable + Handwheel Package included : 1 x SFU1605 L500mm sliding table (L500 represents the effective stroke of the slide table)1 x Handwheel1 x Locking device Kindly Note : 1. Sliding table length is optional, please contact us if you need any other size. 2. Standard hand wheel, locking device, if you need to add other accessories need to compensate for the difference. 3, We also offer stroke 200mm, 300mm, 400mm, 500mm, 600mm, 700mm manual sliding table , please contact us if you need . Features : Bitmap Stroke Horizontal load Vertical load Effective Stroke Mobile panel size Table Dimension (height*width*thickness) 100（mm） 50kg 25kg 100mm 60*115mm 66*93*11mm 200（mm） 40kg 20kg 200mm 60*115mm 66*93*11mm 300（mm） 30kg 15kg 300mm 60*115mm 66*93*11mm 400（mm） 25kg 10kg 400mm 60*115mm 66*93*11mm 500（mm） 20kg 5kg 500mm 60*115mm 66*93*11mm 600（mm） 15kg 5kg 600mm 60*115mm 66*93*11mm 700（mm） 12kg 4kg 700mm 60*115mm 66*93*11mm 1. Ball screw type: 1605 (diameter 16mm, lead 5mm (screw can be replaced by 1610/1620/2020/2005 C7 level)2. Ball screw accuracy: c73. Stepper motor : not included4. Repeat positioning accuracy: ± 0.02mm5. Mobile panel size: 60mm * 115mm6. Sliding table height: 66mm, width: 93mm, floor thickness: 11mm7.Material: Aviation Aluminum 60618. The sliding table is convenient and easy in use, can be directly fold cross slide, gantry sliding table, 3-axis, 4-axis, multi-axis combination in use. Dimensions :
