| Return shipping will be paid by | Buyer |
|---|---|
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Brand | Hashimoto (Sansui reprint) |
| Turn Ratio (X Factor) | 15:1 (in Serial), 30:1 (in Parallel) |
| Natural Impedance (Input impedance with Output load of 47 kΩ) | 209 Ω (in Serial), 52.2Ω (in Parallel) |

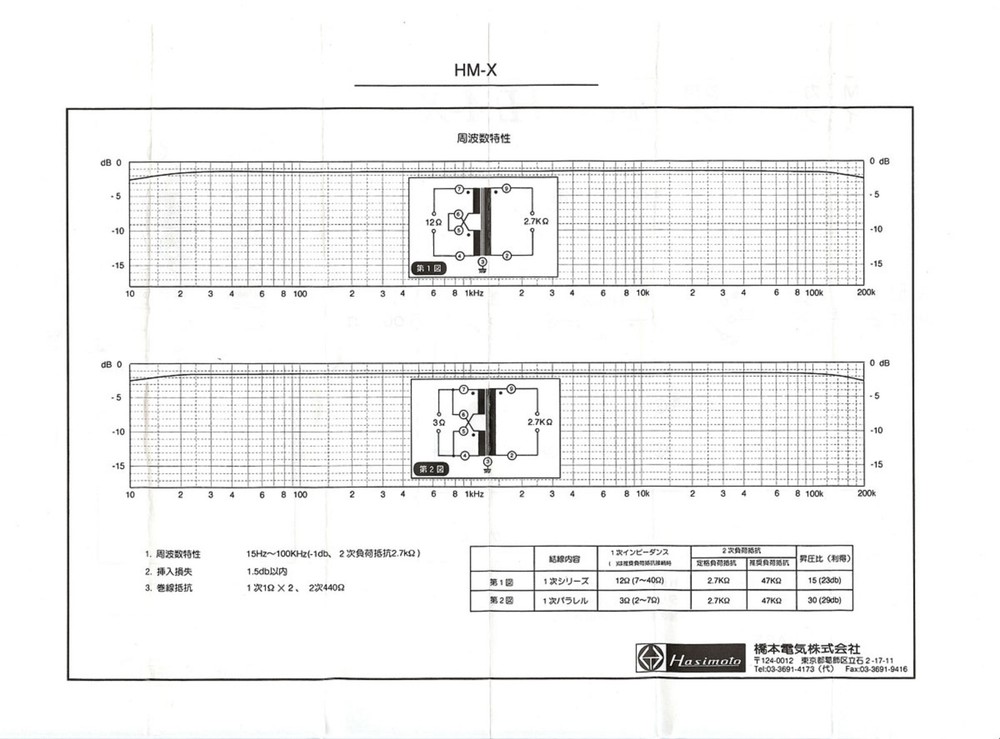

| Frequency Response (-1dB) | 15Hz to 100kHz |
| Custom Bundle | No |
| Model | HS-HM-X |
| Compatible MC cartridge | Audio Technica, Ortofon, Lyra, Koetsu, Sumiko, Denon, etc. |
| MPN | HS-HM-X |
| Country/Region of Manufacture | Japan |
| Gain | 23 dB (in serial), 29dB (in parallel) |
| Modified Item | No |

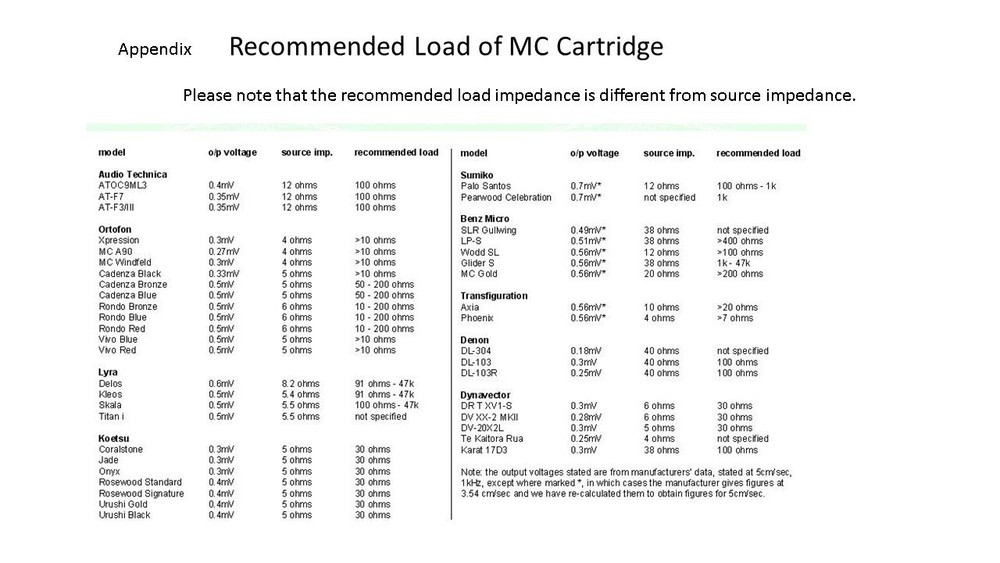

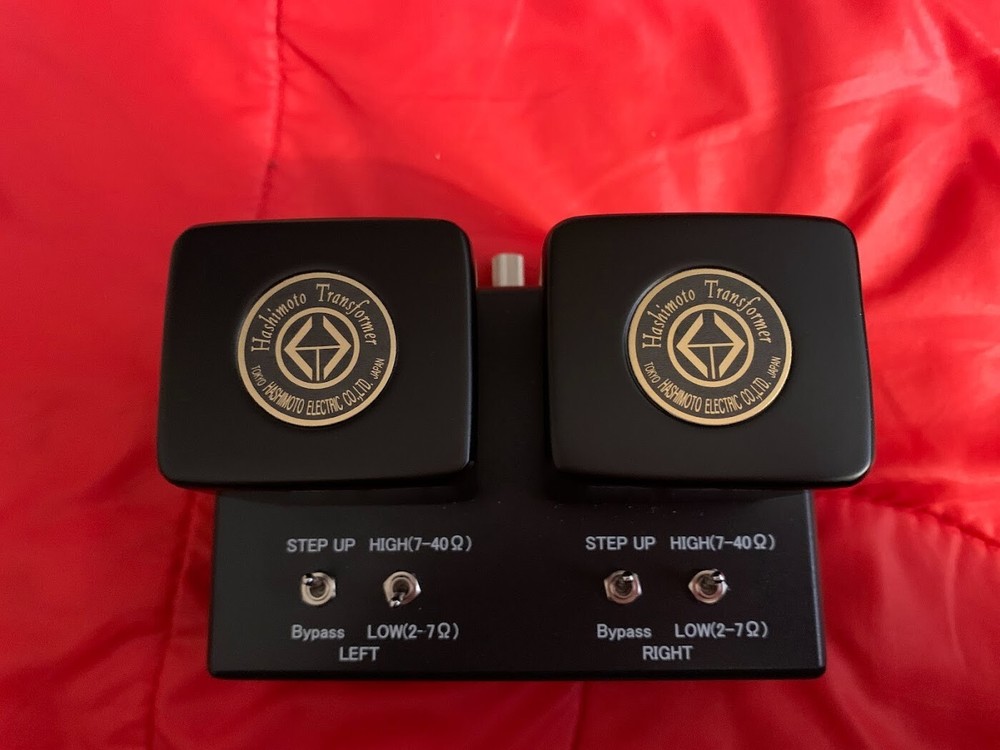

Check the listing for details. MC Step-up Transformer Unit with Hashimoto HM-X: for A Tec, Orto, Denon, Koetsu. Condition: New. Listed at 1346.63 USD. MC cartridge step-up Transformer Unit Step-up Transformer Hashimoto HM-X x 2 Frequency Response (-1dB): 15Hz to 100KHz Gain/Turn Ratio 23dB / 15:1 (in Serial) Gain/Turn Ratio 29dB / 30:1 (in Parallel) Input impedance with Output load of 47kΩ 209Ω (in Serial) 52.2Ω (in Parallel) Return Signal Line Not Grounded Compatible MC Cartridge Detail to be referred to attached photo. Audio Technica, Ortofon, Lyra, Koetsu, Sumiko Bentz Micro, Transfiguration, Denon, Dynavector
