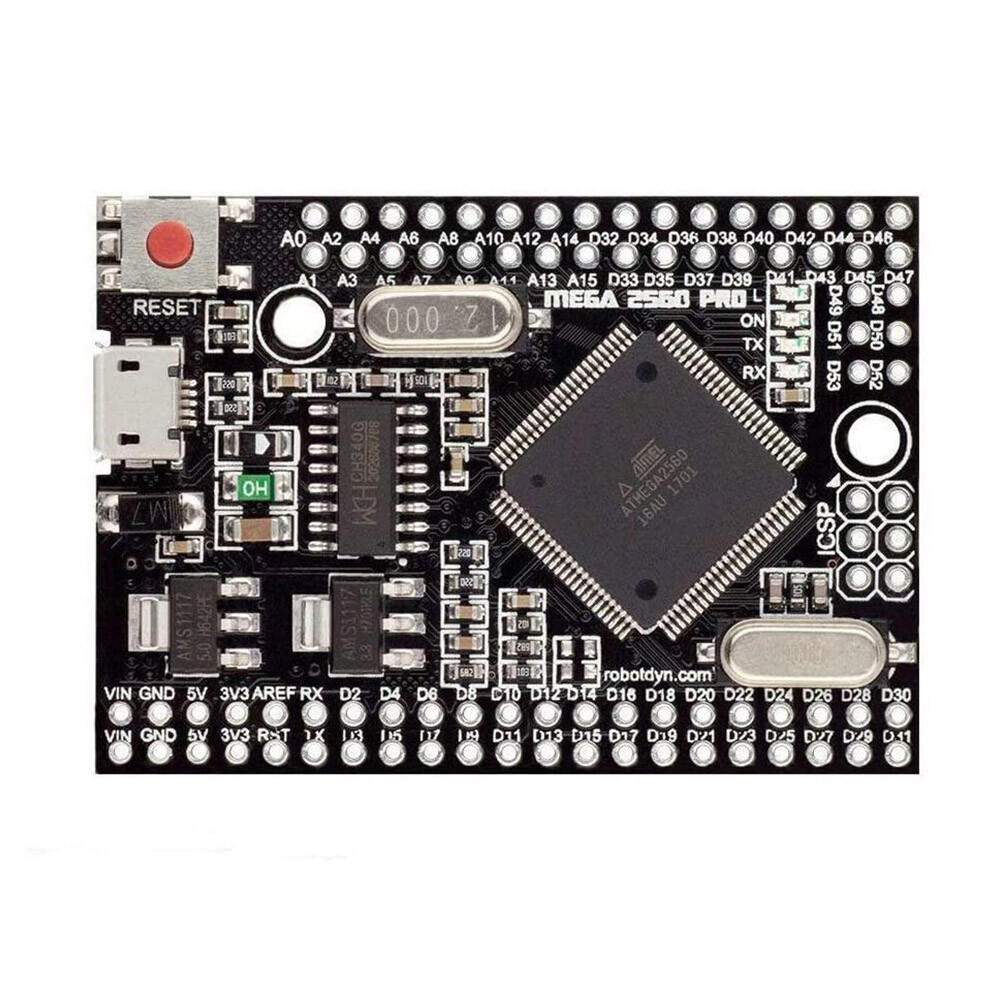

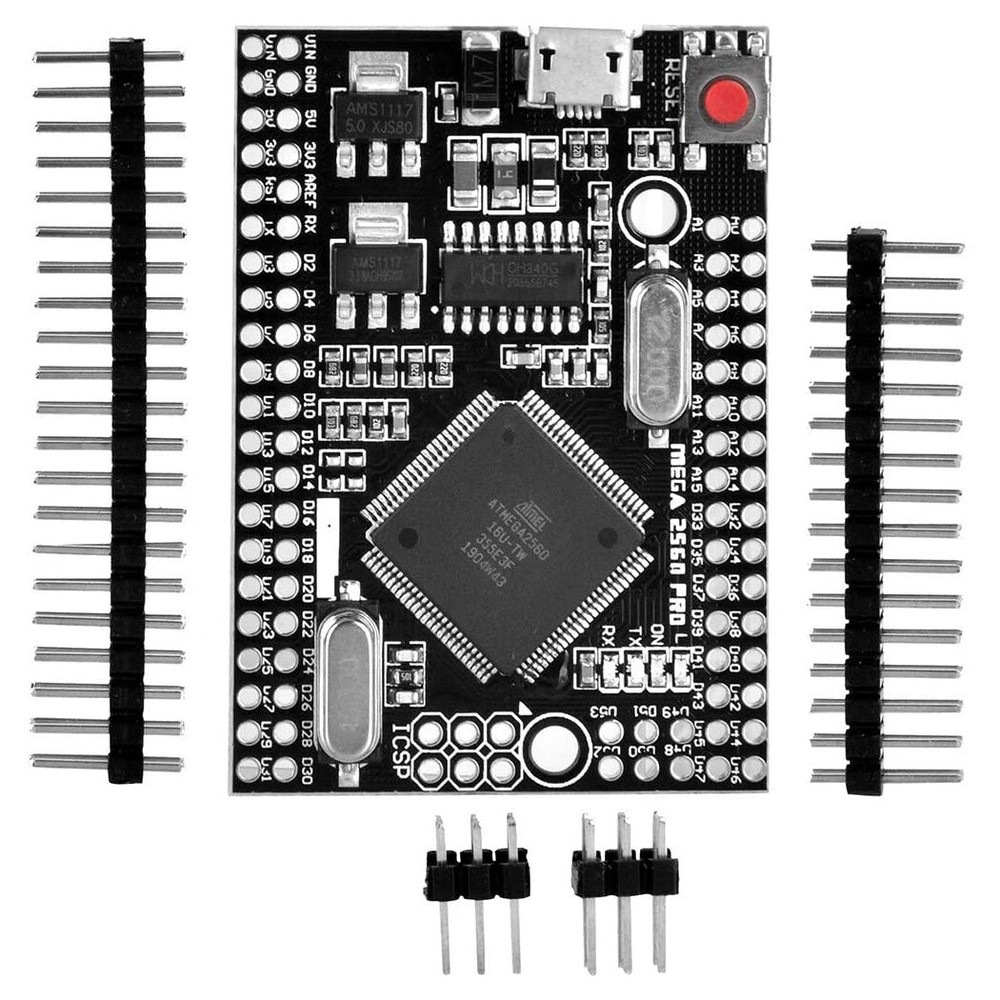

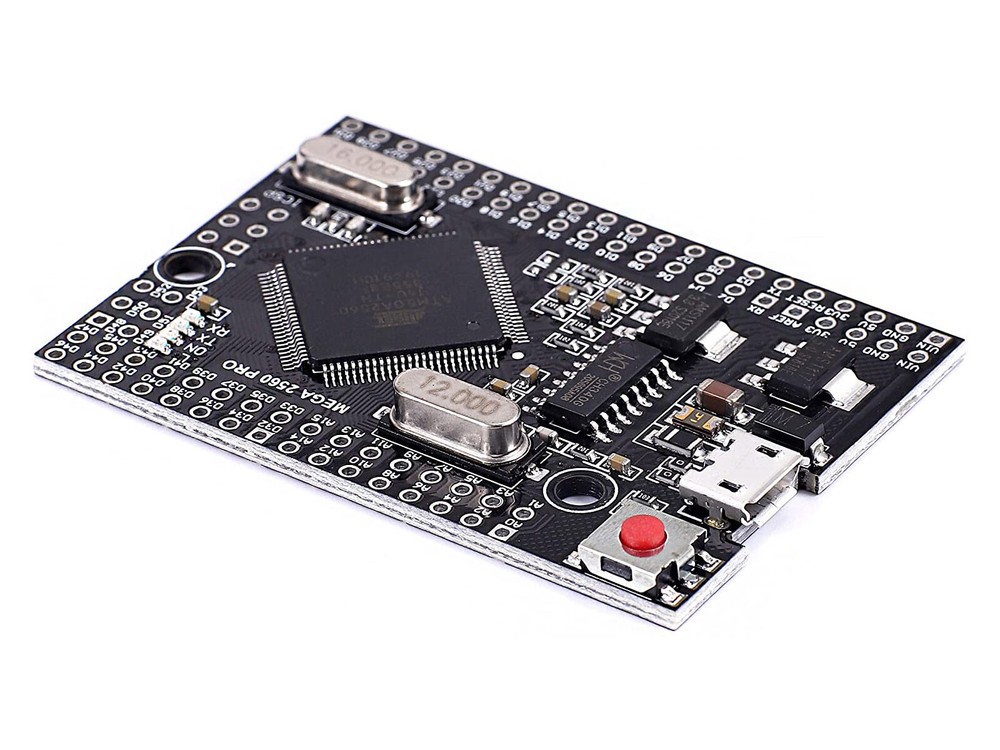

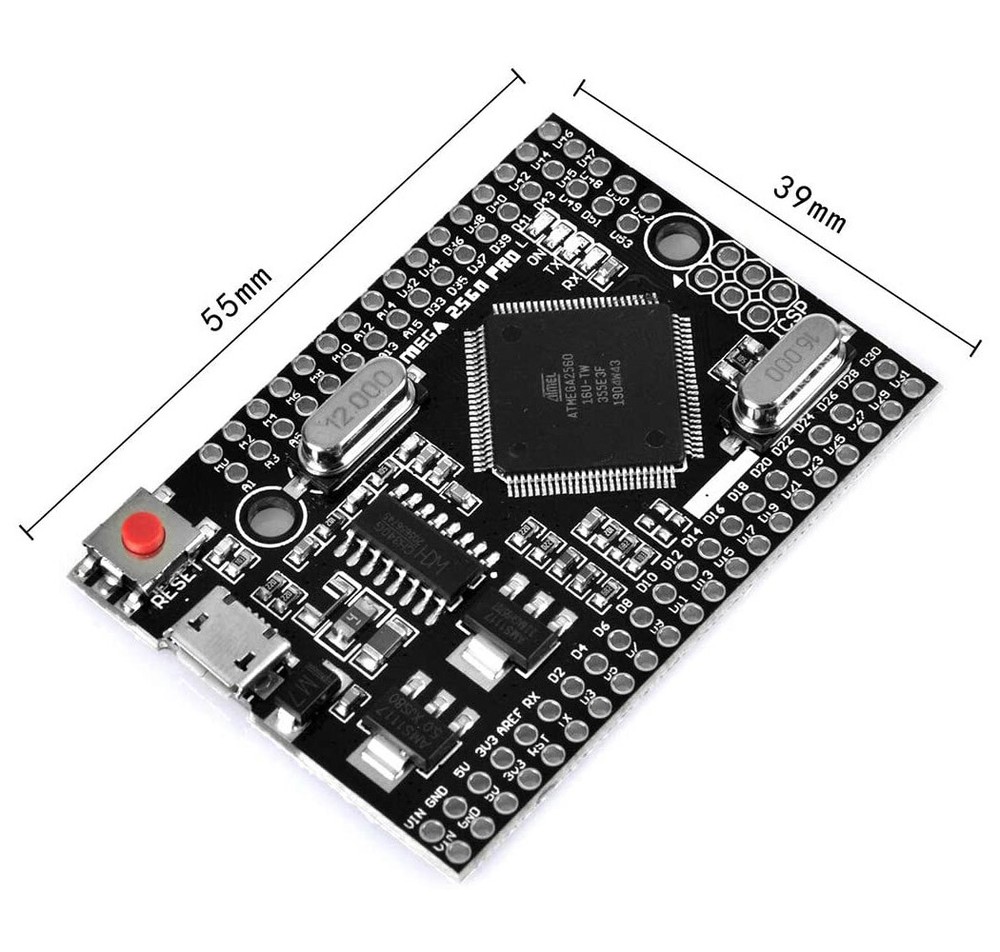

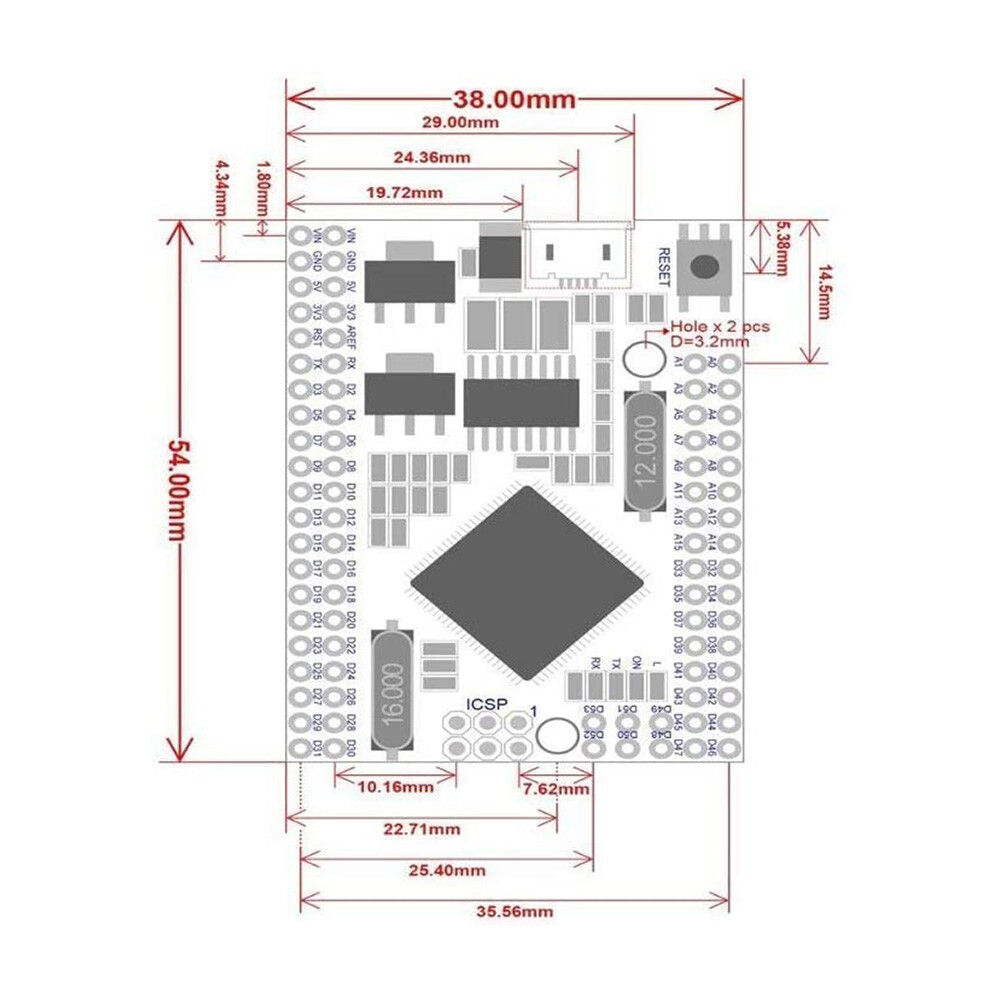

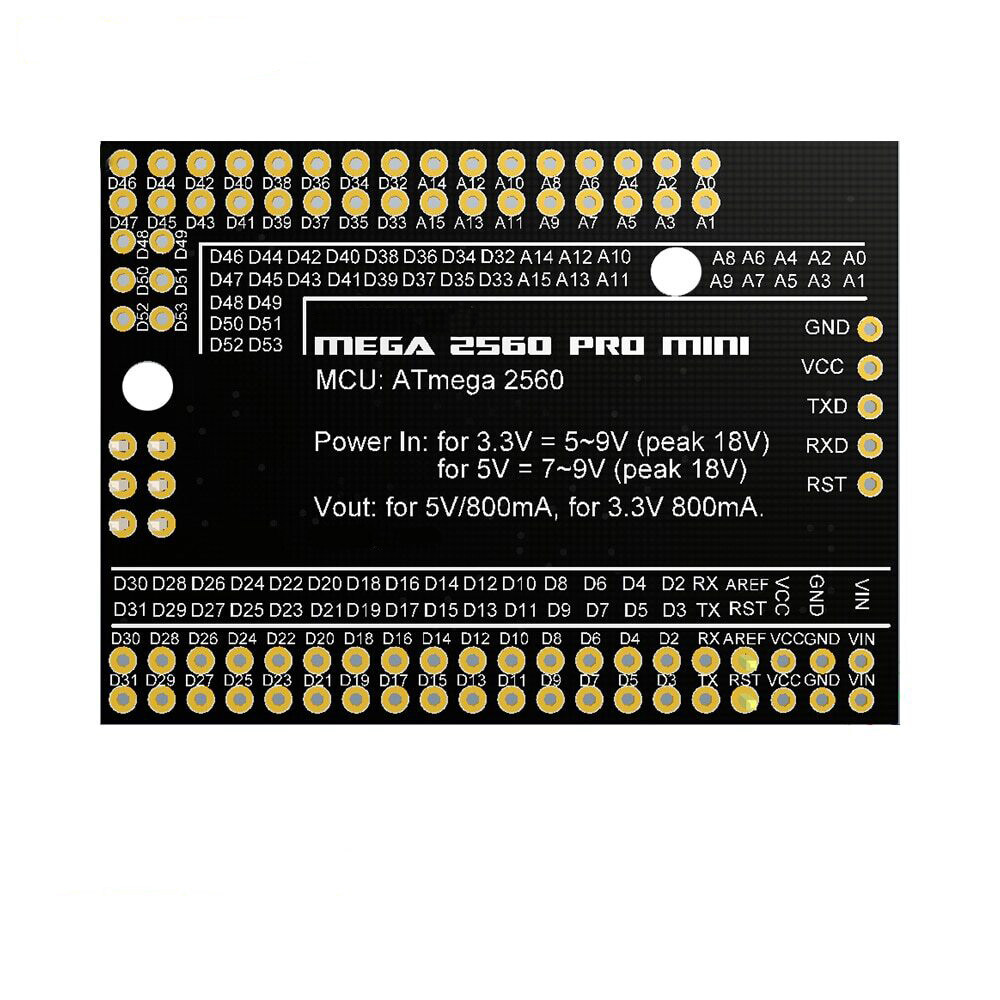

Check the listing for details. MEGA2560 PRO MINI ATmega2560-16AU CH340G Development Board. Condition: New. Listed at 15.89 USD. This MEGA2560 Pro Mini board is a low cost, miniature version of the popular Mega 2560 microcontroller and is compatible with the Arduino Mega 2560. It has a compact form factor of 54mm x 38mm (2.1" x 1.5") and is an excellent solution for developing embedded and stand-alone projects based on the ATmega2560. The Mega Pro Mini functionalities are identical to the Arduino Mega2560. It uses the original ATmega2560-16AU chip, a 16 MHz high-quality quartz resonator, and the CH340G USB-UART interface. It has a Micro-USB connector (universally used by most phones, including Android smartphones) to connect the microcontroller to the computer via the CH340 USB-UART adapter (the CH340 driver may need to be installed on your computer). Connectivity to the computer is provided through the common micro USB connector. The board can be powered directly through the Micro USB connector, or via the corresponding contacts on the board (Vin and GND). The onboard voltage regulator operates in a range of 6V to 9V DC. (The voltage regulator allows up to 18V input, however, we do not recommend exceeding 9V since the higher voltage can lead to overheating and damage the device.) The maximum current for the 5V and 3.3V outputs are 800mA each. MEGA2560 Pro Mini Features & Specifications: CH340G USB-TTL converter replaces the Atmega 8U2/16U2Microcontroller: ATmega2560Power Out: 5V @ 800mA maximumInput Voltage: 5V via Micro-USB connector, or 6V to 9V DC (recommended) via Vin & GND pinsMaximum Input Voltage: 18VPower Consumption: 5V 220mALogic Level: 5VClock Frequency 16MHzDigital I/O Pins: 54Analog I/O Pins: 16Flash Memory: 256 KB of which 8 KB is used by the bootloaderData RAM Type/Size: EEPROM 8KbData ROM Type/Size: SRAM 4KbInterface Type: ISPOperating temperature: −40С to +85СI/O connection spacing is 0.1" (2.54mm) grid spacing Size: 54mm x 38mm (2.1" x 1.5")Package Includes:1x MEGA2560 PRO MINI ATmega2560 2x2, 2x3, 2x16 & 2x21 Pin HeadersLink to online installation and operation documentationGet it faster! Stocks and ships from our US Colorado office for quick delivery. Contact us for quantity/OEM pricing. This board is licensed under Arduino's Creative Commons Attribution Share-Alike license. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
