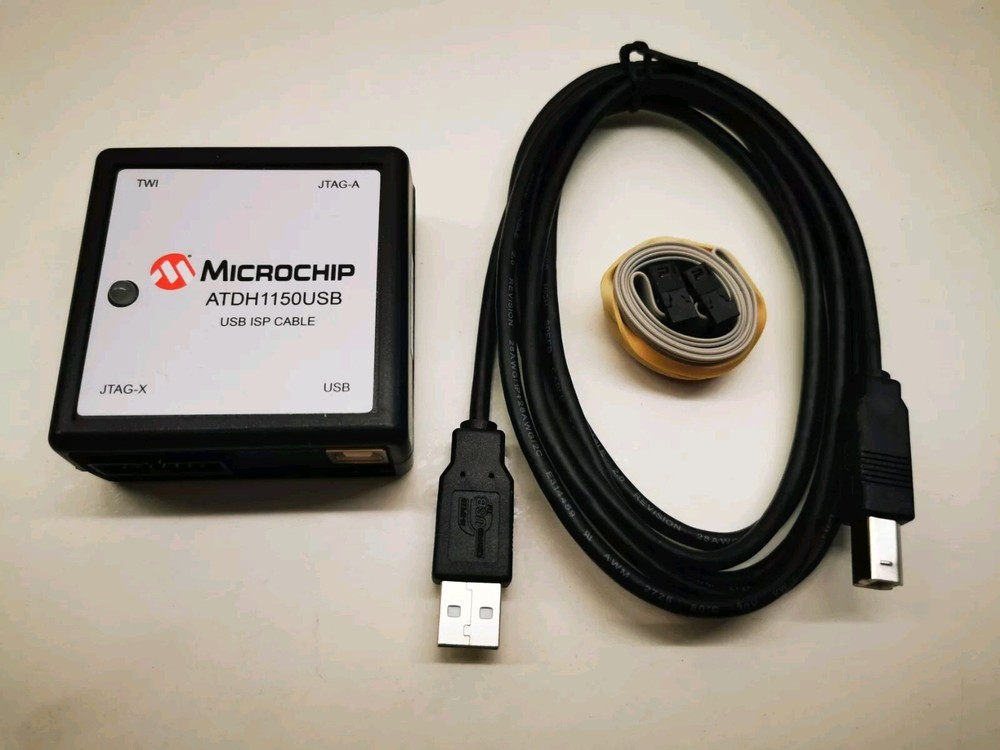

Check the listing for details. Microchip ATDH1150USB USB ISP JTAG TWI for ATF15xx-DK3-U CPLD Programmer MCU. Condition: New. Listed at 70.57 USD. New without original packaging Package contents: ISP Programmer, 10way and USB A-B cable JTAG programming cable for Atmel, now Microchip, ATF1502, ATF1504 and ATF1508 series CPLD devices.This Microchip ISP programmer uses ATMISP 7 software, which can be downloaded from PLD resources page on Microchip websitePLD Design ResourcesSupports Windows Vista, 7, 8 and 10, 32 and 64-bit versions. Window XP version available for download.Software features include:Supports JEDEC filesAble to chain JTAG devicesSupport for SVF file outputKit ContentsMicrochip ATDH1150USB ProgrammerUSB cable10-way programming leadCPLD SupportATF1502ASATF1502ASLATF1502ASVATF1502BEATF1504ASATF1504ASLATF1504ASVATF1504ASVLATF1504BEATF1508ASATF1508ASLATF1508ASVATF1508ASVLATF1508BEATF1508REWorks with Microchip ATF15xx-DK3 CPLD Development/Programmer board or with any CPLD board with a 10-way JTAG header. Other JTAG devices can be chained with these Atmel CPLDs and bypassed by ATMISP7 software so your hardware can have one JTAG interface. The programmer also has a 14-way JTAG output socket but only 10-way cable is supplied.10-way JTAG connector14-way JTAG connectorThe programmer is powered by the USB port, USB cable included. It requires a reference voltage from the target circuit, between 1.65V and 5.5V at 150mA (max) of current.
