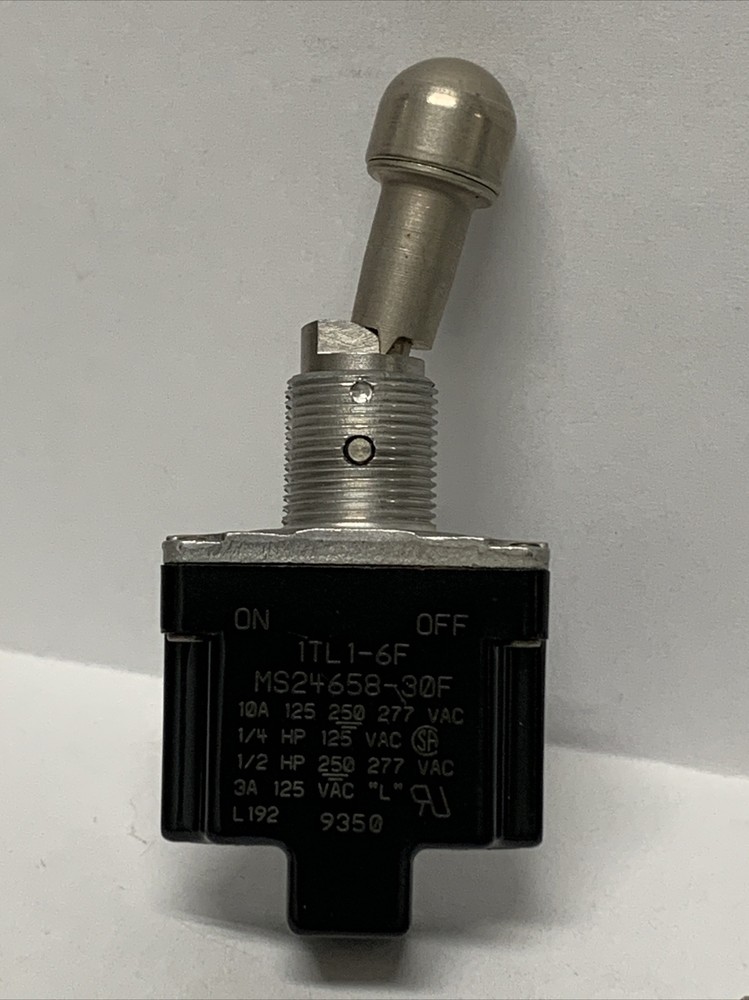

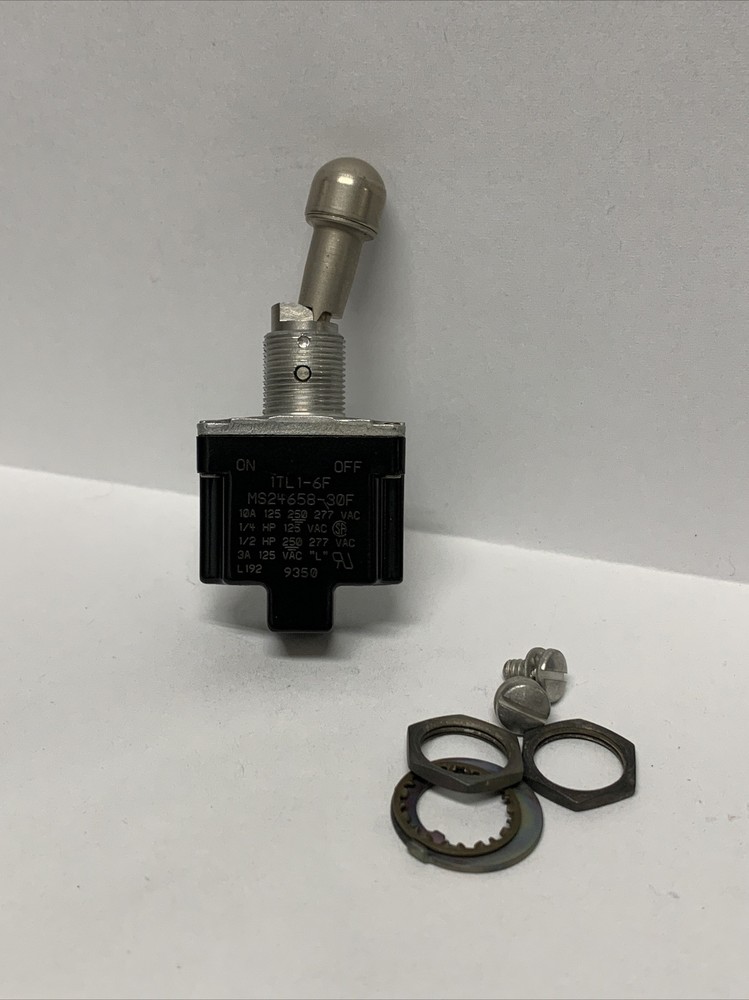

Check the listing for details. MICROSWITCH MS24658-30F Switch Toggle (ON) OFF SPST Locking Lever. Condition: New. Listed at 45.95 USD. MICROSWITCH MS24658-30F Switch Toggle (ON) OFF SPST Locking Lever LOT 36170 D79 NEW OLD STOCK Technical Data | NSN 5930-00-989-5983 Characteristic Specifications NONPILE-UP CONTACT ARRANGEMENT 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT MAXIMUM VOLTAGE RATING IN VOLTS 115.0 AC AND 28.0 DC CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 15.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 7.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC BODY STYLE 5P BUSHING MOUNT BUSHING LENGTH 0.470 INCHES NOMINAL BODY LENGTH 1.270 INCHES MAXIMUM BODY WIDTH 0.635 INCHES MAXIMUM BODY HEIGHT 0.930 INCHES NOMINAL MOUNTING SURFACE TO TERMINAL END DISTANCE 1.180 INCHES MAXIMUM OVERALL LENGTH 1.270 INCHES MAXIMUM OVERALL WIDTH 0.635 INCHES MAXIMUM OVERALL HEIGHT 2.790 INCHES NOMINAL ACTUATOR STYLE 26 ROUND ACTUATOR DIAMETER 0.420 INCHES NOMINAL ACTUATOR HEIGHT 1.140 INCHES NOMINAL ACTUATOR POSITION-ACTION RELATIONSHIP UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY ACTUATOR POSITION-LOCKING RELATIONSHIP UP POSITION LOCKED IN AND DOWN POSITION NO LOCKING ACTION TERMINAL TYPE AND QUANTITY 2 SCREW INCLOSURE TYPE FULLY INCLOSED HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION SUBMERSIBLE MOUNTING METHOD THREADED BUSHING THREAD SERIES DESIGNATOR UNS NOMINAL THREAD SIZE 0.469 INCHES THREAD CLASS 2A THREAD QUANTITY PER INCH 32 FEATURES PROVIDED ACTUATOR SEAL TEST DATA DOCUMENT 81349-MIL-S-3950 SPECIFICATION SPECIFICATION/STANDARD DATA 96906-MS24658 GOVERNMENT STANDARD III PRECIOUS MATERIAL SILVER III PRECIOUS MATERIAL AND LOCATION TERMINAL SURFACES SILVER MANUFACTURERS CODE 81349 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-DTL-3950 MANUFACTURERS CODE 96906 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS24658-30F
