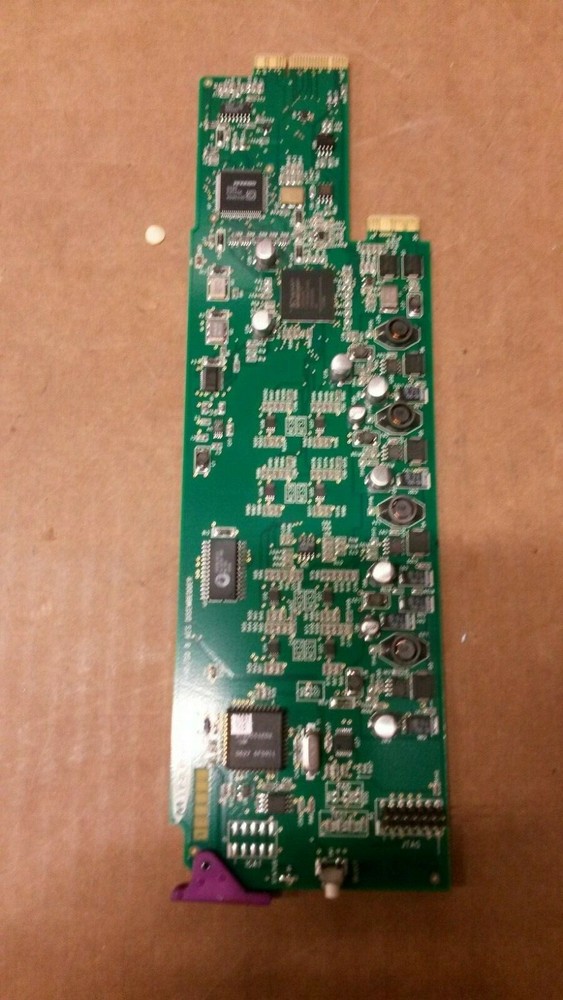

Check the listing for details. Miranda ADX-1881 1881-HD/SD 8 AES Disembedders. Condition: Used. Listed at 49.99 USD. Sellercore: HTML Preview Miranda ADX-1881 -HD/SD 8 AES Disembedder ITEM SPECS HD/SD 8 AES De-Embedder The ADX-1881 is a high-quality AES de-embedder designed to extract eight 24-bit 48 kHz digital audio signals, ancillary timecode (ATC), longitudinal/linear timecode (LTC) and ancillary data from a single SMPTE ST 292 HD-SDI or SMPTE ST 259C SD-SDI signal. The ADX-1881 will output audio silence with a loss of the input signal. The card provides automatic input format detection, as well as automatic equalization. An RS-422 serial data signal output is available to provide Dolby E metadata output, or simply to output a serial RS-422 signal. Two opto-isolated GPI data output signals can be reconstructed from ANC data inserted by the embedder. By combining AMX-1881 embedder and ADX-1881 de-embedder cards, a full duplex link may be established. HD/SD-SDI input with automatic equalizationAutomatic detection of video input formatTwo pass-through HD/SD-SDI video outputs8 AES outputs at 110 ohm balanced or 75 ohm unbalanced, depending on rear panel in useAudio level adjustment, -96 to +12 dBSelectable audio delay of up to 3 frames in 1/2 frame steps24-bit digital audio de-embeddingBuilt-in audio test tone signalAudio silence output on loss of video inputLeft/right channels swappable for each AES outputSelectable routing of audio groups to AES outputsCo-phased audio outputsDolby E compatibleRS-422 serial data output signal reconstructed from ANC data inserted by the embedder. Output can also be Dolby E or Dolby DigitalMetadata embedded in VANC with proprietary DIDLinear timecode (LTC) output translated from ancillary timecode (ATC) data or digital vertical interval timecode (DVITC)Two opto-isolated GPI data output signals reconstructed from ANC data inserted by the embedderBy combining AMX-1881 embedder and ADX-1881 de-embedder cards, a full duplex link may be establishedVIDEO INPUTVideo signal: HD/SD-SDI SMPTE ST 292/SMPTE ST 259Embedded audio as per SMPTE ST 299/SMPTE ST 272Embedded ATC/DVITC as per SMPTE RP 188/SMPTE ST 266Cable length: Up to 110/250m (360/820 ft.) of Belden 1694AReturn loss: >15 dB, 5 MHz to 1.5 GHzAUDIO AES3 OUTPUTSignal: AES3Level: 3.0 Vp-p ±10%Impedance: 110Ω balancedAUDIO AES-3id OUTPUTSignal: AES-3id (SMPTE ST 276)Level: 1.0 Vp-p ±10%Impedance: 75Ω unbalancedAUDIO AES SIGNALSampling rate: 48 kHz synchronousLTC SIGNAL OUTPUTSignal: Reconstructed LTC from ATC/DVITCImpedance: 15 dB up to 1.5 GHzWideband jitter: as per SMPTE ST 292 and SMPTE ST 259-CPROCESSING PERFORMANCESignal path: 10-bit video / 24-bit audioAudio latency: 875 μs (combined embedding and extraction*)Audio delay: Up to 3 video frames (1/2 frame steps)ATC/DVITC delay: None, 1, 2 or 3 frames before translation to LTCRS-422 latency: 500 μs max. (combined embedding and extraction *) (1 frame in metadata mode)GPI latency: 4 video lines (combined embedding and extraction*)Test signals: Audio - 1 kHz tone (R steady, L pulsed) -18 dBFS (EBU R49, R68)LTC - 10 s loop starting at 23:59:00:00ELECTRICALPower: 9.5W *X11-P3 BOX * K2FO L DSK PO BOX ---maj--- Shipping Information We will ship it professionally with good method and extra material. Condition: seller refurbished, tested, 30 days warranty. LOCAL PICKUP IS ALWAYS AVAILABLE Hackensack, New Jeresy off Route 80 Exit 66 Terms of Sale Return policy After receiving the item, contact seller within Refund will be given as Return shipping 30 days Money back Buyer pays for return shipping Refer to eBay Return policy for more details. You are covered by the eBay Money Back Guarantee if you receive an item that is not as described in the listing. Payment details Payment method
