| 📢Highlights🙌 | high performance🔥reliable quality🔥good stability |
|---|---|
| ❤️Features | US Local Warehouse, Fast Shipping |
| Tips~ | Welcome to our store~have a nice day~ |
| Shipping notice | Can not ship to Puerto Rico/Alaska/Hawaii |
| Table size | Φ100mm |
| Load | 45kg |
| Itinerary | 360° |
| Packing size | 23*13*16cm |
| Parallelization | 80μm |
| Resolution / Pulse(no subdivision) | 0.01 ° |
| Recoil | 0.005° = 18" |
| Material | Aluminum-black anodized |
| Top board beat | 15μm |
| Transmission mode | worm gear (reduction ratio 1/180) |
| Weight | 1.7kg |
| Guide rail | bearing |
| Product model | HT03RA100 |
| Absolute on-axis accuracy | 0.01° = 36" |
| Repeatability | 0.005° = 18" |
| Rotation speed (maximum) | 25° / sec |
| Gross weight | 2kg |
| Resolution / Pulse(20 subdivisions) | 0.0005° |
| Eccentricity | 10μm |
| Lost movement | 0.005° = 18" |
| Brand | Unbranded |
Check the listing for details. Motorized Rotation Stage Optical Rotary Table Electric Optical Rotation Platform. Condition: New. Listed at 268.88 USD. Laboratory Electric Rotating Machine Optical Motorized Rotation Platform 360°. ★High-precision electric rotating platform, new construction, new technology; key indicators have passed strict inspection.
You may also like
$344.19
XYZ 3 Axis Moving Table Portable Manual Slide Table Translation Stage Test Stand
$503

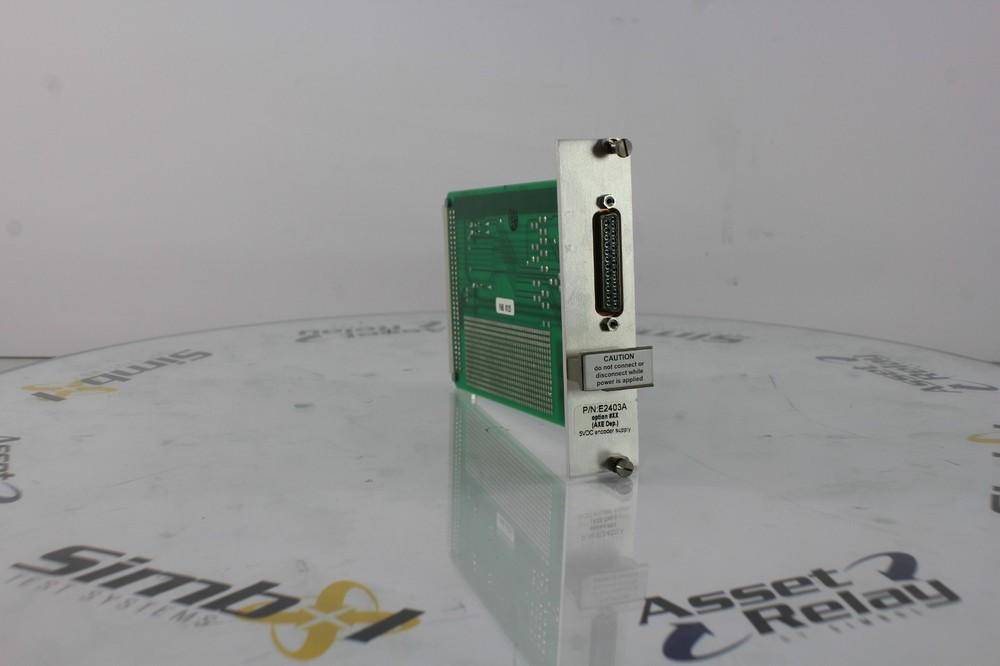

Newport E2403A Motion Controller Module 5V Encoder Supply Module
$146.96

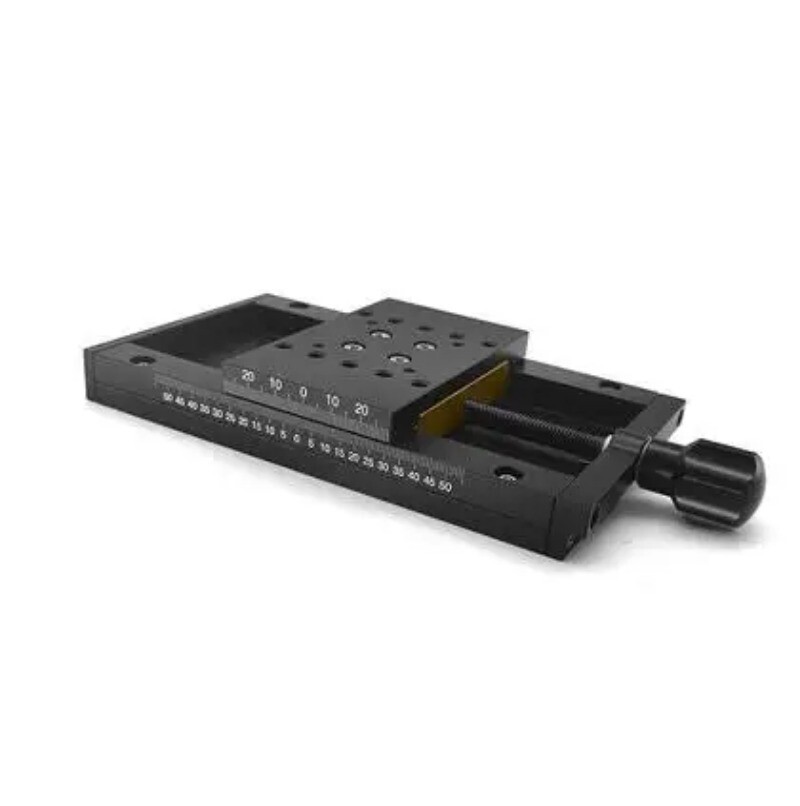

100MM Wide Dovetail Displacement Table Displacement Table X-axis Table
$123.4
Manual Angle Adjustment Platform Tilt Punching Base Adjustable Tilting Platforms
$555.31
XYZ 3 Axis Moving Table Portable Slide Table Manual Translation Stage Test Stand
$285.99
XYZ Axis Manual Precision Displacement Stage Aluminium Alloy Moving Slide Stage
$160.71
Lab Precision Lifting Table Vertical Drive Height Adjustment Displacement Table
$434.7
X-Axis Fine-Tuning Slide Stretching Platform One-Dimensional Translation Stage
$345.13
XYZ 3 Axis Moving Table Portable Slide Table Manual Translation Stage Test Stand
$199.27

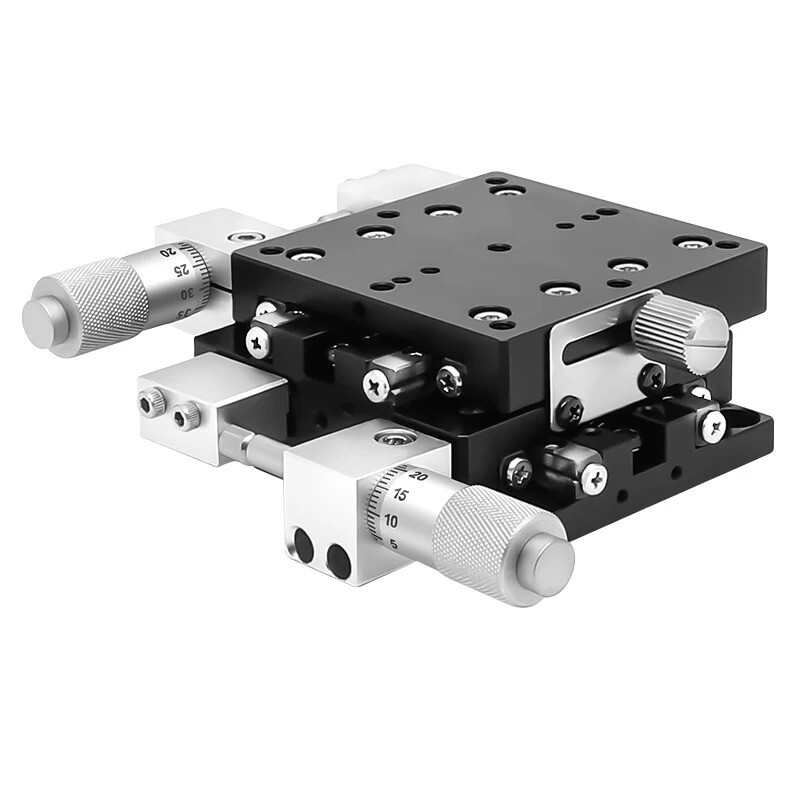

XY Axis Displacement Platform Manual Fine Adjustment Workbench Precision
$195.75

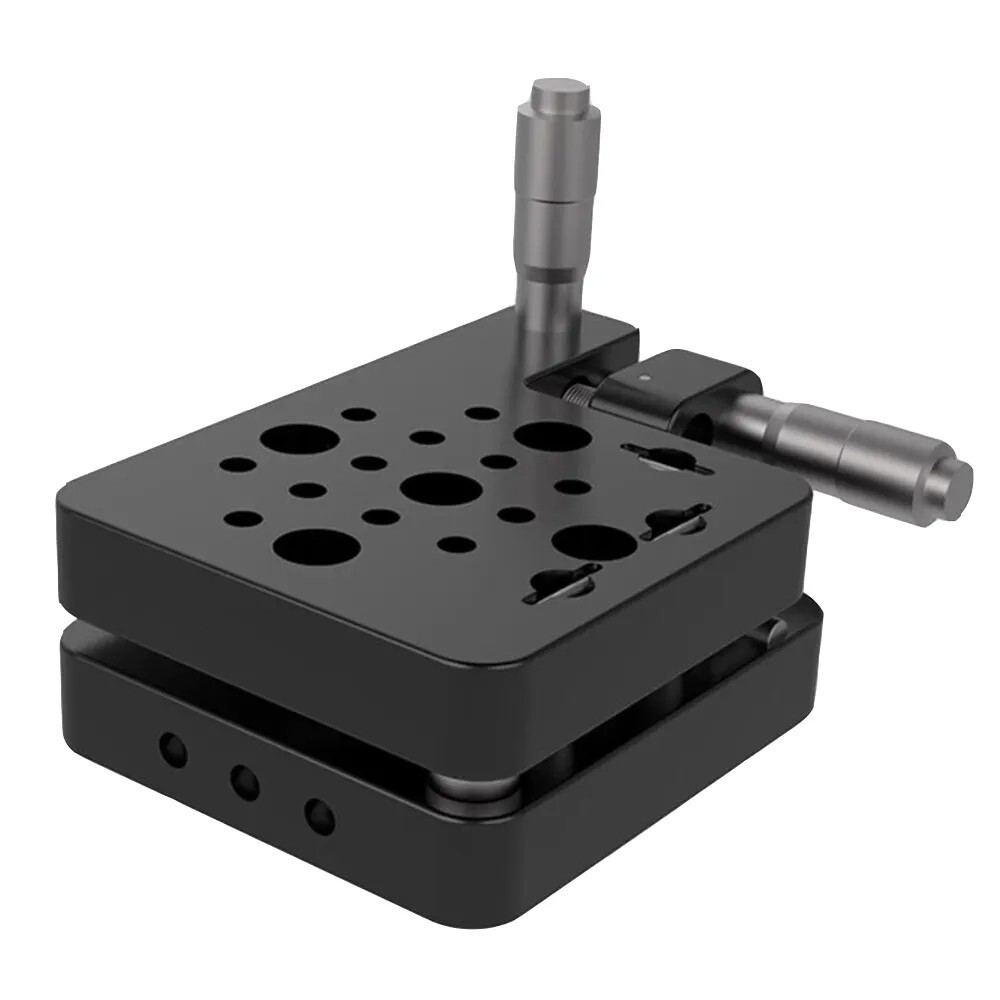

Two-axis Tilting Platform Inclined Platform Elevation Tilt Rotation Stage Slide
$183.47

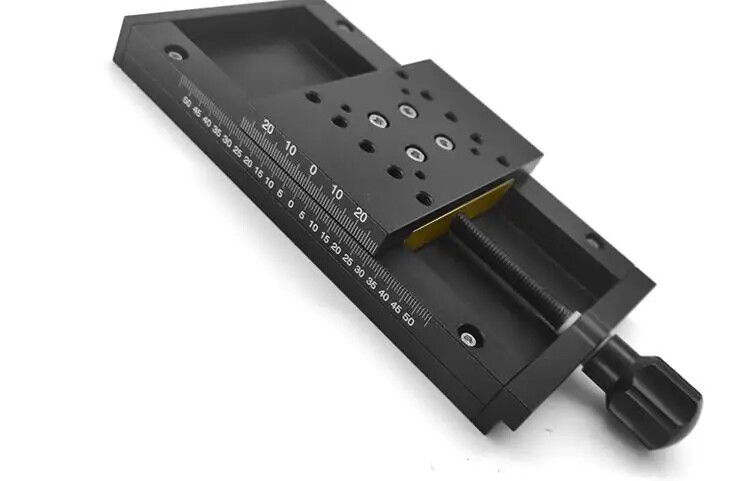

Width Manual Dovetail Displacement Table High Precision Displacement Table
