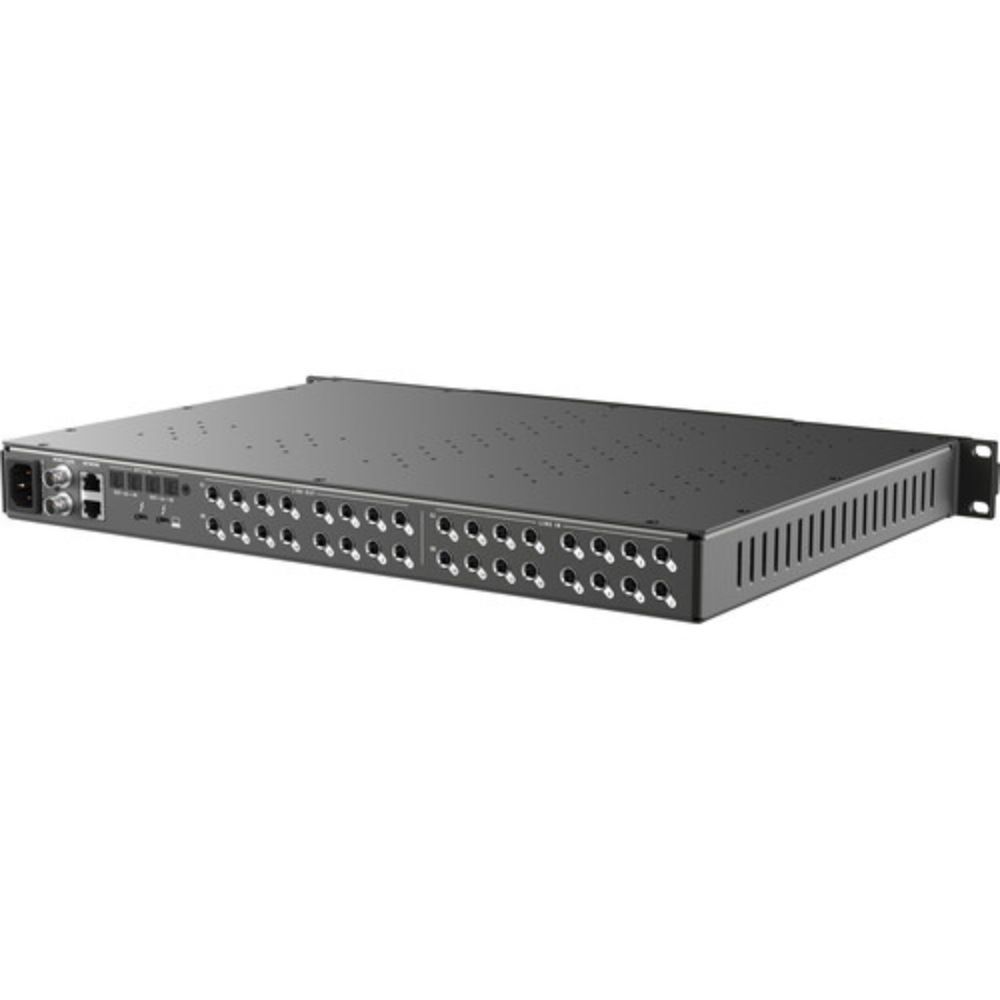

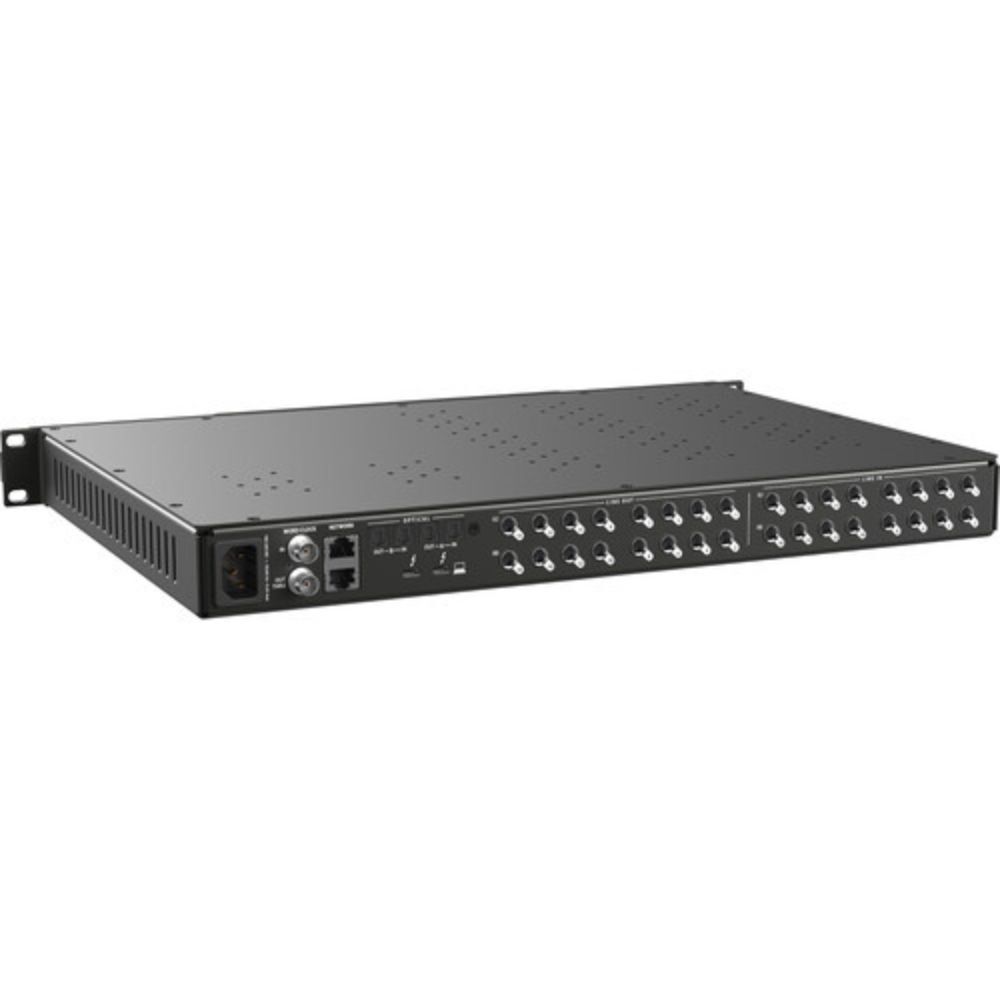

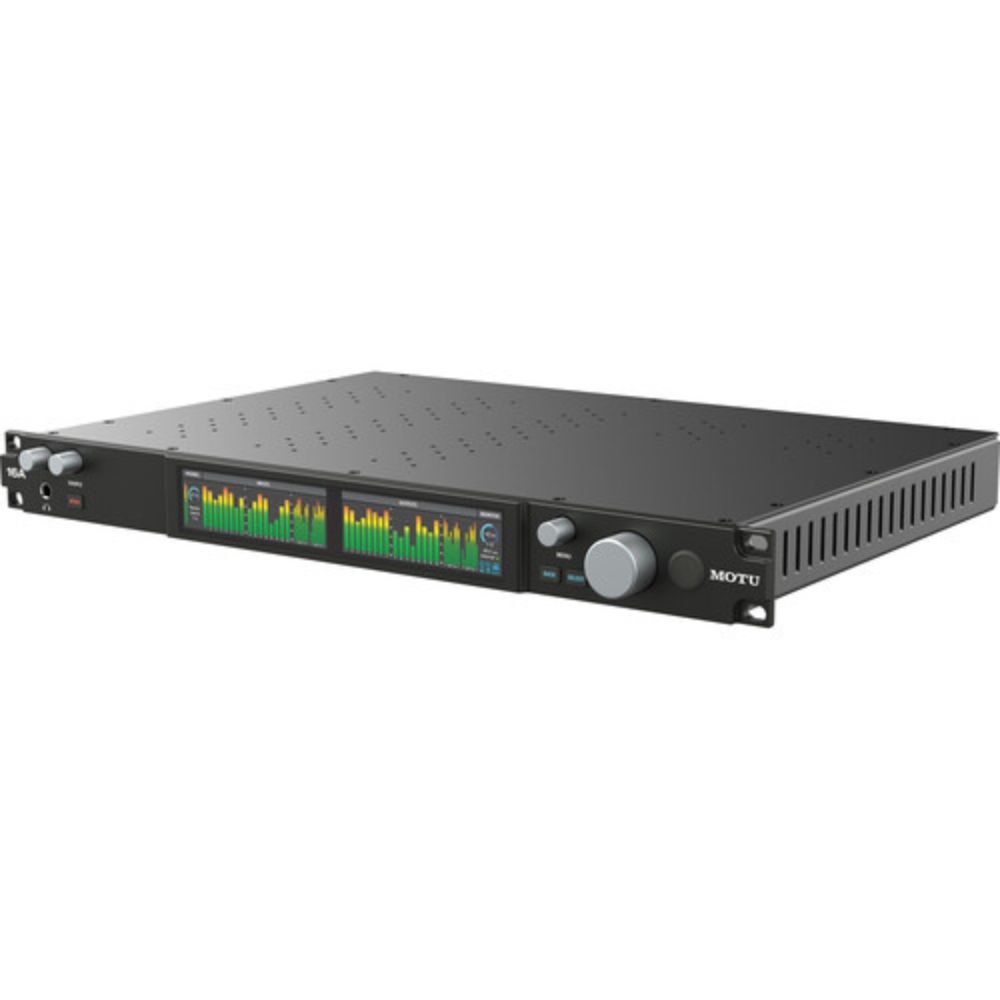

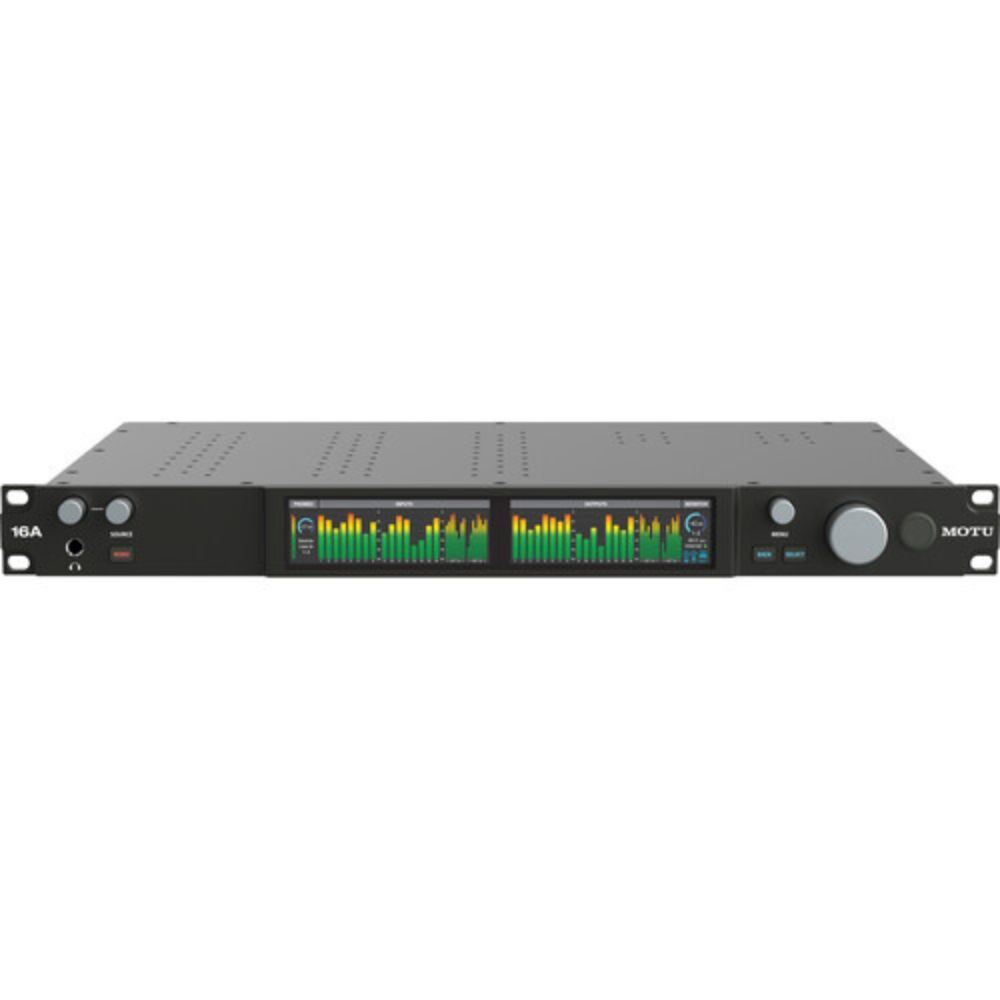

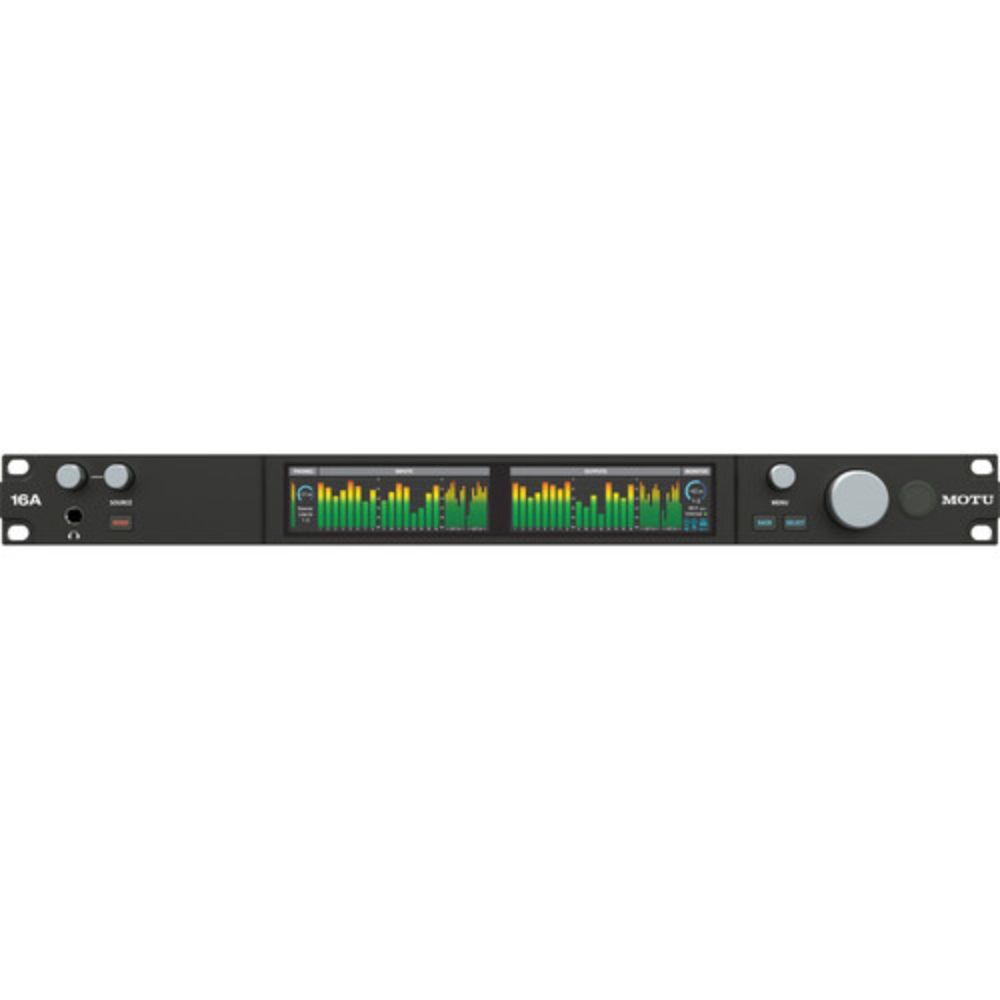

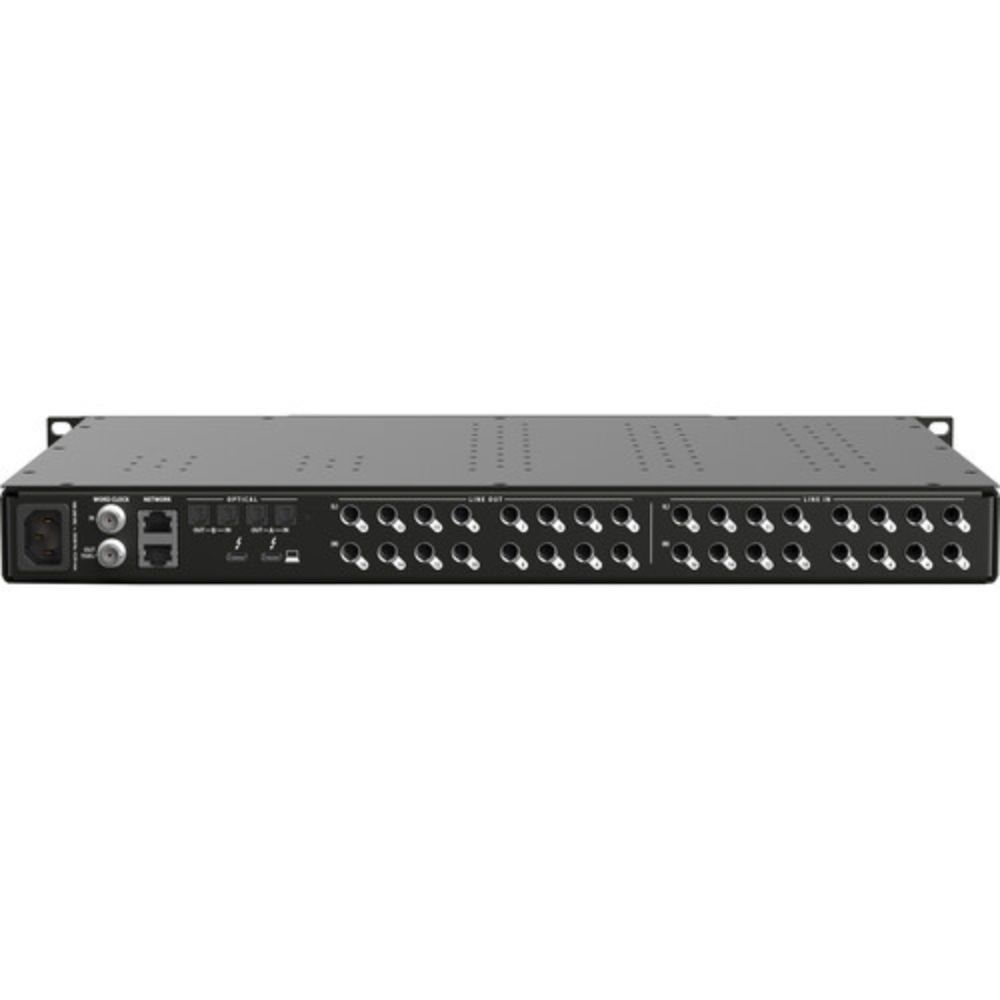

MOTU 16A 32 x 34 Thunderbolt 4 / USB4 Audio Interface

Name: MOTU 16A 32 x 34 Thunderbolt 4 / USB4 Audio Interface
SKU: 197321751116
Price: 1595.00 USD
Availability: InStock

$797.50

$1,595.00 -50%

Brand MOTU

Condition New

Item ID 197321751116

Brand	MOTU
MPN	MA9321
Model	MOTU 9321
Type	Audio Interface
Channels of I/O	32 Inputs / 34 Outputs
Maximum Sampling Rate	192 kHz / 32-Bit
Number of Microphone Inputs	No Mic Inputs
Analog Audio I/O	16x 1/4 TRS Balanced/Unbalanced Line Input 16x 1/4 TRS Balanced L
Host Connection	2x USB-C (Class-Compliant)
Built-In DSP	Yes
Built-In Microphone	No
Input Level Adjustment	via Software
Gain/Trim Range	1/4 Line Inputs: 0 dB to +20 dB 1/4 Line Outputs: 0 dB to -99 dB
Phantom Power	No
Digital Audio I/O	1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support) 1x TOSLINK
Host Connection Protocol	Thunderbolt 4, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB4
USB (Non-Host)	No
Sync I/O	1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O	2x RJ45 AVB (Gigabit)
MIDI I/O	No
Expansion Slots	No
Wireless	No
Frequency Response	1/4 Line Inputs: 20 Hz to 20 kHz ±0.05 dB 1/4 Line Outputs: 20 Hz
Maximum Input Level	1/4 Line Inputs: +21 dBu
Maximum Output Level	1/4 Line Outputs: +21 dBu 1/4 Headphone Outputs: 13.3 dBu
Impedance	1/4 Line Inputs: 20 Kilohms 1/4 Line Inputs: 220 Ohms 1/4 Headpho
Dynamic Range	1/4 Line Inputs: 120 dB 1/4 Headphone Outputs: 118 dB 1/4 Line Ou
THD+N	1/4 Line Inputs: -114 dB 1/4 Line Outputs: -114 dB 1/4 Headphone
Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Bit Depths	32-Bit
Latency	1.8 ms at 96 kHz
Sync Sources	ADAT, AVB, Internal, S/PDIF, Word Clock
Clocking	Word Clock: Input Termination: 75 Ohms Input Voltage: 1 to 3 V p-
Media/Memory Card Slot	No
OS Compatibility	Computer: macOS / Windows Mobile: iOS Only
Power Requirements	AC Input
AC Input Power	100 to 240 VAC, 50 / 60 Hz
UPC	839128006287

Check the listing for details. MOTU 16A 32 x 34 Thunderbolt 4 / USB4 Audio Interface. Condition: New. Listed at 1595.00 USD. The unit integrates a 64-channel DSP-driven monitor mixer with 32-bit floating-point internal processing, enabling low-latency routing and effects independent of host CPU load. A full digital patch bay provides flexible signal routing between physical I/O, the internal mixer, computer channels, and the AVB network.
