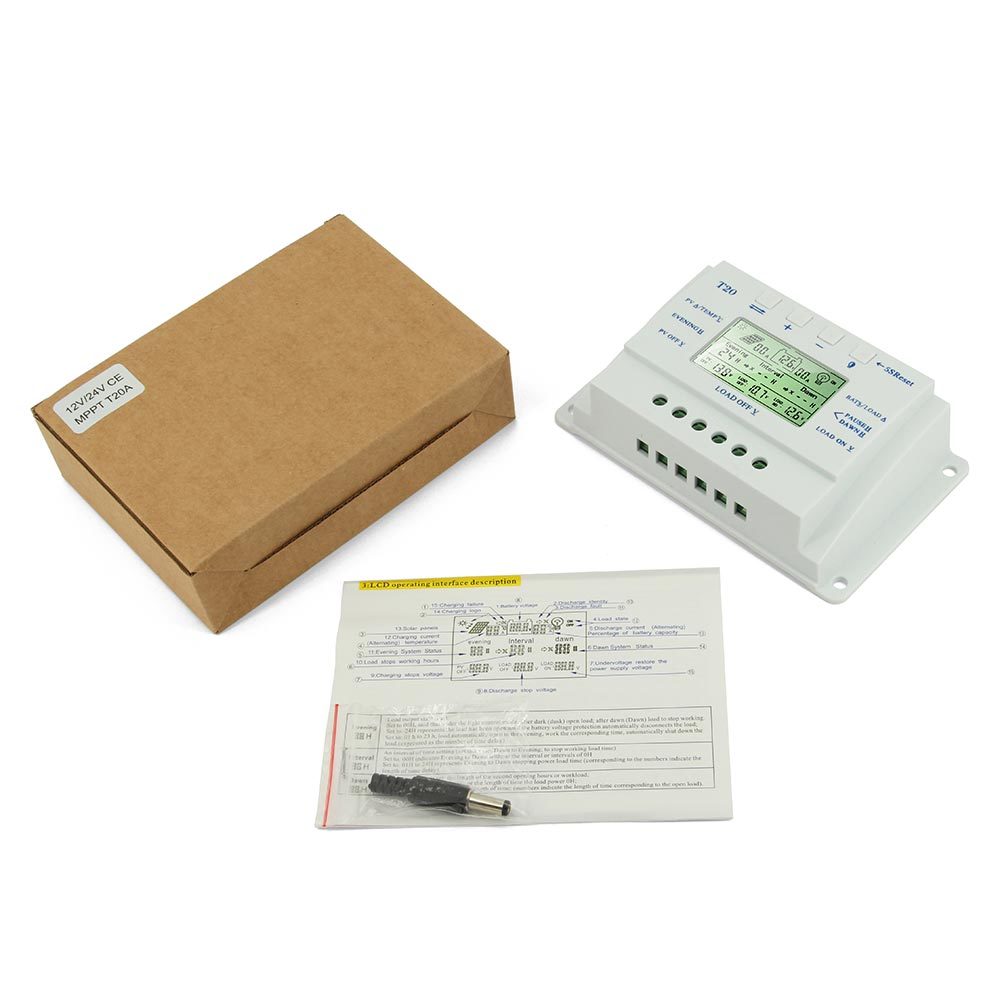

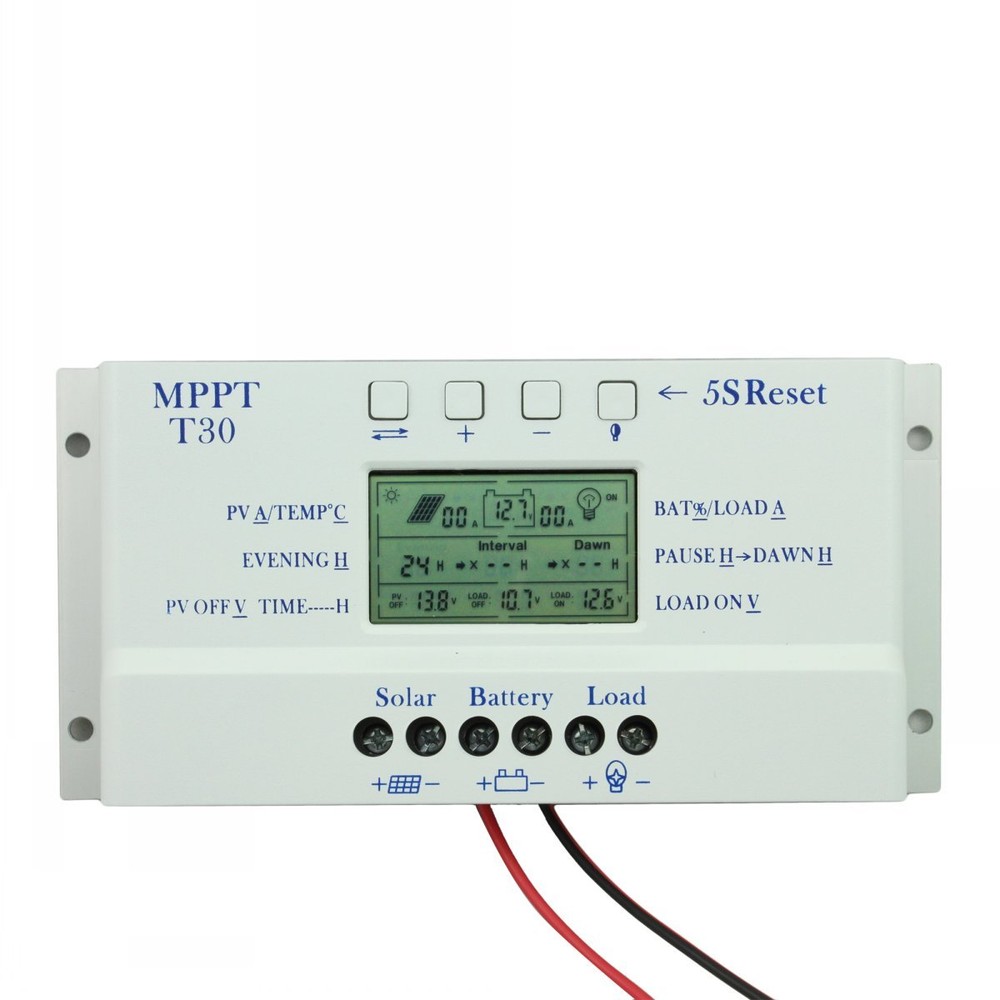

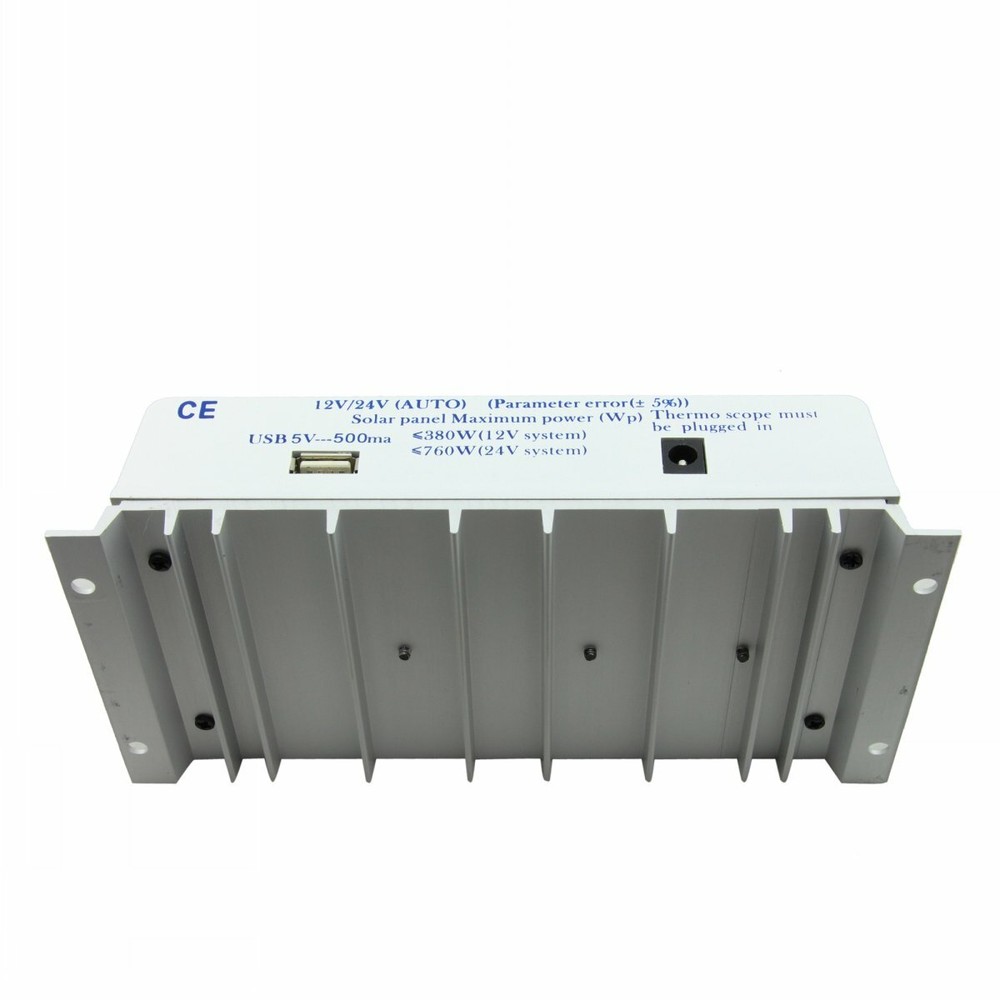

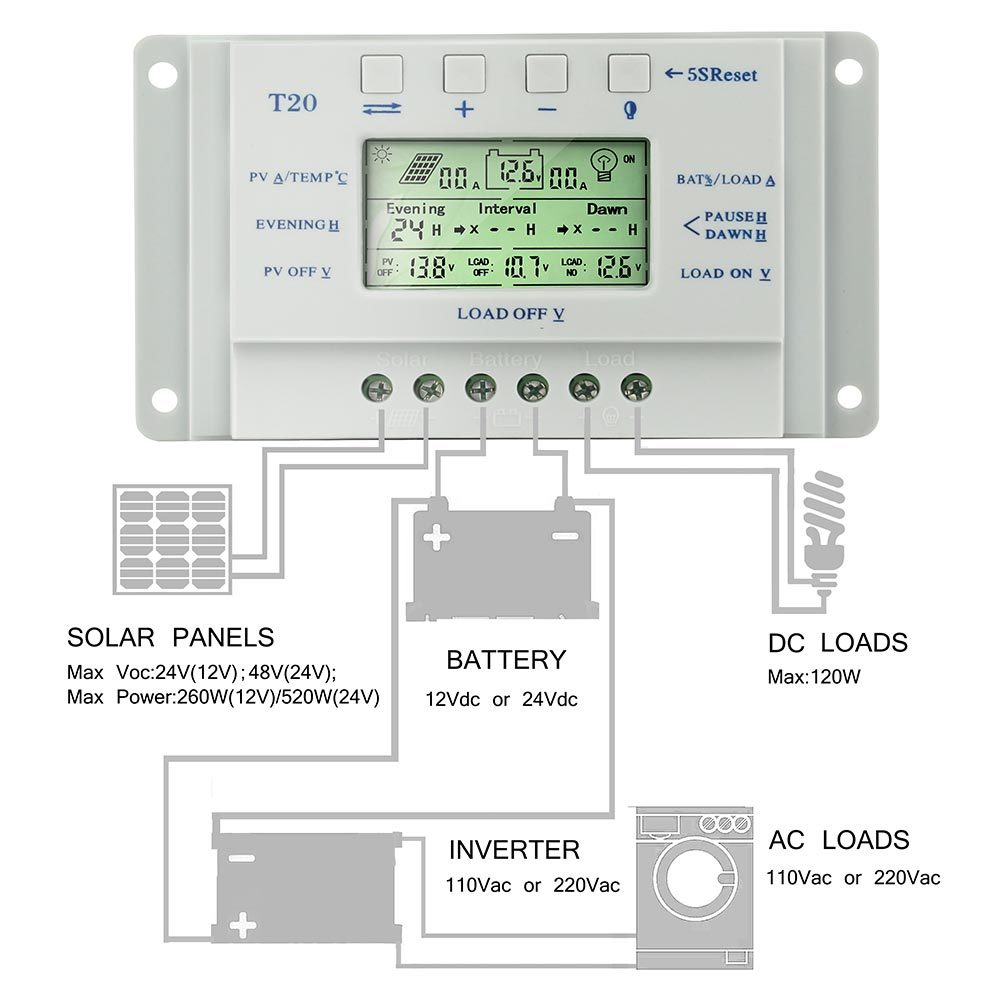

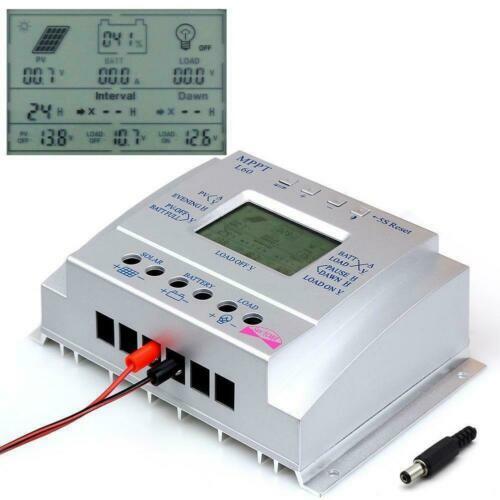

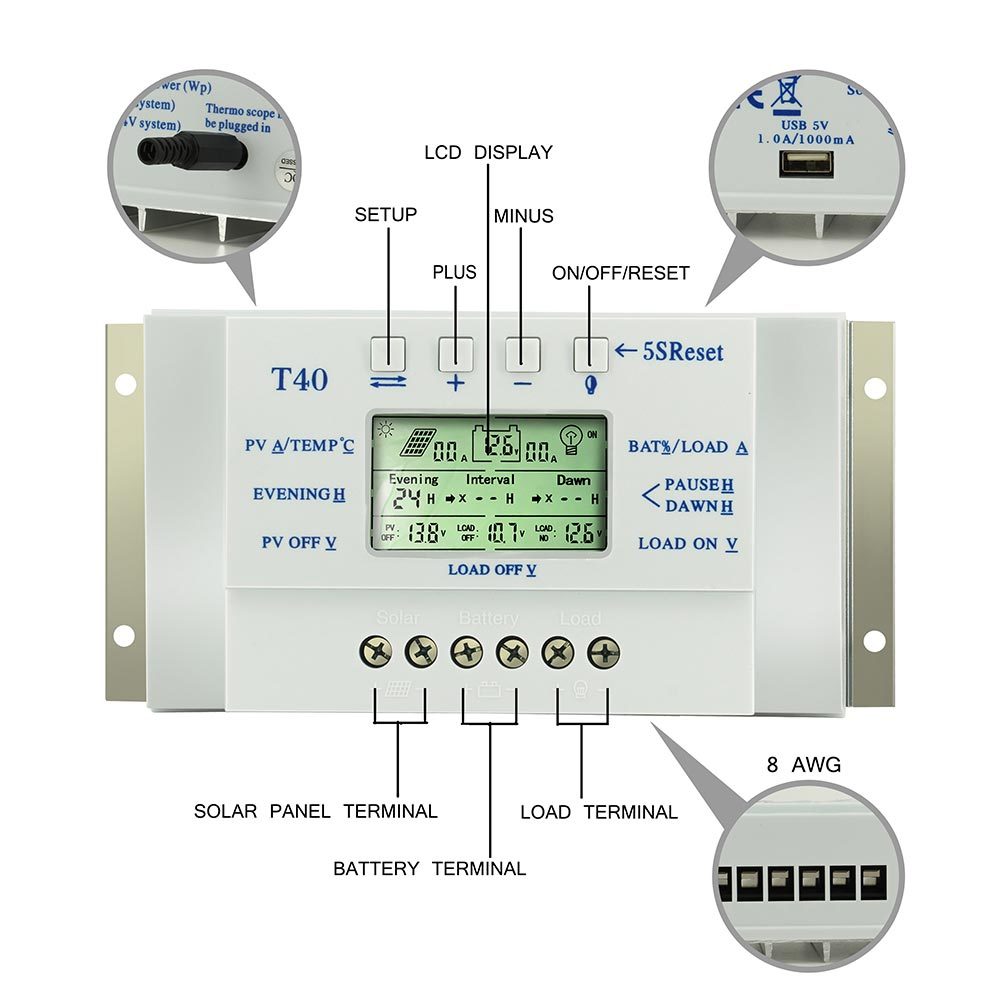

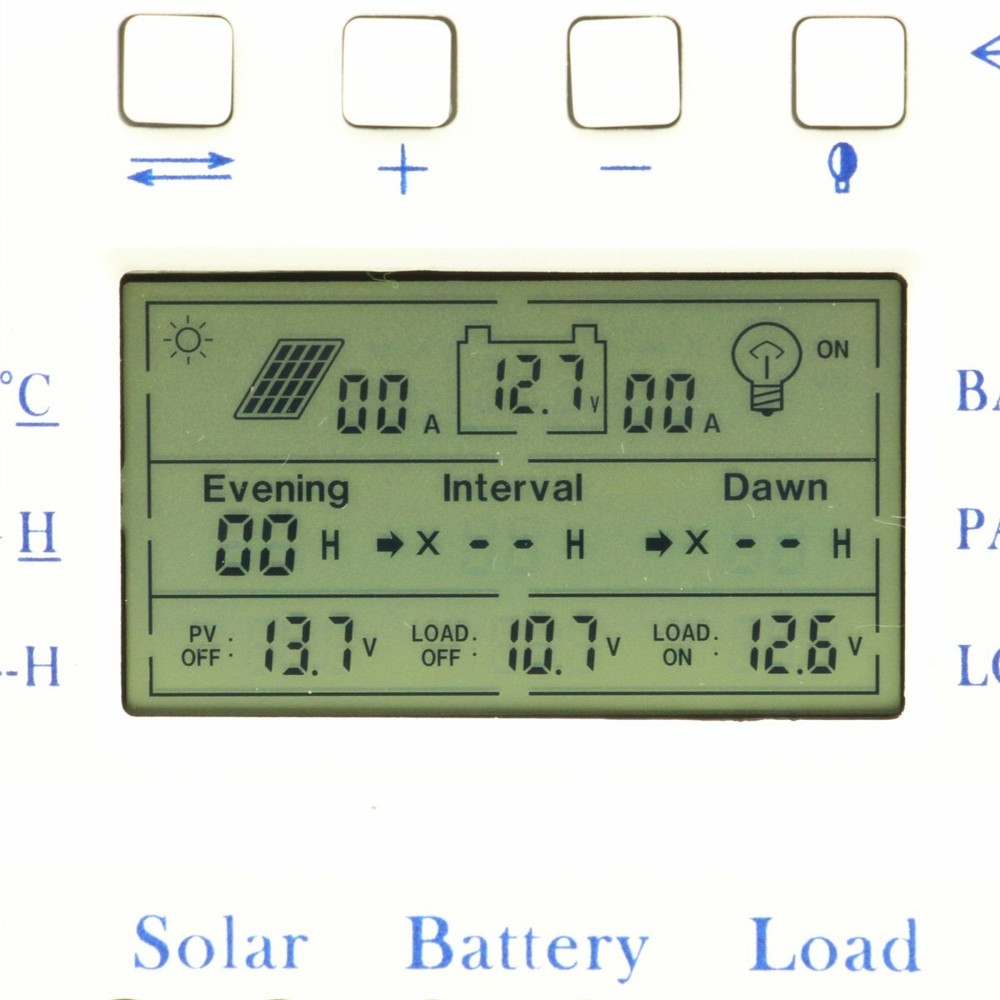

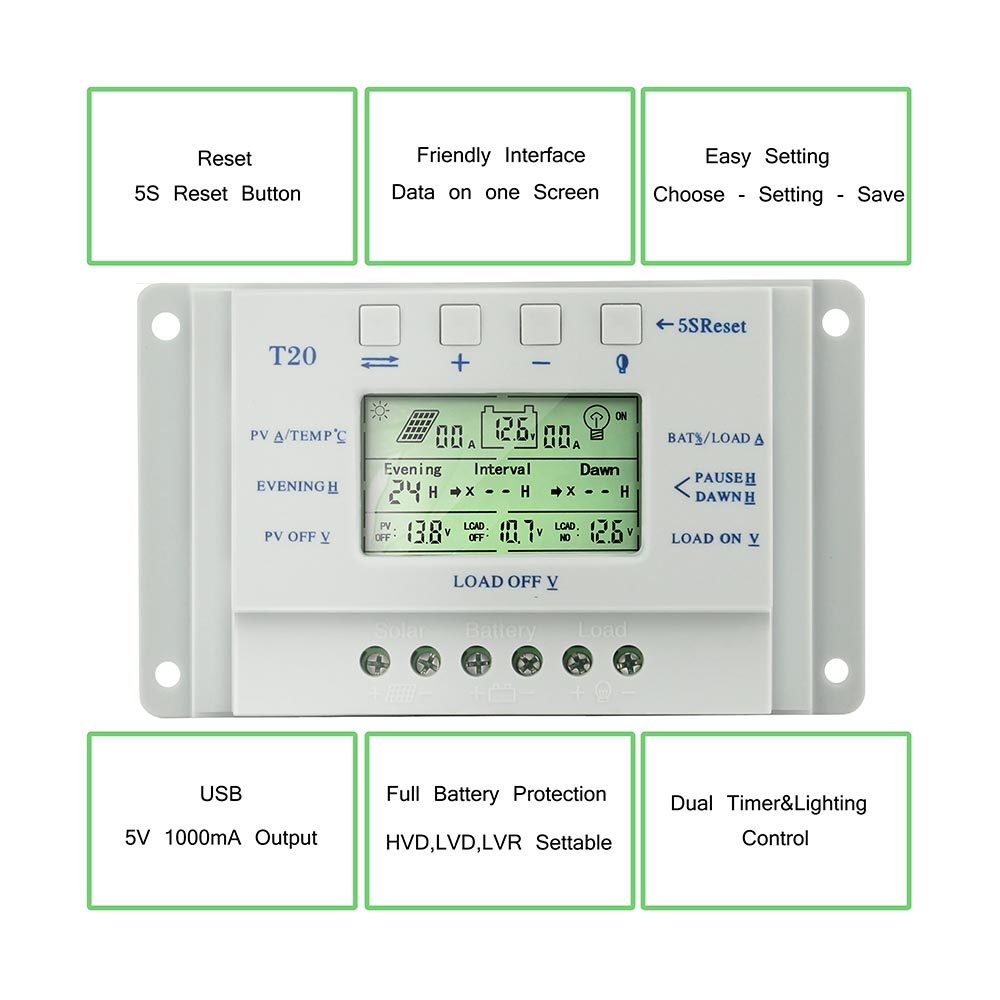

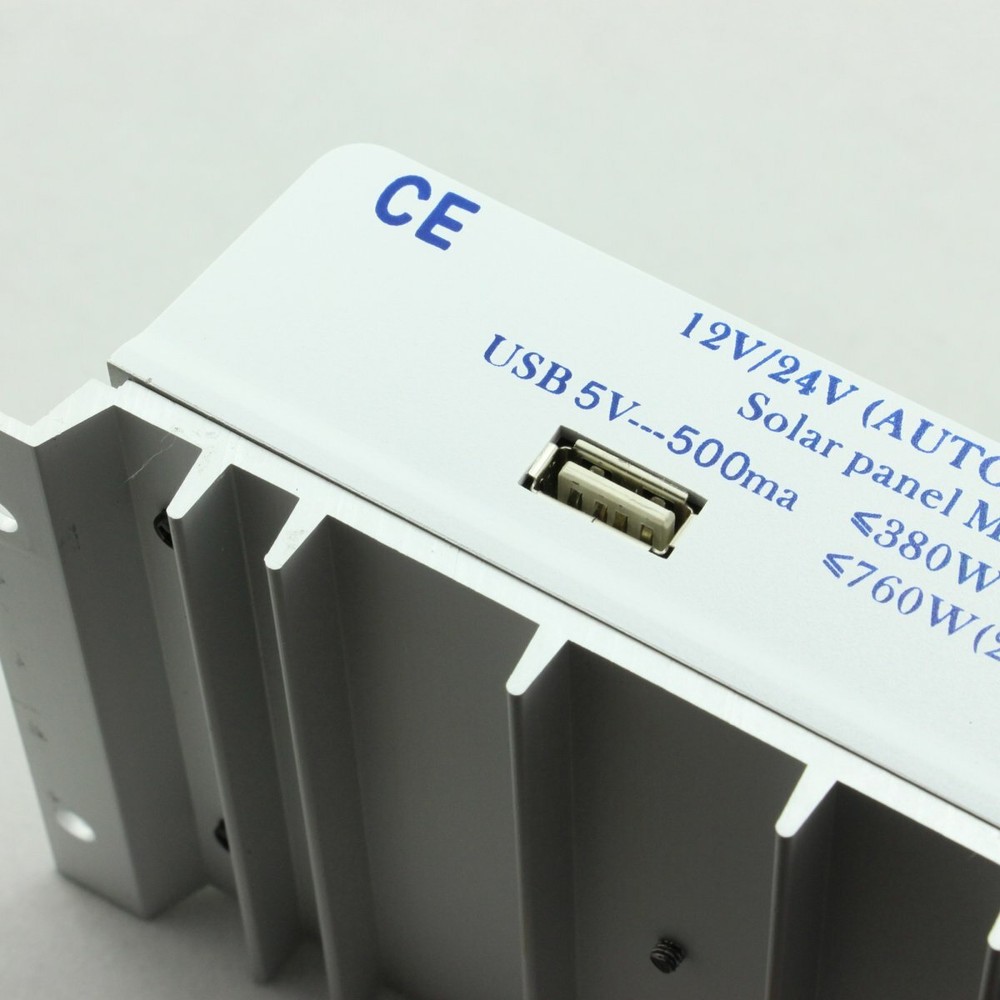

Check the listing for details. MPPT Solar Panel Regulator LCD 10A-80A 12V/24V Charge Controller 3 Timer. Condition: New. Listed at 6.99 USD. MPPT Solar Panel Regulator LCD 10A-80A 12V/24V Charge Controller 3 Timer Store category Sign Up Now ! You may also like MPPT Solar Panel Regulator LCD 10A-80A 12V/24V Charge Controller 3 Timer Product Description Tips: The stock of this linked item is located in Sydney and the buyer does not have to pay GST!!! Brief Description: This is a three-time controller into the evening (evening) working time ,an interval of rest or pause time,Dawn working time (morning light function),the user can according to their needs ,set a different time. MPPT 20A: MPPT 20A Solar Panel Charge Controller Regulator Solar panel 260W/12V 520W/24V (Without USB Output) Compatible with 520W(24v) solar panel with dark activated function, Max current is 20A Timer Intigrated (Lighting function) MPPT 30A: MPPT 30A Solar Panel Charge Controller Regulator Solar panel 380W/12V 760W/24V Compatible with 760W(24v) solar panel with dark activated function, Max current is 20A Timer Intigrated (Lighting function) USB 5V charging (for 500mA) for mobile phone. MPPT 40A: MPPT 40A Solar Panel Charge Controller Regulator Solar panel 500W/12V 1000W/24V Compatible with 1000W(24v) solar panel with dark activated function, Max current is 40A Timer Intigrated (Lighting function) USB 5V charging (for 500mA) for mobile phone. MPPT Series controller has the following features: Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30% 1, LCD screen display 2, Easy operation interface 3, MPPT+PWM charging mode（Controller Provided MPPT Maximum power point tracking Function,charging mode is PWM) 4, Parameter user can reset 5, A key to open and close the load 6, A key to restore the factory settings 7, Battery reverse discharge protection 8, Battery reverse polarity protection 9, Battery under voltage protection 10, Overload, short-circuit protection 11, Automatic temperature compensation function 12, Can charge and discharge at the same time, Always keep the battery in full status Note: Only MPPT 30A and 40A with USB Port. Package contents: ☀1* MPPT Solar Controller ☀1* English User Manual ☀1* Temp Sensor Product introduction LCD screen display Battery reverse discharge protection Easy operation interface Battery reverse polarity protection MPPT+ PWM charging mode Battery under voltage protection Parameter user can reset Overload Short-circuit protection A key to restore the factory settings USB 5V charging (for 500mA) for mobile phone(Only for M30) A key to open and close the load Automatic temperature compensation function Data Sheet Parameters / Model T10 T20 T30 T40 Maximum power current 12A 20A 30A 40A Installation Lin mm2 4mm2 8mm2 10mm2 12mm2 Installation Line(AWG) 10(AWG) 8(AWG) 7(AWG) 6(AWG) Weight 280g 300g 475g 480 Dimensions 143×89×46 mm 187*97*61 mm System load loss ≤13mA Loop Buck ≤100mV Specification Battery float voltage 13.8V 12V system /27.6V 24V system Battery under voltage) protection 10.6V 12V system /21.2V 24V system Battery (under voltage) recovery voltage 12.6V 12V system /25.2V 24V system Charge mode MPPT+PWM MODE Operating Temperature -10~60°C Storage Temperature -30~70°C Humidity requirements ≤90%, No condensation Temperature compensation -4mV/Cell/°C Temperature Probe (built components) NTC 100K thermistats Maximum open circuit voltage of the solar panel 18V-24V 12V system 36V-48V 24V system) Solar panels maximum open circuit voltage (V) ≤48V (Cases) 12V system standard configuration The peak voltage of the solar cell panel 18V-25V 18V-25V 18V-25V 18V-25V Peak power of solar cell panel 50W-130W 100W-260W 200W-380W ≤500W Model T10 T20 T30 T40 Battery standard voltage 12V 12V 12V 12V Battery capacity ≥100AH ≥200AH ≥300AH ≥400AH Installation Lin mm2 4mm2 8mm2 10mm2 12mm2 Installation Line(AWG) 10(AWG) 8(AWG) 7(AWG) 6(AWG) ***...........................***................................***.................................. 80A 60A MPPT Solar Panel Regulator Charge Controller 12V/24V 1000W/2000W LCD AU Features: 1, LCD screen display, 2, Easy operation interface, 3, PWM charging mode+MPPT, 4, Parameter user can reset, 5, A key to open and close the load, 6, A key to restore the factory settings, 7, Battery reverse discharge protection, 8, Battery reverse polarity protection 9, Battery under voltage protection, 10, Overload, short-circuit protection, 11, Automatic temperature compensation function, 12, Can charge and discharge at the same time, Always keep the battery in full status 13, USB 5V charge (current 1500mA) Optional overview: This is a three-time controller into the evening(evening)working time,an interval of rest or pause time,Dawn working time(morning light function),the user can according to their needs,set a different time: A:time(evening working) B:time(Pause working) C:time(dawn working) This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,he not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA. Product introduction: "T"series of an intelligent,multi-purpose solar charge controller LCD Screen display Battery reverse discharge protection Simple(and more time control) operation Battery reverse polarity protection PWM charing mode+MPPT Battery under voltage protection Parameter user can reset Overload,short-circuit protection A key to open and close the load Automatic Temperature compensation function A key to restore the factory setting USB 5V charge(current 1500mA/1.5A)Optional Parameter table: Parameters/Model MPPT T-10 MPPT T-20 MPPT T-30 MPPT T-40 MPPT T-60 MPPT T-80 Maximum Power Current 12A 20A 30A 40A 60A 80A Installation Lin(mm2) 4mm2 8mm2 10mm2 12mm2 16mm2 20mm2 Installaton Line(AWG) 10#(AWG) 8#(AWG) 7#(AWG) 6#(AWG) 4#(AWG) 2#(AWG) Weight 280g 300g 475g 500g 800g 900g Peak power of solar cell panel (Max Wp) 130W 260W 380W 500W 800W 1000W Battery capacity configuration 100AH 200AH 300AH 400AH 600AH 800AH Dimensions 143*89*46(mm) 187*97*61(mm) 188*128*61(mm) Battery float voltage 13.8V(12V system)/27.6V(24V system) Battery (under voltage) protection 10.6V(12V system)/21.2V(24V system) Battery(under voltage)recovery voltage 12.6V(12V system)/25.2V(24V system) System load loss:
