| Frequency Range | 50KHz -3GHz |
|---|---|
| S11 dynamic range | 50dB (1.5GHz), 40dB (3GHz) |
| Number of calibration points | 101 points |
| Color | Black |
| Number of scanning points | 101 points |
| UPC | 0889251514845 |
| MPN | V2 |
| Number of mark points | 4 (the mark point bar can be moved up and down on the screen) |
| Setting save | 5 groups |
| USB interface | USB Type-C communication mode: CDC (serial) |
| Brand | NanoVNA-F |
| S21 dynamic range | 70dB (1.5GHz), 60dB (3GHz) |
| Network Analyzer Type | Vector |
| EAN | 0889251514845 |
| ISBN | 0889251514845 |
| Battery | 5000mAh Li-ion Battery |
| Model | NanoVNA-F V2 |
| RF output power | -9dBm (error within 1GHz: ±1dB) |
| 2-port return loss | 20dB typ (1.5GHz), 13dB min (3GHz) |
| Number of traces | 4 |
| Scan time | about 1.9s/1 time |
| Display | 4.3inch, Resolution 800*480 |

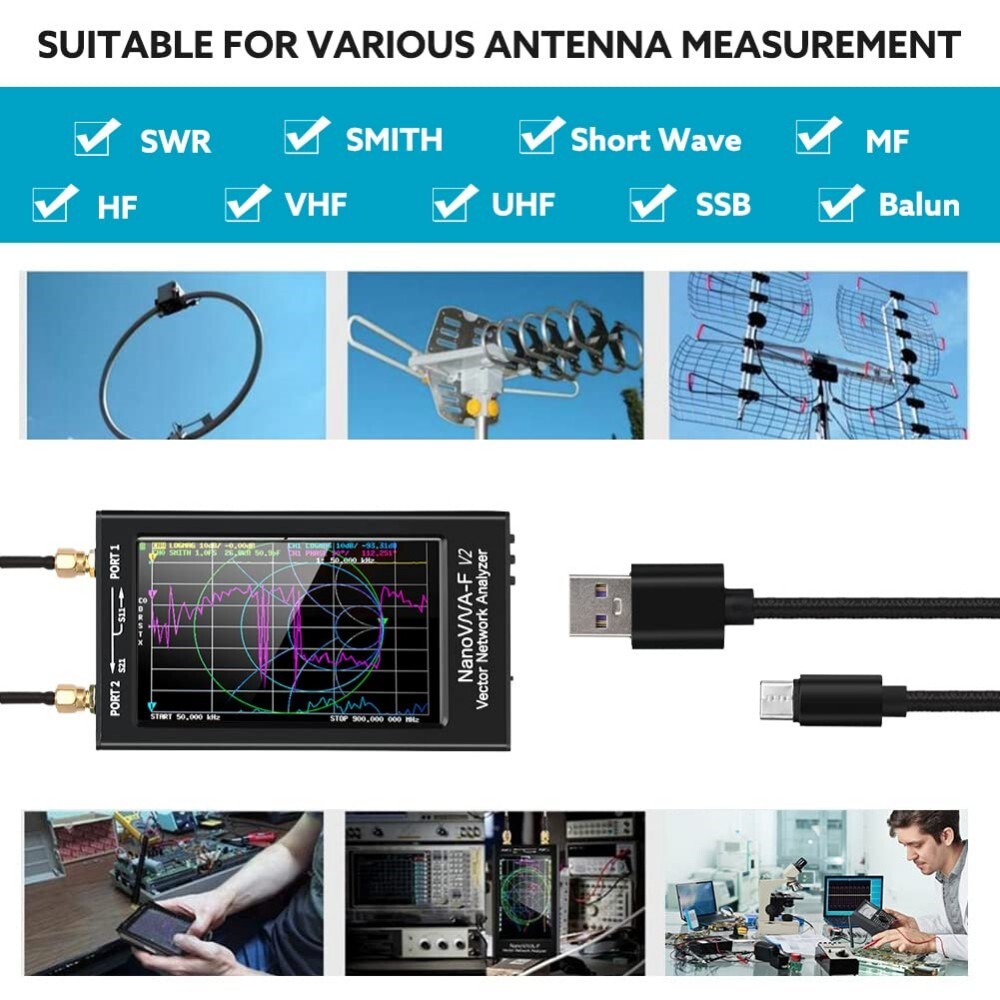

Check the listing for details. NanoVNA-F V2 Vector Network Analyzer 50kHz-3GHz HF VHF UHF VNA Antenna Analyzer. Color: Black, Condition: New. Listed at 125.99 USD. NanoVNA-F V2 VNA Analyzer with Wide Frequency Range. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02).
You may also like
$81
Nano VNA Vector Network Analyzer
$7.19
Toner TLP-SP2D31 2 Way Splitter 15A 5-1220 MHz -3.5dB Cable TV System Hardline
$17.37
Plug & Play MMCX Female to 2 Pin 0.78mm Male Adapter Connecter Earphone Parts
$381.26
CapDMA Video Overlay Box 4K Adaptive Fuser HDMI-compatible DMA Video Processor
$14.99
2X(1Set Test Demo Board Replacement Parts Testboard Kit VNA Test2918
$399
AGILENT E5062A NETWORK ANALYZER 300 KHZ-3 GHZ OP 015 275 M7573
$55000
Rohde Schwarz ZVA40 Vector Network Analyzer 10MHz-40GHz 4-Port LOADED w/Opts
$2000
SwellPro Fisherman FD3 Fishing Drone + 4K Camera & Bait Release 4.4LBS Payload
$45.12
Datalogic MX4000-1000 10...30 VDC Industrial Barcode Multiplexer Network Host
$273.96
MEBAY FC70DR Fire Pump Controller Genset Controller Used for Fire Pump Units sz
$249.99

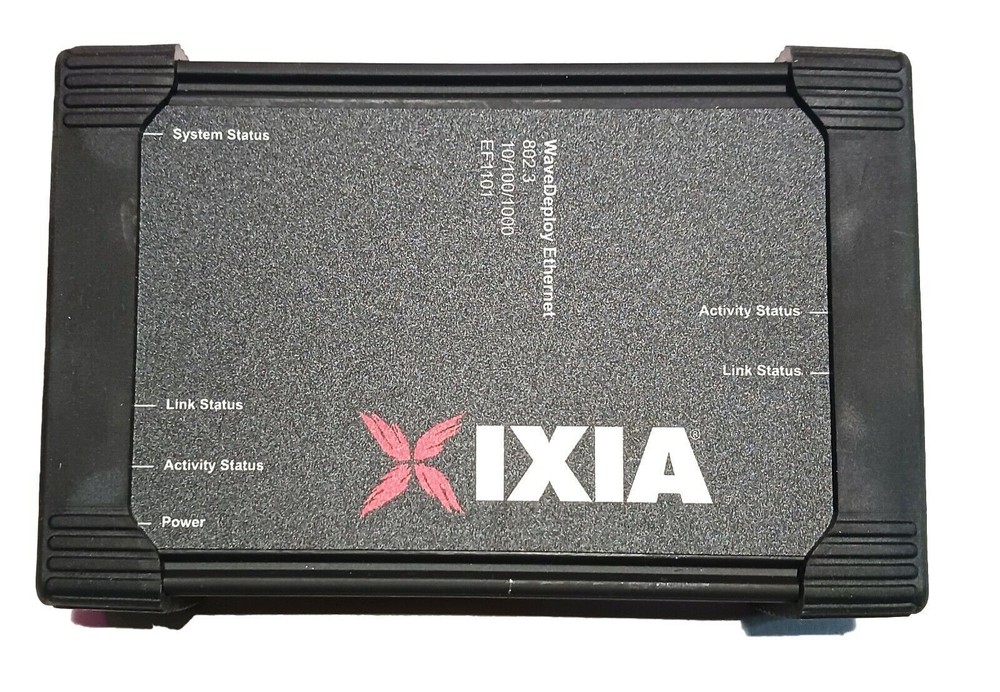

IXIA EF1101 WaveDeploy Ethernet 802.3
