| Country of Origin | China |
|---|---|
| Brand | Unbranded |
| Network Analyzer Type | Vector |
| Model | Vector Network Analyzer |
| Frequency Range | 50kHz-3GHz |
| Custom Bundle | No |
| Power supply | USB, maximum charging current 1A |
| Modified Item | No |
| Display | 2.8 inches, 320 x 240 |
| USB Interface | Micro USB |
| Power supply connector | JST-XH 2.54mm |
| Maximum scan point (on device screen) | 201 |
| VNA-QT software compatible system | For Linux, Windows (7+), Mac OS planned |
| System dynamic range (calibration) | 70dB (up to 1.5GHz), 60dB (up to 3GHz) |
| S11 noise level (calibration) | -50dB (up to 1.5GHz), -40dB (up to 3GHz) |
| Scanning speed | 100 points/second |
Check the listing for details. NanoVNA V2 50kHz-3GHz Vector Network Analyzer Antenna Analyzer VNA HF VHF UHF A. Condition: New, Made in China. Listed at 66.00 USD. It uses a user interface similar to NanoVNA, but uses a different technical architecture. Test 10dB attenuator reflection up to 3.3GHz Test 30dB attenuator up to 3.3GHz Test UHF duplexer Test 2.4G Antenna.
You may also like
$200

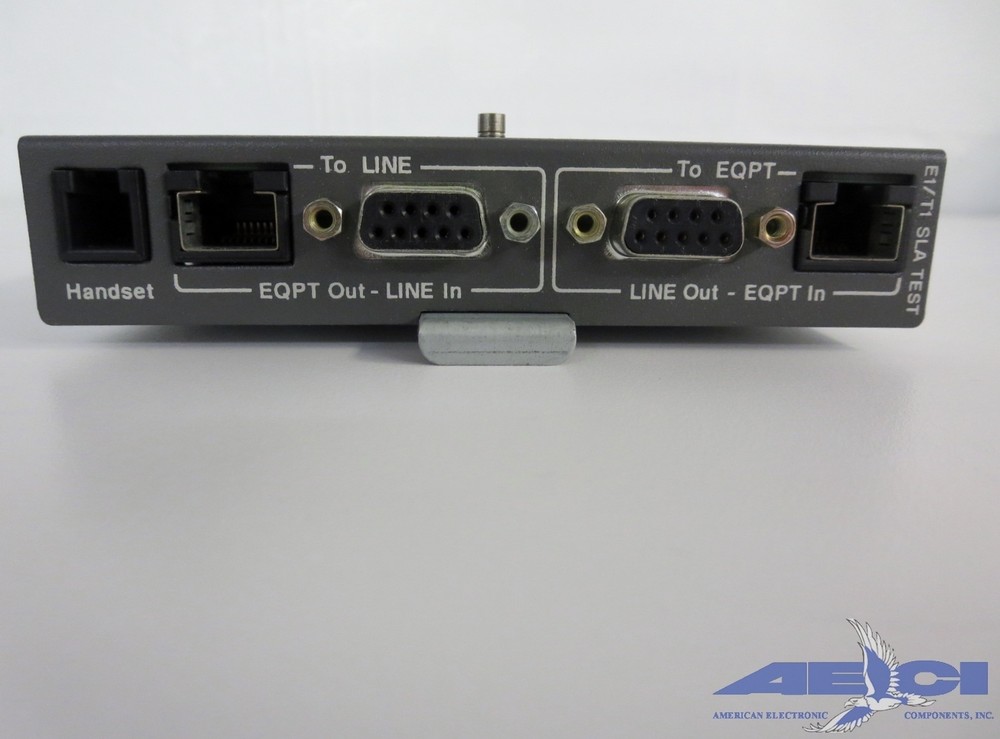

AGILENT J2294D E1 / T1 Interface Modeule for Agilent Advisor ATM/WAN
