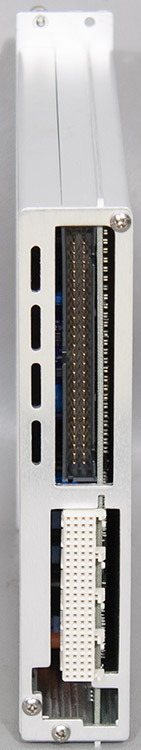

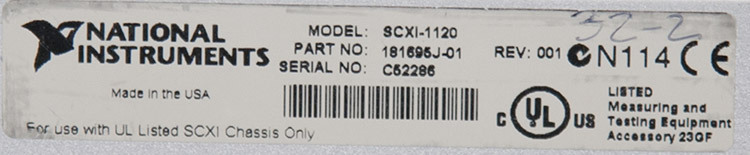

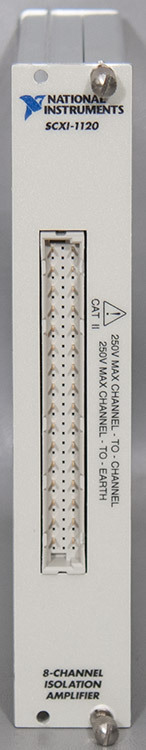

Check the listing for details. National Instruments SCXI-1120 8-Channel Isolation Amplifier Input Module Card. Condition: Used. Listed at 749.99 USD. National Instruments SCXI-1120 8-Channel Analog Isolation Amplifier Input Module Comes with a manul and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from National Instruments and may vary slightly due to upgrades, options, or revisions this unit may or may not have. These units are used, old stock. The Unit's Serial Number Tag Reads: Model Number: SCXI-1120 Part Number: 181695J-01 Revision: 001 Serial Number: C52286 CE Marked: Yes Key Features: 8 channels 333 kS/s maximum sampling rate Gain and lowpass filter settings per channel Signal inputs from ±2.5 mV to ±1000 VDC with TBX-1316 Jumper selectable filter per channel - 4 Hz and 10 kHz filter 250 Vrms working isolation per channel Description: The National Instruments SCXI-1125, SCXI-1120, and SCXI-1120D are 8-channel isolated analog input modules. These modules share a common architecture, providing 250 to 300 Vrms of working isolation and lowpass filtering for each analog input channel. This architecture is ideal for amplification and isolation of millivolt, volt, 0 to 20 mA, 4 to 20 mA, and thermocouple signals. Each module can multiplex these eight channels into a single channel of the DAQ device, and you can add modules to increase channel count. These modules also offer parallel mode operation for increased scanning rates. The analog inputs of the NI-1120/D consist of eight isolation amplifiers. You can configure each amplifier using jumpers for input ranges from ±2.5 mV to ±5 V. With the SCXI-1327 high-voltage attenuator terminal block, the input range is extended to ±250 V. With the TBX-1316, the input range is extended to ±1000 VDC (680 Vrms). Each channel also includes a lowpass filter that is jumper configurable for 4 Hz or 10 kHz. Each channel is individually isolated with a working common-mode voltage of 250 Vrms between channels or channel to eart. In addition the SCXI-1120 is CE certified as double insulated, Category II, for 250 Vrms of operational isolation. Analog Input Specifications: Gain (Jumper-selectable): 1, 2, 5, 10, 20, 50, 100, 200, 250, 500, 1,000, 2,000 Output Range: ±5 V Number of Channels: 8 Gain Accuracy: 0.2% of reading typ., 0.6% of reading max. Nonlinearity: 0.04% of fullscale range Offset Voltage: ±[6 µV + (3 mV / Gain)] Stability Verses Ambient Temperature: Offset Drift RTI: ±[0.2 µV/°C ± (200 µV/°C / Gain)] Gain Drift: 20 ppm/°C Input Bias Current: ±80 pA Input Resistance: Normal: 1 GΩ Power off: 50 kΩ Overload: 50 kΩ Output Resistance: Multiplexed-output Mode: 100 Ω Parallel-output Mode: 330 Ω Filtering (Jumper Selectable): 4 Hz (-10 dB) or 10 kHz (-3 dB), 3-polse RC Output Selection Time (with 5 V step, all gains): 0.012% Accuracy1: 5.2 µs typ., 7 µs max. 0.012% Accuracy2: 3 µs 0.006% Accuracy3: 10 µs 0.0015% Accuracy3: 20 µs Rise Time: 4 Hz: 0.12 s 10 kHz: 70 µs Slew Rate: 0.15 V/µs Nose (400 kHz Bandwidth)1: Input (Gain = 1,000): 4 Hz Filter: 100 nVrms 10 Hz Filter: 4 µVrms Output (Gain = 1): 4 Hz Filter: 150 µVrms 10 kHz Filter: 1 mVrms Operating Common-Mode Voltage: 50 or 60 Hz Channel to Channel or Channel to Earth: 250 Vrms Common-Mode Rejection Ratio, 50 or 60 Hz: 1 kΩ in Input Leads: 160 dB min at 4 Hz bandwidth NMR (50 or 60 Hz): 60 dB at 4 Hz bandwidth Input Protection (Continuous): 250 Vrms max1 Output Protection: Continuous short-to-ground Power Consumption: 170 mA at ±18.5 V, 50 mA at ±5 V Notes: 1: Includes the combined effects of the SCXI-1120 and the AT-MIO-16F-5 2: Includes the combined effects of the SCXI-1120 and the AT-MIO-16E-2 with 1 m or 2 m cable 3: Includes the combined effects of the SCXI-1120 and the AT-MIO-16X with 1 m or 2 m cable Digital I/O Specifications: Absolute Maximum Voltage Input Rating: 5.5 V with respect to DIG END Digital Input Specifications (Referenced to DIG GND): VIH Input Logic High Voltage: 2 V min VIL Input Logic Low Voltage: 0.8 V max II Input Current Leakage: ±1 µA max Digital Output Specifications (Referenced to DIG GND): VOH: 3.7 V min at 4 mA max VOL: 0.4 V max at 4 mA max Physical Specifications: Dimensions: 3.1 cm x 17.3 cm x 20.3 cm (1.2" x 6.8" x 8.0") Connectors: 50-pin male ribbon-cable rear connector, 32-pin DIN C male front connector (18-screw terminal adapter available from National Instruments) Environment Specifications: Operating Temperature: 0 to 50°C Storage Temperature: -20 to 70°C Relative Humidity: 5% to 90% non-condensing Safety: Designed in accordance with IEC 61010-1, UL3111-1, and CAN/CSA C22.2 No. 1010.1 for electrical measuring and test equipment. Approved at altitudes up to 2000 m, Installation Category II, Pollution Degree 2 Notes: 1: Module designed to meet IEC-1010 standard for double or reinforced insulation of category II pollution degree 2 For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $5.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? 03/13/15
