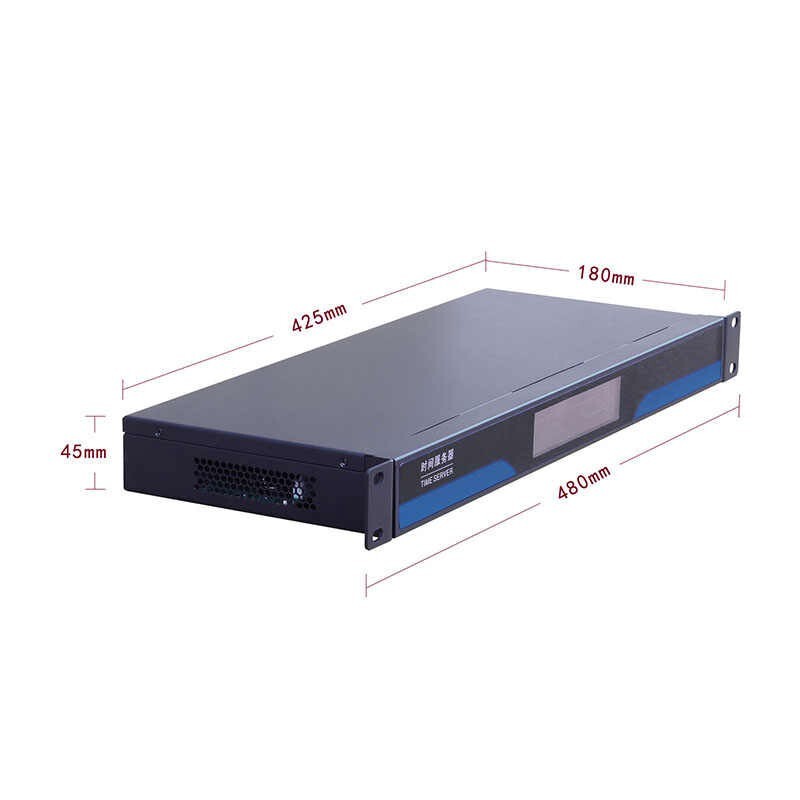

Check the listing for details. Network Time Server with HighPrecision OCXO for Beidou Dual Mode +9 Network Port. Condition: New. Listed at 1425.00 USD. Description Network Time Server with High Precision OCXO for Beidou Dual Mode GPS PTP Clock NTP Server (30m Antenna + 9 Network Port) Description: - MA-802 series time server is a high-precision, highly concurrent and multi-functional satellite time synchronization device, which can support multiple time synchronization protocols, including NTP, PTP, IRIG-B code, 1PPS, RS485 and RS232 output. It adopts high-quality professional domestic clock timing chips, ensuring high-precision clock synchronization, supporting up to nine 10/100M adaptive Ethernet ports, and physically isolating each other. NTP synchronization accuracy is better than 1ms. In terms of high concurrency, the time server can process about 30000 times service requests per second, providing efficient time synchronization support for your applications. - This series of time server are configured with WEB web page management, which can view and configure the device status without installing software on the computer. At the same time, the device also supports the SNMP v2 network management protocol and multi machine hot standby function. - The Time server adopts 1U rack design, with beautiful appearance and easy installation. In addition, it is equipped with a 4.7 inch VA color screen, providing an intuitive and easy to understand interface. Users can monitor various states of the Time server through the screen, which is easy to use. Features: - Satellite upgradation: for Beidou, GPS, GLONASS, GALILEO - Interface upgradation: NTP, PTP, IRIG-B, 1PPS, 10MHz, TOD - Performance upgradation: concurrency per second is better than 30000 times - Network port upgradation: up to 9 network port (optional) - Screen upgradation: 4.7-inch color screen Specification: - Supported satellite: for Beidou, GPS, GLONASS, Galileo - Performance: NTP request volume: 30000 times/second Timing accuracy: better than 1ms - High precision OCXO: Stability (ppm): ±0.1 Annual aging rate (ppm): ±0.1 Time deviation after 1 day of lock loss: ≤400us - Network port number: 1/2/3/4/5/6/7/8/9 (optional) - Supported interface: NTP/PTP/1PPS/IRIG-B bit/10MHz/TOD - Others: support IPV4/IPV6, support binding multiple IPs to a single network port, support up to 5 devices with multi machine hot standby, support WEB web page management, support SNMP network management protocol, support WEB remote firmware upgrade. Security Guarantee: - Support NTP MD5 authentication: used to provide authentication for NTP packets exchanged between NTP servers and clients. - Support NTP white list configuration: only NTP client terminals listed in the list can synchronize with the Time server. - Support for WEB whitelist configuration: It can prevent unauthorized access and malicious behavior, and improve system security. - Support time security range setting: When the error between the superior time source and the local machine exceeds a certain range value, its time will not be synchronized. - Support for fault sound alarm: It can detect and handle abnormal situations in a timely manner without the need for manual monitoring. Precaution: - The main difference between ordinary and constant temperature crystal oscillators is that when there is no time reference (such as antenna damage), the constant temperature self timing is more accurate and the deviation between seconds is smaller. The time accuracy of the two is exactly the same when there is a satellite signal. - If you have nanosecond level high-precision timing requirements such as PTP, B-code, PPS, or need to rely on a time server to maintain long-term accuracy, it is recommended to choose a constant temperature crystal oscillator version. Package Included: - 1 x Time Server - 1 x Antenna - 1 x Antenna Fixing Stand - 1 x Power Cable - 3 x Screws - 1 x User Manual Payment Terms 1. We accept PayPal,Payoneer,Visa Card,Google pay,Credit card etc. 2. We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. Shipping Terms 1. We will process the order within the handling time ,if you have any questions, please contact us via eBay message or email. 2. For remote regions of DHL/FedEx..., extra shipping costs might be charged. Usually it costs about 30USD-50USD. We will contact you if shipping company informed us your address belongs to remote area. Thanks for your understanding. Return Terms If you receive the item that not satisfied or defective, please do not open case and kindly notify us within 30 days. We will guide you the returning process for replacement or refund. Custom Duties & Taxes 1. It is buyers responsibility to cover the import duties, taxes.We do not charge any taxes and fees, and the possible taxes and fees will be collected by the platform or by third parties such as customs and carriers. 2. Please check with your countrys customs office and inform us what/how much should declare before shipping. Feedback 1. Please kindly leave us a positive feedback and 5 star DSR if you satisfied with our product and service. Please feel free to contact us firstly if you have any problem with your order, we are responsible and credible seller and will solve the issue it for you asap. 2. If you are dissatisfied for any reason, please dont be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers.
