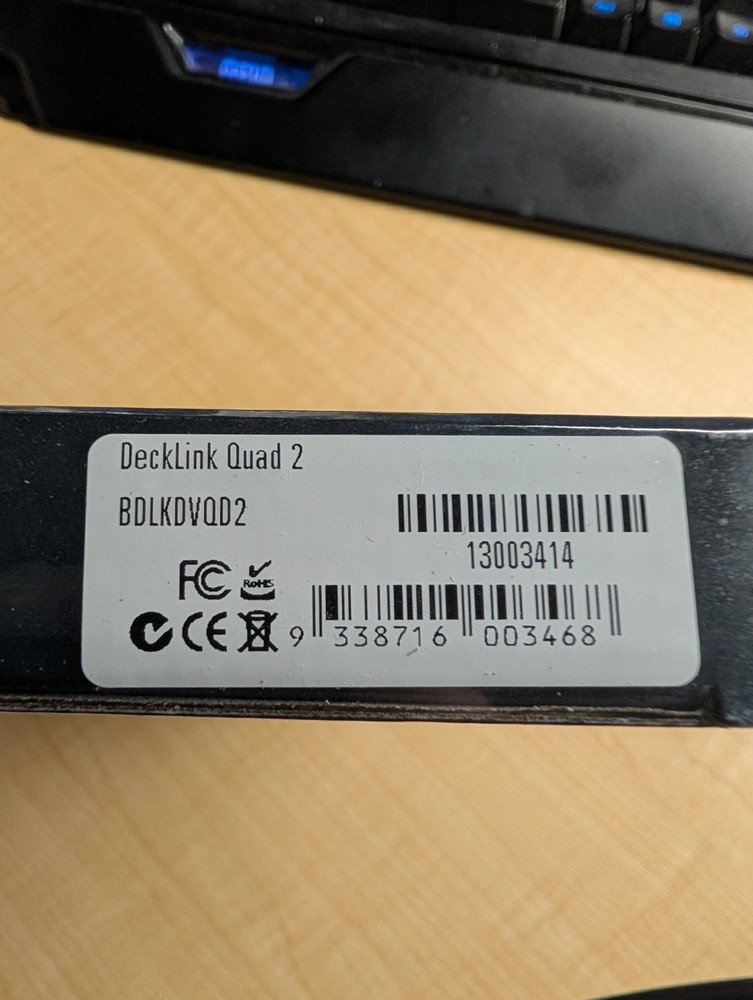

NEW Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card

Name: NEW Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
SKU: 227303272457
Price: 799.95 USD
Availability: InStock

$399.98

$799.95 -50%

Brand Blackmagic Design

Condition New

Item ID 227303272457

Brand	Blackmagic Design
Connectivity	3G-SDI
Sync Input	Blackburst in SD, 720p50, 720p59.94, 1080i50, and 1080i59.94 formats or Tri-Sync in any HD form
Operating Temperature	32 to 104°F (5 to 40°C)
Relative Humidity	0 to 90% non-condensing
SDI Audio Input	16 channels per input, embedded in SD and HD
SDI Audio Output	16 channels per output, embedded in SD and HD
Codecs Supported	AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC
SDI Metadata Support	VITC read for 3:2 pulldown removal VANC capture an
Color Space	Rec. 601, Rec. 709
Type	Board, Card & Module
Video Sampling	4:2:2, 4:4:4
Resolutions and Frame Rates	625/25 PAL 525/29.97 NTSC 720p 50/59.94/60 1080i 5
Audio Sampling	48 kHz, 24-bit
Color Precision	8/10-bit YUV 4:2:2 8/10/12-bit RGB 4:4:4
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B
Model	Blackmagic Decklink Quad 2
Computer Interface	PCI Express 8-lane, compatible with 8 and 16 lane PCIe slots
Input / Output	8 x Bi-directional SD/HD/3G-SDI, 12-bit (DIN 1.0/2.3 connectors) 1 x Reference In
Compatible Operating Systems	Mac OS X 10.10, 10.11, and later Windows 8 and Windows 10 64-bit Linux
Storage Temperature	-4 to 113°F (-20 to 45°C)
UPC	9338716003468

Check the listing for details. NEW Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card. Condition: New. Listed at 799.95 USD. Blackmagic Design DeckLink Quad 2 PCIe capture and playback card. Connections: Uses mini-BNC (DIN 1.0/2.3) SDI connectors. Adapters or breakout cables may be required depending on your setup. Condition: Unit is new in box.
