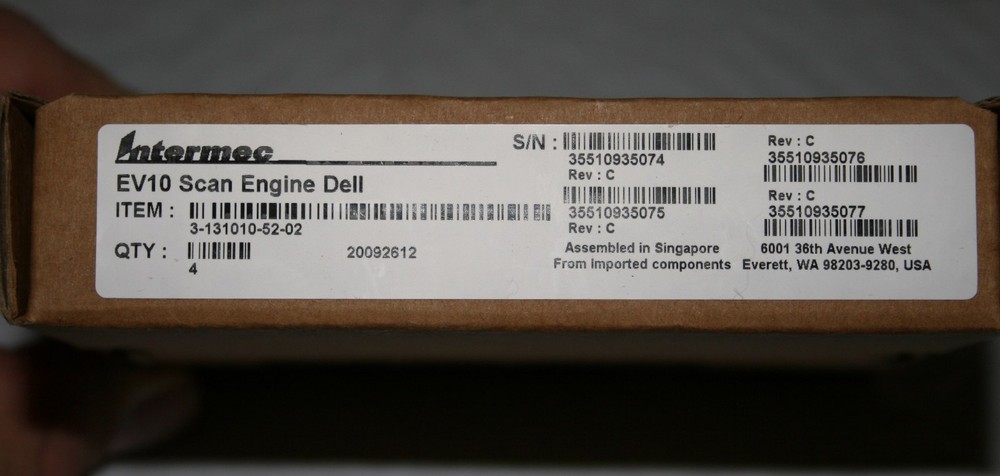

Check the listing for details. New Lot of 4 Intermec EV10 Dell High Performance APS Barcode Scan Engine Scanner. Condition: New. Listed at 49.95 USD. NEW Lot of 4 Intermec EV10 Dell High Performance APS Barcode Scan Engine Combining compact size (5.2cm3/0.32in3) and exceptional scanning performance, the EV10 High Performance APS Scan Engine from Intermec is the first bi-linear CMOS sensor using state-of-the-art Active Pixel Sensor (APS) technology. The EV10 is ideal for OEM applications where space is limited for scanner integration in both portable and fixed devices, including hand held terminals, PDAs, PC and cell phone peripherals, lottery terminals, time and attendance terminals, ski-pass, automated sorting machines and many more. Intermec’s advanced research in scanning technology has resulted in an APS sensor that is bi-linear, utilizing multiple scanning lines and combining highdensity, standard range and PDF 417 bar code reading into one engine delivering unparalleled flexibility and performance. The EV10 has a very high scan rate and a large depth of field enabling it to read even the most elusive bar codes including poorly printed, damaged, low contrast, wide or high density. In addition, the EV10 can be used in any lighting conditions from total darkness to full sunlight. The EV10 uses a unique 617nm illumination system to provide a safe, bright and sharp aiming line. With the EV10, you can clearly see what you are scanning, even in brightly lit or backlit conditions, thus improving usability and throughput. The EV10 provides easy electrical connection to your OEM hardware without having to add extra components to your main board. The 3.3V low power operation is ideal for preserving battery life in mobile applications. Additionally, the standby current is reduced to micro amps to preserve the host device battery when the scan engine is not in use. With no moving parts and no laser diode, the EV10 has a longer life than any laser scanner (MTBF above 250Kh). It’s rugged design means it can withstand 2000G shocks and 50G vibrations and can be used in a wide temperature range. Small volume and low power, the EV10 uses an industry standard interface and connector. Everything has been done to simplify the mechanical and electronic integration of the EV10 into your OEM design. The EV10 is the most flexible and durable scan engine on the market. Physical Characteristics Dimensions: 0.45" H x 0.89" D x 0.81" W 11.4mm H x 22.5mm D x 20.6mm W Weight: 12g Scanning Performance Light source: 617nm Highly Visible LED Scan rate: High speed mode = 200 scans/s Low speed mode = 34 scans/s Scan angle: 40° Print Contrast: down to 25% Min x. dimension: 0.1mm (4mils) Reading distance: up to 50cm Interfaces 10 pin ZIF connector Undecoded industry standard output (DBP) SE900 compatible ribbon cable Power Voltage: 3.1 to 3.5V Current: -110mA typ @ 34 scans/s -130mA typ @ 200 scans/s Standby current: 50 µA Environmental Characteristics Operating temperature: -22° to 122°F (-30°C to 50°C) Storage temperature: -40° to 178°F (-40°C to 70°C) Relative humidity: 5 to 95% (non-condensing) Shock: 2.000G Vibration: 5 – 200Hz: 8G 3 axis Ambient light: works in any lighting condition from 0 to 100000 lux Regulatory Approvals Ul, cUL recognized component, VDE certified Class 1 LED product; SELV according to EN60950-1 Accessories Demo kit EV10 Reading Distances 8" 4" 6" 2" 0" 2" 4" in 0 5 10 15 20 25 30 35 40 45 50 100% contrast UPC/EAN 0.5 mm/20 mil 1 mm/40 mil 6" 8" 10" 10" 0.25 mm/10 mil 0.125 mm/5 mil cm 10 5 0 5 10 15 20 20 15 25 25 55 0" 2" 4" 6" 8" 10" 12" 14" 16" 18" 20" 22" Symbology Bar Code Content Density Minimum Distance Maximum Distance Code 39 RESO 0.100 MM R 0.125 MM 0.25 .5 R1MM 0.1 mm/ 4 mil 0.125 mm / 5 mil 0.25 mm / 10 mil 0.5 mm / 20 mil 1 mm / 40 mil 10 cm / 3.9" 9 cm / 3.5" 5.5 cm / 2.2" 4 cm / 1.6" 7.5 cm / 3" 15 cm / 5.9" 18.5 cm / 7.3" 27.5 cm / 10.8" 37 cm / 14.6" 51 cm / 20.1" UPC / EAN 120010010100 0.33 mm / 13 mil 5.2 cm / 2" 29.5 cm / 11.6" PDF417 10 mil 15 mil 0.254 m / 10 mil 0.381 mm / 15 mil 10 cm / 3.9" 8 cm / 3.1" 17.5 cm / 6.9" 19.5 cm / 7.7"
