| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 14 Days |
| Refund will be given as | Money Back |
| Brand | JCA |
| Type | JCA48 |
| Model | JCA48 |
| Country of Manufacture | United States |
| MPN | JCA48-4111B1 |
| Country/Region of Manufacture | United States |

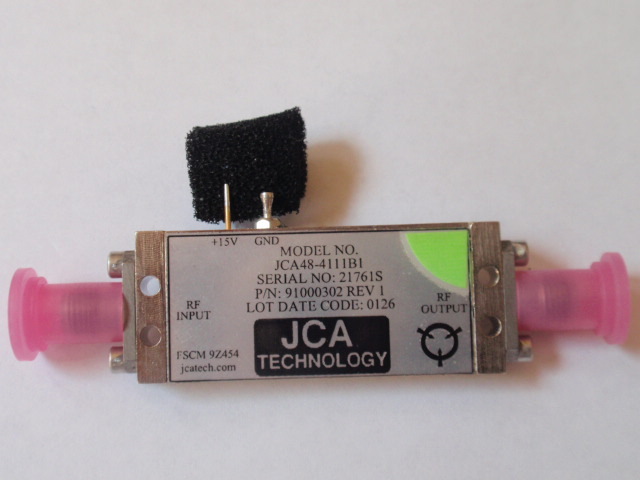

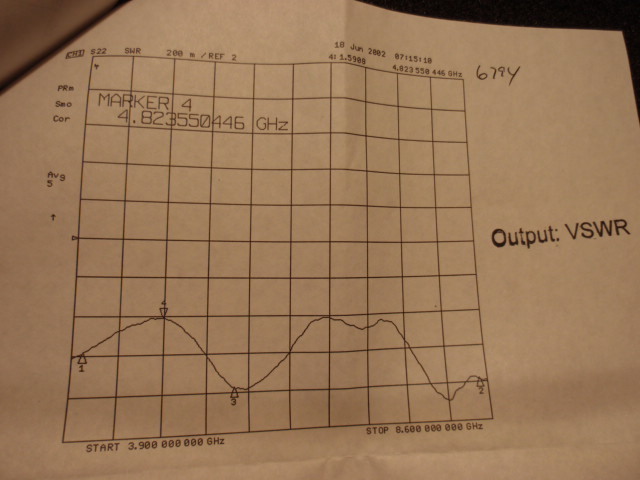

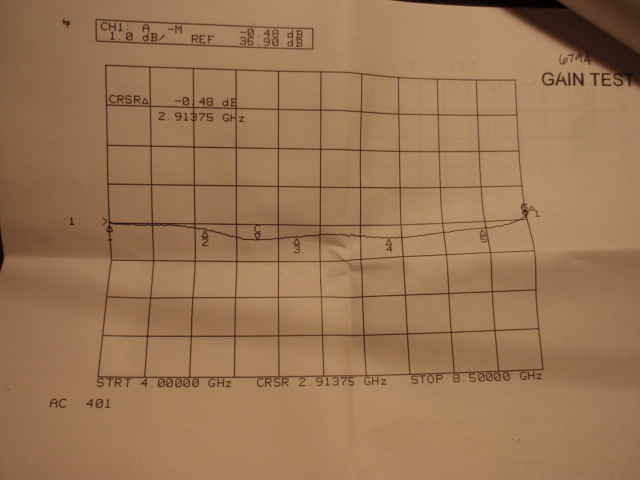

Check the listing for details. NEW RF Amplifier 4-8.6GHz 34dB Gain c-band JCA48-4111B1 Test data. Condition: New. Listed at 39.95 USD. AMPLIFIER, POWER, MICROWAVE, 4 TO 8.6 GHz, 34dB gain min. NEW with test data. Technical Specifications Part Number JCA48-4111B Frequency Range 4.0 GHz - 8.6 GHz Saturated Output Power Signal Gain 34 dB minimum Peak to Peak Output Voltage Noise Figure 4.5 dB maximum Gain Flatness +/- 0.4dB maximum 1dB Compression Point 13 dBm minimum 3rd Order IP 23 dBm typical VSWR 2.0:1 maximum Supply Voltage +14 to +16 VDC Supply Current 380 mA typical Connectors SMA female
You may also like
$169.1

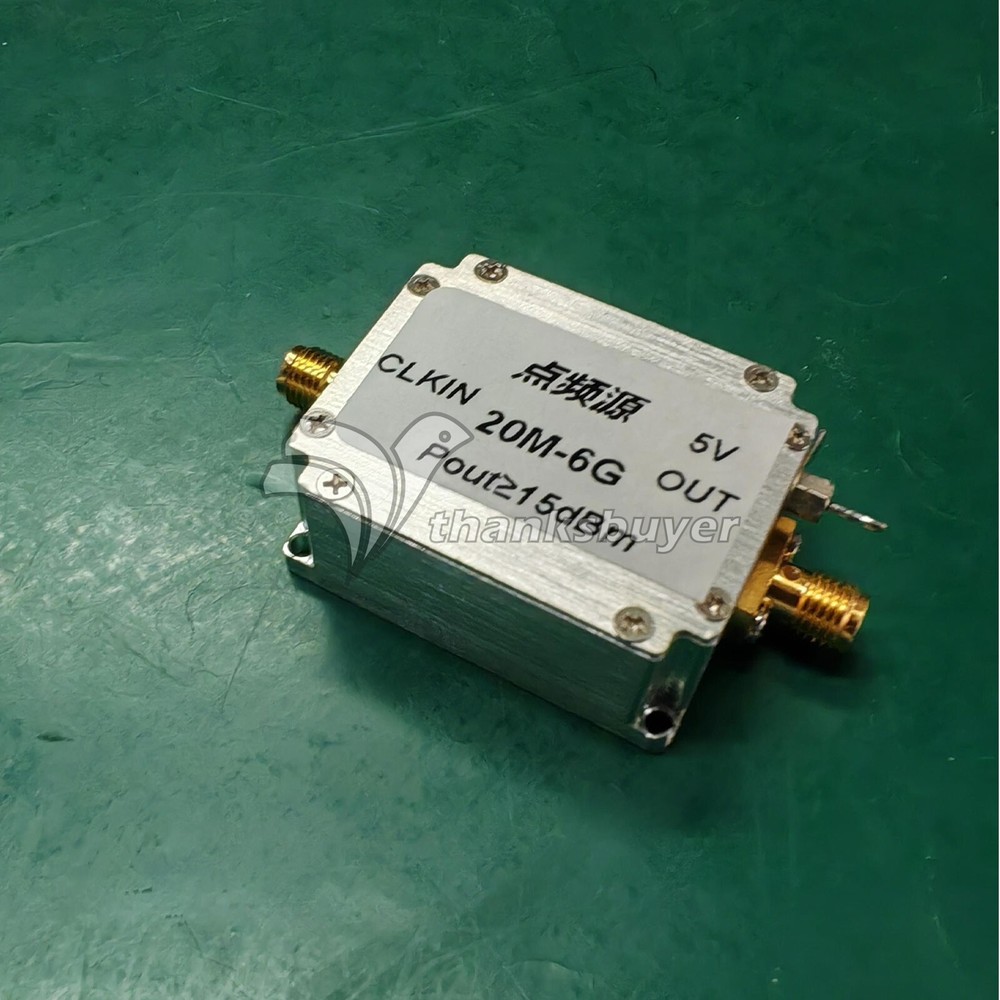

20M-6G Low Phase Noise Fixed-Frequency Source Mini Fixed-Frequency Generator
