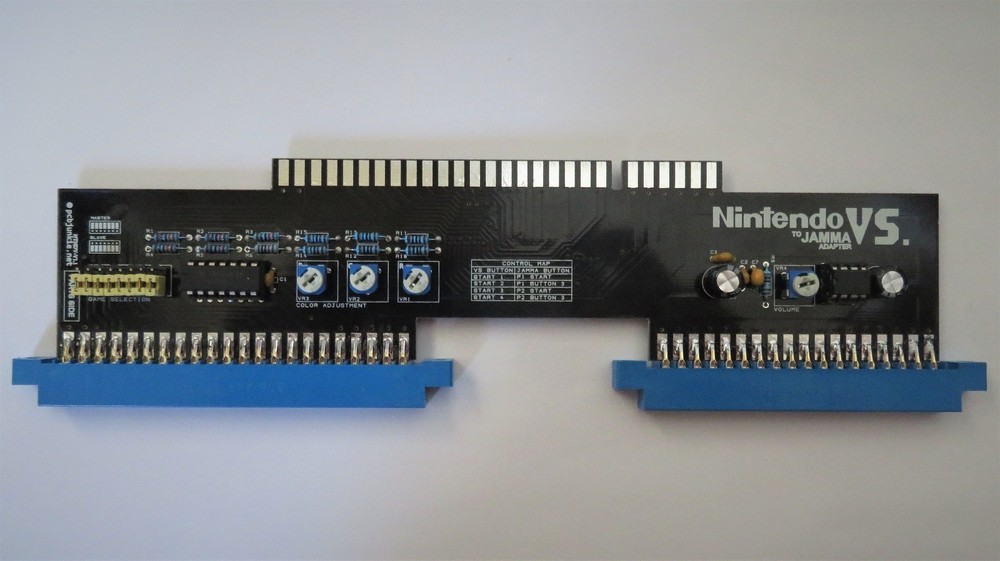

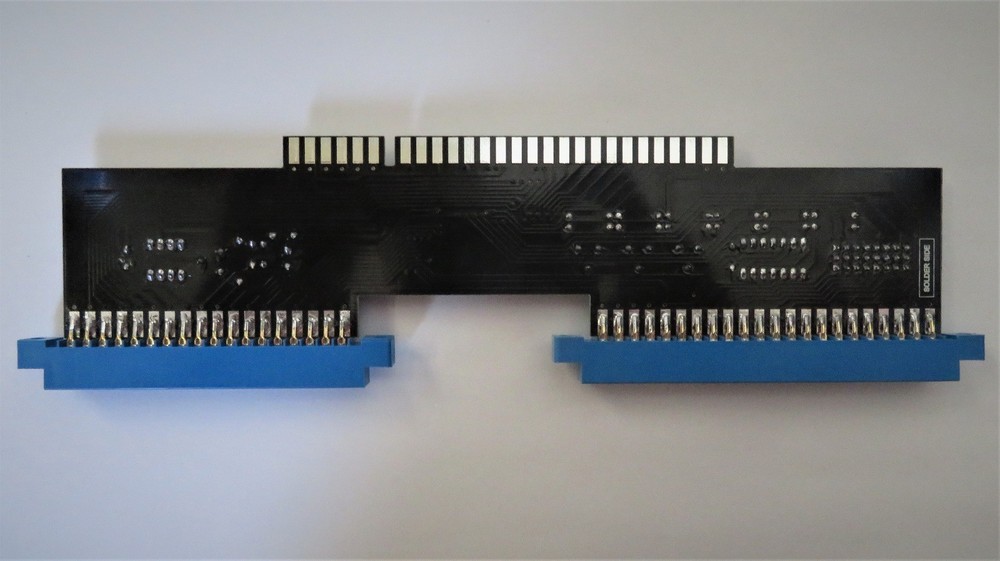

Check the listing for details. Nintendo VS System to JAMMA Adapter. Condition: New. Listed at 59.54 USD. Allows you to use your Nintendo VS games in a JAMMA cabinet or a super gun device. The Nintendo VS System was an arcade platform based on the hardware of the NES / Famicom home consoles. It was supposed to be a cost effective way to retrofit existing Nintendo arcade cabinets and as a result these PCBs output inverted video and audio level sound. This adapter has a built in video inverter and a sound amplifier for full compatibility with the JAMMA standard. A set of jumpers allow the adapter to be configured to display and control either the Master or the Slave romset on the Nintendo VS PCB. Compatibility: All games compatible with the Nintendo VS Uni/Dualsystem boards can be used with this adapter. Either the Master or the Slave game can be selected via configuration jumpers, but only one game can be controlled and displayed at a time. The adapter has been tested with genuine Nintendo VS boards for compatibility. As always, please check the pinout information before buying the adapter and connecting your PCB. Pinout: 44 Pin Edge Connector SOLDER SIDEPARTS SIDEGNDGNDGNDGND+5V+5V+5V+5V+12V+12VNCNCMCOIN1SCOIN1MCOIN2SCOIN2MVREDSVREDMVGREENSVGREENVGNDVGNDMVBLUESVBLUEMVSYNCSVSYNCNCNCNCNC+24V+24VMCOUNT1SCOUNT1NCNCMSVCSSVCMSOUNDSSOUNDGNDGNDGNDGND 36 Pin Edge Connector SOLDER SIDEPARTS SIDEGNDGNDMP1RIGHTSP1RIGHTMP1LEFTSP1LEFTMP1UPSP1UPMP1DOWNSP1DOWNMP1B2SP1B2MP1B1SP1B1MSEL1SSEL1MSEL2SSEL2MSEL3SSEL3MSEL4SSEL4MP2RIGHTSP2RIGHTMP2LEFTSP2LEFTMP2UPSP2UPMP2DOWNSP2DOWNMP2B2SP2B2MP2B1SP2B1GNDGND (PCB edge connector facing away, list is ordered right to left) Shipping: I combine shipping. Request invoice with combined shipping by selecting "request total" from your cart. This works only in the browser, not in the mobile app. "Tracked Packet" shipping rate is selected by default. An economy shipping service called "Small Packet" is available for small orders, but please note that this service is slow and doesn't provide online tracking. If using Small Packet, I will not be able to provide you with status updates and cannot resend missing items until at least 60 days have passed due to current shipping delays. For more info on shipping options, tracking, delivery times and more, please check out my FAQ under shipping. CanadaPost shipping rates quoted may not be accurate, especially for Europe and Australia. Any excess shipping charges will be refunded.
