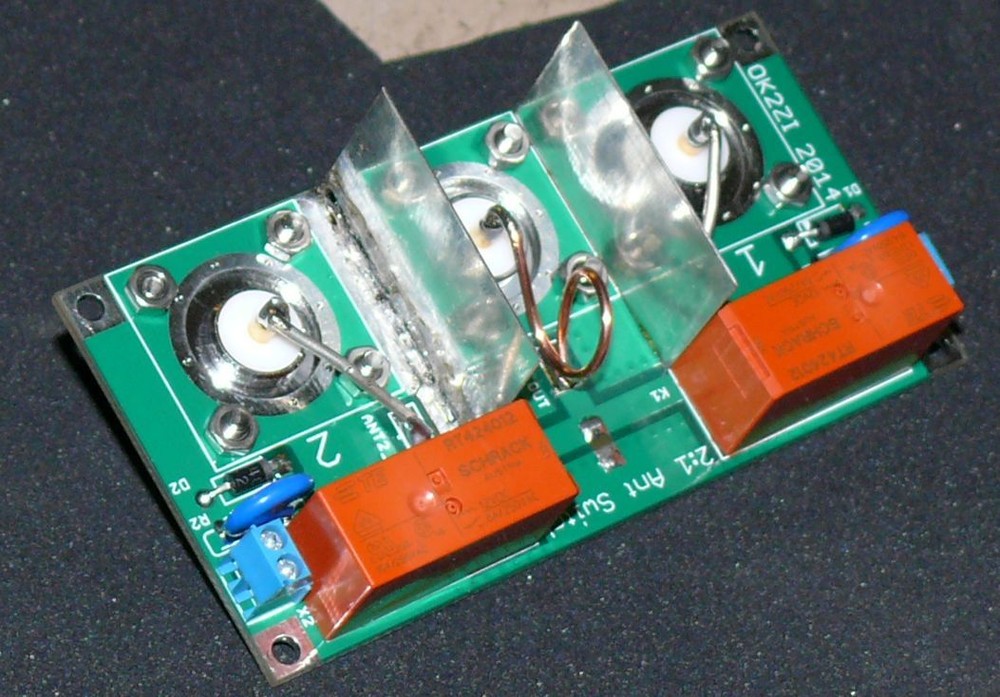

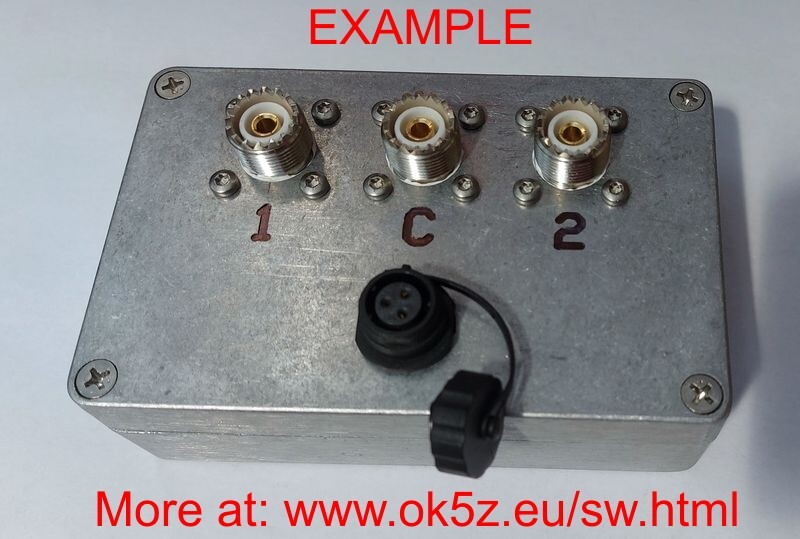

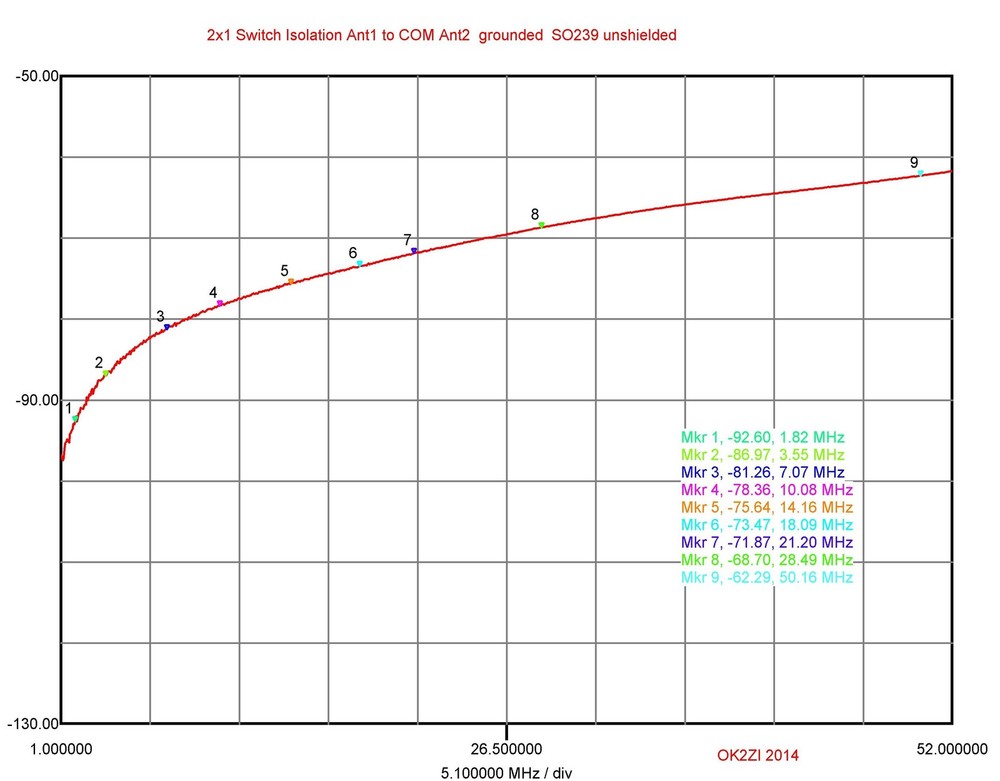

Check the listing for details. PCB 2:1 for remote antenna switch DIY cheap SO-239 PCB high quality. Condition: New. Listed at 9.90 USD. Do you need an antenna switch? So why to pay a lot of money? Do it yourself! The PCB is designed to provide the best isolation and power handling. This switch has the highest isolation between unused antennas inputs and output. The power handling was tested with OM4000HF without any issue. Before you will select the right switch for you, check the parameters and compare. In this auction, you can buy the BARE PCB for 1:2 antenna switch. If you want to buy the complete KIT, look to my other auctions. The size of the PCB is 49x100mm. The PCB is well designed for the minimum loss and the high RF power handling. With the delivered relays you can switch RF power >1.5kW CW/RTTY or 3000W PEP. The switch can be used for 50MHz (6m) without any limitations. With the compensation coil (see the picture) is the loss nearly 0.0dB!! It can be used for 144MHz too, but you must take into account the isolation and loss. Recommended box is Hammond 1590B. I can be purchased at Digikey, Mouser, Newark etc. For complete switch look here Copy this link to your favourite browser =======>> ok5z.eu/sw.htmlAdditional pictures of other works for your inspiration are hereCopy this link to your favourite browser =======>> tecdoc.maweb.eu/2x1sch.pdfSchematic and bill of material can be downloaded from hereCopy this link to your favourite browser =======>> ok2zi.rajce.idnes.cz/2_1_switch Drill plan can be downloaded from here Copy this link to your favourite browser =======>> tecdoc.maweb.eu/2x1drill.pdf Iinstallation instructions in the box 1590B plan can be downloaded from here Copy this link to your favourite browser =======>> tecdoc.maweb.eu/2x1assembly.pdf 2.8 USD shipping = normal letter, not insured, no responsibility of delivery. This is at your own risk!5 USD shipping = signed and insured letter, with tracking number. Delivery is sure or you will get a full refund. This is the best choice for you! Attention! Recently, several vendors with counterfeit my switches have appeared here. My design was developed in 2014 and since then, several hundred of them have been operating around the world, without complaints. If you want to choose a switch from another manufacturer, always ask if the switch was measured at maximum power and how big. Also ask for measurements using a vector analyzer to show the transmission loss and isolation between the ports.My auctions contain this information automatically. Thank you for choosing my products. See my other auctions. I always combine the shipping. Warning for buyers from Australia. Shipping time to Australia is between one and three months! If it seems like a long time, don't buy my goods or order express shipping. In any case, I recommend standard transport with insurance and tracking of the shipment. Important information and terms and conditions: Even the postal services are about 99% reliable, sometimes could be something lost. I do recommend using signed and insured letter.Yes, it costs more, but you can be sure, that you will get it or it can be fully refunded. I am sorry but I cannot be responsible for a normalletter. I cannot manage worldwide postal services. I do always my best, but when I post your goods at the post office, my role is finished.Do not write to me, where is my ..... I want to refund .... etc. I am an honest man and if you don’t believe, please use signed and insured.Especially if you are from Russia, Middle and the Far East, Italy and sometimes from the UK too. If you have selected economy shipping, without tracking. DO NOT OPEN THE CASE or ask for the refund! You took a risk and I cannot do anything. I am giving you a possibility to get cheap shipping, but it is out of my control if it will be delivered or not. During the last time, there are several cases from Italy and Germany as well. It will lead to the strict requirement for signed and insured shipping ONLY (= more expensive for you). If you want to keep the low shipping fees in my auction, respect my rules, please. DO NOT BELIEVE eBay's estimated delivery time! eBay does not know Czech or Worldwide postal system well. The delivery time is sometimes faster than proposed by eBay, but very often is slower (especially for overseas shipping and the UK included!!). I am trying to do my best, in 90% I am shipping first working day after the purchase, but the delivery time is out of my control. If you are in a hurry, ask me in advance and I will send you an offer for EMS shipping. Thank you for the understanding and cooperation.
