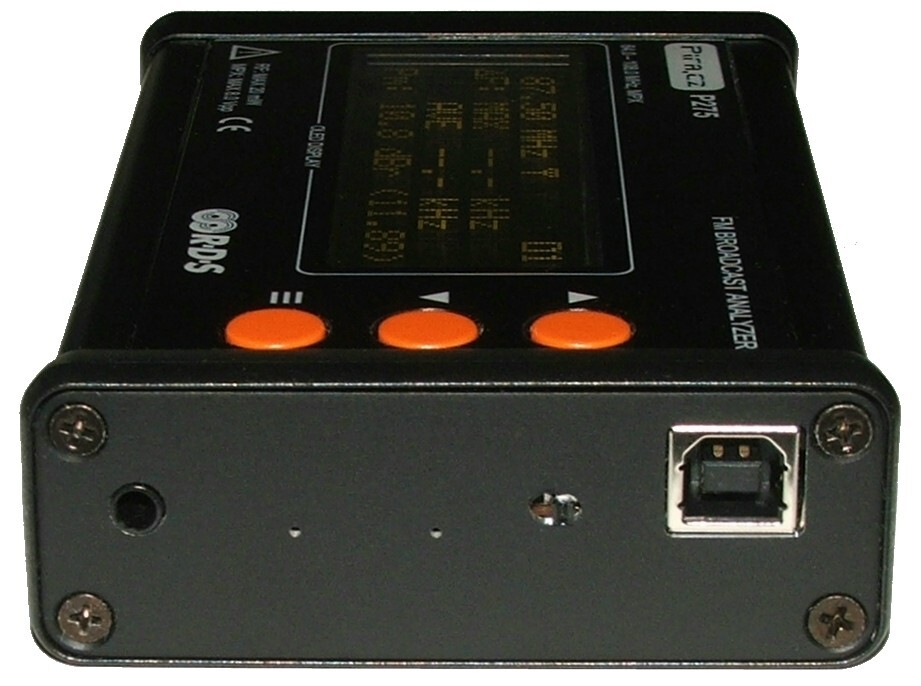

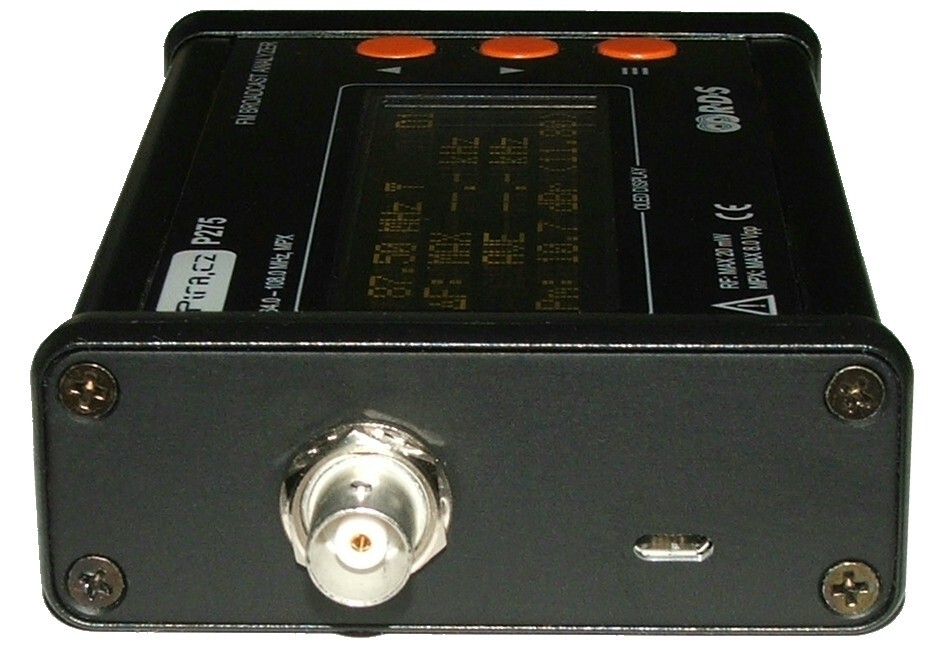

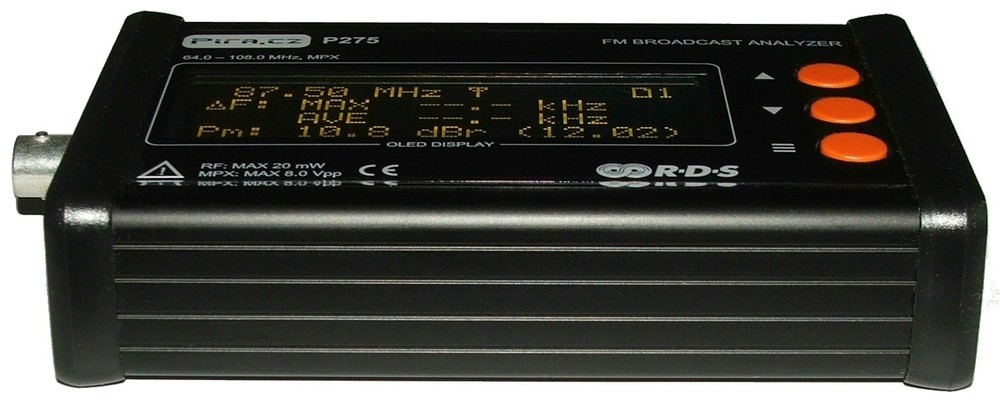

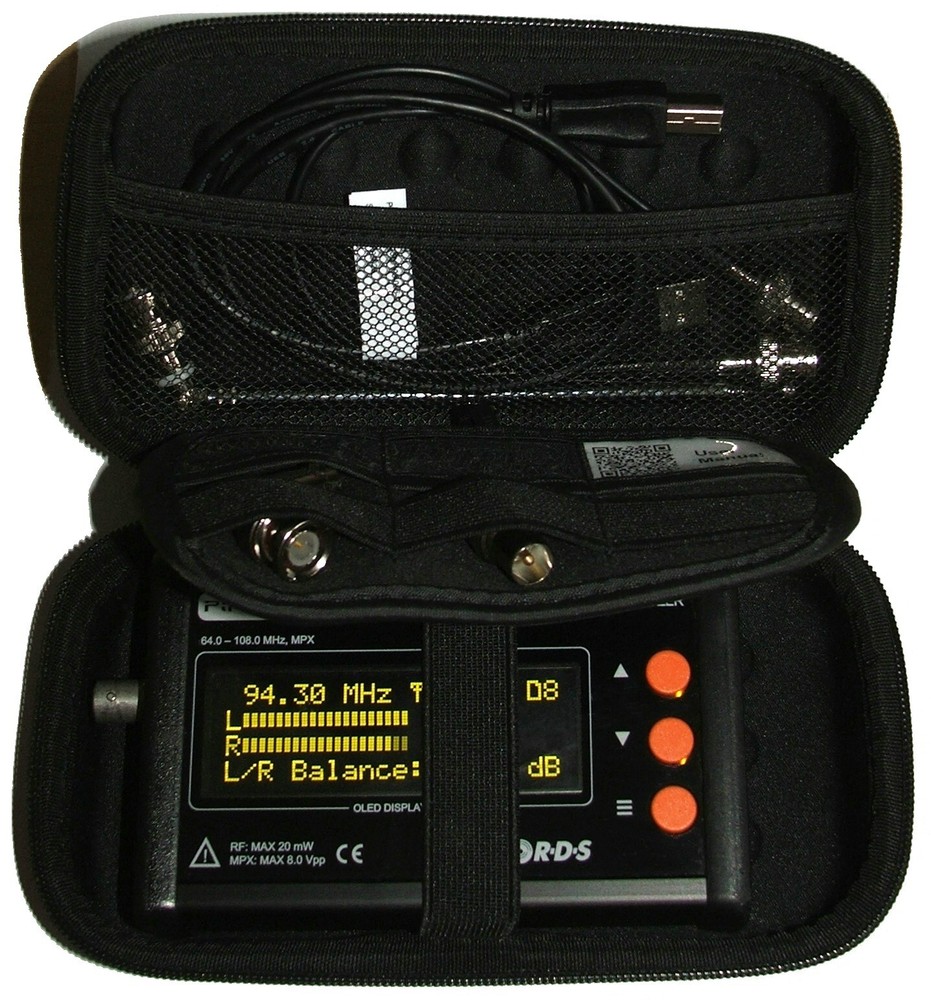

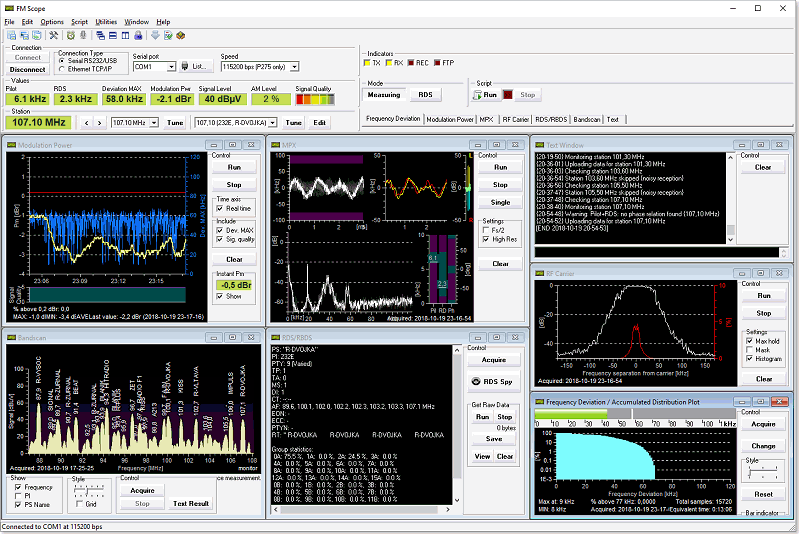

Check the listing for details. PIRA P275 FM Broadcast Analyzer Modulation Meter RDS Decoder. Condition: New. Listed at 495.00 USD. FM Analyzer for Radio Stations Pocket size FM broadcast analyzer designed for daily work in the field, with built-in LiPo cell. Aluminium case with acrylic glass covered front panel. BNC input for antenna or MPX signal, USB connectivity, OLED display. Covers FM broadcast band 64 to 108 MHz and baseband MPXMeasures FM modulation characteristics, MPX characteristics and analyzes RDS contentSupplied control software for Windows brings many enhanced capabilitiesPocket size handheld device - supports also stand-alone operationEuropean product from well-established manufacturerFast delivery by DHL The P275 FM Broadcast Analyzer is a stand-alone compact solution for FM broadcast analysis. It provides complete FM modulation and basic AF spectrum measurements in FM radio band through the combined antenna and MPX input. Built-in OLED display and control interface allows to measure and collect data directly in field without need of any PC computer. USB interface and the control software provide a possibility of remote control, data viewing and automated data logging. Product page: https://pira.cz/fm_broadcast_analyzer/?art=p275aboxPdf manual: https://pira.cz/fm_broadcast_analyzer/p275a-manual.pdf This kind of analyzer is essential equipment for all FM radio stations to ensure compliance with basic technical broadcast standards and to accomplish the highest audio quality possible. Control software free download: https://pira.cz/fm_broadcast_analyzer/?art=software Typical applications include: FM broadcast equipment setup and maintenance, verification of compliance with related technical standards as well as diagnostics, repairing and development. Features Stand-alone design, completely DSP based from IF to outputsCompliant with CEPT/ERC REC 54-01 E and ITU-R SM.1268Frequency range 76 to 108 MHz (64 to 108 MHz with reduced sensitivity)Accepts also baseband MPXCombined RF and MPX input via industry standard BNC connectorAluminum case, built-in OLED display and USB interfacePocket size, built-in replaceable LiPo cellEasy and fast to use Measurements, indications and outputs Overall frequency deviation incl. histogramModulation power (MPX power)Baseband spectrum FFTPilot deviation, RDS deviationPilot-to-RDS phase differenceFM carrier frequency offsetReception quality and signal strengthStereo balance meterMPX peak to peak voltageRDS/RBDS decoder and analyzer Quick reference data Power supply: USB 5 V DC or internal batteryCPU: 70 MIPS DSPSignal input: BNC, 50 OhmsRF sensitivity (26 dB S/N): 4 uVRF sensitivity (full measurements): 70 uVDevice dimensions: 12.5 x 8 x 3 cmDevice weight: 280 g netto Accessories included: Bag, telescopic antenna, BNC to IEC adapter, BNC cable 0.5 m, USB cable 0.5 m. Please always read the instructions before putting the device into operation. Shipping We ship to all countries around the world by DHL international shipping service. Delivery takes 2 to 4 days to most regions. Incoterms: DAP. In some regions, you may be subject to import duties and taxes levied by your local customs agency. For customers from the EU region, the VAT tax is already included in the shipping costs.
