| Return shipping will be paid by | Buyer |
|---|---|
| All returns accepted | Returns Accepted |
| Item must be returned within | 14 Days |
| Refund will be given as | Money Back |
| Brand | PDV |
| Type | Goniometer |
| Load Capacity | 5kg |
| Model | PJ110-10 |
| Height of Rotation Stage | 75 mm±0.2 mm |
| Platform Szie | 65mm*65mm |
| Country/Region of Manufacture | China |
| Rotation Range | ±10° |
Check the listing for details. PJ110-10 Motorized Goniometer Stage, Rotation Range: +/- 10 degree. Condition: New. Listed at 250.00 USD. Structure SpecificationsItem Number: PJ110-10Rotation Range: ±10°Platform: 65mm × 65mmDrive Mechanism: Worm GearTravel Guide: Crossed Roller BearingWorm Gear Ratio: 352 : 1Height of Rotation Stage: 75 mm±0.2 mmStepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step AngleMaterial – Finish: Aluminum Alloy - Black-AnodizedLoad Capacity: 5KgWeight: 0.75kgAccuracy SpecificationsDesign Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive)Rotation Center Deflection Accuracy: 0.03 mmMax Velocity: 7°/secRepeatability: ±4”Absolute Accuracy: ±9”Backlash: ±4”Lost Motion: 3″
You may also like
$750

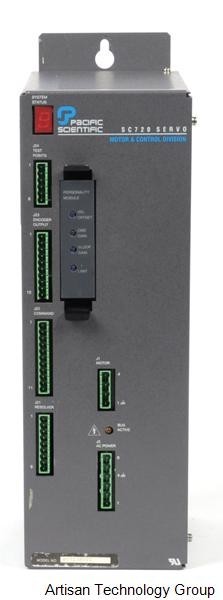

Pacific Scientific SC723B Analog Torque/Velocity / Digital Position Command
