| Modulation frequency（HZ） | CW、270、330、1K、2K |
| Display size | 3.5-inch TFT color screen |
| Output power adjustable range（dB） | -5～-20 |
| Wavelength （nm） | 1310/1550（customize） |
| MPN | 202404111635 |
| Interface type | （FC/SC）/PC(customize) |
| Power supply mode | 3.7V 4000mAh lithium battery/Micro USB |
| Stability （dB,15min） | ≤0.05 |
| Wavelength (nm) | 650 |
| Brand | vtsyiqi |
| Form Factor | Handheld |
| Min step adjustable power（dB） | 0.05 |
| Country/Region of Manufacture | China |
| Typical output(dBm) | -5 |
| Output power (mW) | 1 |
| Spectral width (nm) | ≤5(customize) |

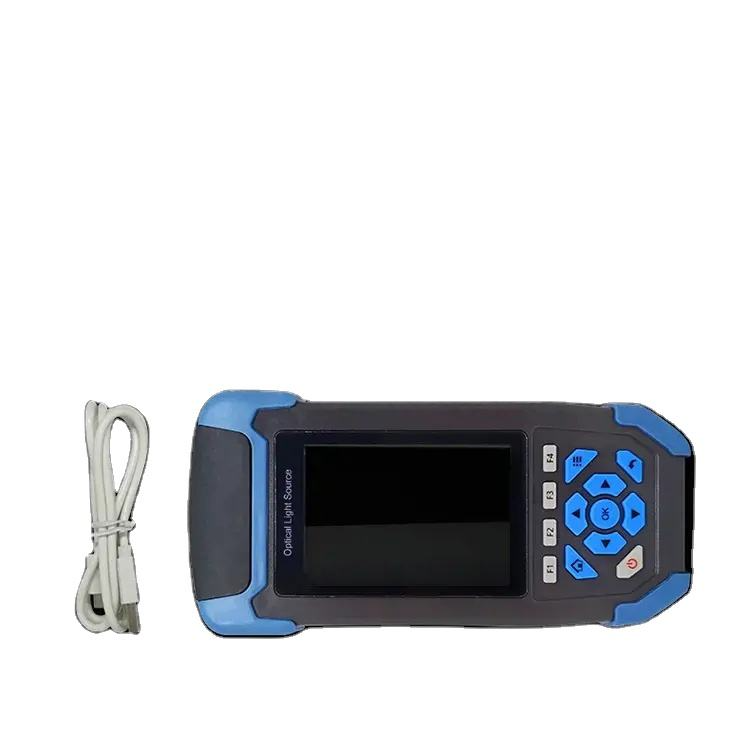

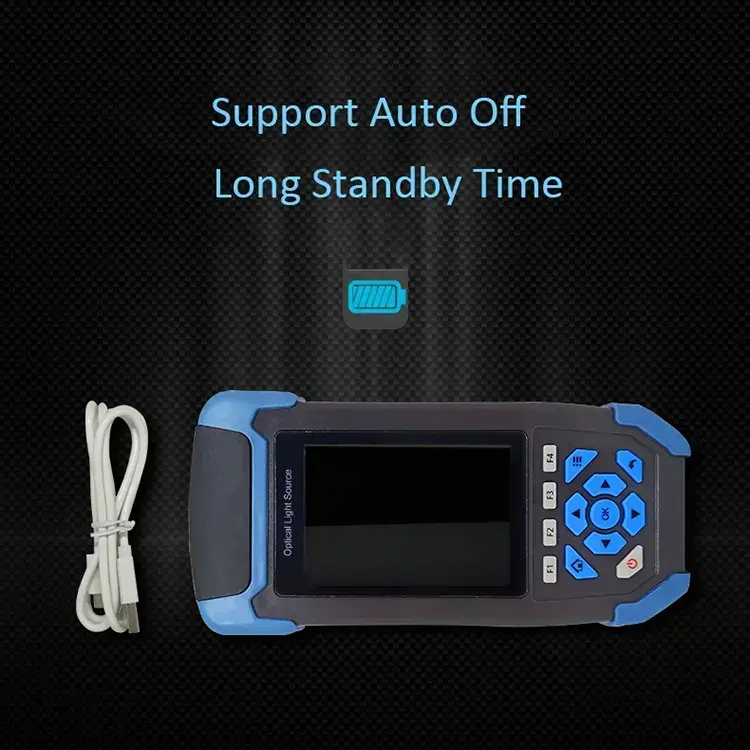

Check the listing for details. Power Adjustable Light Source Optical Power Meter Tester -5~-20dBm 1310/1550nm. Condition: New. Listed at 700.00 USD. 1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0 Power Adjustable Light Source Optical Power Meter Tester -5~-20dBm 1310/1550nm Product overview:It can provide up to 6 wavelengths of light. It has a continuous 15dB adjustable power range and can choose single and double channels, it can automatically identify the wavelength when it is used with our power meter, and it can easily and accurately measure the loss of optical fiber link.Product features:3.5-inch color displayMaximum 6-wavelength outputSupport for user self-calibrationSingle-channel or dual-channel output is supportedThe output power is continuously adjustableAutomatic wavelength identification functionSupport Continuous light CW and modulation light outputSupport Visual Fault Locator (optional) Applications：Engineering maintenance of optical fiber networkEngineering maintenance of Digital Data NetworkTeaching and research of optical communicationOther optical fiber works Technical specifications*: Wavelength （nm）1310/1550（customize）Spectral width (nm)≤5(customize)Typical output(dBm)-5Stability （dB,15min）1≤0.05Output power adjustable range(dB)2-5～-20Min step adjustable power（dB）0.05Modulation frequency（HZ）CW、270、330、1K、2KInterface type（FC/SC）/PC(customize)Display size3.5-inch TFT color screenVFL(optional)Wavelength (nm)650Output power (mW)1OthersPower supply mode3.7V 4000mAh lithium battery/Micro USBAuto-off (min)User-definedCommunication interfaceMicro USBContinuous working hours（H）3≥25Operating temperature（℃）-10～+60Storage temperature（℃）-25～+70Size (mm)188×88×44Weight (g)370Note:* : the related technical indexes were tested at T = 23 ± 2 °C.1. The instrument was preheated for 15 min by 1550 nm light source.2. Testing at@1550nm.3. The continuous working time of the battery is tested when the backlight of the meter is turned off, and the continuous working time of the continuous working time of the backlight of the meter is relatively shortened.
