| orking Current | About 490mA |
|---|---|
| Current True RMS Max Error | ±(1%rdg+0.05%fs) |
| ommunication Interface | USB |
| Channel | 3 channels voltage, 4 channels current |
| Display Mode | 5 inch touch colorful screen |
| MPN | Power Quality Analyzer |
| Max. Resolution | 1mA |
| Current Measurement Range | 1.0A~1000A |
| Communication Interface | USB |
| Dimension | 240mmX170mmX68mm |
| Materials sourced from | China |
| Voltage Range | 2V~600V |
| Weight | about 8kg (include all accessories) |
| Voltage Measurement Range | 2V~600V |
| Power Supply | Rechargeable lithium battery 7.4V, 5200mAH, external charger |
| Brand | VTSYIQI |
| Current Range | 1.0A~1000A |
| Phase Configuration | Power Quality Analyzer |

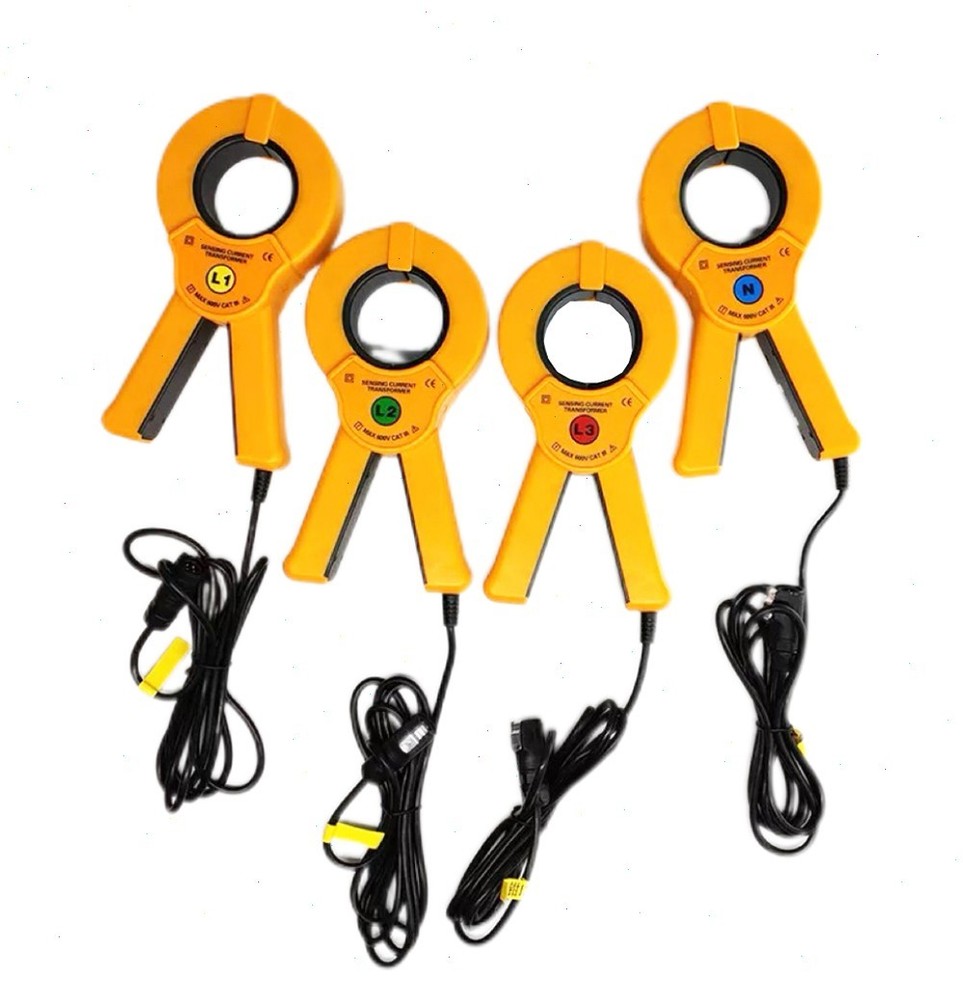

| Clamp Current Sensor CT Size | Φ50mm |
| Phase Angle φ Max Error | ±(2°) |
| Working Temperature | -10℃~40℃; Below 80%RH |
| Frequency | 40Hz~70Hz |
| Country of Origin | China |
| Storage Temperature | -10℃~60℃; Below 80%RH |
| UPC | 607608748022 |

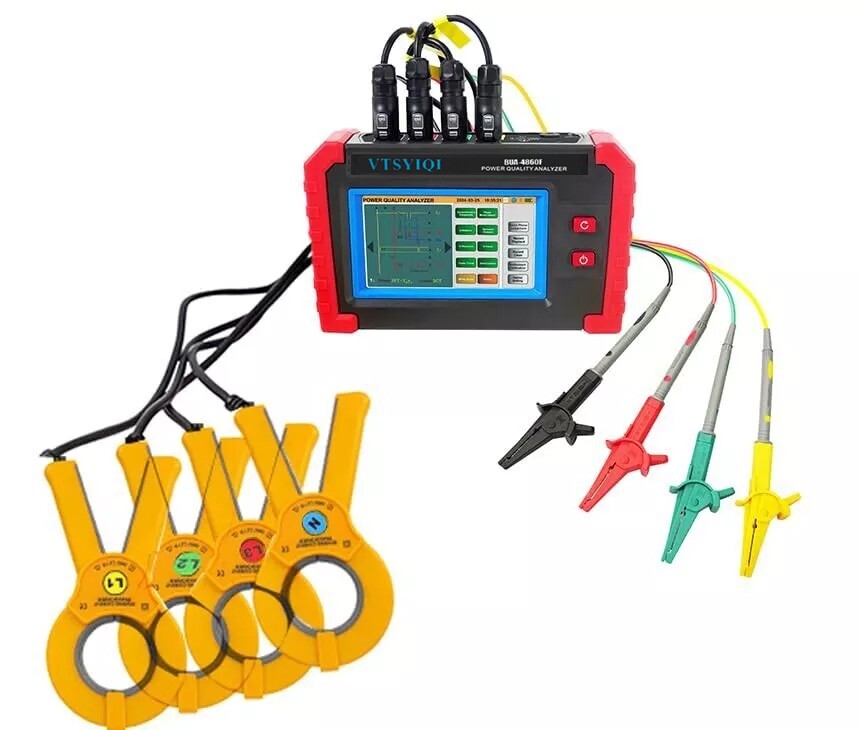

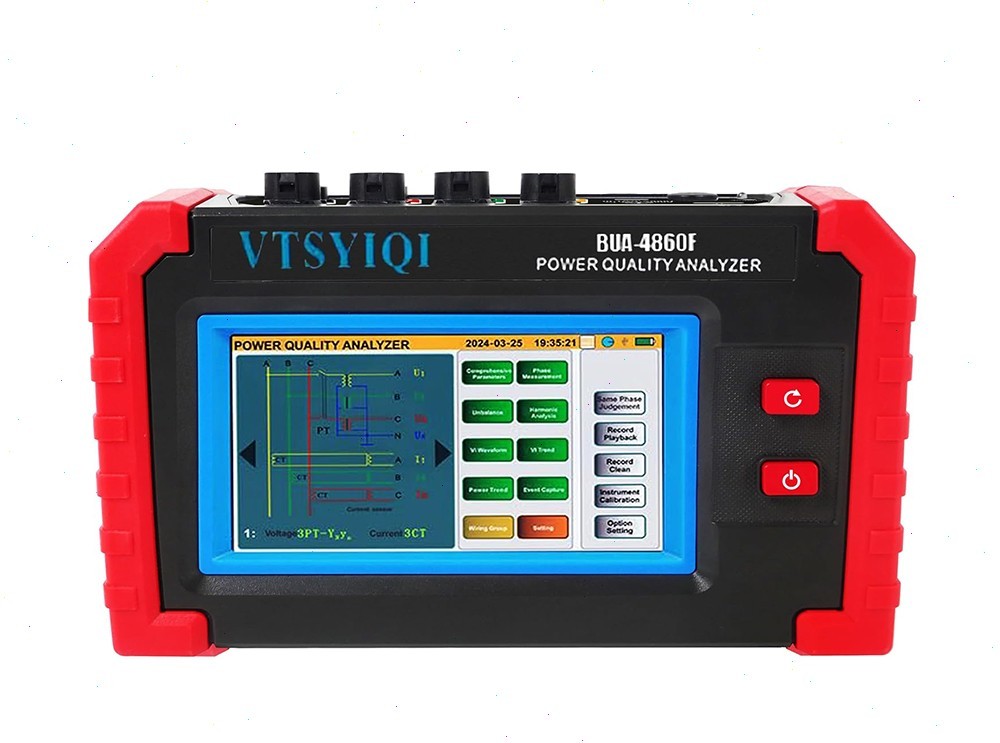

Check the listing for details. Power Quality Analyzer with Current Clamp Range 1.0~1000A Phasor Diagram Display. Condition: New, Made in China. Listed at 2070.00 USD. Phasor diagram display. Current clamp: 1.0A~1000A. Total harmonic distortion (THD). Starting current and surge current monitoring. Large LCD color screen display with high resolution. Touch screen operation.
You may also like
$6307
Voltech PM3000A Three Phase Power Analyzer
$2144.91
Power Quality Meter with Current Clamp USB Interface for Communication with PC
$2734
Power Quality Analyzer 3 Phase Power Energy Meter with 4 Current Clamps 10-6000A
$694
1PC USED Voltech PM1000+ Power Analyzer Fast delivery&dmm
$425
VOLTECH TF2000 FREQUENCY RESPONCE ANALYZER - WORKING
$6850
FOR Fluke 1773 Three-Phase Power Quality Analyzer Fluke 1773/CN
$8751.4

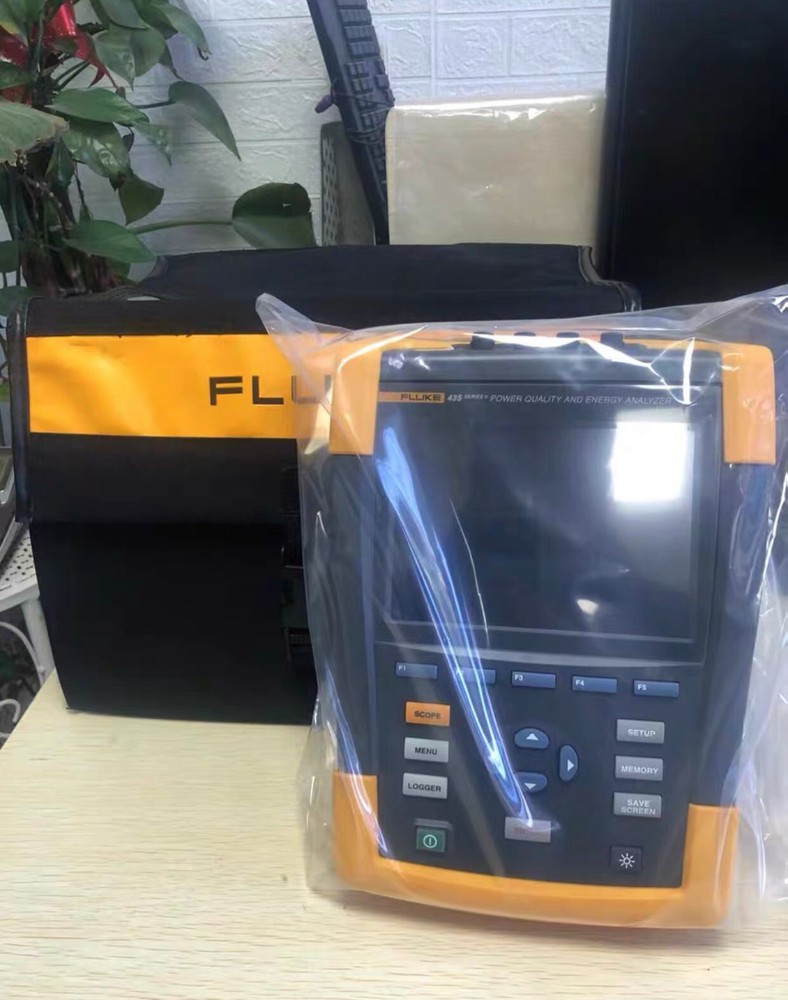

NEW Fluke 435-II power quality analyzer
