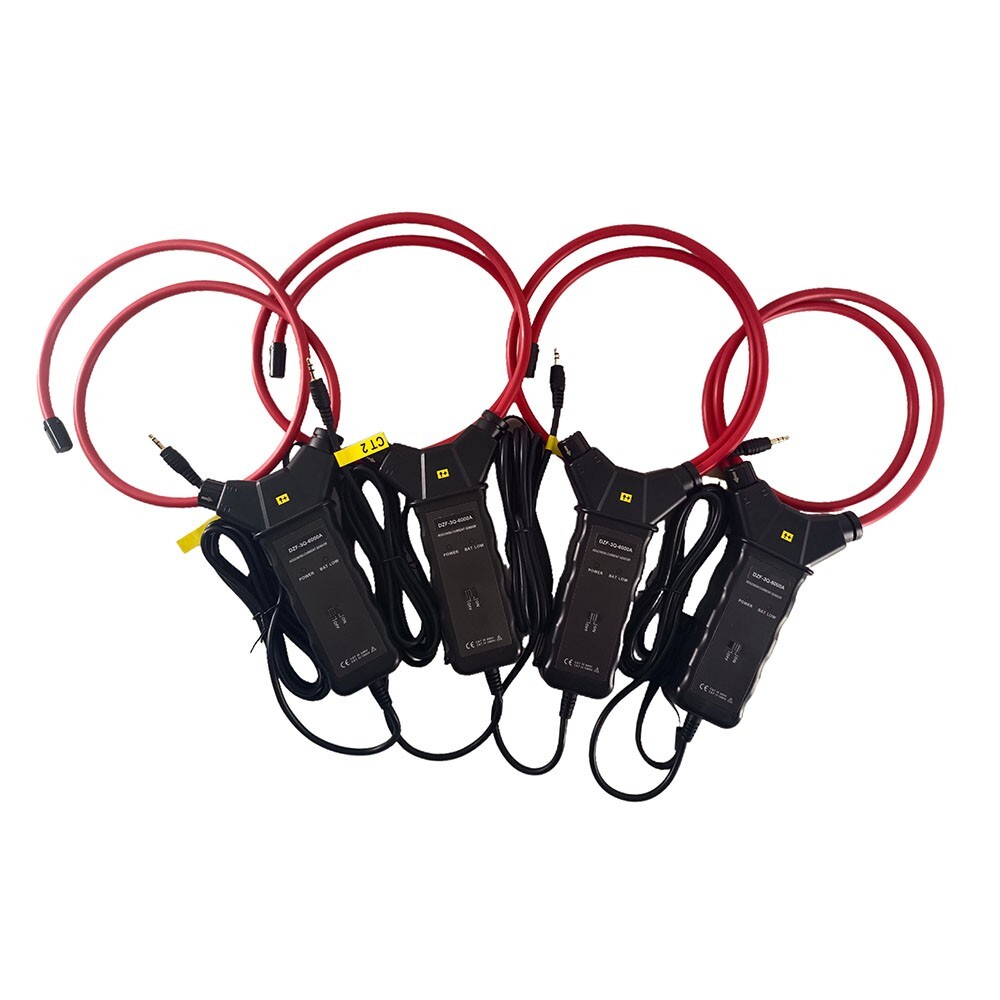

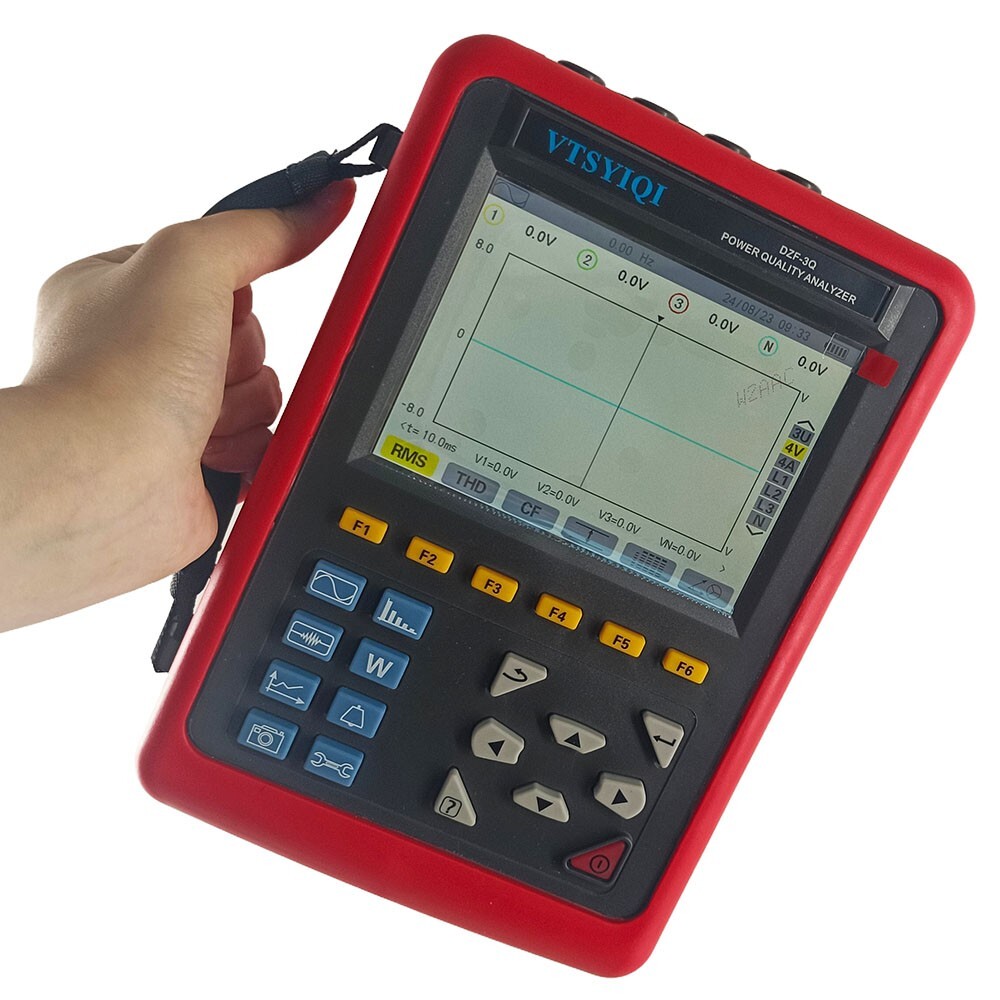

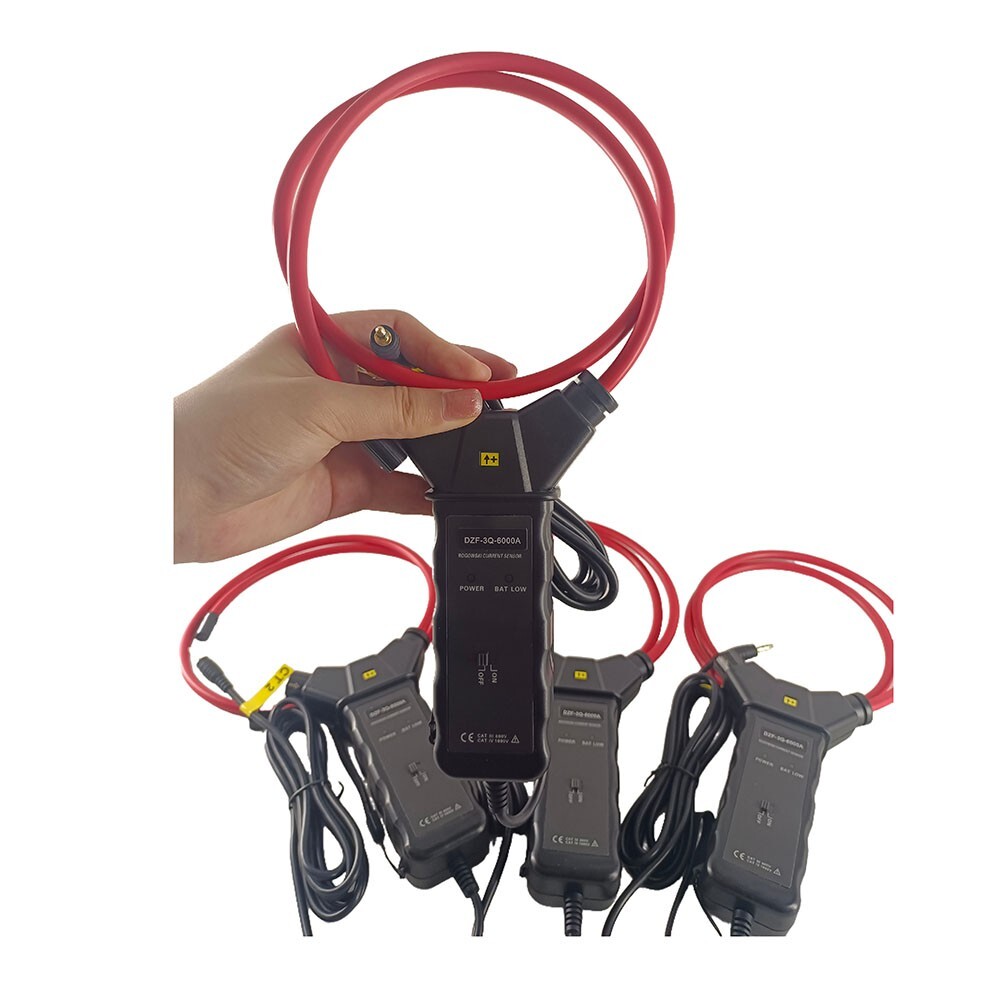

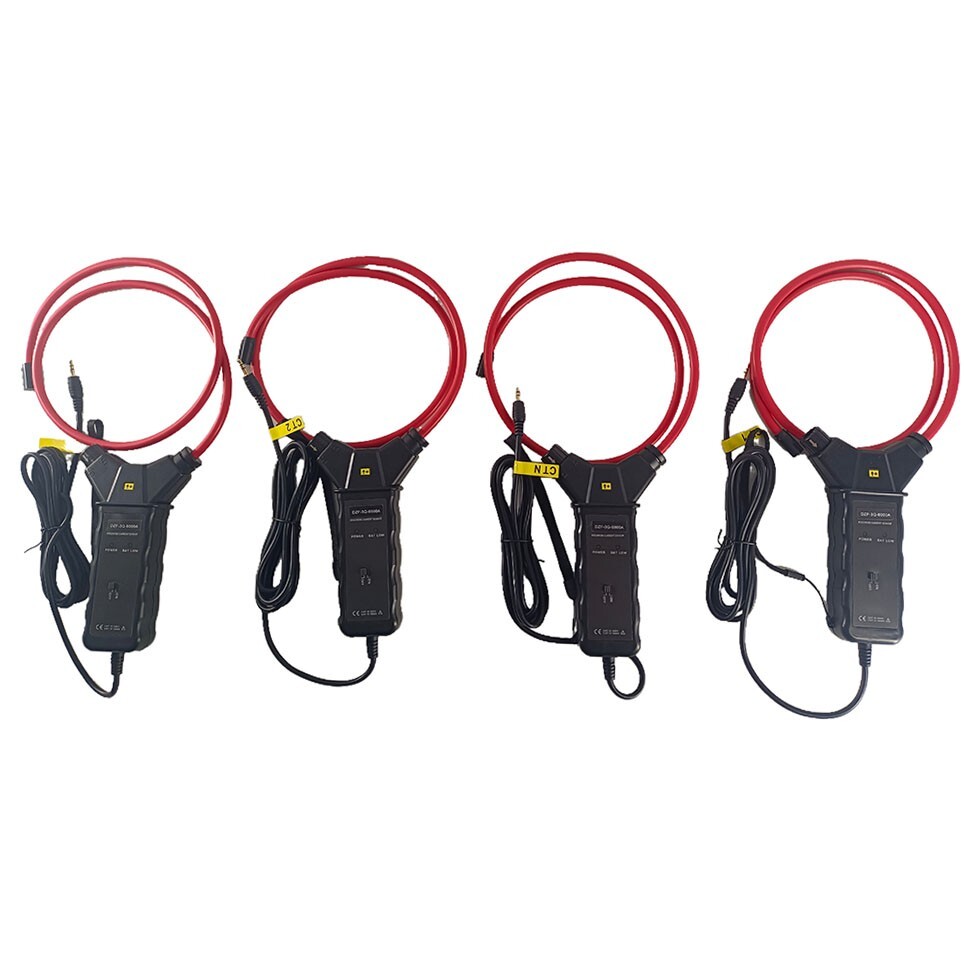

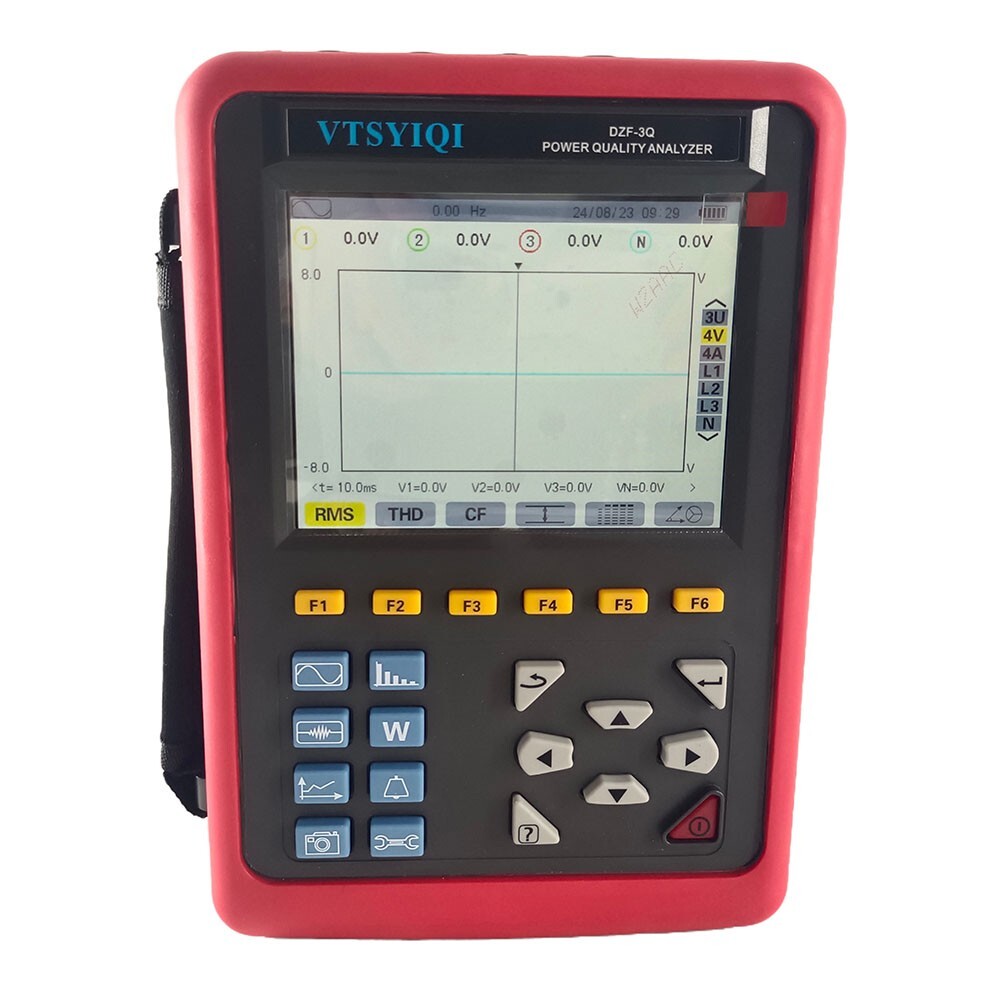

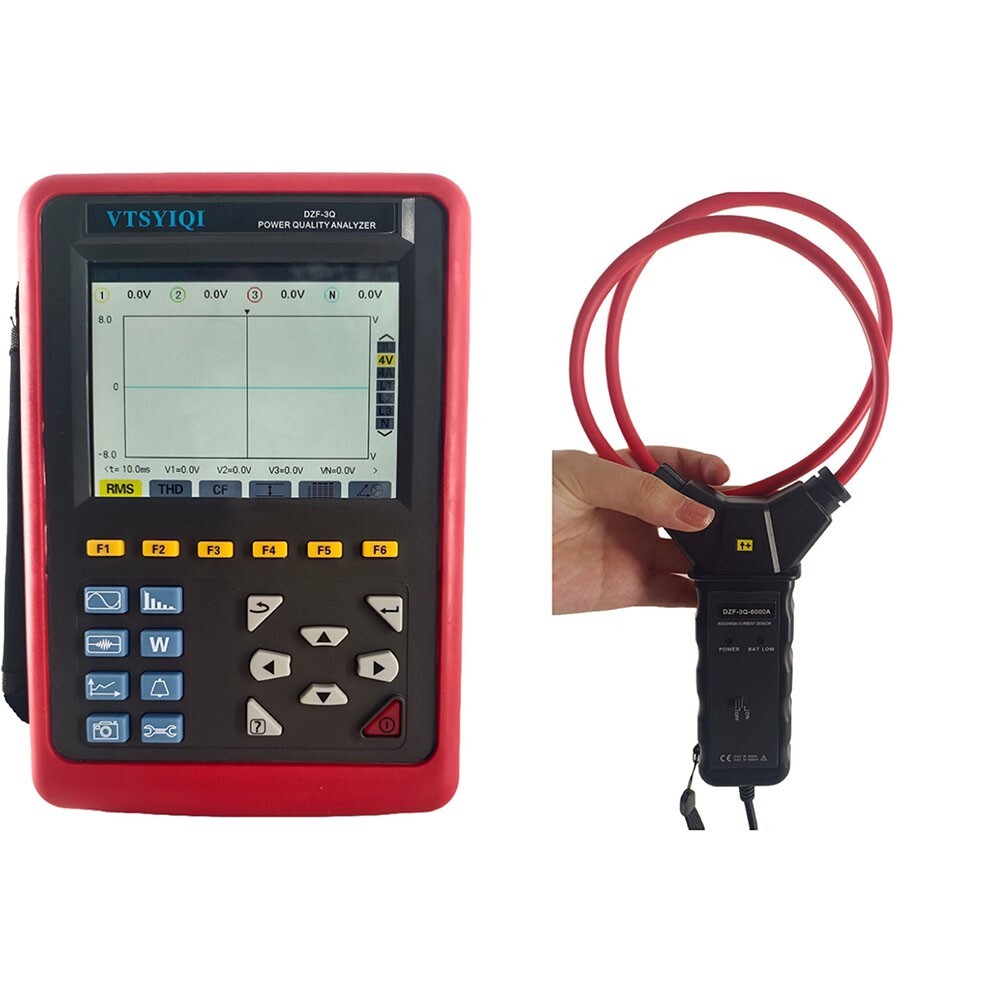

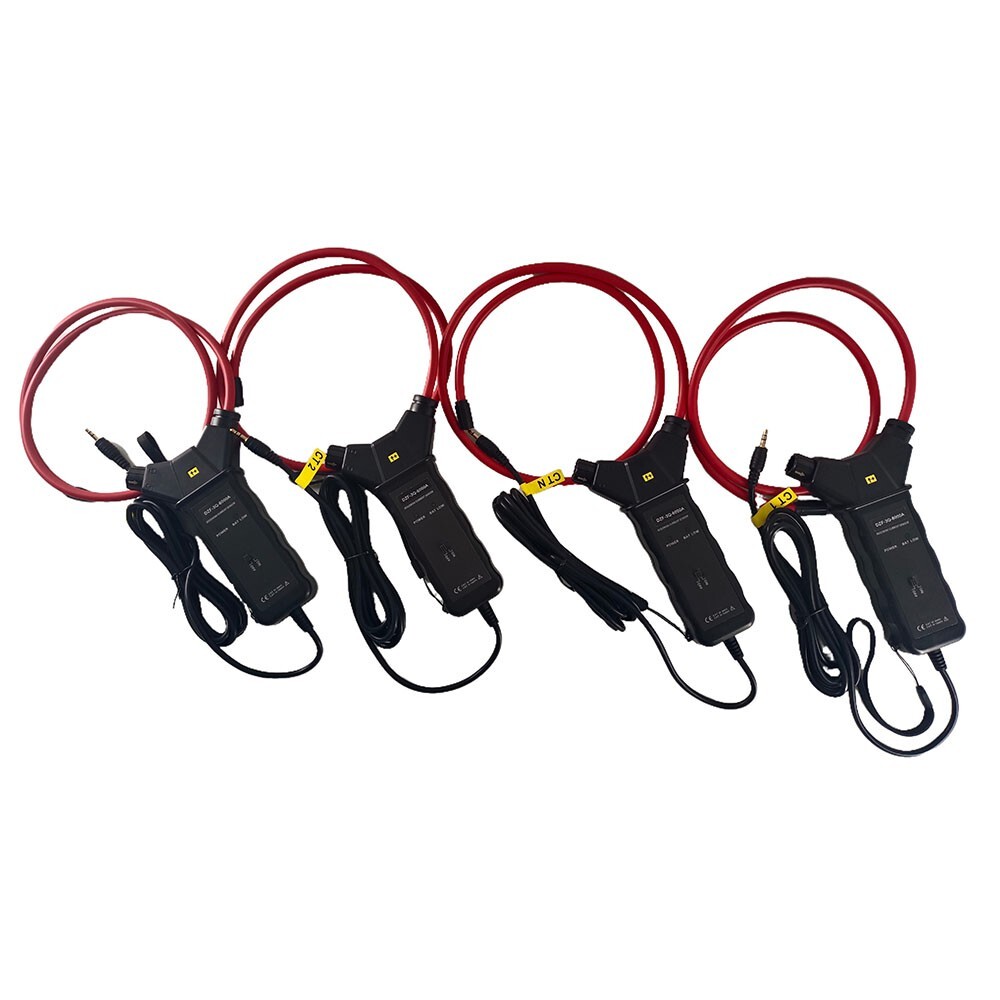

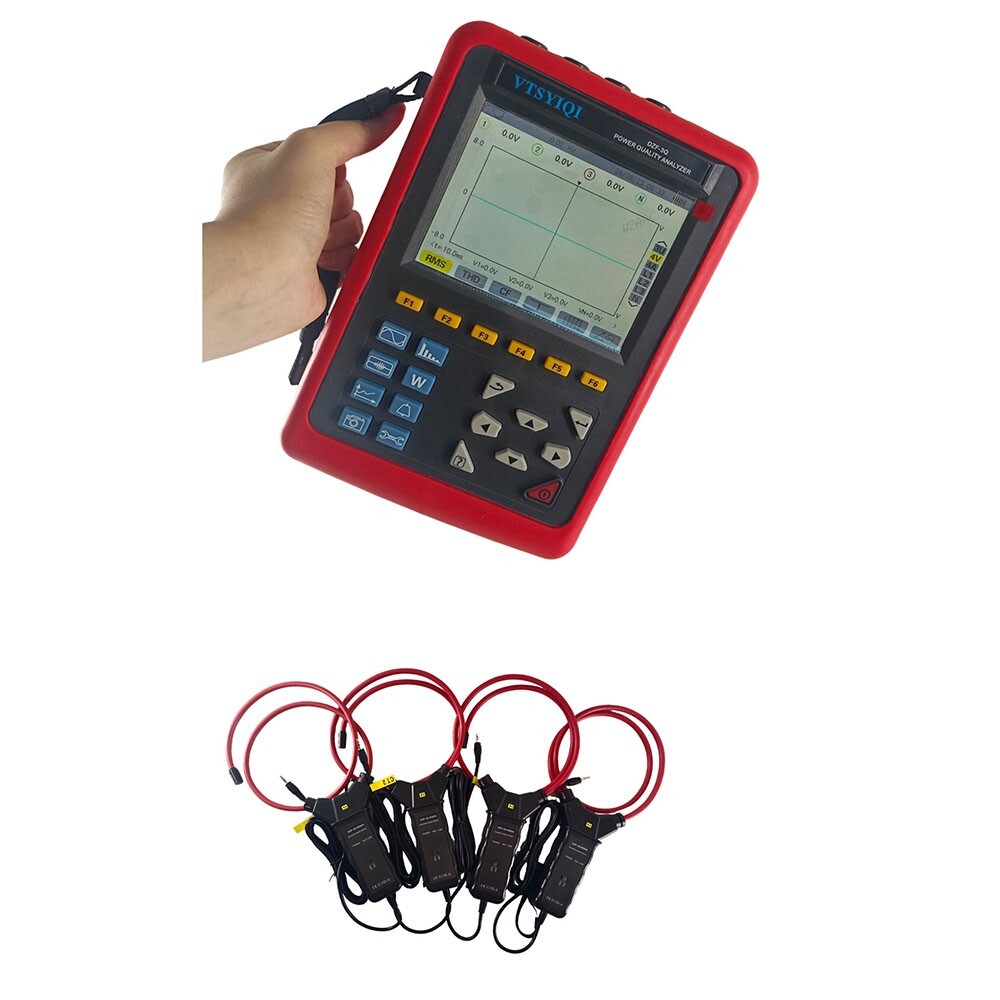

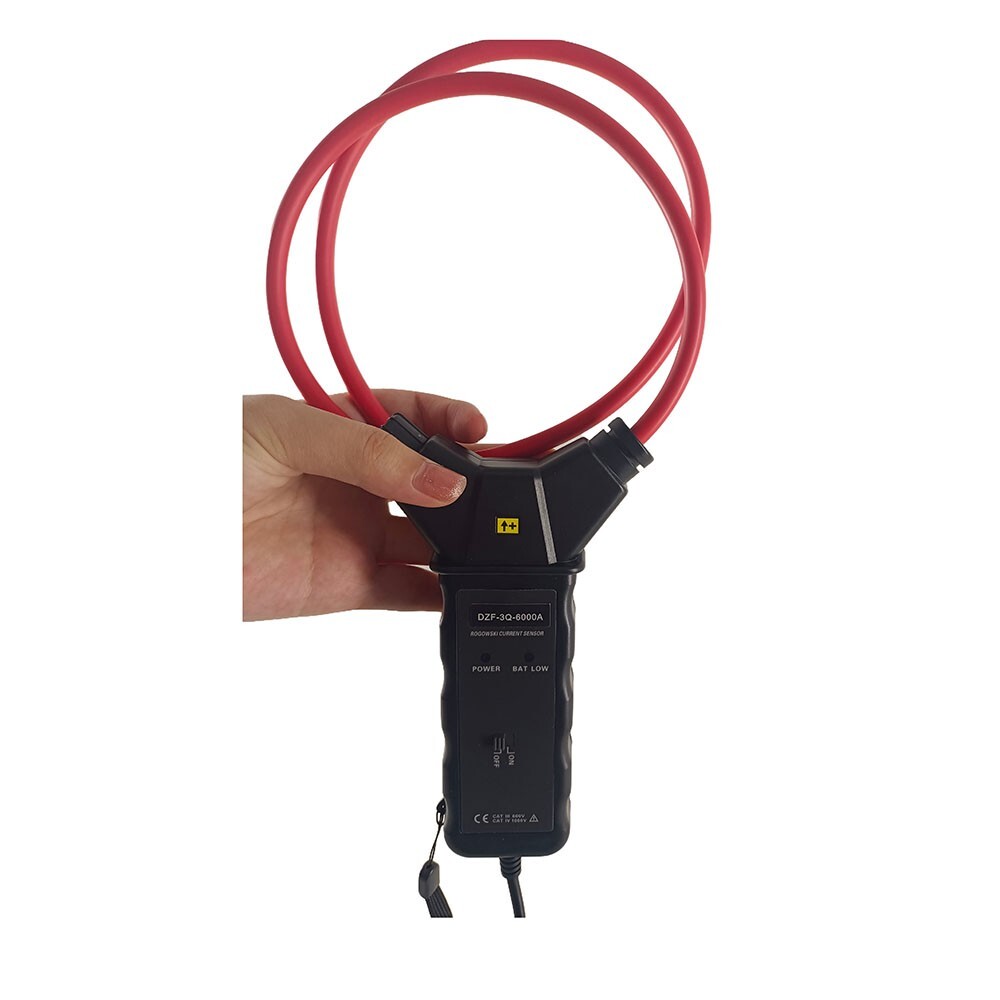

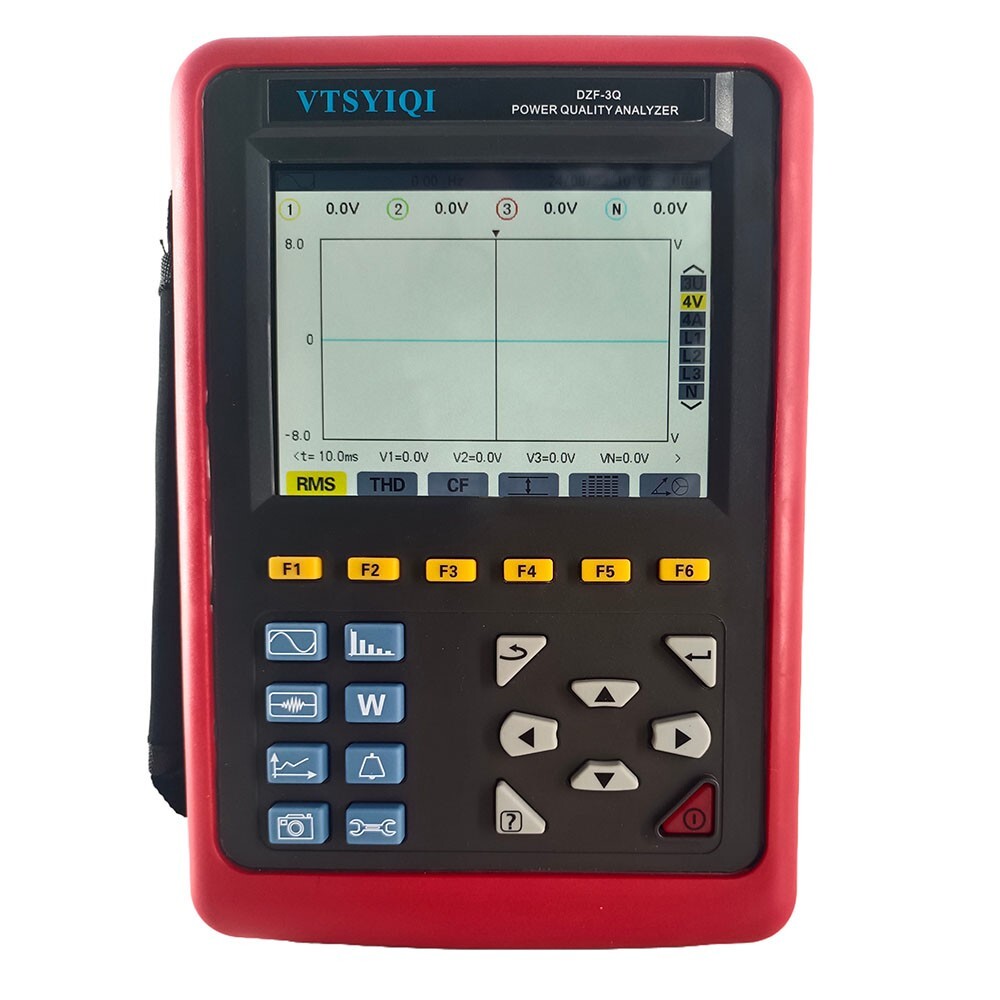

Check the listing for details. Power Quality Energy Analyzer Power Parameter Tester Current Clamp 100A～6000A. Condition: New. Listed at 2605.00 USD. Power Quality Energy Analyzer Power Parameter Tester Current Clamp 100A～6000A This Power Quality Analyzer comes with 4PCS Flexible Coil Current Sensors, 10A ~ 6000A Range , Ф300mm If you needs other sensors ,please contact usPower Quality Analyzer is a comprehensive test instrument carefully developed by our company and specially designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on. Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Display real-time waveform, harmonic ratio bar charts of current voltage; Dynamically capture instantaneous change of voltage current, monitoring starting current, monitoring the power parameters and generate the alarm list, generate the trend chart for a long time record test data.Power quality analyzer adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company. Resolution for AD7655 is 16 bit and it is 4 channel synchronous sampling. The highest sampling rate can reach 1 MSPS, to ensure the accuracy of the channel and the information integrity, and wouldn’t miss any transient changes in the grid, can more accurate to detect the transient waveform rising and dropping drastically, and waveform instantaneous interrupt; DSP working frequency is over 200 MHZ, to be able to timely monitoring of the power grid and dynamically adjust the sampling frequency to realize synchronization of power frequency and sampling frequency; Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters. Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording 20 parameters (can choose according to need) collect data for once every five seconds, trend curve records can be stored for 300 days. Specification:Power supplyRechargeable lithium-ion battery packs 9.6V, backup charger.Battery Level indicatorBattery symbol 5 grid Display power, when the battery level is low, automatically shut down after 1 minute indicationWorking Currentabout 590mA, continuous working 8hours.Display modeLCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mmInstrument Size240mm×170mm×68 mm.CT SizeFlexible Coil Current Sensor (with Integrator) : Ф300mmNumber of channels4 voltages, 4 currentsLine Voltage1.0V~2000V.Phase Voltage1.0V~1000V.CurrentFlexible Coil Current Sensor (with Integrator) : 10A ~ 6000AFrequency40Hz~70Hz.Electricity Energy ParameterW, VA, Var, PF, DPF, cosφ, tanφ.Energy parametersWh, Varh, Vah.Harmonic WaveYes, 0 - 50 timesTotal harmonic distortionYes, 0 - 50 times, each phaseExpert ModeYes.Transient Record Groups150 groupsVoltage FlickerYesStart Current ModeYes, 100 secondsThree-phases UnbalanceYesRecord300 days (record 20 parameters simultaneously, every 5 seconds record 1 point)Min/Max Recorded ValueYes, the max min value can be measured for a certain timeAlarm40 different types of parameter selection, 12800 group alarm logsPeakYes.Phasor Diagram DisplayAutomaticScreenshot Capacity60PCSMenu languageEnglish/Chinese.Communication InterfaceUSB.Automatic Shut DownIn the alarm/trend graph recording/transient capture mode (waiting or in progress), the instrument does not automatically shut downIn other test modes, there is no button operation within 15 minutes, prompting to automatically shut down after 1 minute.Backlight FunctionYes, suitable for dark places and nighttime useInstrument WeightHost: 1.6kg (with battery).Flexible Coil Current Sensor (with Integrator) : 330g×4;Test wires and power adapter: 900g;Total weight: about 9.2kg (with package).Voltage Test Wire Length3MCurrent Clamp Wire Length2MWorking Temperature-10°C~40°C; below 80%Rh.Storage Temperature-10°C~60°C; below 70%Rh.Input ImpedanceTest voltage input impedance: 1MΩWithstand voltageWithstand the sine wave AC voltage of 3700V/50Hz one minute between the instrument line and out shellInsulationBetween instrument line and shell ≥10MΩ.StructureDouble insulation, with insulation shock-proof sheath.SuitableSafely StandardIEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.AccessoriesHost: 1PCS; Instrument Bag: 1pcs; Test Cable: 5PCS (yellow, green, red, blue, black); Alligator Clip: 5PCS; Probe: 5PCS; Charger 1PCS; Software CD: 1COPY; 2G Memory Card: 1PCS. 300F Flexible Coil Current Clamp 4PCS
