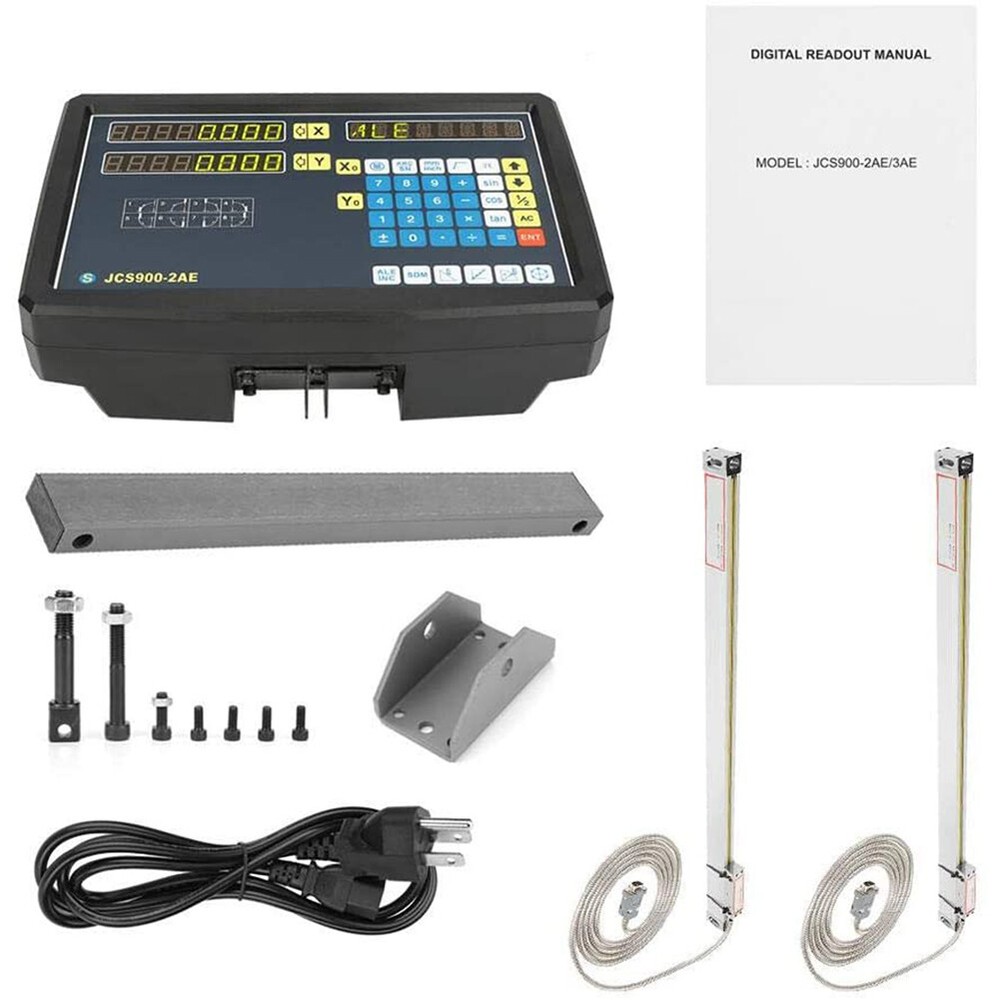

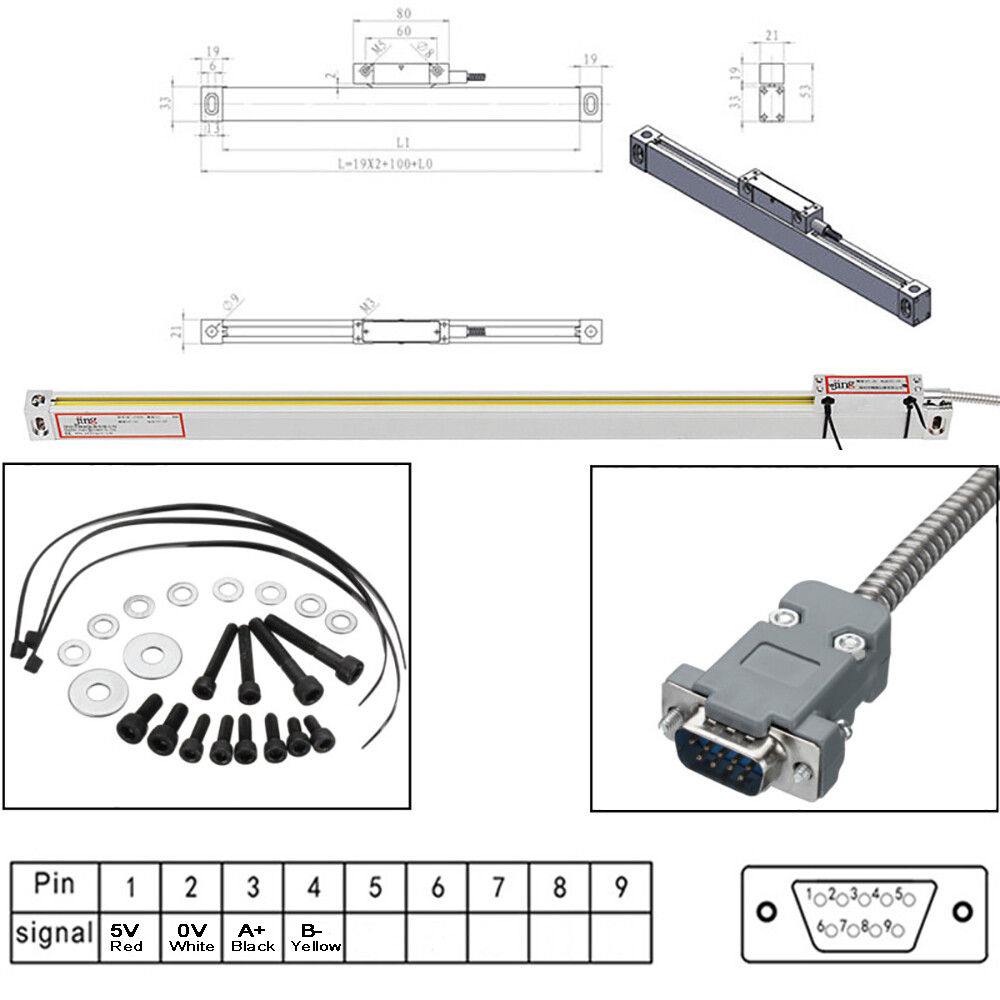

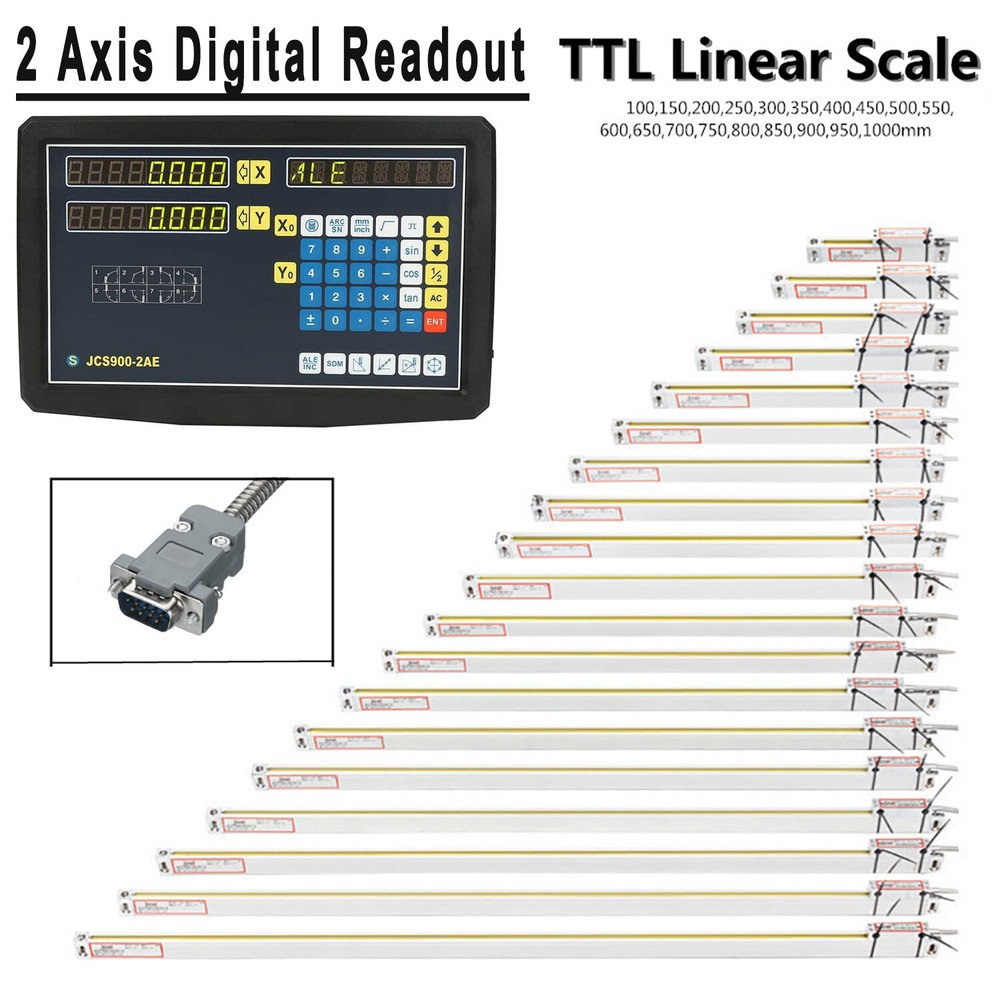

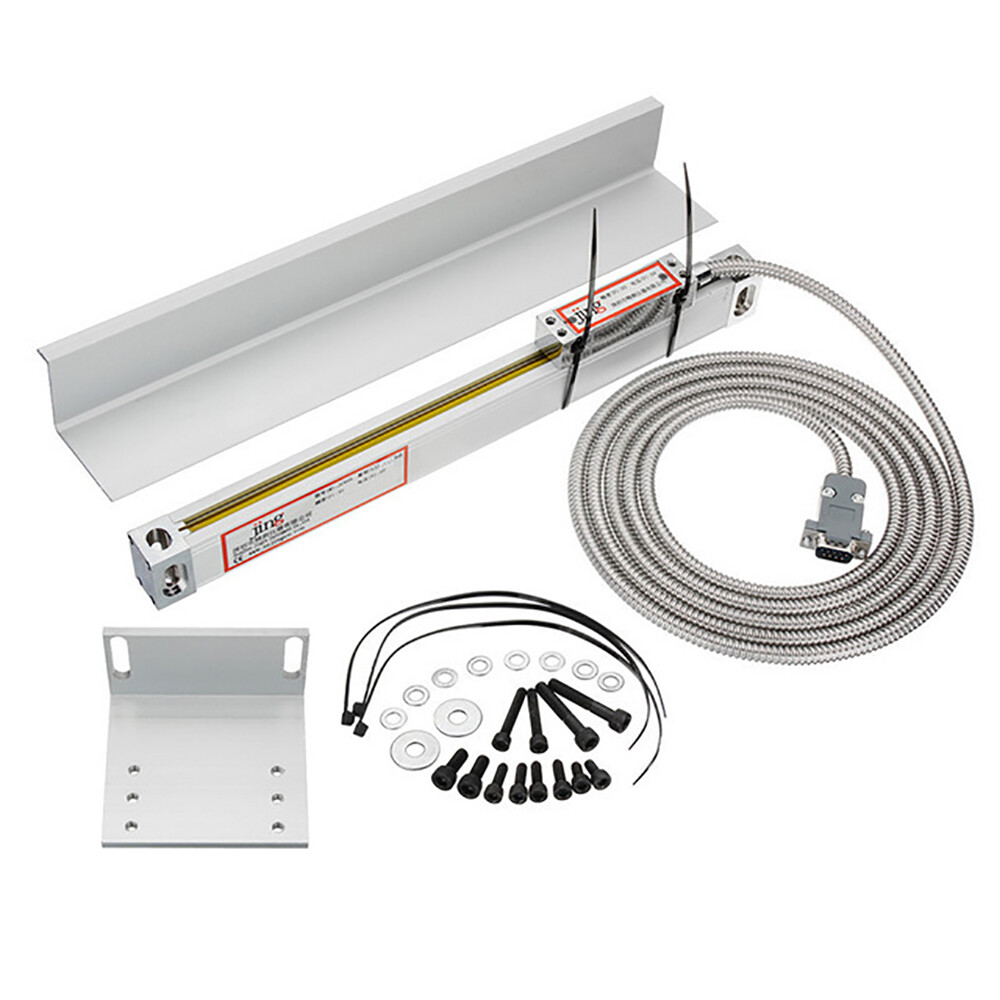

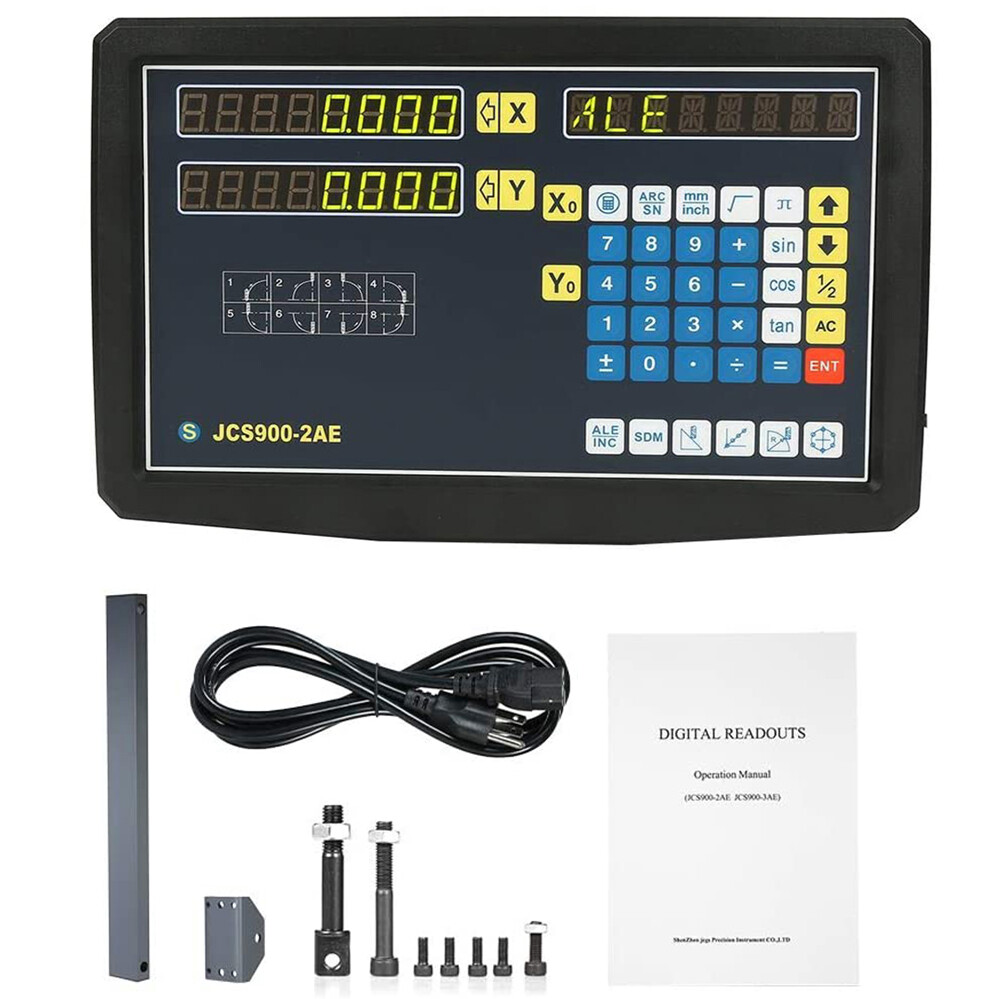

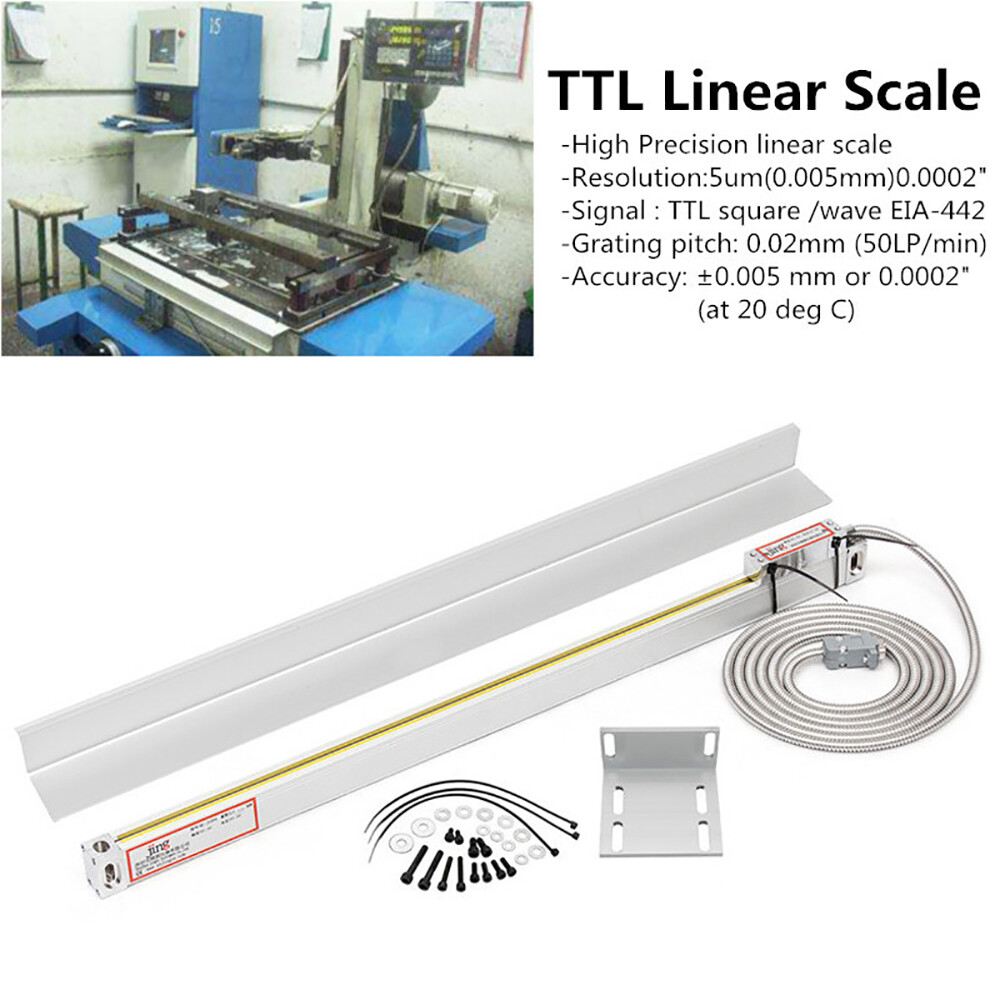

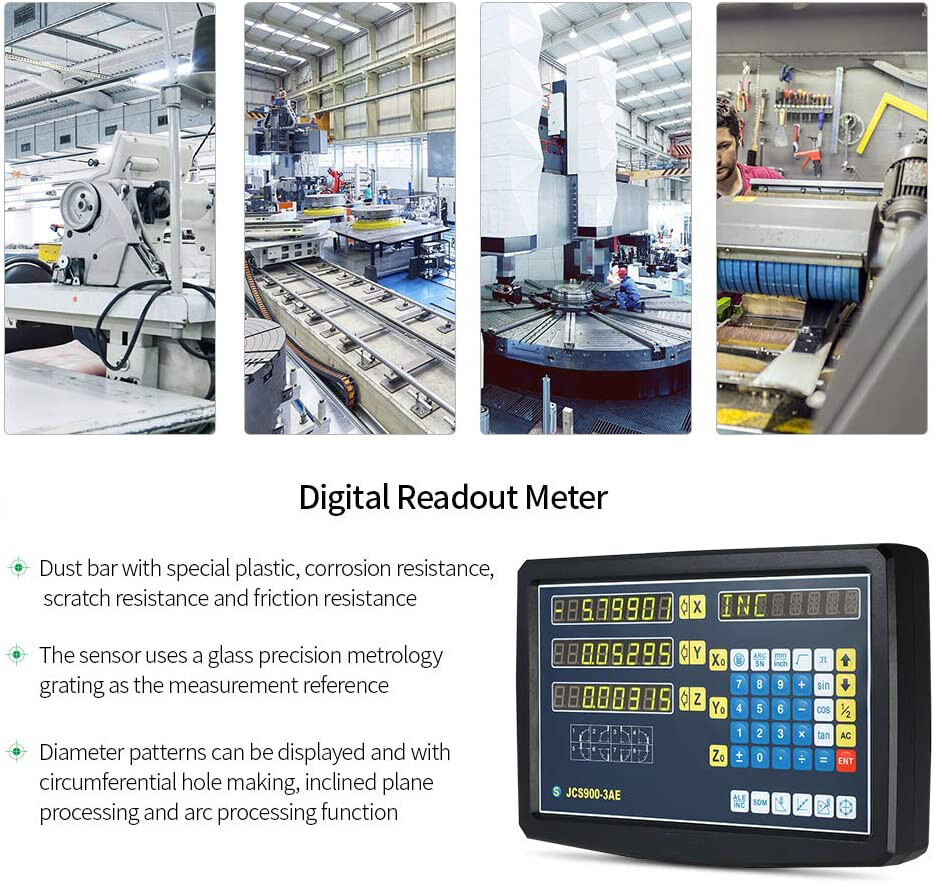

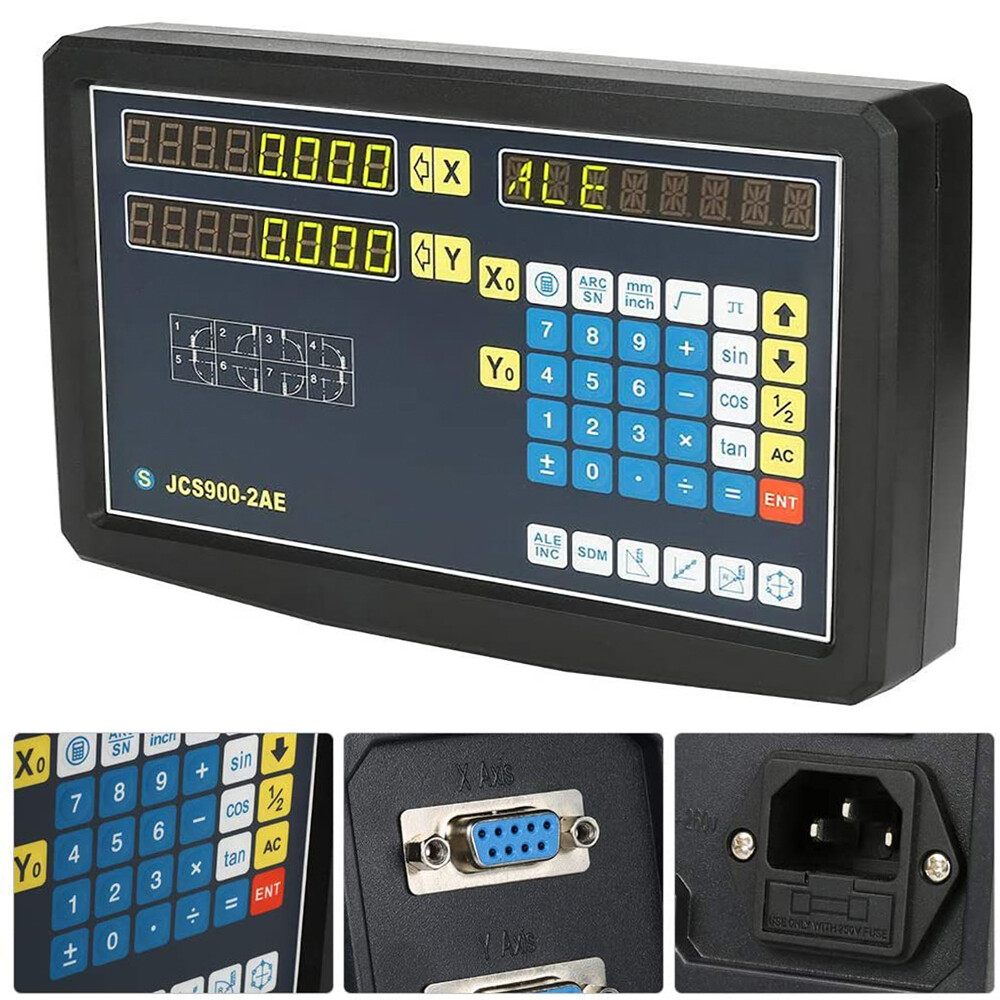

Check the listing for details. 2 Axis Digital Readout+ Scale Kit For Milling Lathe Machine + Precision Linear. Condition: New. Listed at 199.49 USD. 2 Axis DRO Display Encoder & 1/5/10μm Precision Linear Glass Scale Kit 100-1000mm for Milling Machine Lathe Drill EDM Cutting Machines Industrial Measuring Tools Pictures Description Important Notice: 1. Please check the interface illustration carefully if the items be used on your existing or other intentional digital readout or scales, it may be unmatched. You can see it in this listing or contact us directly. 2. Scale length refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. That is total length=travel length+141mm. One-inch equals to 25.4mm. Please check carefully which scales sizes is you need. Introduction:●Digital display to eliminate backlash and improve precision ●Advanced trigonometric calculation so to accomplish a perfect project●11.6-Inch Wide display to offer excellent long-distance viewing ●Digital readout kit can avoid wasting weeks to check machine precision ● Application: lathe, grinding machine, milling machine, boring machine and EMD TO make the position detection. ● The sliding part adopts the five-bearing system which has been proved to be the most reliable and durable. The main grating adopts 90-degree assembly, which is more accurate and accurate. ● The repeatability of the measurement is more stable.● The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine. ● Ruler body with aluminum die-casting, hard chrome plating, corrosion-resistant.● Dust bar with special plastic, corrosion resistance, scratch resistance, friction resistance. ● Parts individual, installation, maintenance, easy maintenance, waterproof, dust-proof good, long service life. ● The sensor uses a glass precision metrology grating as the measurement reference. ● Multi-function, easy to operate, reliable and durable, so that the necessary processing of mechanical products. Specifications 3 Axis Digital Readout Measuring travel0-3020mm Accuracy class± 1/5μm Measurement standardsengraved glass grating Operating voltage5V ± 5% DC Working speed≤1m / S (1μm) Acceleration≤ 60m / s Reference Operating Humidity≤ 90RH Grating pitch20um (0℃) Measurement procedureIncremental Signal modeTTL Circuit characteristicsNPN Grating measurement systemtransmission infrared optical measurement system, infrared wavelength 940nm Scanning frequency≤28kHz Anti-vibration50Hz-2KHz, ≤ 180m / s Impact16ms, ≤ 600m / s Displacement frictional resistance≤ 5N Protection classIP53 / IP64 Signal electrical connectionindependent adapter cable (2.5M / 3 METER / 4M / 5M, ≤ 100M, can be connected to install the block) Applicable voltage100V-265V Note: The above parameters are measured in the ideal environment. There may be some differences in practical application. ●TTL Linear Scale 1.Physical length is differnt from the travel length 50/100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000mm 5μm. 2.High Precision linear scale3.Resolution: 5μm (0.005mm) 0.0002”4.Signal: TTL square /wave EIA-442 5.Grating pitch: 0.02mm (50LP/min)6.Accuracy: ±0.005 mm or 0.0002" (at 20 deg C) 7.Reference marks at interval of 50mm8.Response Speed: 60m/min or 40ins/sec Note:Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. That is total length=travel length+141mm.One inch equals to 25.4mm. Package Included：Note: Please leave us a message for the scale length you need, and advise whether it is travel length or physical length! 1 * 2 Axis Digital Readout2 * Linear Scale (100,150,200......1000mm for choose)Mounting accessories Brand: iMeshbean 100% High Quality. About US: iMeshbean is a registered trademark in the USA, Europe and China. We have proudly designed our own products and successfully created our own brands in the industries. In order to provide the peaceful shopping experience, our dedicated customer service teams can response to all the requests within 24 hours. All the returns and exchanges will be processed within 3 days. We honor 30 days' return on any products customers are not satisfied. Being our customer is a wise choice! Warranty and Feedback We guarantee you a five star shopping experience with us. If you are not satisfied with your purchase, please contact us. All faulty due to improper installation or improper use will NOT be covered by the warranty. Any physical damage will void your warranty too. Feedback will be left automatically when your item is shipped. We appreciate you leave 5 STAR of Detailed Seller Rating and POSITIVE Feedback for us upon receipt of your item. Warranty excludes normal product lifetime wear-out, wear and tear or abuse. Warranty does not apply to conditions resulting from misuse, abuse, negligence, accident, improper application, improper installation or alteration. If you encounter any problems about anything, please email us to allow us an opportunity to correct any problem and we will do our best to assist you solve the issue. Shipping and Payment Only PayPal accepted Your order will be shipped within 1-2 business days From Texas once we receive your payment. We do not ship on Sundays or public holidays Ship to PayPal confirmed address ONLY Return We stand behind our products. Items can be returned for exchange or full refund within 14 days from the date you receive your merchandise. For all cases, shipping and handling fee is not refundable and buyer is responsible for the return shipping cost. If it is a non-seller mistake case, a 20% restocking fee will be charged.
