| Brand | Unbranded |
|---|---|

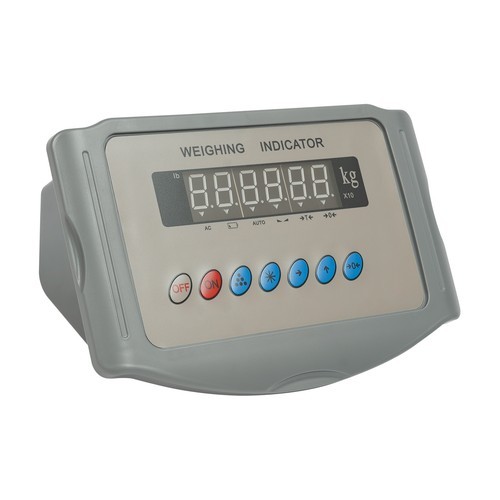

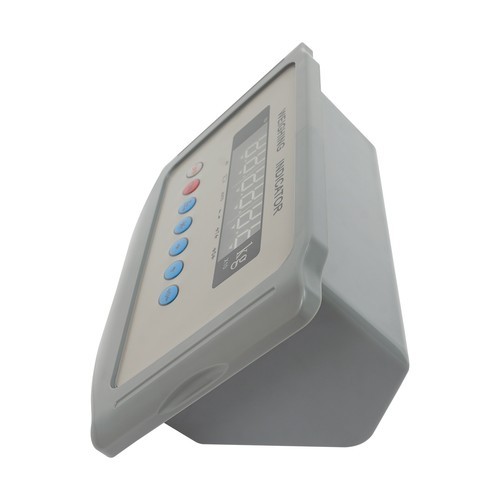

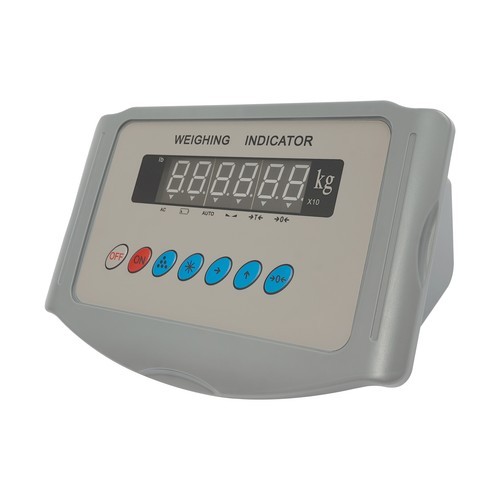

| Type | Weight Indicator |
| Material | Plastic, Stainless Steel, Alloy Steel |
| Color | Gray, Silver, Black |

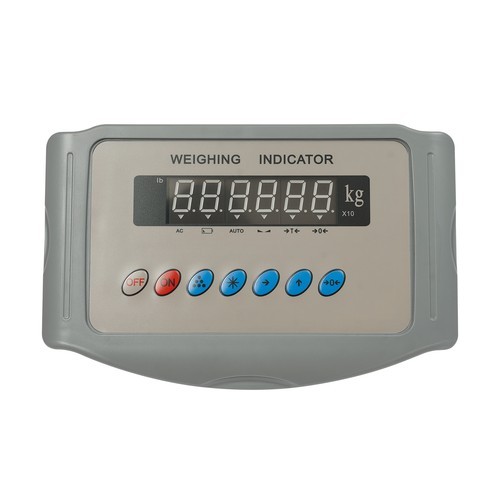

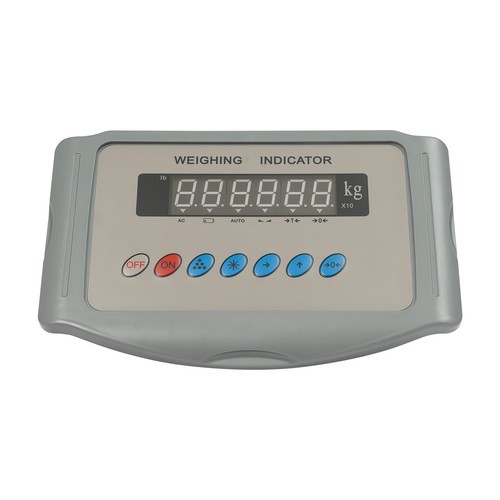

| Display Type | LED |

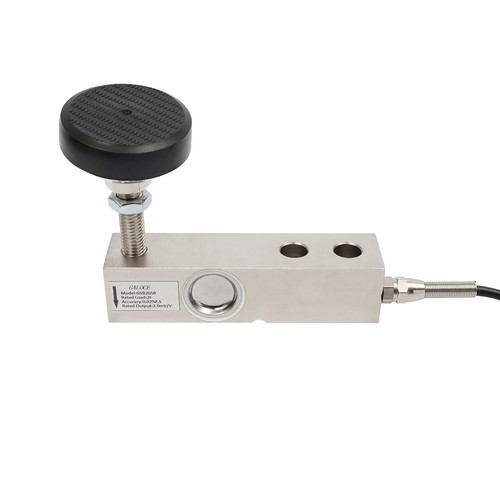

| Sensor Accuracy | 0.02% F.S |
| Sensor Rated Output | 2.0mV/V |
| Sensor Rated Load | 2T/4409.25 lbs |
| Range | 0.1, 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 (t) |
| Accuracy Class | C3 |
| Total Error | ±0.02% F.S |
| Sensitivity | 2.0 or 3.0 ±0.005 mV/V |
| Zero Output | ±1.0% F.S |
| Repeatability Error | ±0.02% F.S |
| Hysteresis Error | ±0.02% F.S |
| Creep | 0.02% F.S/15 min |
| Input Impedance | 375±10Ω |
| Output Impedance | 350±5Ω |
| Output Temperature Effect | ±0.02% F.S/10℃/50℉ |
| Zero Temperature Effect | ±0.02% F.S/10℃/50℉ |
| Temperature Compensation Range | -10℃-60℃/ 14℃- 140 ℉ |
| Working Temperature Range | -35℃-80℃/ -31℃- 176 ℉ |
| Recommended Excitation Voltage | 6 to 12 V DC |
| Maximum Excitation Voltage | 18 VDC |
| Safe Overload Range | 150% F.S |
| Limit Overload Range | 200% F.S |
| IR | ≥5000 MΩ (100 VDC) |

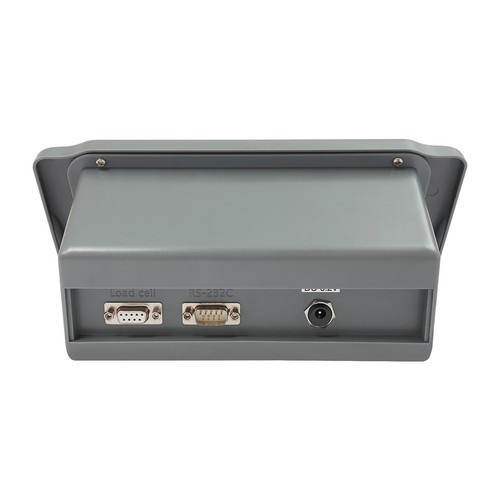

| Cable Type | Four-core Shielded Cable |
| Each Cable Size | Φ5mm × 3m/ Φ0.2in x 9.84 ft |
| Protection Rating | IP65 |

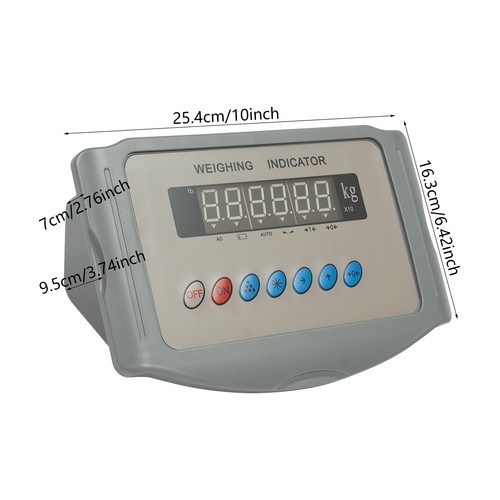

| Weight Indicator Size | 25.4*16.3*9.5 cm/10*6.42*3.74 in |
Check the listing for details. Precision Livestock Scale Sensor W/High Indicator Cantilever Beam Load Sensor. Color: Gray, Silver, Black, Condition: New. Listed at 205.70 USD. Specifications Material: Plastic, Stainless Steel, Alloy Steel Process: Sand Blasting Color: Gray, Silver, Black Display Type: LED Sensor Accuracy: 0.02% F.S Sensor Rated Output: 2.0mV/V Sensor Rated Load: 2T/4409.25 lbs Range: 0.1, 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 (t) Accuracy Class: C3 Total Error: ±0.02% F.S Sensitivity: 2.0 or 3.0 ±0.005 mV/V Zero Output: ±1.0% F.S Repeatability Error: ±0.02% F.S Hysteresis Error: ±0.02% F.S Creep: 0.02% F.S/15 min Input Impedance: 375±10Ω Output Impedance: 350±5Ω Output Temperature Effect: ±0.02% F.S/10℃/50℉ Zero Temperature Effect: ±0.02% F.S/10℃/50℉ Temperature Compensation Range: -10℃-60℃/ 14℃- 140 ℉ Working Temperature Range: -35℃-80℃/ -31℃- 176 ℉ Recommended Excitation Voltage: 6 to 12 V DC Maximum Excitation Voltage: 18 VDC.
