| Compatible motor types | for 60mm servo motor--14mm shaft |
|---|---|
| Stroke Length | 200mm (8 in) |
| Ballscrew Type | SFU1605 |
| Material | thickened Carbon steel and bearing steel |
| Vertical load | Max 30KG(66.14lbs) |
| Brand | toseastars |
| Mobile panel size | 110mm*45mm |
| Unit Type | lb |
| Base plate material | Aluminium alloy |
| Voltage | 24V |
| width | 90mm |
| Model | GGP-YR90 |
| Horizontal load | Max 60KG (132.28lbs) |
| Supported motor bracket | Nema 23 stepper motor;60 Sevor Motor |
| Ballscrew accuracy | C7 level |
| Ballscrew Repeat positioning accuracy | 0.02-0.03mm |
| Rated Load | 110.23lbs |

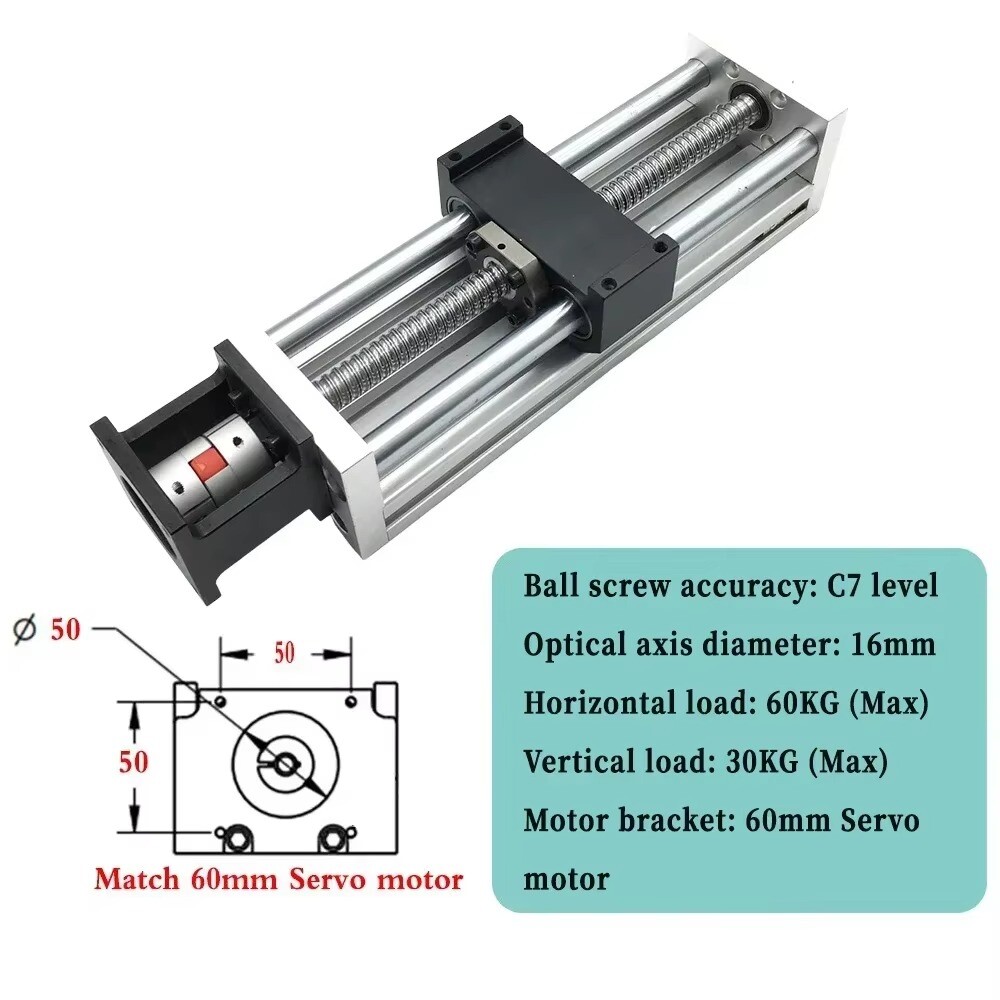

Check the listing for details. Precision Motorized Ballscrew Linear Motion Slide Stage 0.05mm Repeatability,CNC. Width: 90mm, Condition: New. Listed at 116.66 USD. ✅【Product dimensions】- width:90mm;Effective stroke: 100mm-300mm Optional；Horizontal:60kg (Max) Vertical:30kg(Max) ✅ 【Compatible motor bracket】- Extra complimentary coupling，Compatible for Nema23 stepper motor and 60mm servo motor(200W/400W/600W) ✅ 【Ball Screw】Screw precision grade: C7,ballscrew type SFU1605（SFU1605 Means Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5m； ✅ 【Upgraded nuts】have been added to enhance stability and ensure smoother operation. ✅ 【Upgraded motor bracket】The installation bracket for the box mounted stereo motor is stable and secure; Longer service life ✅ 【Main Application】- The important hardware equipment that constitutes industrialized machinery.
