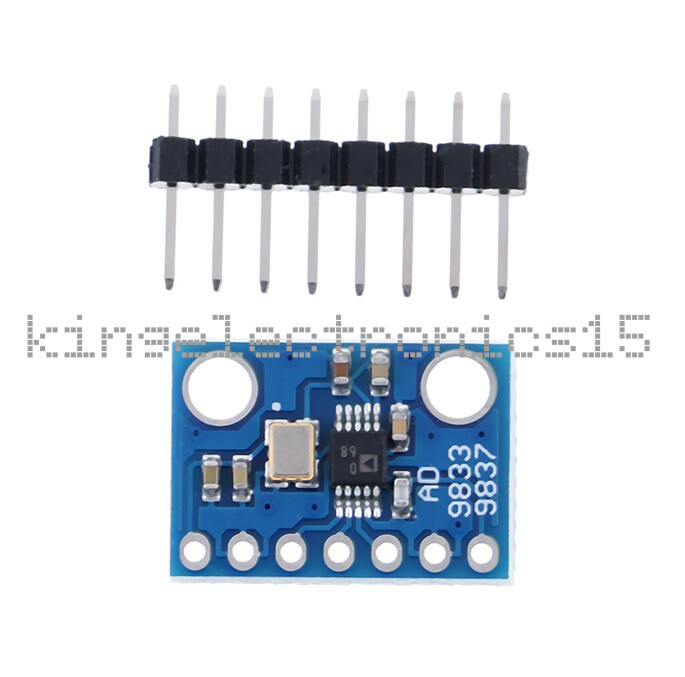

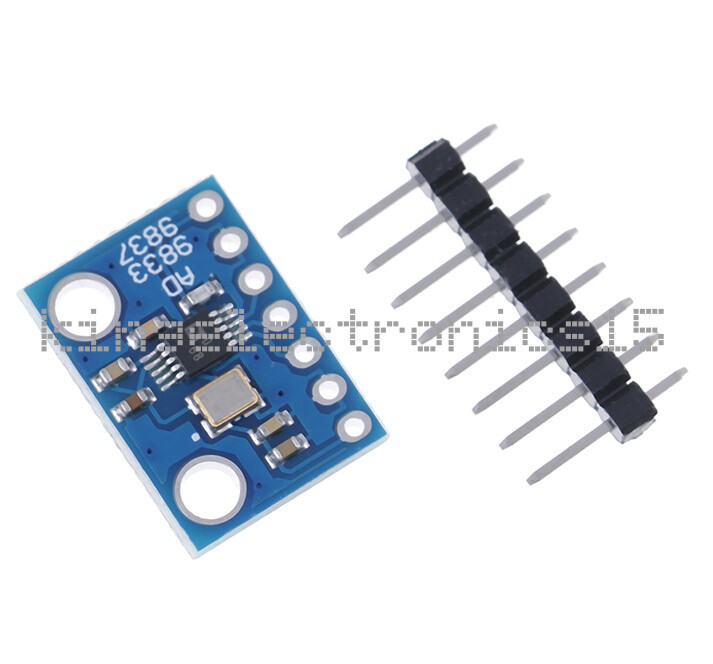

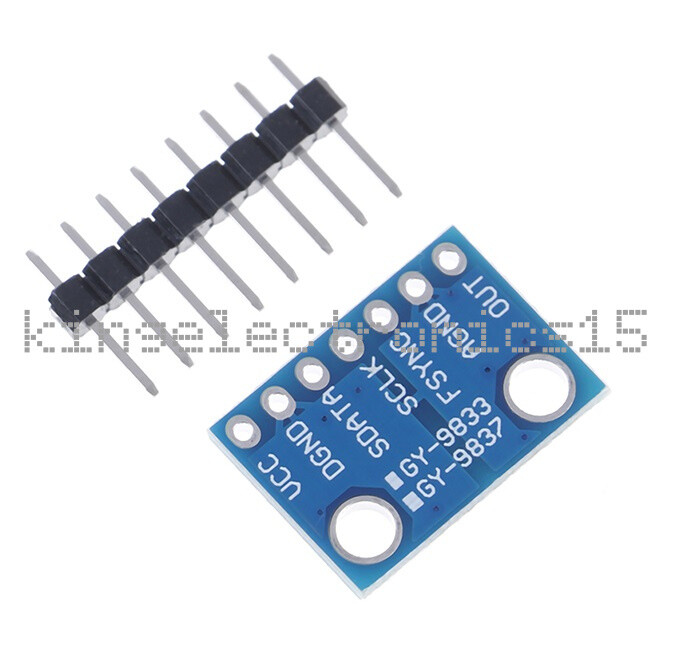

Check the listing for details. Programmable AD9833 Microprocessors Sine Square Wave DDS Signal Generator Module. Condition: New. Listed at 3.65 USD. Programmable AD9833 Microprocessors Sine Square Wave DDS Signal Generator ModuleProduct Image: Product Description: Description: 100% brand new and high quality General Description: The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, actuation, and time domain reflectometry (TDR) applications. The output frequency and phase are software programmable, allowing easy tuning. No external components are needed. The frequency registers are 28 bits wide: with a 25 MHz clock rate, resolution of 0.1 Hz can be achieved; with a 1 MHz clock rate, the AD9833 can be tuned to 0.004 Hz resolution The AD9833 has a standard serial interface that allows the part to interface directly with several microprocessors. The device uses an external serial clock to write the data or control information into the device The AD9833WBRMZ-REEL model is available with controlled manufacturing to support the quality and reliability requirements of automotive applications. Note that this automotive model may have specifications that differ from the commercial models; therefore, designers should review the Specifications section of this data sheet carefully. Only the automotive grade product shown is available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models The AD9833 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The device operates with a power supply from 2.3 V to 5.5 V The AD9833 has a power-down function (SLEEP). This allows sections of the device that are not being used to be powered down, thus minimizing the current consumption of the part, e.g., the DAC can be powered down when a clock output is being generated Features: Digitally programmable frequency and phase 12.65 mW power consumption at 3 V 0 MHz to 12.5 MHz output frequency range 28-bit resolution: 0.1 Hz at 25 MHz reference clock Sinusoidal, triangular, and square wave outputs 2.3 V to 5.5 V power supply No external components required 3-wire SPI interface Extended temperature range: −40°C to +105°C Power-down option Update Rate: 25(max) VOUT Maximum: 0.65V VOUT Minimum: 38mV VOUT Temperature Coefficient: 200℃ Input High Voltage： 1.7-2.8V Input Low Voltage: 0.5-0.7V Input Current: 10µA Input Capacitance: 3pF Operating temperature range is −40°C to +105°C; typical specifications are at 25°C Size: 17*12mm/0.66*0.47" Quantity: 1pcPackage includes: 1 x Signal Generator Module FeedbackWarrantyShipmentFeedbackWe appreciate your feedback very much. As it will motivate us do better. If you have any questions with our goods or service, Please kindly contact us firstly before leaving negative feedback. Thank you in advance Warranty1. All merchandise will be carefully test before shipping. We will try our best to avoid any quality problem. 2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer. 3. If you are not satisfied with the product, Please contact us. We'll provide you a satisfying solution.Shipment1.Normmly we will send the goods within 1-3 working days after your payment is verified . 2.Please check if the goods are in good condition and sign before the delivery man leaves.If you find the product is lost or damaged on the way. Please take photo and let the delivery men confirm it. Then we will help you let the shipping company compensate you.On Sep-29-19 at 07:10:08 PDT, seller added the following information:
