| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 14 Days |
| Refund will be given as | Money Back |
| Output Type | Digital |
| Custom Bundle | No |
| MPN | PS2501-4 |
| Item Length | 19.8mm |
| Brand | NEC |
| Series | S25009 |
| Type | optical isolator |
| Body Material | Plastic |
| Item Height | 3.5mm |
| Number of Pins | 16 |
| Features | 5KV isolation |
| Country/Region of Manufacture | Taiwan |
| Item Width | 6.5mm |
| Maximum Operating Voltage | 5000V isolation |

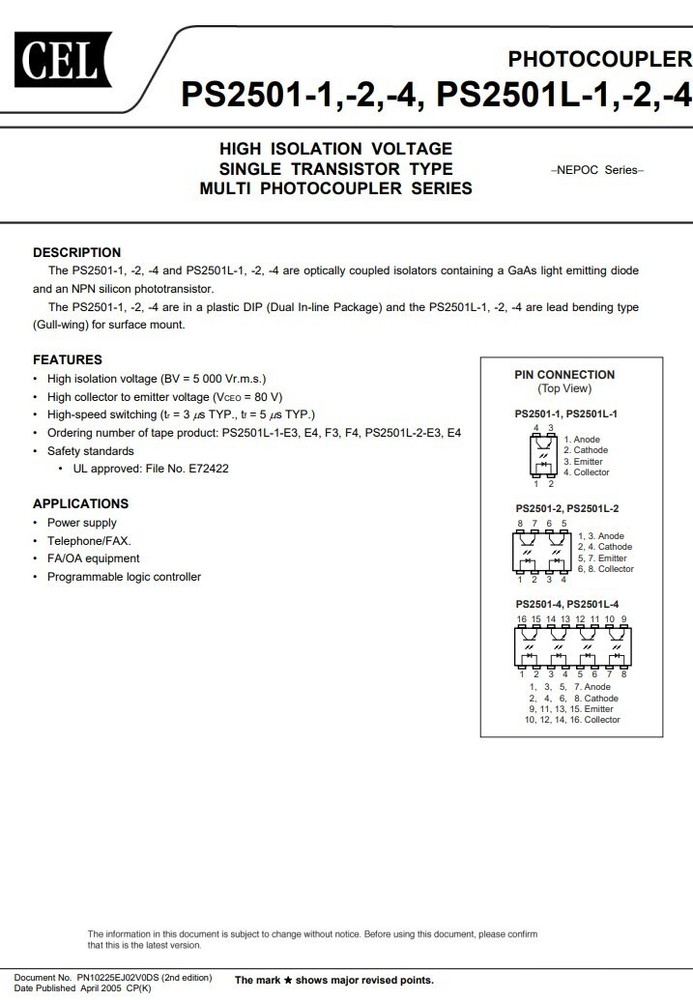

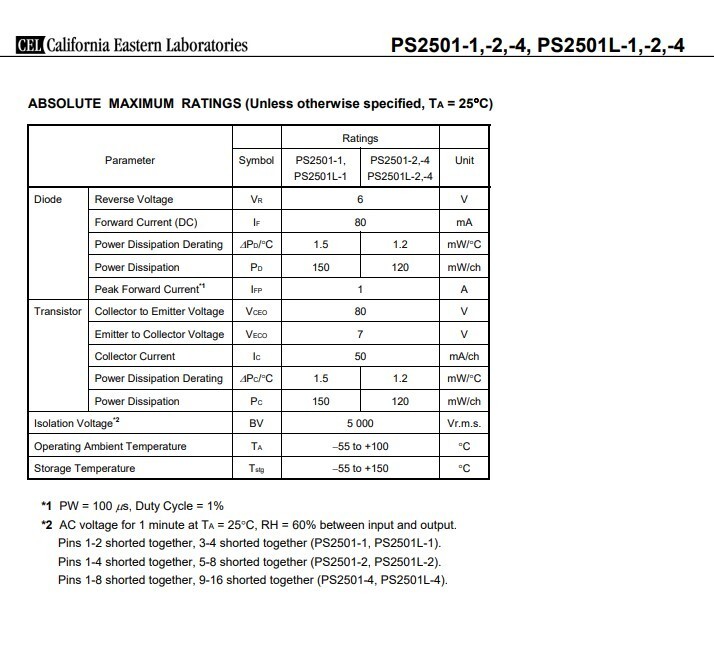

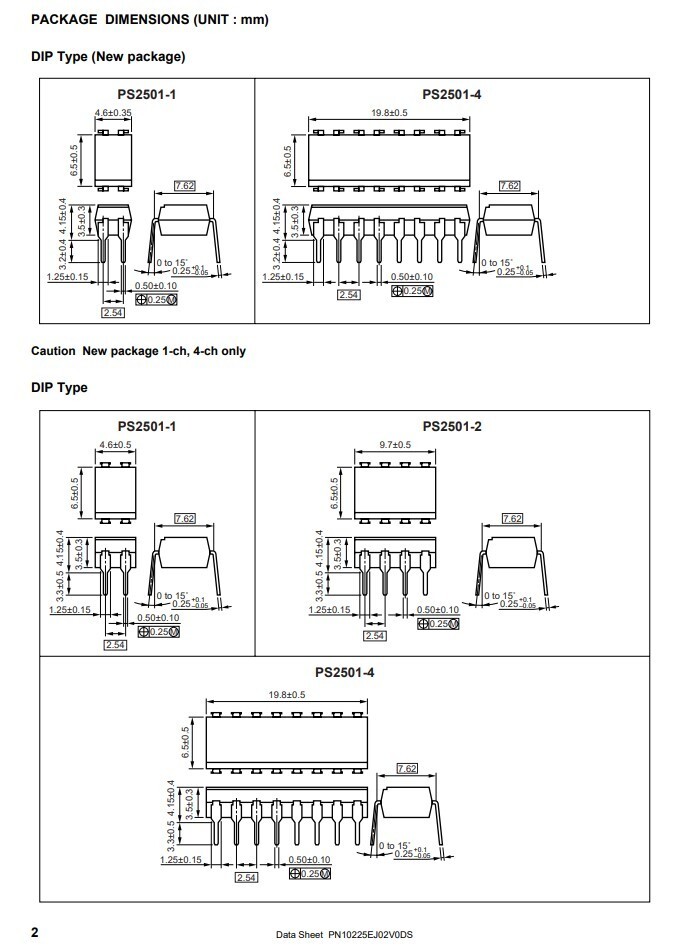

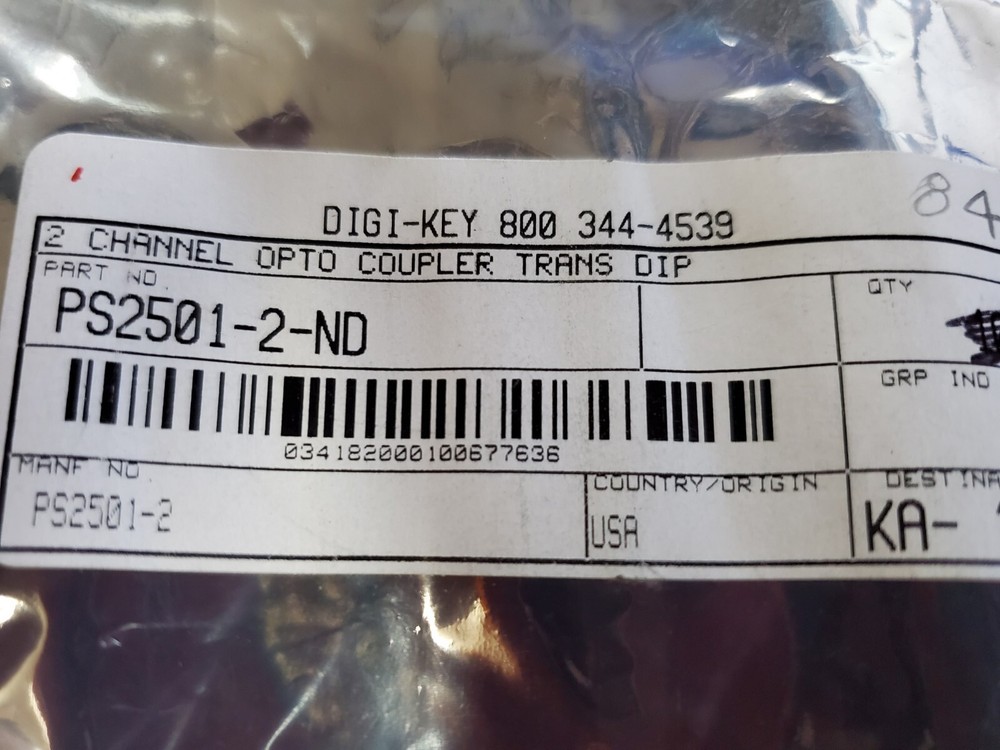

Check the listing for details. PS2501-2 NEC Transistor Output Optocoupler, 2-Element DIP-8 5000V Isolation IC. Condition: New. Listed at 3.00 USD. exact item shown, OPTOISOLATOR 5KV 2CH TRANS 16DIPdata sheet is here https://media.digikey.com/pdf/Data%20Sheets/NEC%20PDFs/ps2501%20Rev2.pdf and in the photos. Note to me: IC boxI normally ship within 24 hours of your order, but the post office does not always initiate tracking when I put the packages in the drop off box. Check out my other items! Category IsolatorsOptoisolators - Transistor, Photovoltaic OutputMfr CELSeries NEPOCPackage TubeProduct Status ObsoleteNumber of Channels 2Voltage - Isolation 5000VrmsCurrent Transfer Ratio (Min) 80% @ 5mACurrent Transfer Ratio (Max) 600% @ 5mATurn On / Turn Off Time (Typ) -Rise / Fall Time (Typ) 3µs, 5µsInput Type DCOutput Type TransistorVoltage - Output (Max) 80VCurrent - Output / Channel 50mAVoltage - Forward (Vf) (Typ) 1.17VCurrent - DC Forward (If) (Max) 80 mAVce Saturation (Max) 300mVOperating Temperature -55°C ~ 100°CMounting Type Through HolePackage / Case 16-DIP (0.300", 7.62mm)Supplier Device Package 16-DIPBase Product Number PS2501
