| Brand | QA1 |
|---|---|
| Type | Rod End |
| MPN | CML4S |
| Model | CML4S |
| California Prop 65 Warning | N |
| Country of Origin | CN |
| NumberOfItems | 1 |
| Restricted States | [] |
| Style | Rod End |
| Item | Rod End |
| Thread Size | 1/4-28" |
| Weight | 0.0700 |
| Length | 6.000 |
| Width | 1.220 |
| Depth | 1.220 |
| Construction | Follows SAE Specification J1120 |
| Features | Spherical Rod End, System of Measurement Inch, Ball Stud Center L |
| Bearings | 52100 Steel Spherical Ball |
| Housing | Carbon Steel |
| Battery Included | No |
| Dimension A | 1/4-28" |
| Dimension B | 0.469" |
| Dimension H | 1.000" |
| Dimension C | 0.562" |
| Dimension E | 0.750" |
| Dimension G | 1.562" |
| Dimension J | 1.937" |
| Max. Angular Misalignment | 27 Degrees |
| Thread | Left Hand |
| Ball | 52100 Steel Spherical |
| Static Radial Load | 2835 lb. |
| Stud Length | 0.562" |
Check the listing for details. Qa1 Cml4s Male Stud Rod End, Lh, 1/4-28. Width: 1.220, Condition: New, Made in CN. Listed at 6.99 USD. General Purpose. & Recepticles. Electrical Outlets. Light Industrial. and Enclosures. Electrical Boxes. & Industrial.
You may also like
$31.99
2014-20 Chevrolet 13-19 Cadillac Lower Cushion Bushing Radiator Mount Insulator
$13.75
DODGE 2012 X 1-7/16" Taper-Lock Bushing with Keyway (117167) Prepaid Shipping
$13.68
4pcs Flanged Sleeve Bearing 8mm x 10mm x 7mm POM Oilless Bushing Black
$199
NEW Volvo Construction Equipment M12 000 977 Shoe BK7 EB241
$18.59
Martin 1610 5/8 Taper Lock Bushing 5/8" Bore 1" Bore Length 2-1/4" OD
$31.85
Carr Lane CL-8-SLLB Slotted Locator Bushing
$17
TB Woods SDS-1-7/8 Quick Disconnect Bushing 1-7/8" Bore SDS1 7/8
$31
Martin E 2 7/8 Qd Bushing 2-7/8in
$27.94
SDS 1 3/4 STL BLACKSTAR QD Bushing
$27.57

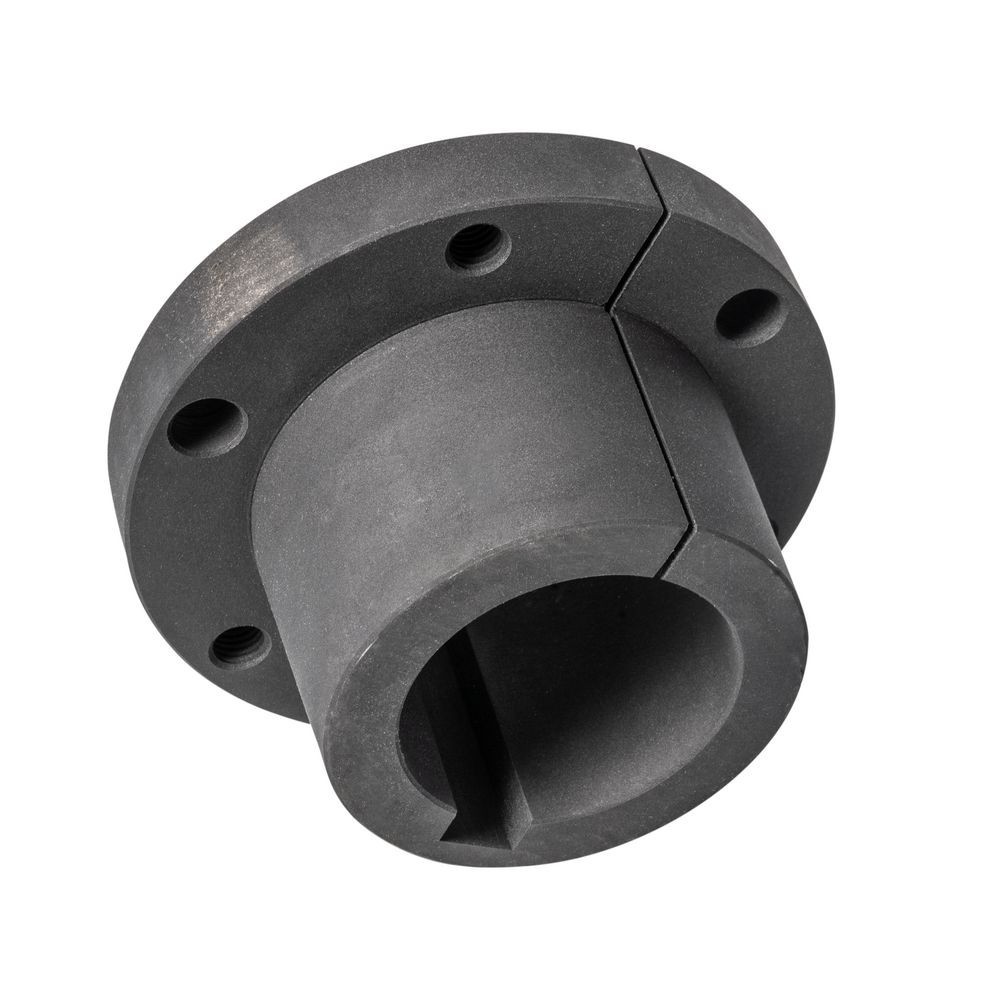

SDS-1-1/8" QD Style Bushing
