| Brand | QA1 |
|---|---|
| Type | Rod End |
| MPN | CMR10S |
| Model | CMR10S |
| California Prop 65 Warning | N |
| Country of Origin | CN |
| NumberOfItems | 1 |
| Restricted States | [] |
| Style | Rod End |
| Item | Rod End |
| Thread Size | 5/8-18" |
| Weight | 0.6100 |
| Length | 6.000 |
| Width | 2.880 |
| Depth | 2.880 |
| Construction | Follows SAE Specification J1120 |
| Features | Spherical Rod End, System of Measurement Inch, Ball Stud Center L |
| Bearings | 52100 Steel Spherical Ball |
| Housing | Carbon Steel |
| Battery Included | No |
| Dimension A | 5/8-18" |
| Dimension B | 1.000" |
| Dimension H | 1.625" |
| Dimension C | 1.500" |
| Dimension E | 1.500" |
| Dimension G | 2.625" |
| Dimension J | 3.375" |
| Max. Angular Misalignment | 26 Degrees |
| Thread | Right Hand |
| Ball | 52100 Steel Spherical |
| Static Radial Load | 11,385 lb. |
| Stud Length | 1.500" |
Check the listing for details. Qa1 Cmr10s Male Stud Rod End, Rh, 5/8-18. Width: 2.880, Condition: New, Made in CN. Listed at 17.85 USD. General Purpose. & Recepticles. Electrical Outlets. Light Industrial. and Enclosures. Electrical Boxes. & Industrial.
You may also like
$134.3
4040 2 7/16 BLACKSTAR TL Bushing
$16.25
4Pcs Sleeve Bearings, 10x16x18mm Self-Lubricating Sintered Bronze Bushings
$133.79
4040 100MM BLACKSTAR TL Bushing
$14.99

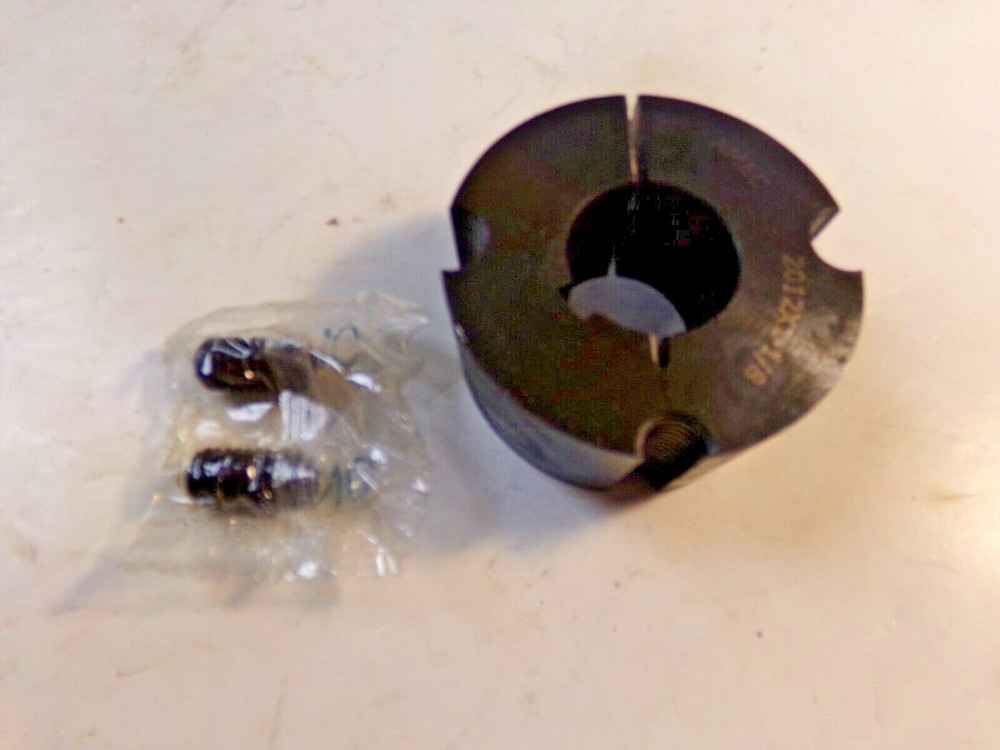

AMEC 2012 TAPER BUSHING 1-1/8" BORE
$34.62
SD 1 3/8 BLACKSTAR QD Bushing
$16.14
12pcs Flanged Sleeve Bearings ID 8.1mm x OD 10mm x Length 11mm, White
$17.74
12Pcs Sleeve Bearings, 12x16x10mm Self-Lubricating Sintered Iron Bushings
$133.79
4040 3 9/16 BLACKSTAR TL Bushing
$30

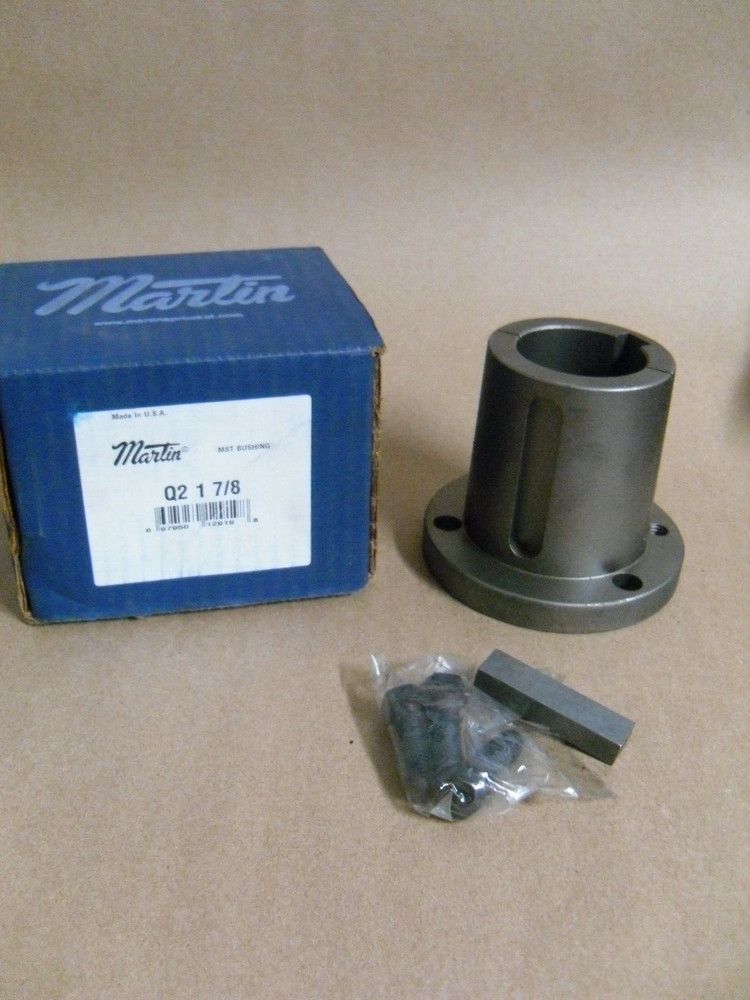

Q2 1-7/8 MARTIN SPLIT TAPER BUSHING
