| Country of Origin | United States |
|---|---|
| Brand | Gottlieb |
| Year | 1975 |

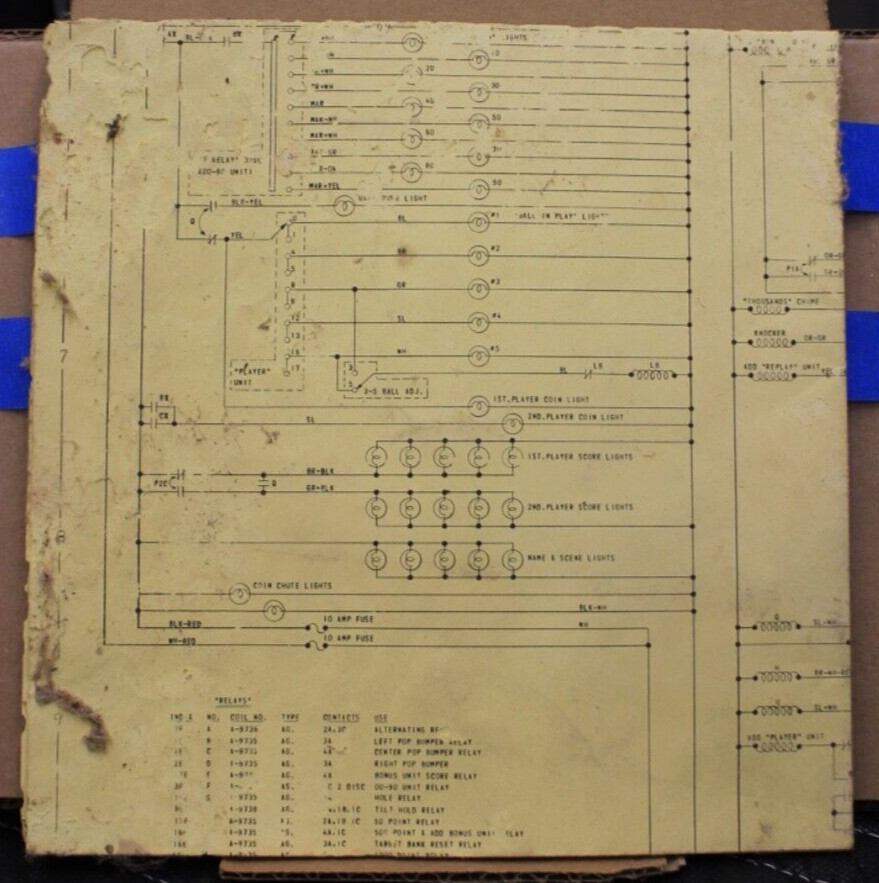

Check the listing for details. Quick Draw Circuit Diagram - Gottleib - 1975. Condition: Used, Made in United States. Listed at 25.00 USD. The product is a circuit diagram for the Gottlieb Quick Draw pinball machine manufactured in the United States in 1975. The diagram provides a detailed schematic of the electrical components and connections within the pinball machine, essential for troubleshooting and repairing any issues that may arise during gameplay. This manual is a valuable resource for collectors and enthusiasts of vintage pinball machines, offering insights into the inner workings of this specific model from Gottlieb's lineup.
