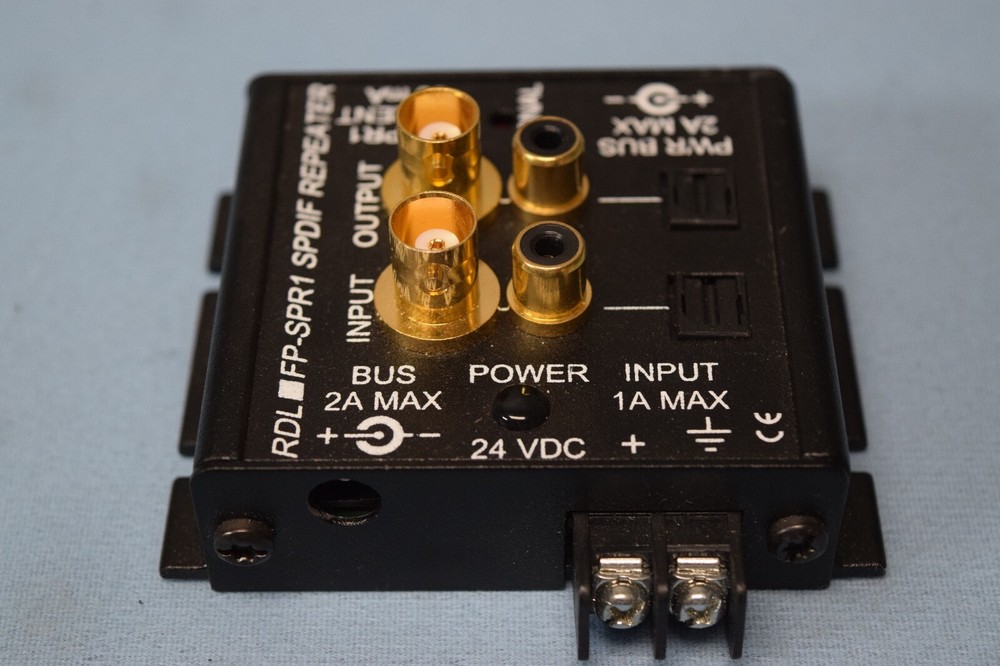

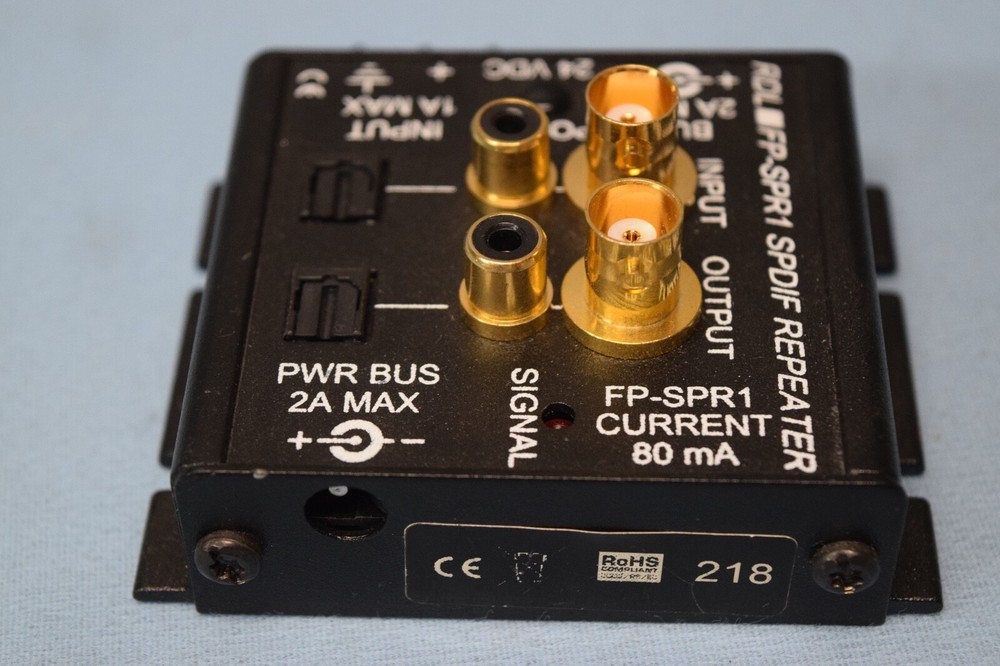

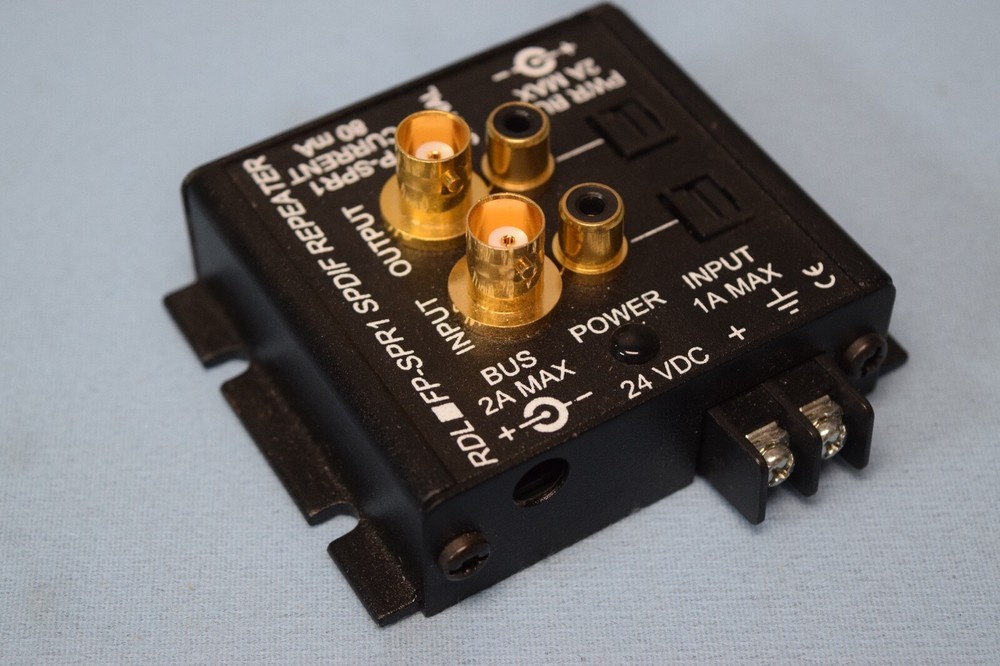

Check the listing for details. RDL FP-SPR1 SPDIF Repeater / Amplifier. Condition: Used. Listed at 47.95 USD. RDL FP-SPR1 SPDIF Repeater / AmplifierNo power supply or cable is included with this listing.FREE SHIPPING in the continental United States. Description:The FP-SPR1 is the ideal product for applications requiring either conversion between SPDIF connector types or recovery of low SPDIF signal levels. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.The FP-SPR1 is a single-channel module featuring three separate inputs. An input is provided in each conventional SPDIF format: BNC, phono and optical. Any one of these inputs may be used. A coaxial input has priority over the optical input. Three output jacks are also provided: BNC, phono and optical. Either of the coaxial jacks may be used and/or the optical output may be connected. It is possible to use only one of the three outputs or use one coaxial and the optical output simultaneously. A front-panel SIGNAL LED illuminates when an input signal of sufficient amplitude is received to produce the correct output from the module.Specifications:Inputs (3):75 Ω BNC coaxial, 75 Ω phono coaxial, opticalInput Level:100 mV to 2.5 V p-p (coaxial)Outputs (3):75 Ω BNC coaxial, 75 Ω phono coaxial, opticalOutput Level:500 mV p-p (coaxial)Frequency Range:28 kHz to 48 kHzIndicator (1):Signal present LEDJitter:< 200 pS (input signal 200 mV p-p or greater), < 1 nS (input signal 100 mV p-p)Ambient Operating Environment:-10° C to 55° CPower Requirement:GROUND-REFERENCED, 24 Vdc @ 80 mA Note: May operate from 12 Vdc in standalone installationsDimensions:Height: 1.34 in. 3.40 cm; Width: 3.25 in. 8.26 cm; Length: 2.82 in. 7.16 cmPackage Type:Cardboard BoxPackage Dimensions:3.625 x 4.625 x 2.125 in.Shipping Weight:0.55 lbs.WEEE weight:0.375 lbs.Tariff code:8543.70.9860
